Search Service Application in SharePoint 2013

Hi everyone here I will describe the search service application in SharePoint 2013.

So first let us see the differences between the SharePoint 2010 and SharePoint 2013 search service applications.

SharePoint 2010 SharePoint 2013
No PDF iFilter Added PDF iFilter
No Fast Search Builtin Fast Search
No Search analytics Added Search analytics
Create 3 Content DB Create 4 Content DB

Let us begin to configure the search service application using SharePoint 2013. Before that create one domain user and register that user.

  • In managed account (CA-> Security -> configure managed account).

    Here I created one domain user and named it Search_admin.

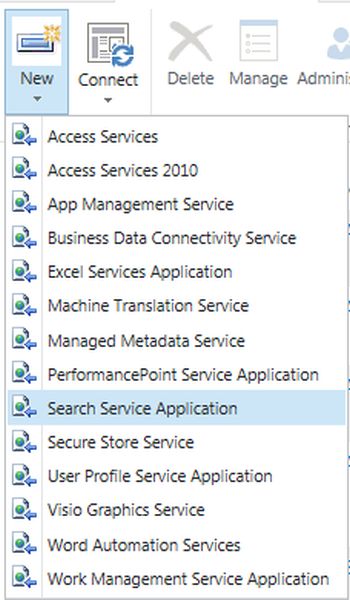

    Go to Configure service application using Central Administration (CA -> Application Management -> Manage service application) and click the new button on the top ribbon and click search service application.

    search service application

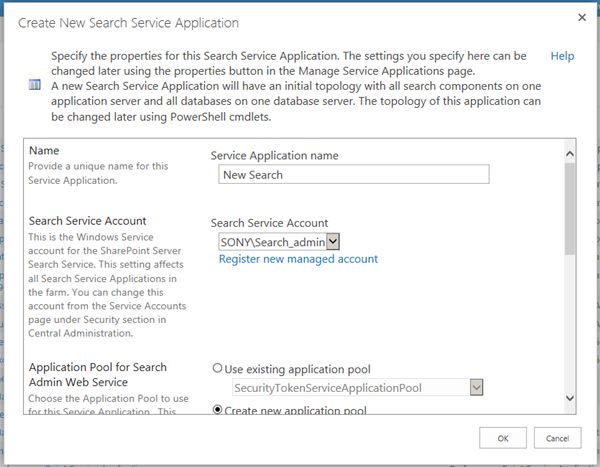

  • After clicking search service application, the following window will pop up. Provide a name for the service application.

    create new search service application

  • I gave the name for the service application New Search and created a new application pool for the search admin web service and named it SearchPool and made a domain user (Search_admin) as a configurable.

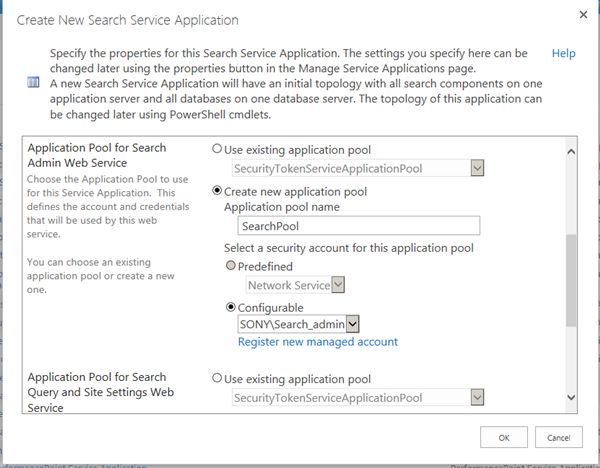

    create new application pool

  • Next create a new application pool for the search query and site setting web service, here I used the name SearchQuery and made a domain user (Search_admin) as a configurable. That you can see in the following window.

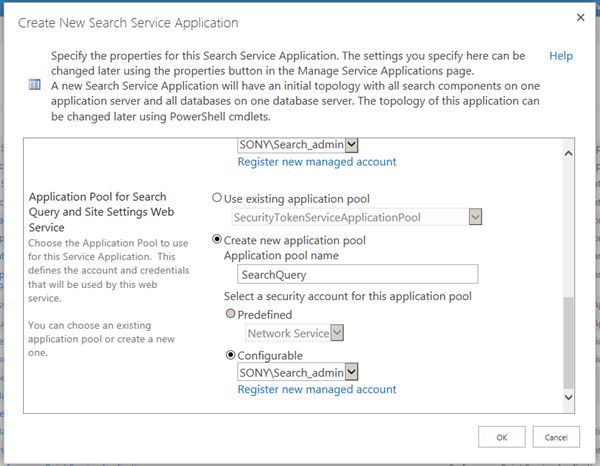

    search query

  • Once configuring everything, click OK to create a new search service application instance. Then a new search service application is created with a search service application proxy.

    new search

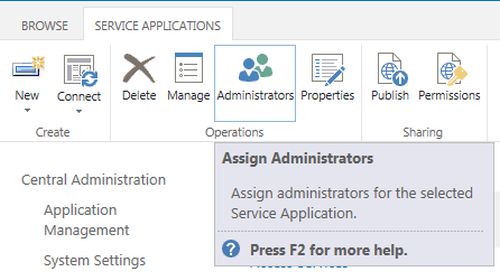

  • Before entering into the search service application make a domain user (Search_admin) as administrator for the newly create service instance.

    service application

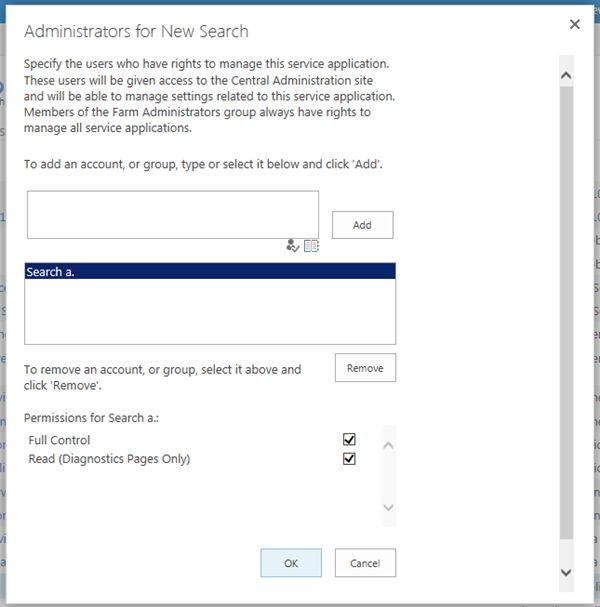

  • So click Administrator on the top of the ribbon and make that domain user (search_admin) as the administrator and provide full control for that user then click OK.

    administrator for new search
Now it's time to add and crawl the content and index the crawled item then make the end user to search their content in the search page.

Now open the new search service application instance to configure the content source.

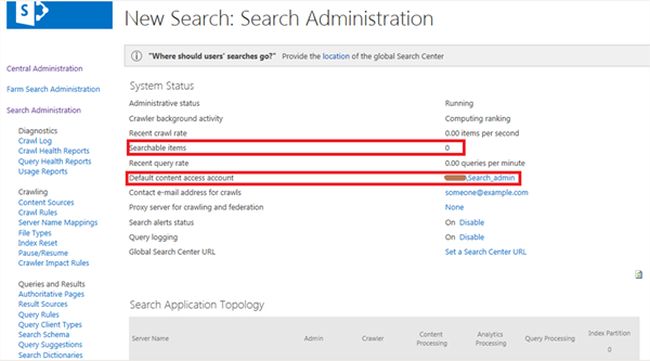

The following figure can explain for you about the search administration, here the searchable content is zero and the default content access account is Search_admin with the privilege to read the content from the local SharePoint site and UNC.

search administrator
  • Next I will add a content source to the search service application, so in the left quick launch bar you can see the content source in the crawling category by clicking. You can see that in the following window.

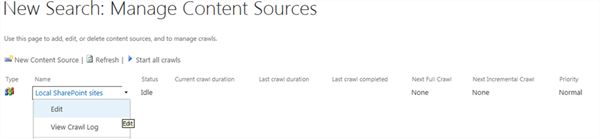

    manage content sources

  • Just click the existing content source and add the URL of the web applications that you need to crawl the content of.

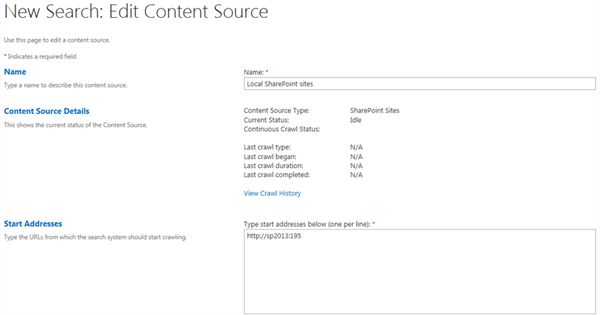

    edit content source

  • Then provide a crawl type and timing then click OK.

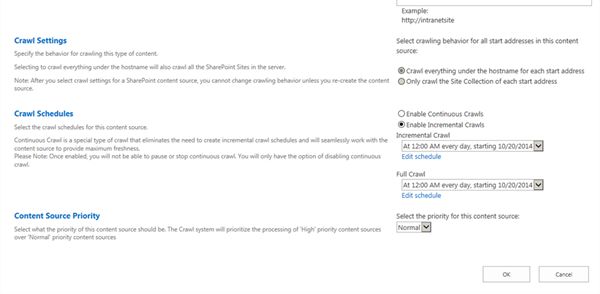

    crawl and timing

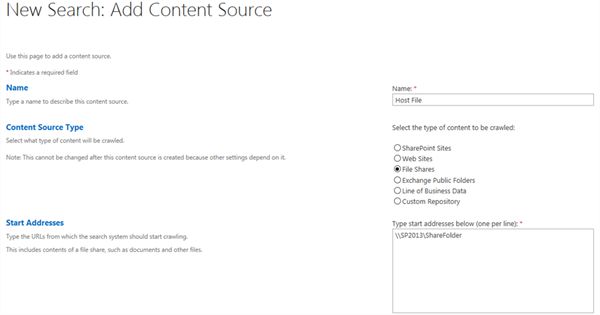

  • Next I will create a new content source that will crawl the content from my local computer, so click add new content source from the top of the screen then you can see the following window.

    file shares

  • Just give a name for the content source and select File share then provide an address of which path you need to crawl then set the crawl timing then click OK.

    Note: the path folder should be shared.

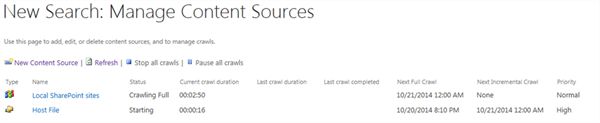

    new content source

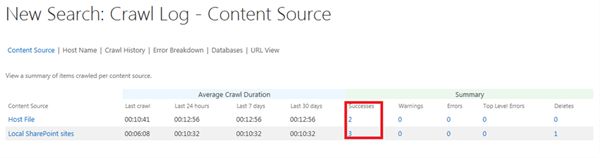

  • Once you have configured everything the crawl system will start crawling content from SharePoint Sites and UNC path, you can see the crawl log by clicking the crawl log from the left quick launch bar.

    content source status

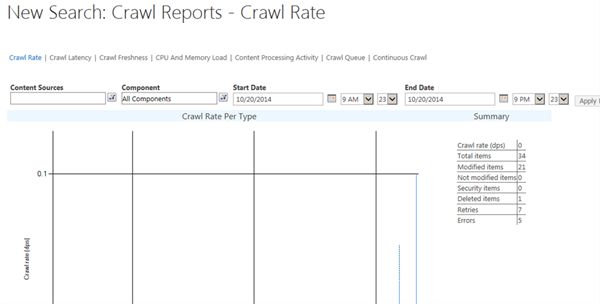

  • Here you can see the successes crawl content from the crawl log without any error and below you can see the crawl analytics.

    Crawl rate

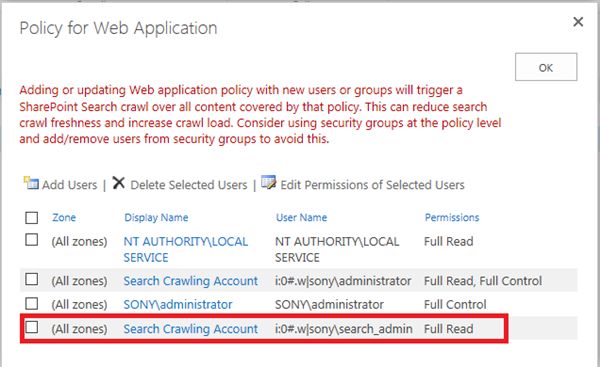

    In case you cannot crawl the content or you get an error while crawling, kindly check the policy for the web application to see whether the search crawl administrator has full Read control.

    policy for web application
Then create an Enterprise or basic search page for search content.
