Exception Logging In MVC Using Elmah

What is Elmah

According to Scott Mitchell, Error Logging Modules And Handlers (ELMAH) offers another approach to log runtime errors in a production environment. ELMAH is a free, open source error logging library that includes features like error filtering and the ability to view the error log from a web page, as an RSS feed, or to download it as a comma-delimited file.

What we will achieve through Elmah

  • Logging of nearly all unhandled exceptions.

  • Email notification of each error at the time error occurs.

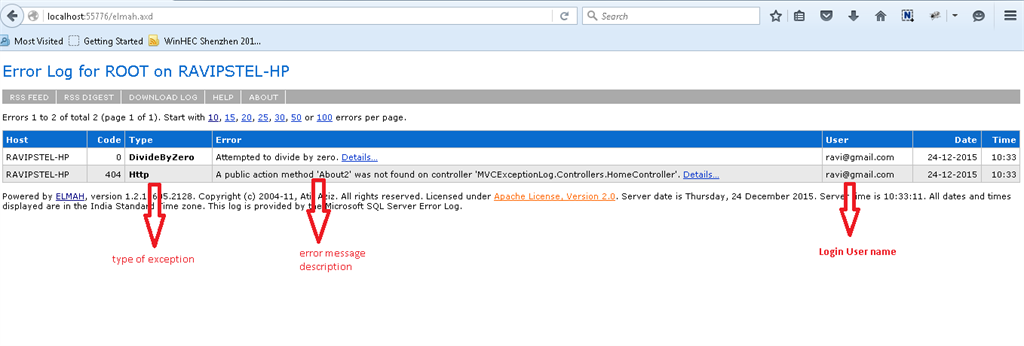

  • View the error log from a web page.

  • RSS feed .

Step 1: Create a MVC web Application

Open Visual Studio create new project or press CTRL +SHIFT +N. Go to Web tab, select ASP.NET Web Application template. Give name as MVCExceptionLog as in the following screenshot,

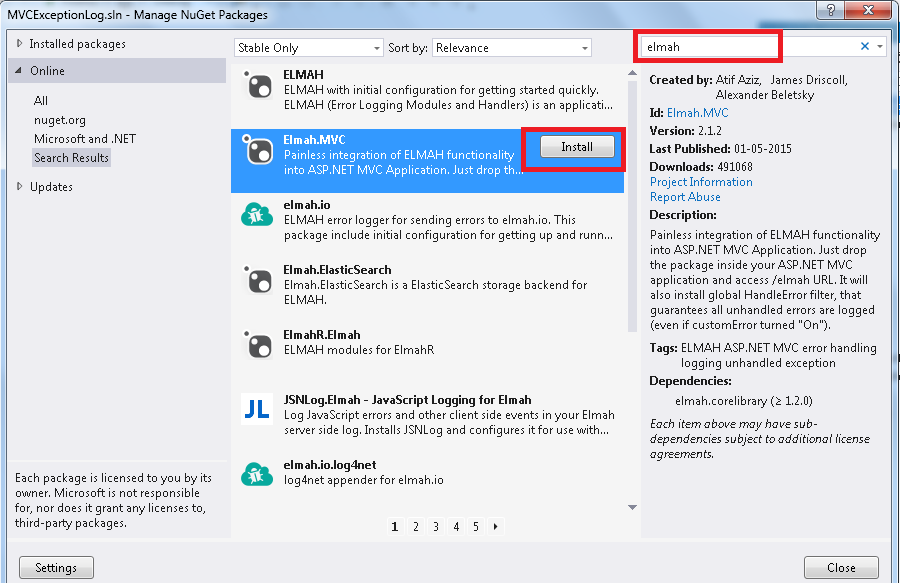

Step 2: Add Elmah Package from Nuget,

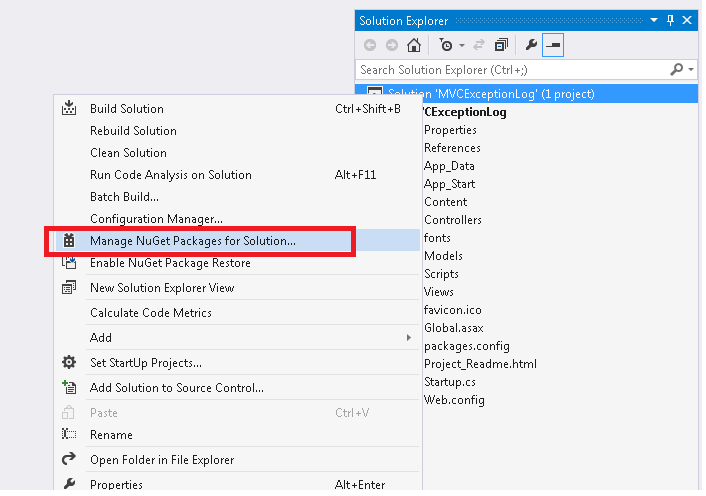

Right click on project solution go to Manage NuGetPackages for Solution, click on it and search elmah and install it,




Step 3: Now open web config file and add the following code inside <system.web> </system.web>,

  1. <!--add this-->
  2.     < httpHandlers >
  3.     < add verb = "POST,GET,HEAD"path = "elmah.axd"type = "Elmah.ErrorLogPageFactory, Elmah" / >
  4.     < /httpHandlers>
  5. <!--add this-->

Also, add the following code inside <system.webServer></system.webServer>,

  1. <!--add this-->
  2.     < handlers >
  3.     < add name = "Elmah"verb = "POST,GET,HEAD"path = "elmah.axd"type = "Elmah.ErrorLogPageFactory, Elmah" / >
  4.     < /handlers>
  5. <!--add this-->

Step 4:  Create table and Stored Procedure,

Here I am using SQL Server database to log the exception.  I have already created database SQL Server named ExceptionLog. Open SQL Server Management Studio, run the following code in ExceptionLog database one by one.

For Table

  1. CREATE TABLE[dbo].[ELMAH_Error]
  2. (
  3.
  4.     [ErrorId][uniqueidentifier] NOT NULL,
  5.
  6.     [Application][nvarchar](60) NOT NULL,
  7.
  8.     [Host][nvarchar](50) NOT NULL,
  9.
  10.     [Type][nvarchar](100) NOT NULL,
  11.
  12.     [Source][nvarchar](60) NOT NULL,
  13.
  14.     [Message][nvarchar](500) NOT NULL,
  15.
  16.     [User][nvarchar](50) NOT NULL,
  17.
  18.     [StatusCode][int] NOT NULL,
  19.
  20.     [TimeUtc][datetime] NOT NULL,
  21.
  22.     [Sequence][int] IDENTITY(1, 1) NOT NULL,
  23.
  24.     [AllXml][ntext] NOT NULL
  25.
  26. )

Stored procedure

    1. Create PROCEDURE[dbo].[ELMAH_GetErrorsXml]
    2.
    3. (
    4.     @Application NVARCHAR(60),
    5.     @PageIndex INT = 0,
    6.     @PageSize INT = 15,
    7.     @TotalCount INT OUTPUT
    8.
    9. )
    10.
    11. AS
    12.
    13. SET NOCOUNT ON
    14.
    15. DECLARE @FirstTimeUTC DATETIME
    16. DECLARE @FirstSequence INT
    17. DECLARE @StartRow INT
    18. DECLARE @StartRowIndex INT
    19. SELECT
    20.
    21. @TotalCount = COUNT(1)
    22.
    23. FROM
    24.
    25.     [ELMAH_Error]
    26.
    27. WHERE
    28.
    29.     [Application] = @Application
    30. SET @StartRowIndex = @PageIndex * @PageSize + 1
    31. IF @StartRowIndex <= @TotalCount
    32.
    33. BEGIN
    34.
    35. SET ROWCOUNT @StartRowIndex
    36.
    37. SELECT
    38.
    39. @FirstTimeUTC = [TimeUtc],
    40.
    41.     @FirstSequence = [Sequence]
    42.
    43. FROM
    44.
    45.     [ELMAH_Error]
    46.
    47. WHERE
    48.
    49.     [Application] = @Application
    50.
    51. ORDER BY
    52.
    53.     [TimeUtc] DESC,
    54.     [Sequence] DESC
    55.
    56. END
    57.
    58. ELSE
    59.
    60. BEGIN
    61.
    62. SET @PageSize = 0
    63.
    64. END
    65.
    66. SET ROWCOUNT @PageSize
    67.
    68. SELECT
    69.
    70. errorId = [ErrorId],
    71.
    72.     application = [Application],
    73.     host = [Host],
    74.     type = [Type],
    75.     source = [Source],
    76.     message = [Message],
    77.     [user] = [User],
    78.     statusCode = [StatusCode],
    79.     time = CONVERT(VARCHAR(50), [TimeUtc], 126) + 'Z'
    80.
    81. FROM
    82.
    83.     [ELMAH_Error] error
    84.
    85. WHERE
    86.
    87.     [Application] = @Application
    88.
    89. AND
    90.
    91.     [TimeUtc] <= @FirstTimeUTC
    92.
    93. AND
    94.
    95.     [Sequence] <= @FirstSequence
    96.
    97. ORDER BY
    98.
    99.     [TimeUtc] DESC,
    100.
    101.     [Sequence] DESC
    102.
    103. FOR
    104.
    105. XML AUTO

    1. Create PROCEDURE[dbo].[ELMAH_GetErrorXml]
    2.
    3. (
    4.
    5.     @Application NVARCHAR(60),
    6.     @ErrorId UNIQUEIDENTIFIER
    7.
    8. )
    9.
    10. AS
    11.
    12. SET NOCOUNT ON
    13. SELECT
    14.
    15.     [AllXml]
    16. FROM
    17.
    18.     [ELMAH_Error]
    19. WHERE
    20.
    21.     [ErrorId] = @ErrorId
    22. AND
    23.     [Application] = @Application

    1. Create PROCEDURE[dbo].[ELMAH_LogError]
    2.
    3. (
    4.
    5.     @ErrorId UNIQUEIDENTIFIER,
    6.     @Application NVARCHAR(60),
    7.     @Host NVARCHAR(30),
    8.     @Type NVARCHAR(100),
    9.     @Source NVARCHAR(60),
    10.     @Message NVARCHAR(500),
    11.     @User NVARCHAR(50),
    12.     @AllXml NTEXT,
    13.     @StatusCode INT,
    14.     @TimeUtc DATETIME
    15.
    16. )
    17.
    18. AS
    19.
    20. SET NOCOUNT ON
    21.
    22. INSERT
    23.
    24. INTO
    25.
    26.     [ELMAH_Error]
    27. (
    28.
    29.     [ErrorId],
    30.     [Application],
    31.     [Host],
    32.     [Type],
    33.     [Source],
    34.     [Message],
    35.     [User],
    36.     [AllXml],
    37.     [StatusCode],
    38.     [TimeUtc]
    39.
    40. )
    41.
    42. VALUES
    43.
    44.     (
    45.
    46.     @ErrorId,
    47.     @Application,
    48.     @Host,
    49.     @Type,
    50.     @Source,
    51.     @Message,
    52.     @User,
    53.     @AllXml,
    54.     @StatusCode,
    55.     @TimeUtc
    56.
    57. )

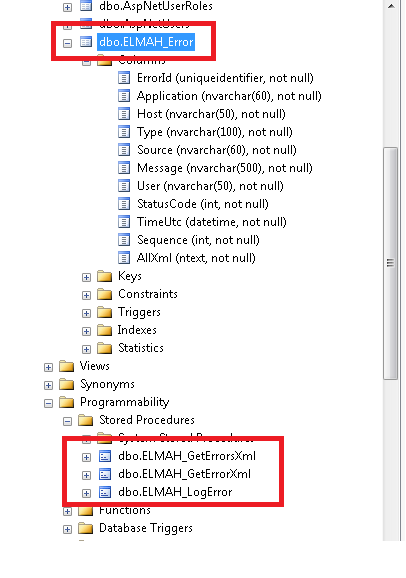

After creating the database table and stored procedure. The schema will look like the following:


Now again  open web config file, add the following code inside in <configuration>,
  1. </configuration>
  2. <elmah>
  3.     <!--. If allowRemoteAccess value is set to 0, then the error log web page can only be viewed locally. If allowRemoteAccess attribute is set to 1 then the error log web page is enabled for both remote and local visitors.-->
  4.     <!--add this-->
  5.     <security allowRemoteAccess="0" />
  6.     <!--  DefaultConnection is the name of database connection string -->
  7.     <errorLog type="Elmah.SqlErrorLog, Elmah" connectionStringName="DefaultConnection" />
  8.     <!--add this-->
  9. </elmah>
Now my final webconfig file look like the following,
  1. <?xml version="1.0" encoding="utf-8"?>
  2.     <!--
  3. For more information on how to configure your ASP.NET application, please visit
  4. http://go.microsoft.com/fwlink/?LinkId=301880
  5. -->
  6.     <configuration>
  7.         <configSections>
  8.             <!-- For more information on Entity Framework configuration, visit http://go.microsoft.com/fwlink/?LinkID=237468 -->
  9.             <section name="entityFramework" type="System.Data.Entity.Internal.ConfigFile.EntityFrameworkSection, EntityFramework, Version=6.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089" requirePermission="false" />
  10.             <sectionGroup name="elmah">
  11.                 <section name="security" requirePermission="false" type="Elmah.SecuritySectionHandler, Elmah" />
  12.                 <section name="errorLog" requirePermission="false" type="Elmah.ErrorLogSectionHandler, Elmah" />
  13.                 <section name="errorMail" requirePermission="false" type="Elmah.ErrorMailSectionHandler, Elmah" />
  14.                 <section name="errorFilter" requirePermission="false" type="Elmah.ErrorFilterSectionHandler, Elmah" />
  15.             </sectionGroup>
  16.         </configSections>
  17.         <connectionStrings>
  18.             <add name="DefaultConnection" connectionString="Data Source=.;Initial Catalog=ExceptionLog;Integrated Security=True" providerName="System.Data.SqlClient" />
  19.         </connectionStrings>
  20.         <appSettings>
  21.             <add key="webpages:Version" value="3.0.0.0" />
  22.             <add key="webpages:Enabled" value="false" />
  23.             <add key="ClientValidationEnabled" value="true" />
  24.             <add key="UnobtrusiveJavaScriptEnabled" value="true" />
  25.             <add key="elmah.mvc.disableHandler" value="false" />
  26.             <add key="elmah.mvc.disableHandleErrorFilter" value="false" />
  27.             <add key="elmah.mvc.requiresAuthentication" value="false" />
  28.             <add key="elmah.mvc.IgnoreDefaultRoute" value="false" />
  29.             <add key="elmah.mvc.allowedRoles" value="*" />
  30.             <add key="elmah.mvc.allowedUsers" value="*" />
  31.             <add key="elmah.mvc.route" value="elmah" />
  32.             <add key="elmah.mvc.UserAuthCaseSensitive" value="true" />
  33.         </appSettings>
  34.         <system.web>
  35.             <authentication mode="None" />
  36.             <compilation debug="true" targetFramework="4.5.1" />
  37.             <httpRuntime targetFramework="4.5.1" />
  38.
  39.             <!--add this-->
  40.             <httpHandlers>
  41.                 <add verb="POST,GET,HEAD" path="elmah.axd" type="Elmah.ErrorLogPageFactory, Elmah" />
  42.             </httpHandlers>
  43.
  44.             <!--add this-->
  45.             <httpModules>
  46.                 <add name="ErrorLog" type="Elmah.ErrorLogModule, Elmah" />
  47.                 <add name="ErrorMail" type="Elmah.ErrorMailModule, Elmah" />
  48.                 <add name="ErrorFilter" type="Elmah.ErrorFilterModule, Elmah" />
  49.             </httpModules>
  50.         </system.web>
  51.         <system.webServer>
  52.             <!--add this-->
  53.             <handlers>
  54.                 <add name="Elmah" verb="POST,GET,HEAD" path="elmah.axd" type="Elmah.ErrorLogPageFactory, Elmah" />
  55.             </handlers>
  56.             <!--add this-->
  57.             <modules>
  58.                 <remove name="FormsAuthentication" />
  59.                 <add name="ErrorLog" type="Elmah.ErrorLogModule, Elmah" preCondition="managedHandler" />
  60.                 <add name="ErrorMail" type="Elmah.ErrorMailModule, Elmah" preCondition="managedHandler" />
  61.                 <add name="ErrorFilter" type="Elmah.ErrorFilterModule, Elmah" preCondition="managedHandler" />
  62.             </modules>
  63.             <validation validateIntegratedModeConfiguration="false" />
  64.
  65.         </system.webServer>
  66.         <runtime>
  67.             <assemblyBinding xmlns="urn:schemas-microsoft-com:asm.v1">
  68.                 <dependentAssembly>
  69.                     <assemblyIdentity name="Microsoft.Owin" publicKeyToken="31bf3856ad364e35" />
  70.                     <bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
  71.                 </dependentAssembly>
  72.                 <dependentAssembly>
  73.                     <assemblyIdentity name="Microsoft.Owin.Security.OAuth" publicKeyToken="31bf3856ad364e35" />
  74.                     <bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
  75.                 </dependentAssembly>
  76.                 <dependentAssembly>
  77.                     <assemblyIdentity name="Microsoft.Owin.Security.Cookies" publicKeyToken="31bf3856ad364e35" />
  78.                     <bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
  79.                 </dependentAssembly>
  80.                 <dependentAssembly>
  81.                     <assemblyIdentity name="Microsoft.Owin.Security" publicKeyToken="31bf3856ad364e35" />
  82.                     <bindingRedirect oldVersion="0.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
  83.                 </dependentAssembly>
  84.                 <dependentAssembly>
  85.                     <assemblyIdentity name="Newtonsoft.Json" culture="neutral" publicKeyToken="30ad4fe6b2a6aeed" />
  86.                     <bindingRedirect oldVersion="0.0.0.0-6.0.0.0" newVersion="6.0.0.0" />
  87.                 </dependentAssembly>
  88.                 <dependentAssembly>
  89.                     <assemblyIdentity name="System.Web.Helpers" publicKeyToken="31bf3856ad364e35" />
  90.                     <bindingRedirect oldVersion="1.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
  91.                 </dependentAssembly>
  92.                 <dependentAssembly>
  93.                     <assemblyIdentity name="System.Web.Mvc" publicKeyToken="31bf3856ad364e35" />
  94.                     <bindingRedirect oldVersion="0.0.0.0-5.2.2.0" newVersion="5.2.2.0" />
  95.                 </dependentAssembly>
  96.                 <dependentAssembly>
  97.                     <assemblyIdentity name="System.Web.Optimization" publicKeyToken="31bf3856ad364e35" />
  98.                     <bindingRedirect oldVersion="1.0.0.0-1.1.0.0" newVersion="1.1.0.0" />
  99.                 </dependentAssembly>
  100.                 <dependentAssembly>
  101.                     <assemblyIdentity name="System.Web.WebPages" publicKeyToken="31bf3856ad364e35" />
  102.                     <bindingRedirect oldVersion="1.0.0.0-3.0.0.0" newVersion="3.0.0.0" />
  103.                 </dependentAssembly>
  104.                 <dependentAssembly>
  105.                     <assemblyIdentity name="WebGrease" publicKeyToken="31bf3856ad364e35" />
  106.                     <bindingRedirect oldVersion="0.0.0.0-1.5.2.14234" newVersion="1.5.2.14234" />
  107.                 </dependentAssembly>
  108.             </assemblyBinding>
  109.         </runtime>
  110.         <entityFramework>
  111.             <defaultConnectionFactory type="System.Data.Entity.Infrastructure.LocalDbConnectionFactory, EntityFramework">
  112.                 <parameters>
  113.                     <parameter value="mssqllocaldb" />
  114.                 </parameters>
  115.             </defaultConnectionFactory>
  116.             <providers>
  117.                 <provider invariantName="System.Data.SqlClient" type="System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer" />
  118.             </providers>
  119.         </entityFramework>
  120.         <elmah>
  121.
  122.             <!--add this-->
  123.             <!--. If allowRemoteAccess value is set to 0, then the error log web page can only be viewed locally. If this attribute is set to 1 then the error log web page is enabled for both remote and local visitors.-->
  124.             <security allowRemoteAccess="0" />
  125.             <errorLog type="Elmah.SqlErrorLog, Elmah" connectionStringName="DefaultConnection" />
  126.             <!--add this-->
  127.         </elmah>
  128.
  129.     </configuration>
Step 5: Let us create some exception
  1. Suppose I want to open a page that are not in our application. Let us say About2 page: localhost:55776/Home/About2

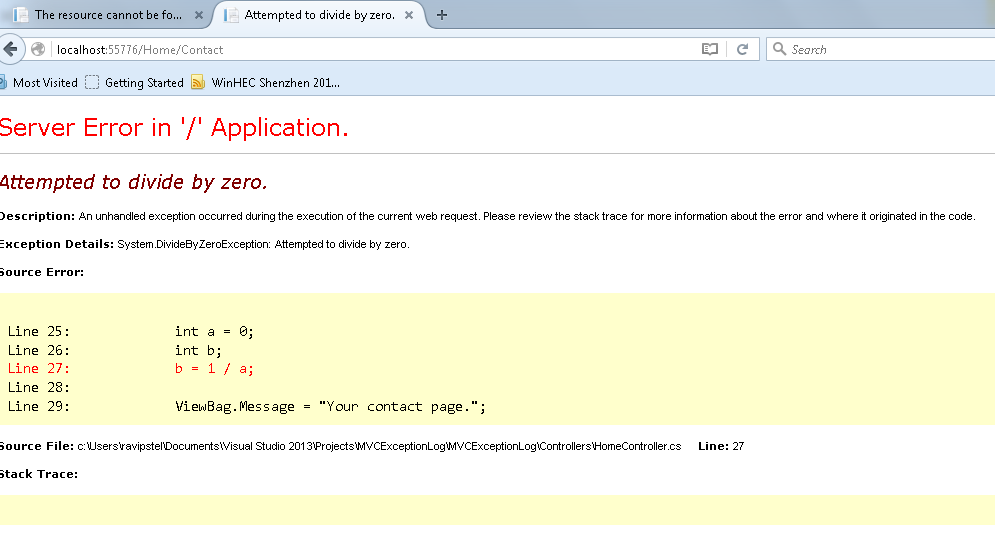

  2. Create divide by zero exception in contact page
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. namespace MVCExceptionLog.Controllers
  7. {
  8.     public class HomeController: Controller
  9.     {
  10.         public ActionResult Index()
  11.         {
  12.             return View();
  13.         }
  14.         public ActionResult About()
  15.         {
  16.             ViewBag.Message = "Your application description page.";
  17.             return View();
  18.         }
  19.         public ActionResult Contact()
  20.         {
  21.             int a = 0;
  22.             int b;
  23.             b = 1 / a;
  24.             ViewBag.Message = "Your contact page.";
  25.             return View();
  26.         }
  27.     }
  28. }


Step 5: Run the application,

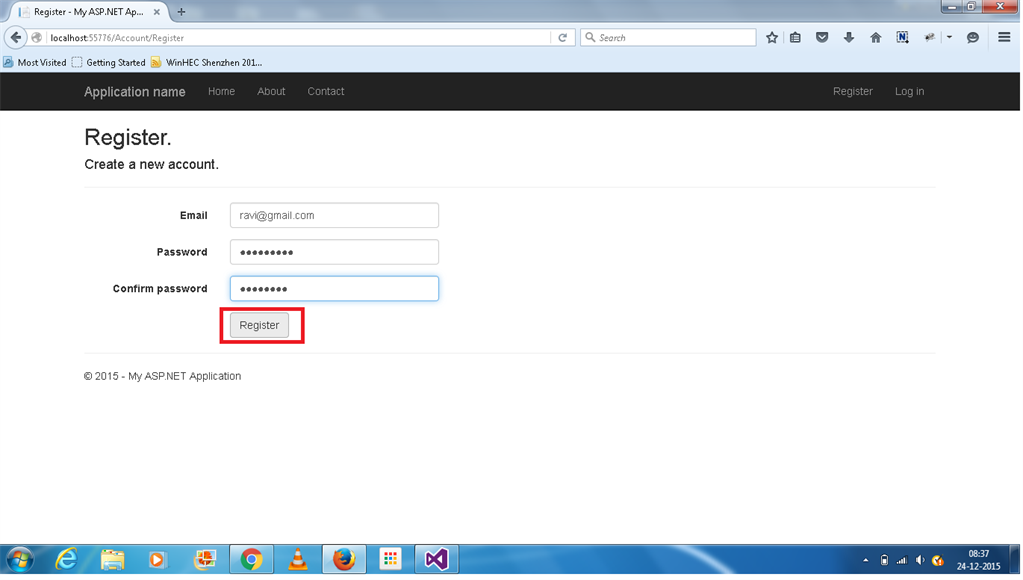

Click on F5 and register a user.



Step 6: View the Error Log from a Web Page,

You can view the error log web page through the url localhost:portno/elmah.axd like, localhost:55776/elmah.axd.

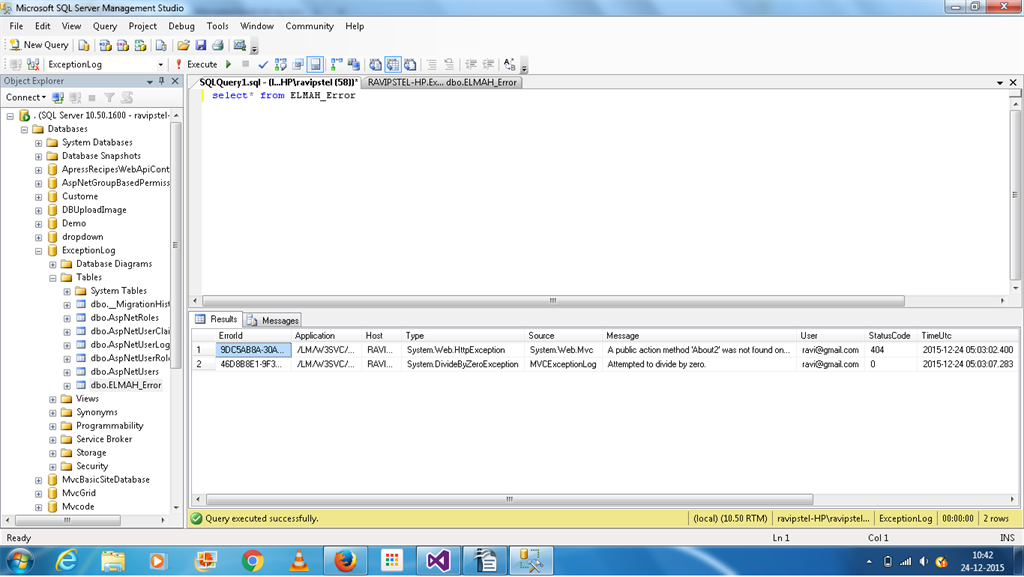

Check the error log in database.


Point of Interest

In this article we learned how to log Exception in SQL Server and  view error log details from web page.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
