Windows Phone Development For Beginner - Part 4

Before reading this article, I highly recommend reading my previous articles:

In this part, I will explain how to write an application and access a TextBox value in Windows Phone.

Let's start to write the application.

Write first Application

Select New project from the File menu and select Windows Phone applicaton. Add three TextBoxes to the grid panel and add one button and two textboxes for entering values and a third TextBox for the result.

MainPage.xaml

  1.
  2. <!--LayoutRoot is the root grid where all page content is placed-->
  3. <Grid x:Name="LayoutRoot" Background="Transparent">
  4.     <Grid.RowDefinitions>
  5.         <RowDefinition Height="Auto"/>
  6.         <RowDefinition Height="*"/>
  7.     </Grid.RowDefinitions>
  8.     <!--TitlePanel contains the name of the application and page title-->
  9.     <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
  10.         <TextBlock x:Name="ApplicationTitle" Text="MY APPLICATION" Style="{StaticResource PhoneTextNormalStyle}"/>
  11.         <TextBlock x:Name="PageTitle" Text="1st Application" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
  12.     </StackPanel>
  13.     <!--ContentPanel - place additional content here-->
  14.     <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
  15.         <TextBlock x:Name="lblfirst" Text="Enter 1st Number" Margin="25,38,241,527"></TextBlock>
  16.         <TextBlock x:Name="lblsecond" Text="Enter 2nd Number" Margin="25,98,241,467"></TextBlock>
  17.         <TextBlock x:Name="lblresult" Text="Result" Margin="25,161,241,404"></TextBlock>
  18.         <TextBox x:Name="txtfirst" Margin="225,24,6,508"></TextBox>
  19.         <TextBox x:Name="txtsecond" Margin="225,84,6,450"></TextBox>
  20.         <TextBox x:Name="txtresult"  Margin="225,147,6,381"></TextBox>
  21.         <Button x:Name="btnadd" Height="95" Content="Addition" Margin="0,232,0,280" Click="btnadd_Click"></Button>
  22.     </Grid>
  23. </Grid

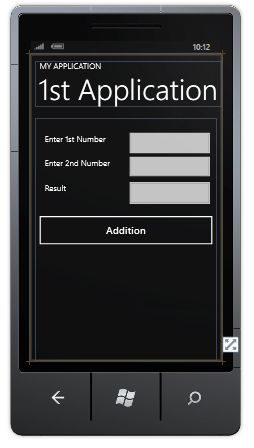

MainPage
                           Figure 1

Let's write the code for the button click event. The first and second TextBoxes accept the user input data and the third TextBox shows the addition of the two numbers.

MainPage.xaml.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Windows;
  6. using System.Windows.Controls;
  7. using System.Windows.Documents;
  8. using System.Windows.Input;
  9. using System.Windows.Media;
  10. using System.Windows.Media.Animation;
  11. using System.Windows.Shapes;
  12. using Microsoft.Phone.Controls;
  13.
  14. namespace WriteFirstApplication
  15. {
  16.     public partial class MainPage : PhoneApplicationPage
  17.     {
  18.         // Constructor
  19.         public MainPage()
  20.         {
  21.             InitializeComponent();
  22.         }
  23.
  24.         private void btnadd_Click(object sender, RoutedEventArgs e)
  25.         {
  26.
  27.             int result = Convert.ToInt32(txtfirst.Text)+Convert.ToInt32(txtsecond.Text);
  28.             txtresult.Text = result.ToString();
  29.
  30.
  31.         }
  32.     }
  33. }
After doing everything run your application.

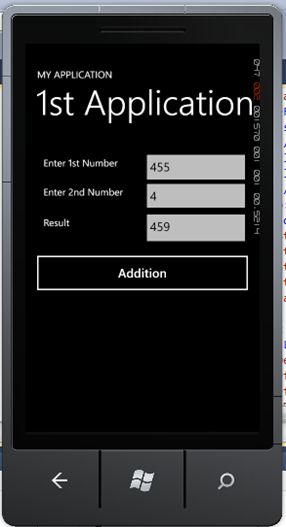

first application
                                 Figure 2

Now write one more code for showing the result in the messagebox. You can add only one line for the message box.

MessageBox.Show(“YourContent”)

MainPage.xaml.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Windows;
  6. using System.Windows.Controls;
  7. using System.Windows.Documents;
  8. using System.Windows.Input;
  9. using System.Windows.Media;
  10. using System.Windows.Media.Animation;
  11. using System.Windows.Shapes;
  12. using Microsoft.Phone.Controls;
  13.
  14. namespace WriteFirstApplication
  15. {
  16.     public partial class MainPage : PhoneApplicationPage
  17.     {
  18.         // Constructor
  19.         public MainPage()
  20.         {
  21.             InitializeComponent();
  22.         }
  23.
  24.         private void btnadd_Click(object sender, RoutedEventArgs e)
  25.         {
  26.
  27.             int result = Convert.ToInt32(txtfirst.Text)+Convert.ToInt32(txtsecond.Text);
  28. MessageBox.Show("Addition of "+ txtfirst.Text +"&"+ txtsecond.Text +"=" +result.ToString());
  29.
  30.
  31.
  32.         }
  33.     }
  34. }

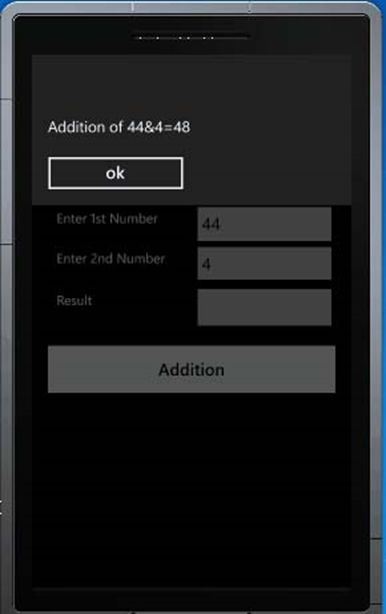

messagebox
Figure 3
