Procedure
- Start Eclipse IDE.
- Create a new project.
- Create a MainActivity.java file.
- Create an activity_main.xml for layout design.
- Add three buttons and one TextView fields in XML layout.
- Then look up buttons by their ids in MainActivity.java file.
- Use BluetoothAdapter like this:
final BluetoothAdapter mBluetoothAdapter = BluetoothAdapter.
getDefaultAdapter();
- Set the functionality of Bluetooth on buttons.
- On the first button enable Bluetooth like this:
Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
- On the second button enable Bluetooth Duration like this:
Intent enableBtIntent = new
Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);
- On third button disable the Bluetooth like this:
mBluetoothAdapter.disable();
Code is given below
MainActivity.java
package com.example.bluetooth;
import android.os.Bundle;
import android.app.Activity;
import android.view.Menu;
import android.app.Activity;
import android.bluetooth.BluetoothAdapter;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;
public class MainActivity extends Activity
{
private static final int REQUEST_ENABLE_BT = 0;
private static final int REQUEST_DISCOVERABLE_BT = 0;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
final TextView out=(TextView)findViewById(R.id.out);
final Button button1 = (Button) findViewById(R.id.button1);
final Button button2 = (Button) findViewById(R.id.button2);
final Button button3 = (Button) findViewById(R.id.button3);
final BluetoothAdapter mBluetoothAdapter = BluetoothAdapter.
getDefaultAdapter();
if (mBluetoothAdapter == null) {
out.append("device not supported");
}
button1.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
if (!mBluetoothAdapter.isEnabled()) {
Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
startActivityForResult(enableBtIntent, REQUEST_ENABLE_BT);
}
}
});
button2.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View arg0) {
if (!mBluetoothAdapter.isDiscovering()) {
Context context = getApplicationContext();
CharSequence text = "MAKING YOUR DEVICE DISCOVERABLE";
int duration = Toast.LENGTH_SHORT;
Toast toast = Toast.makeText(context, text, duration);
toast.show();
Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);
startActivityForResult(enableBtIntent, REQUEST_DISCOVERABLE_BT);
}
}
});
button3.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View arg0) {
mBluetoothAdapter.disable();
Context context = getApplicationContext();
CharSequence text = "TURNING_OFF BLUETOOTH";
int duration = Toast.LENGTH_LONG;
Toast toast = Toast.makeText(context, text, 15);
toast.show();
}
});
}
@Override
public boolean onCreateOptionsMenu(Menu menu) {
// Inflate the menu; this adds items to the action bar if it is present.
getMenuInflater().inflate(R.menu.activity_main, menu);
return true;
}
}
activity_main.xml
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity" >
<TextView android:text="" android:id="@+id/out" android:layout_width="wrap_content"
android:layout_height="wrap_content"></TextView>
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentLeft="true"
android:layout_alignParentTop="true"
android:layout_marginLeft="30dp"
android:layout_marginTop="49dp"
android:text="TURN_ON" />
<Button
android:id="@+id/button2"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button1"
android:layout_below="@+id/button1"
android:layout_marginTop="27dp"
android:text="DISCOVERABLE" />
<Button
android:id="@+id/button3"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignLeft="@+id/button2"
android:layout_below="@+id/button2"
android:layout_marginTop="28dp"
android:text="TURN_OFF" />
</RelativeLayout>
Output

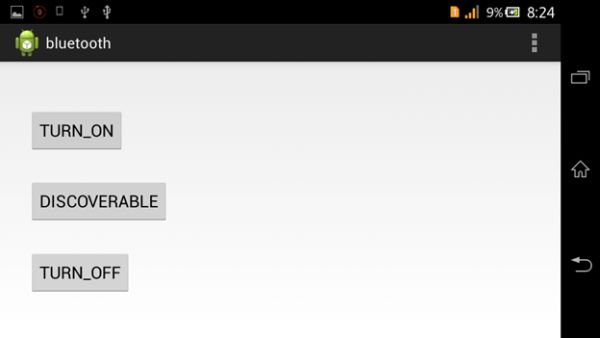

The following shows the initial output:

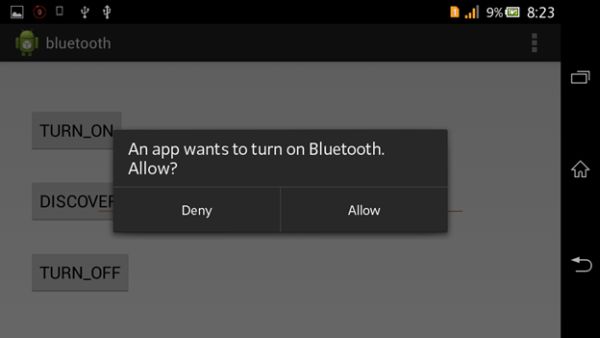

By clicking on Button1:

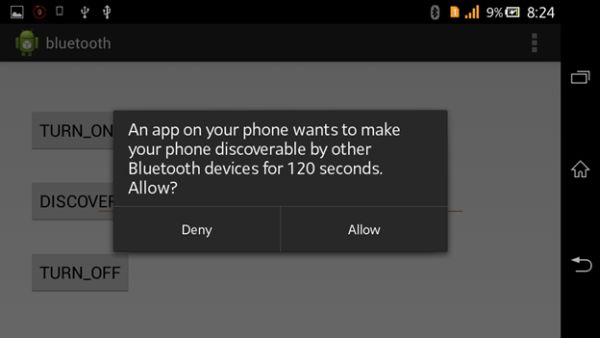

By clicking on Button2:
By clicking on Button3:
