In this article we learn how to create a Custom Toast.
Toast
A Toast provides simple feedback in a small popup about an operation. It only fills the amount of space required for the message and the current activity remains visible and interactive.
![Custom-Toast-in-Android.jpg]()
Need of Custom Toast

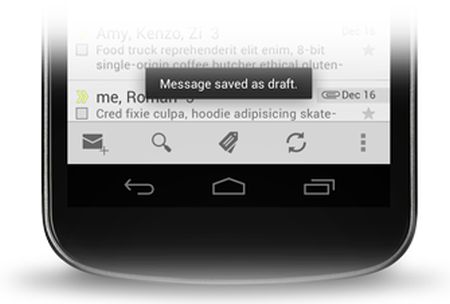

But what if you want to display your custom view in a Toast? Such as shown in the image above, only text is displayed, no other views are attached to it. It displayed at the bottom of the screen, but what if I want to display it in
the center or the top of the screen?
Each of the preceding questions have an answer. Let's have a look.
Tutorial: Custom Toast
In this tutorial, we will learn how to create and how to use a custom toast in our application. We will create an application that displays a toast message such as "Success" and "Failure" messages.
Step 1
Create a new Android project called "CustomToastDemo" with the following properties:
Project Build Target: Android 2.2 or higher
Package Name: com.test
Activity Name: CustomToastDemoActivity
Step 2
Now, we need to create a custom toast layout file. So create one layout file and name it "custom_toast.xml" and paste the following code into it:
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal"
android:layout_width="match_parent"
android:background="#DDAAAAAA"
android:layout_height="match_parent"
android:padding="10dp"
android:gravity="center_vertical">
<ImageView
android:id="@+id/imgCustomToast" android:layout_width="wrap_content"
android:layout_height="match_parent"
android:src="@drawable/success"
android:layout_marginRight="20dp" />
<TextView
android:id="@+id/txtCustomToast" android:layout_width="wrap_content"
android:layout_height="match_parent"
android:text="C# Corner"
android:gravity="center_vertical" />
</LinearLayout>
But this code will give you an error at "drawable/success". So what you need to do is to download 2 files shown here.
Failure Icon: ![Failure-Icon.jpg]()
Success Icon: ![Success-Icon.jpg]()

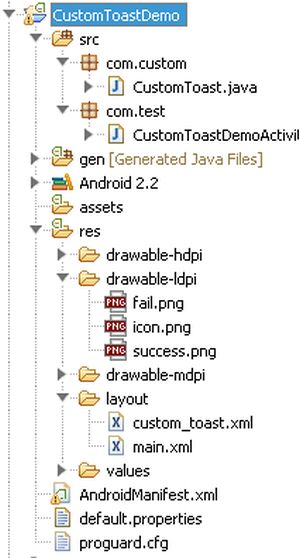

Download them and put then in the "drawable" directory as shown in the following figure:
![drawable-directory.jpg]()

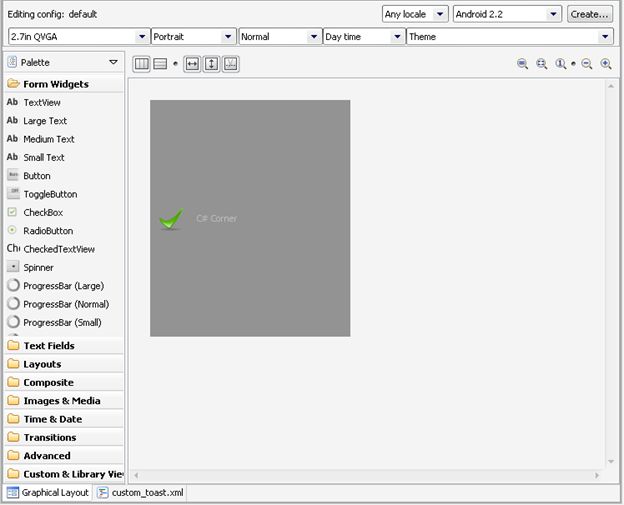

If you see graphical output of the current layout then it will look as in the following:
![graphical-output-of-current-layout.jpg]()
Step 3
Create a package called "com.custom" in your "src" directory.
Create a Java file called "CustomToast" in the "com.custom" package.
After completing the process above, paste the following code into the "CustomToast.java" file:
package com.custom;
import android.app.Activity;
import android.content.Context;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.Toast;
import com.test.R;
/**
* Custom Toast class extends Toast class to customize it
*
* @author R
*
*/
public class CustomToast extends Toast {
public CustomToast(Context context) {
super(context);
}
/**
* Custom Toast Cuontructor
*
* @param context
* : Required to pass to super constructor
* @param activity
* : Require to create custom layout inflater and to inflat
* layout
* @param message
* : Message to be shown in Toast
* @param flag
* : <br>
* True : Success Image<br>
* False: Failure ImageF
*/
public CustomToast(Context context, Activity activity, String message,
boolean flag) {
super(context);
/**
* Create a LayoutInflater to inflate layout, here activity is useful
*/
LayoutInflater inflater = activity.getLayoutInflater();
/**
* Create a view of layout which is used to show as toast
*/
View view = inflater.inflate(R.layout.custom_toast, null);
/**
* get id of image view which is defined in layout file
*/
ImageView img = (ImageView) view.findViewById(R.id.imgCustomToast);
/**
* get id of text view which is defined in layout file
*/
TextView txt = (TextView) view.findViewById(R.id.txtCustomToast);
/**
* Check whether flag is true or false and do operation
*/
if (flag)
img.setImageResource(R.drawable.success);
else
img.setImageResource(R.drawable.fail);
/**
* Set message to text view
*/
txt.setText(message);
/**
* Set gravity of Toast, you can set as per your need. Currently set to
* "CENTER" of the screen
*/
setGravity(Gravity.CENTER, 0, 0);
/**
* Pass how long toast will shown to the screen
*/
setDuration(Toast.LENGTH_LONG);
/**
* This is main code to set custom view to Toast
*/
setView(view);
}
}
Step 4
You have finished all the steps necessary to create a custom view. Now, it's time to implement that custom toast view for the real world.
You have your "CustomToastDemoActivity" file. Open it and paste the following code:
package com.test;
import android.app.Activity;
import android.os.Bundle;
public class CustomToastDemoActivity extends Activity {
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
new com.custom.CustomToast(this, this,
"Congratulations!! You are C# Member", true).show();
new com.custom.CustomToast(this, this,
":-( You are not C# Member...", false).show();
}
}
Step 5

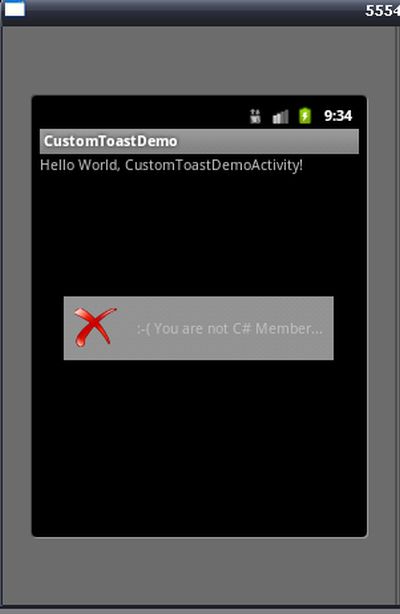

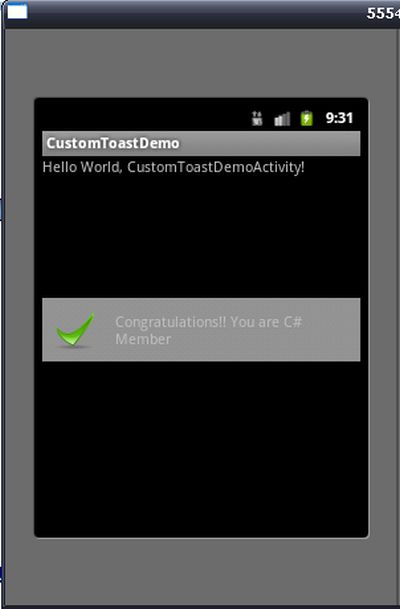

Bingo.....!!! Run your application and you will see the following output:
![Output-Custom-Toast-in-Android.jpg]()
![1Output-Custom-Toast-in-Android.jpg]()
Summary
In this tutorial, we learn how to use Toast as per our needs and extend the use of Toast.
