UML Class Diagram in 10 Steps Using Microsoft Visio 2010

This article describes how to create a UML Class Diagram in 10 steps. In this article I have created a sample class diagram using Microsoft Visio 2010. So there might be a need of Visio to create it at your end. Though I'll share screen shots that might be helpful to understand UML class diagrams.

You can also have a look at MVC related articles here:

  1. Smart Working With Custom Value Providers in ASP.NET MVC
  2. EXECUTION ORDER OF FILTERS IN MVC 4 WITH PRACTICES: IMPORTANT FAQ
  3. Exception Handling at Filter Level Using IExceptionFilter in MVC4
  4. Invoke Action With Model Binders in MVC
  5. Extension Helpers Method in MVC
  6. Custom Button With TagBuilder Using MVC Razor Engine
  7. RETURN MULTIPLE MODELS IN SINGLE VIEW IN MVC3
  8. Precompiled Razor View Using RazorGenerator MVC and PreCompiledViewEngine in MVC 4

Let's now explore how to create a Class Diagram step-by-step.
create Class diagram
Step 1: Kindly open Microsoft Visio 2010 from Microsoft Office as in the image below:

Microsoft office

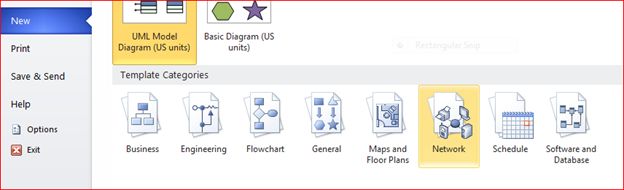

Step 2: Please select New and then select Software and the database option from the template categories as shown in the image below:

template categories

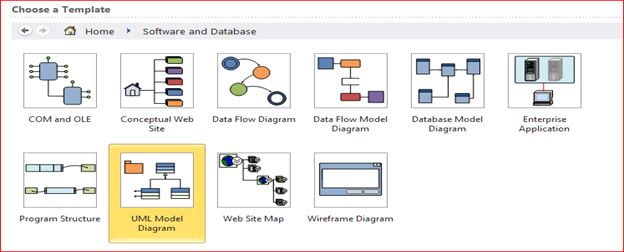

Step 3: Kindly select UML Model Diagram from the template option and click OK. Kindly look at the image depicted below for reference.

UML Model diagram

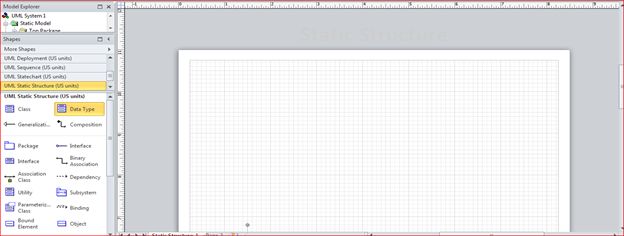

Step 4: You will get a default look and feel after opening the Visio 2010 as shown in the image below:

Visio 2010

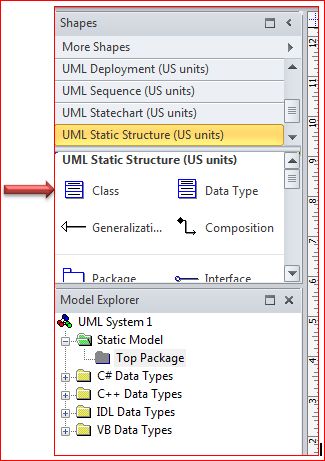

Step 5: Select a class option and drag it onto the page as in the image depicted below:

class option

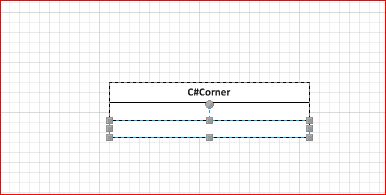

Step 6: I have dragged a class and renamed it to C#Corner. Kindly have a look of the image depicted below:

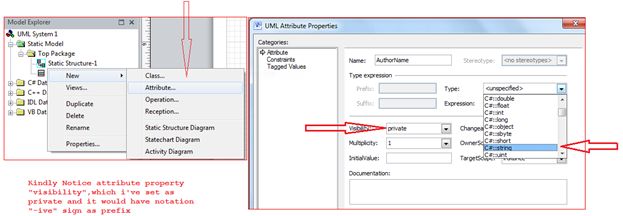

Step 7: Here I created an attribute as AuthorName as private. Kindly refer to the more descriptive image below:

attribute

It will be a string type and looks such as in the image depicted below.

string type

You can create as many as you like.

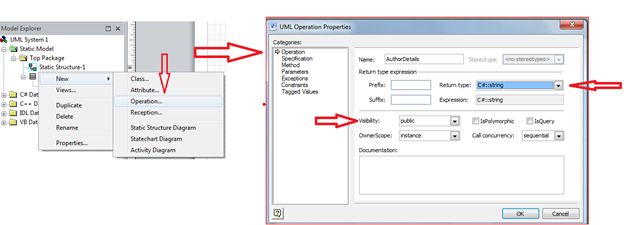

Step 8: Create an operation as you need. Here I created an operation "AuthorDetails" also shown in the image depicted below:

AuthorDetails

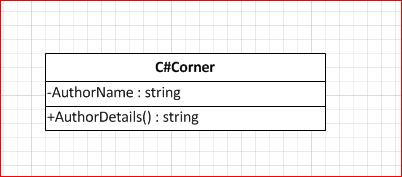

An operation/method will be a public and returns a string. Kindly see the image shown below:

operation

Step 9: There are three main notations that are generally used (public, protected and private) in a Class Diagram; they are “+”, ”#” and ”-“ respectively. It applies both on attributes and operations also.

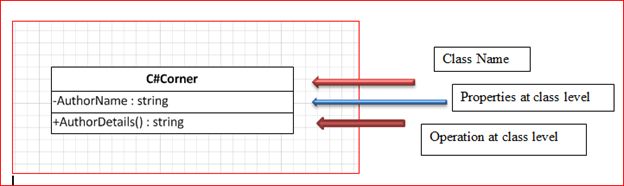

Step 10: To undetand the three sections of the Class Diagram, kindly see the image depicted below:

Class diagram

I treid to make it simple so anyone can undersratnd. I hope you enjoyed this demonstration:

enjoyed

I hope you enjoyed this and it may help you down the line.
