Introduction
In this Article we will learn how to get an Image data URL within a canvas and how to load the image data URL of the canvas. We can get the Image Data URL of the canvas and convert it into a 64-bit encoded PNG URL. To load the canvas with an image data URL, we can use AJAX to get a data URL. The dataURL is saved in a text file and we will get the data URL from that text file and create an image object with the URL.

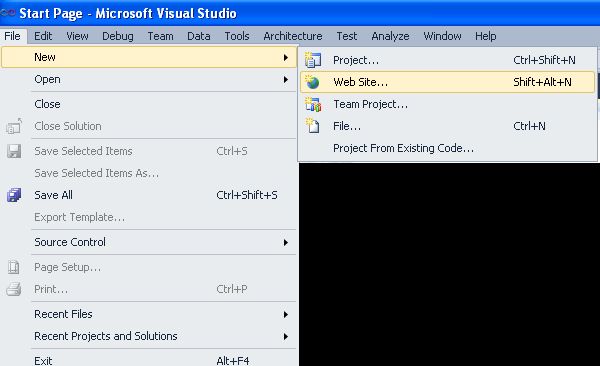

Step 1:
- Open the Visual Studio 2010.
- Go to file menu->> new->> website.
- Select an empty website.
![image 1.jpg]()
Step 2:

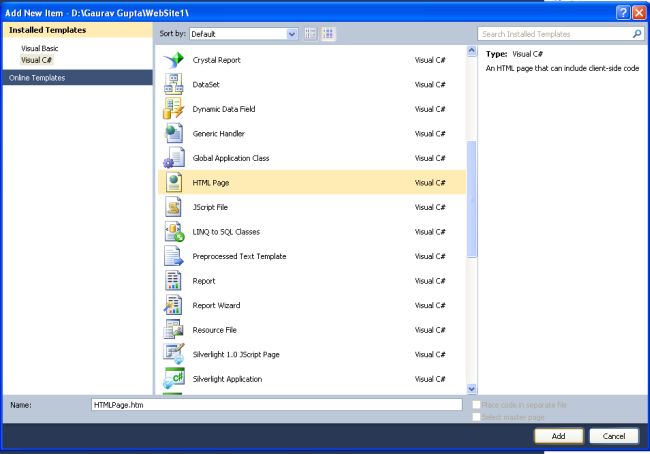

- Go to Solution Explorer.
- Right-click on the application name.
- Select an HTML page and rename it.
![image 3.jpg]()
Step3: In this step we will use JavaScript with HTML to get the Image Data URL of The Canvas.
Example: In this example we will get the Image Data URL of the canvas and show it in a message box using an alert.
Write down to code into first .htm page.
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title></title>
</head>
<script>
window.onload = function () {
var canvas = document.getElementById("getcanvas");
var context = canvas.getContext("2d");
// draw cloud
context.beginPath(); // begin custom shape
context.moveTo(100, 80);
context.bezierCurveTo(130, 100, 130, 150, 230, 150);
context.bezierCurveTo(130, 100, 130, 150, 230, 150);
context.bezierCurveTo(250, 180, 320, 180, 340, 150);
context.bezierCurveTo(420, 150, 420, 120, 390, 100);
context.bezierCurveTo(430, 40, 370, 30, 340, 50);
context.bezierCurveTo(320, 5, 250, 20, 250, 50);
context.bezierCurveTo(200, 5, 150, 20, 170, 80);
context.closePath(); // complete custom shape
context.lineWidth = 5;
context.fillStyle = "#84D6F0";
context.fill();
context.strokeStyle = "#ff00ff";
context.stroke();
// save canvas image as data url (png format by default)
var dataURL = canvas.toDataURL();
alert(dataURL);
};
</script>
<body>
<canvas id="getcanvas" width="1000" height="550">
</canvas>
</body>
</html>

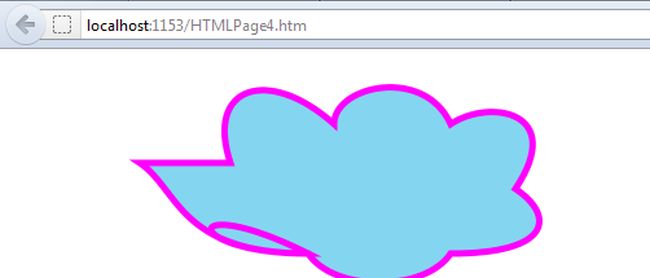

Output:
![Clipboard02.jpg]()

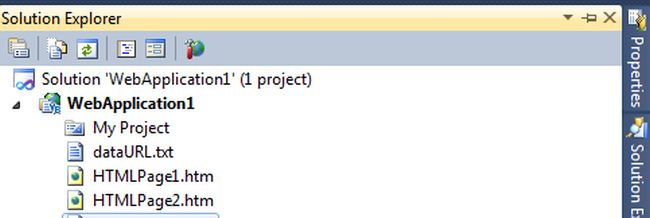

Step 4: Copy the Data URL of the canvas from the message box, then Add a Text file in your Solution Explorer and paste it in the text file.
![Clipboard05.jpg]()
Step 5: In this step we will draw an image within the canvas using The Image Data URL.
Write down the code into second the .htm page.
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title></title>
</head>
<script>
function loadCanvas(dataURL){
var canvas = document.getElementById("loadcanvas");
var context = canvas.getContext("2d");
// load image from data url
var imageObj = new Image();
imageObj.onload = function(){
context.drawImage(this, 0, 0);
};
imageObj.src = dataURL;
}
window.onload = function(){
// make ajax call to get image data url
var request = new XMLHttpRequest();
request.open("GET", "dataURL.txt", true);
request.onreadystatechange = function(){
if (request.readyState == 4) { // Makes sure the document is ready to parse.
if (request.status == 200) { // Makes sure it's found the file.
loadCanvas(request.responseText);
}
}
};
request.send(null);
};
</script>
<body>
<canvas id="loadcanvas" width="1000" height="1000">
</canvas>
</body>
</html>
Output:
![Clipboard02.jpg]()
