HTML5 Inline SVG Filters

Introduction

In this article we are going to learn about the SVG Tag in HTML 5. SVG stands for Scalable Vector Graphics and is used to define vector-based graphics for the Web. It defines the graphics in XML format and the XML is then rendered by an SVG viewer. SVG is a W3C recommendation. SVG files can be embedded into HTML pages with <embed>, <object>, or <iframe>.

Browser Support:

Internet Explorer 9, Firefox, Opera, Chrome, and Safari support inline SVG.

The complete list of predefined shapes in SVG:

  • Rectangle <rect>
  • Circle <circle>
  • Ellipse <ellipse>
  • Line <line>
  • Polyline <polyline>
  • Polygon <polygon>
  • Path <path>

But, here we take a look at SVG Filters.

SVG Filters:

In this tutorial, we will only demonstrate a fraction of the effects that are possible.

The <filter> element is used to define an SVG filter. The <filter> element has a required id attribute which identifies the filter and all internet SVG filters are defined within a <defs> element.

feGaussianBlur:

Example 1

The <feGaussianBlur> element is used to create blur effects:

Here is the SVG code:

<html>

<body>

  <p> This is the Example of blur Effect </p>

  <svg xmlns="http://www.w3.org/2000/svg" version="1.1">

    <defs>

     <filter id="f1" x="0" y="0">

      <feGaussianBlur in="SourceGraphic" stdDeviation="14" />

     </filter>

    </defs>

   <circle cx="100" cy="100" r="100" stroke="black"

     stroke-width="1" fill="red" filter="url(#f1)" />

  </svg>

</body>

</html>


Output:

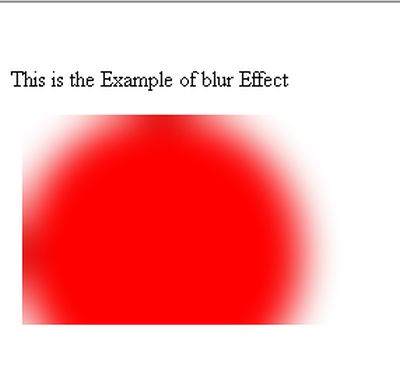

image 1.jpg

Example 2

In this we will apply a blur effect to a SVG element.

Here is the Code:


<html>

<head>

<style type="text/css">

  #svg-el-blur { height: 60px; width: 100%; }

  #svg-el-blur text { fill: green; filter:url(#blur-effect-1); font: 50px sans-serif; }

  #svg-el-blur text:hover { filter:url(#blur-effect-2); }

  .lt-ie9 #svg-el-blur text { color: green; }

</style>

</head>

 <body>

 <svg id="svg-el-blur">

  <text x="0" y="50">

     SVG Blur

  </text>

 </svg>

 <svg id="svg-effects">

   <filter id="blur-effect-1">

     <feGaussianBlur stdDeviation="0.9" />

   </filter>

   <filter id="blur-effect-2">

     <feGaussianBlur stdDeviation="2" />

   </filter>

 </svg>

 </body>

</html>

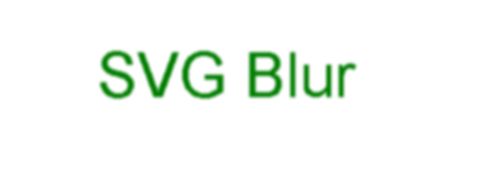

image 2.jpg


After the mouse hover:

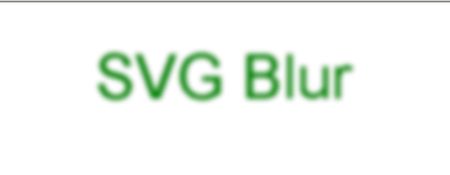

image 3.jpg

feOffset:

The <feOffset> element is used to create drop shadow effects. The idea is to take an SVG graphic (image or element) and move it a little bit in the xy plane.


feBlend :


The <feBlend> element is used to filter for combining images.



Example - 1

Here is the SVG code:



<html>

<body>

  <p> offsets a rectangle (with <feOffset>), then blend the original on top of the offset image (with <feBlend>): Effect </p>

  <svg xmlns="http://www.w3.org/2000/svg" version="1.1">

   <defs>

     <filter id="f1" x="0" y="0" width="200%" height="200%">

       <feOffset result="offOut" in="SourceGraphic" dx="25" dy="20" />

       <feBlend in="SourceGraphic" in2="offOut" mode="normal" />

     </filter>

   </defs>

   <polygon points="220,10 300,210 170,250 123,234"

     style="fill:lime;stroke:purple;stroke-width:1" filter="url(#f1)" />

  </svg>

</body>

</html>

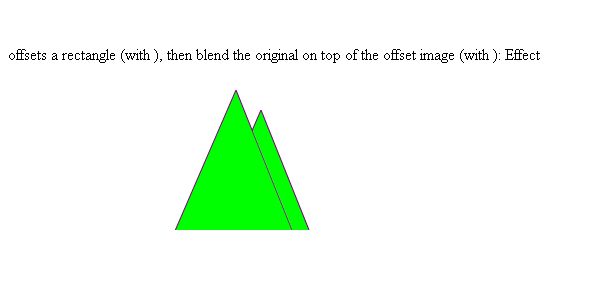

image 4.jpg

Example 3

In this example we will blurred the offset image (with <feGaussianBlur>):

Here is the SVG code:


<html>

<body>

<p></b> the offset image blurred (with <feGaussianBlur>):</p>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1">

  <defs>

    <filter id="f1" x="0" y="0" width="200%" height="200%">

      <feOffset result="offOut" in="SourceGraphic" dx="20" dy="20" />

      <feGaussianBlur result="blurOut" in="offOut" stdDeviation="10" />

      <feBlend in="SourceGraphic" in2="blurOut" mode="normal" />

    </filter>

  </defs>

  <rect width="90" height="90" stroke="yellow" stroke-width="3" fill="red" filter="url(#f1)" />

</svg>

</body>

</html>

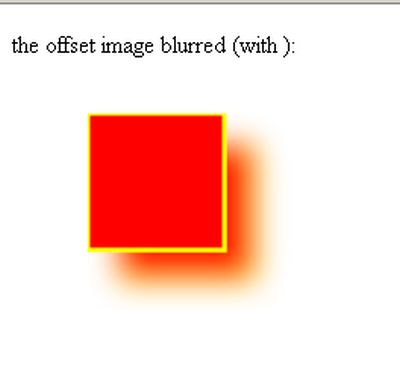

image 5.jpg
