Layout Managers in Java : Part 3

This article explains the Box and Group layout managers in Java.

Layout Managers

Go through the following link for the layout managers discussed in the past.

http://www.c-sharpcorner.com/UploadFile/9a9e6f/layout-managers-in-java-part-2/

Now let's discuss further about layout managers.

Box layout manager

This layout manager is used to arrange the components either vertically or horizontally in a container. For this, it provides four constants that are found in the javax.swing package.

The four constants are as follows:

  1. public static final int X_AXIS
  2. public static final int Y_AXIS
  3. public static final int LINE_AXIS
  4. public static final int PAGE_AXIS

Example (X_AXIS):

  1. import javax.swing.*;
  2. import java.awt.*;
  3. import java.awt.event.*;
  4.
  5. public class BoxLayoutDemo extends JFrame {
  6.    public BoxLayoutDemo()
  7.    {
  8.       super( "Demostrating BoxLayout" );
  9.       final int SIZE = 3;
  10.
  11.       Container c = getContentPane();
  12.       c.setLayout( new BorderLayout( 30, 30 ) );
  13.
  14.       Box boxes[] = new Box[ 4 ];
  15.
  16.       boxes[ 0 ] = Box.createHorizontalBox();
  17.       boxes[ 1 ] = Box.createVerticalBox();
  18.       boxes[ 2 ] = Box.createHorizontalBox();
  19.       boxes[ 3 ] = Box.createVerticalBox();
  20.
  21.       // add buttons to boxes[ 0 ]
  22.       for ( int i = 0; i < SIZE; i++ )
  23.          boxes[ 0 ].add( new JButton( "boxes[0]: " + i ) );
  24.
  25.       // create strut and add buttons to boxes[ 1 ]
  26.       for ( int i = 0; i < SIZE; i++ ) {
  27.          boxes[ 1 ].add( Box.createVerticalStrut( 25 ) );
  28.          boxes[ 1 ].add( new JButton( "boxes[1]: " + i ) );
  29.       }
  30.
  31.       // create horizontal glue and add buttons to boxes[ 2 ]
  32.       for ( int i = 0; i < SIZE; i++ ) {
  33.          boxes[ 2 ].add( Box.createHorizontalGlue() );
  34.          boxes[ 2 ].add( new JButton( "boxes[2]: " + i ) );
  35.       }
  36.
  37.       // create rigid area and add buttons to boxes[ 3 ]
  38.       for ( int i = 0; i < SIZE; i++ ) {
  39.          boxes[ 3 ].add(
  40.             Box.createRigidArea( new Dimension( 12, 8 ) ) );
  41.          boxes[ 3 ].add( new JButton( "boxes[3]: " + i ) );
  42.       }
  43.
  44.       // create horizontal glue and add buttons to panel
  45.       JPanel panel = new JPanel();
  46.       panel.setLayout(
  47.          new BoxLayout( panel, BoxLayout.Y_AXIS ) );   // Constructor of Boxlayout class
  48.
  49.       for ( int i = 0; i < SIZE; i++ ) {
  50.          panel.add( Box.createGlue() );
  51.          panel.add( new JButton( "panel: " + i ) );
  52.       }
  53.
  54.       // place panels on frame
  55.       c.add( boxes[ 0 ], BorderLayout.NORTH );
  56.       c.add( boxes[ 1 ], BorderLayout.EAST );
  57.       c.add( boxes[ 2 ], BorderLayout.SOUTH );
  58.       c.add( boxes[ 3 ], BorderLayout.WEST );
  59.       c.add( panel, BorderLayout.CENTER );
  60.
  61.       setSize( 400, 400 );
  62.       show();
  63.    }
  64.
  65.    public static void main( String args[] )
  66.    {
  67.       BoxLayoutDemo app = new BoxLayoutDemo();
  68.
  69.       app.addWindowListener(
  70.          new WindowAdapter() {
  71.             public void windowClosing( WindowEvent e )
  72.             {
  73.                System.exit( 0 );
  74.             }
  75.          }
  76.       );
  77.    }
  78. }

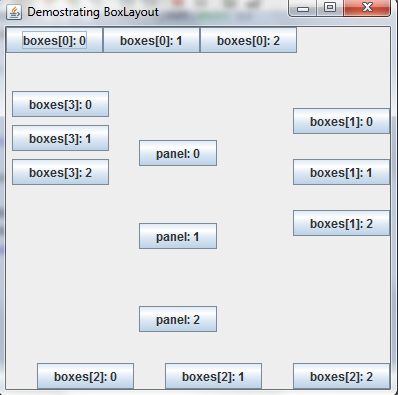

Output:

Box layout manager


Example (Y_AXIS):

For the BoxLayout class with Y_AXIS, we need to edit the line of code as in the following:

new BoxLayout( panel, BoxLayout.Y_AXIS ));
                             arrow
new BoxLayout( panel, BoxLayout.X_AXIS ));

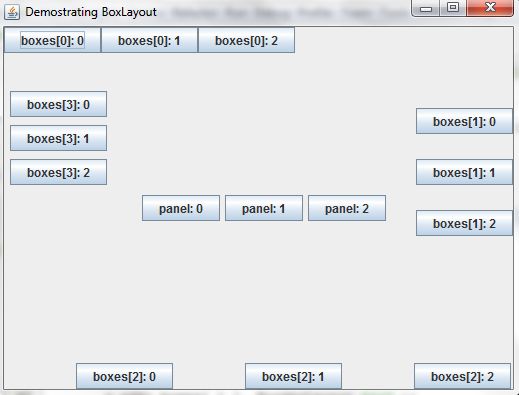

Output:

BoxLayout class


Group Layout manager

This layout manager is used to arrange the group components hierarchically to position them in a container. This is also found in the javax.swing package.

It contains the following two fields:
  1. static int DEFAULT_SIZE
  2. static int PREFERRED_SIZE

Example:

  1. import java.awt.*;
  2. import java.awt.event.*;
  3. import javax.swing.*;
  4.
  5. public class GroupLayoutDemo {
  6.    private JFrame mainFrame;
  7.    private JLabel headerLabel;
  8.    private JLabel statusLabel;
  9.    private JPanel controlPanel;
  10.    private JLabel msglabel;
  11.
  12.    public GroupLayoutDemo(){
  13.       prepareGUI();
  14.    }
  15.       public static void main(String[] args){
  16.       GroupLayoutDemo swingLayoutDemo = new GroupLayoutDemo();
  17.       swingLayoutDemo.showGroupLayoutDemo();
  18.    }
  19.
  20.    private void prepareGUI(){
  21.       mainFrame = new JFrame("GroupLayout Manager");
  22.       mainFrame.setSize(400,400);
  23.       mainFrame.setLayout(new GridLayout(3, 1));
  24.
  25.       headerLabel = new JLabel("",JLabel.CENTER );
  26.       statusLabel = new JLabel("",JLabel.CENTER);
  27.
  28.       statusLabel.setSize(350,100);
  29.       mainFrame.addWindowListener(new WindowAdapter() {
  30.          public void windowClosing(WindowEvent windowEvent){
  31.             System.exit(0);
  32.          }
  33.       });
  34.       controlPanel = new JPanel();
  35.       controlPanel.setLayout(new FlowLayout());
  36.
  37.       mainFrame.add(headerLabel);
  38.       mainFrame.add(controlPanel);
  39.       mainFrame.add(statusLabel);
  40.       mainFrame.setVisible(true);
  41.    }
  42.     private void showGroupLayoutDemo(){
  43.       headerLabel.setText("Demonstration: GroupLayout Manager");
  44.
  45.       JPanel panel = new JPanel();
  46.       // panel.setBackground(Color.darkGray);
  47.       panel.setSize(200,200);
  48.       GroupLayout layout = new GroupLayout(panel);
  49.       layout.setAutoCreateGaps(true);
  50.       layout.setAutoCreateContainerGaps(true);
  51.       JButton btn1 = new JButton("Button 1");
  52.       JButton btn2 = new JButton("Button 2");
  53.       JButton btn3 = new JButton("Button 3");
  54.
  55.       layout.setHorizontalGroup(layout.createSequentialGroup()
  56.          .addComponent(btn1)
  57.          .addGroup(layout.createSequentialGroup()
  58.             .addGroup(layout.createParallelGroup(
  59.                GroupLayout.Alignment.CENTER)
  60.                .addComponent(btn2)
  61.                )
  62.               )
  63.                .addGroup(layout.createSequentialGroup()
  64.             .addGroup(layout.createParallelGroup(
  65.                GroupLayout.Alignment.CENTER)
  66.                .addComponent(btn3)
  67.           )
  68.          )
  69.       );
  70.         layout.setVerticalGroup(layout.createSequentialGroup()
  71.          .addComponent(btn1)
  72.          .addComponent(btn2)
  73.          .addComponent(btn3)
  74.       );
  75.       panel.setLayout(layout);
  76.       controlPanel.add(panel);
  77.
  78.       mainFrame.setVisible(true);
  79.    }
  80. }

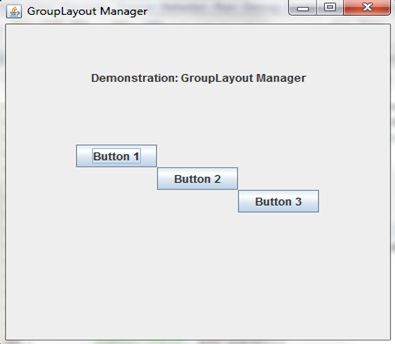

Output:

Group Layout manager
