Use PropertyGrid Control and Set Custom Properties in C#

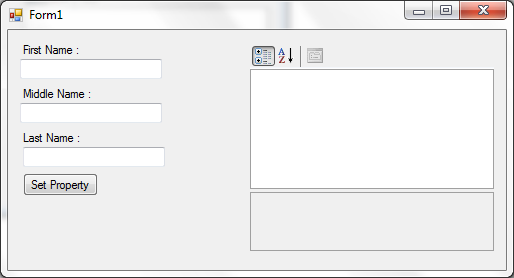

How the form actually looks like:


As for the code:

Create one class for adding our own custom property into a PropertyGrid.

You can take as many properties as you want. Here I used three properties named First Name, Middle Name & Last Name.

Create three variables for firstname, middlename & lastname.

private string myFirstName="";

private string myMiddleName="";

private string myLastName="";

After that create a constructer to take three values & in it set the appropriate variables.

public SetProperty(string fn,string mn, string ln)
{
    myFirstName = fn;
    myMiddleName  = mn;
    myLastName = ln;
}

Then create the properties for get & set the values of the variables.

public string FirstName
{
    get { return myFirstName; }
    set { myFirstName =  value ; }
}

public string MiddleName
{
    get { return myMiddleName; }
    set { myMiddleName = value ; }
}

public string LastName
{
    get { return myLastName; }
    set { myLastName = value ; }
}

The Whole Created new class looks like:

public class SetProperty
{
    private string myFirstName="";
    private string myMiddleName="";
    private string myLastName="";
    public SetProperty(string fn,string mn, string ln)
    {
        myFirstName = fn;
        myMiddleName  = mn;
        myLastName = ln;
    }
    public string FirstName
    {
        get { return myFirstName; }
        set { myFirstName =  value ; }
    }
    public string MiddleName
    {
        get { return myMiddleName; }
        set { myMiddleName = value ; }
    }
    public string LastName
    {
        get { return myLastName; }
        set { myLastName = value ; }
    }
}

Now in the main class create the object of the new created class and pass the related parameters.

SetProperty mySetProperty = new SetProperty(txtFirstName.Text, txtMiddleName.Text ,txtLastName.Text);

Finally assign that created object to the PropertyGrid.

myPropertyGrid.SelectedObject = mySetProperty;

The Button Click Event code:

private void btnAdd_Click(object sender, EventArgs e)
{
    SetProperty mySetProperty = new SetProperty(txtFirstName.Text, txtMiddleName .Text ,txtLastName .Text );
    myPropertyGrid.SelectedObject = mySetProperty;
}

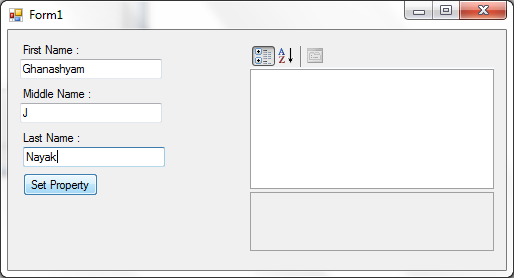

See the following image:


After writing the values into the textboxes & then clicking on the "Set Property" it will add those properties into the PropertyGrid Control.

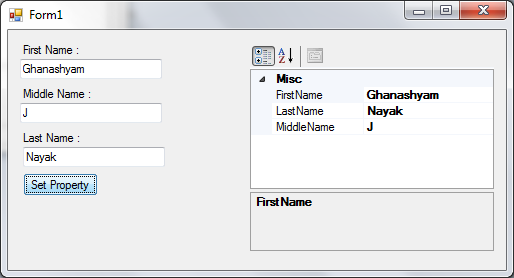

See the following image:


Hope this will help you.
