User management, roles and personalization system in ASP.NET 2.0 using VB.NET

Scott Gu, had a cool CreateUserWizard control sample that I have expanded upon to build-up a sample that demonstrates how to build a fairly common user management, roles and personalization system in ASP.NET 2.0 that does this. I was pleasantly surprised to find it only took about 25 lines of C# code in the entire app. J

The sample comes with 6 pages:


Specifically it supports:

  1. Login support to enable registered users to login to the web app using forms auth and the new membership system (login.aspx)
  2. Registration support to enable visitors to create and register new users in the membership system (CreateNewWizard.aspx)
  3. Profile support that enables the site to gather information about the user on registration, and for the users to see that information on a profile page (MyProfile.aspx).
  4. Change Password support to enable registered users to change their password in the membership system (ChangePassword.aspx)
  5. Password Recovery support to enable users to reset their password if they forgot them (RecoverPassword.aspx)

Implementation Notes on CreateNewWizard.aspx and MyProfile.aspx:

Only two of the above pages (CreateNewWizard.aspx and MyProfile.aspx) have code in them. The others use the built-in Login controls in V2 to-do everything (asp:login, asp:passwordrecovery, asp:changepassword).

CreateNewWizard.aspx is the most interesting page. It uses the built-in <asp:createuserwizard> server control to-do most of the heavy lifting and has two templated wizard steps defined within the wizard:

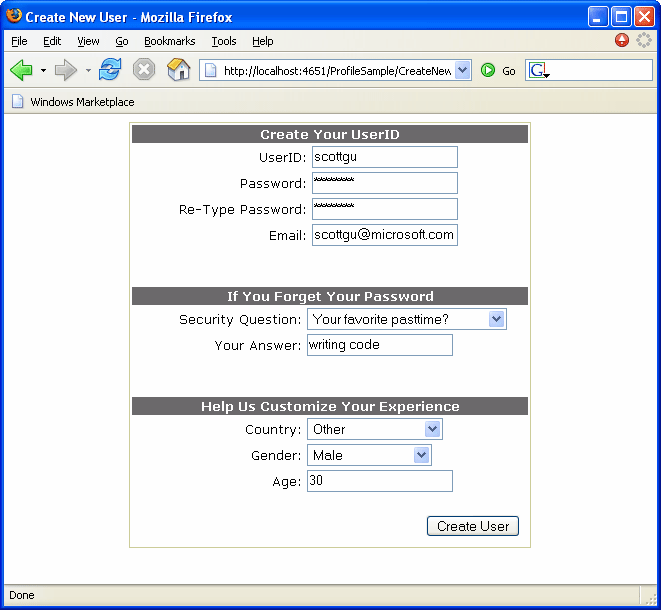

<asp:createuserwizard> wizard step 1: gathering user-account data


The <asp:createuserwizard> control handles gathering up the user-account, email, password, and password recovery/answer data and then calling into the ASP.NET 2.0 membership system to register the new user. You simply have to override the control's <createuserwizardstep> template and customize the control layout to have things look how you want.

The sample is using the ASP.NET validation controls to perform client-side validation on the inputs as well within the template (example: making sure passwords match, the age is a valid integer, etc). One added benefit in ASP.NET 2.0 is that these validation controls now support client-side validation for FireFox and other modern browsers (note: all screenshots were done using FireFox).

There are then three additional properties (their country, gender and age) that I wanted to gather up about the new user as part of the registration process. Doing this was pretty easy using the new ASP.NET 2.0 Profile system - simply add their definitions within the <profile> tag of the web.config file to register them and store their values in the new profile system:

<profile enabled="true">

<properties>

<add name="Country" type="string"/>

<add name="Gender" type="string"/>

<add name="Age" type="Int32"/>

</properties>

</profile>



I then handled the "CreatedUser" event on the CreateUserWizard control within my CreateNewWizard.aspx.cs code-behind file to retrieve the values from the controls within the CreateUserWizard control template and set them in the profile store:

// CreatedUser event is called when a new user is successfully created

public void CreateUserWizard1_CreatedUser(object sender, EventArgs e) {



// Create an empty Profile for the newly created user

ProfileCommon p = (ProfileCommon) ProfileCommon.Create(CreateUserWizard1.UserName, true);



// Populate some Profile properties off of the create user wizard

p.Country = ((DropDownList)CreateUserWizard1.CreateUserStep.ContentTemplateContainer.FindControl("Country")).SelectedValue;

p.Gender = ((DropDownList)CreateUserWizard1.CreateUserStep.ContentTemplateContainer.FindControl("Gender")).SelectedValue;

p.Age = Int32.Parse(((TextBox)CreateUserWizard1.CreateUserStep.ContentTemplateContainer.FindControl("Age")).Text);



// Save profile - must be done since we explicitly created it

p.Save();

}



Because the user is being created as part of this step, I explicitly choose to create a new Profile object in code (note that I was passing in the CreatedUserWizard1.UserName property as the username - since the user isn't logged into the system yet). I then accessed the controls within the template of the <asp:createuserwizard> control, pulled out their values, and stuck them within the newly created profile. Calling p.save at the end registered this profile with the new username. (note: I'll walk through how we use this profile data later in a page below).

<asp:createuserwizard> wizard step 2: picking roles

After the user fills out the first step of registration information and clicks the next button, the user is created, the CreatedUser event fires, and we fill in the appropriate information about the user into the profile store.

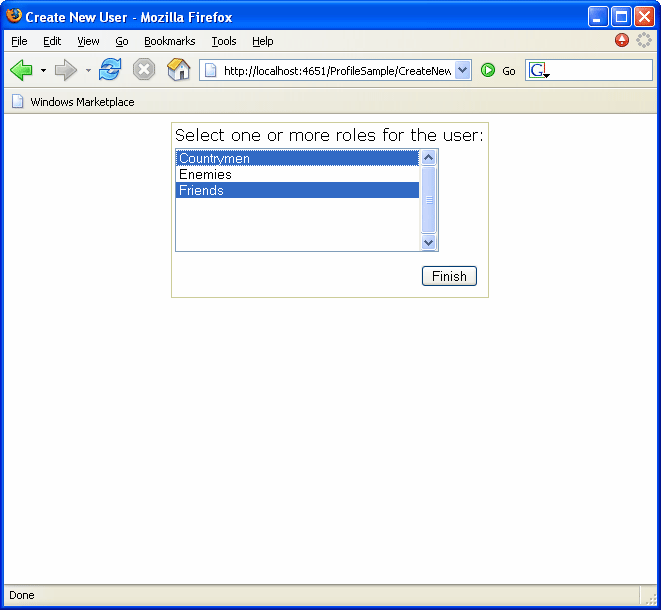

The <asp:createuserwizard> control then displays the second step template we've defined. This template lists all of the roles currently created in the ASP.NET Role Management system, and allows the user to select which roles they belong to:


Note that you'd typically never assign roles to an end-user this way (instead you'd add your own logic to somehow calculate which role they belong in), but I thought this scenario was cool nonetheless which is why it works like the sample above.

I think it is cool because of the way we populate and access these roles in the template of the <asp:createuserwizard>. Basically, we have a template definition to the .aspx like this:

<asp:WizardStep runat="server" AllowReturn="False"

OnActivate="AssignUserToRoles_Activate"

OnDeactivate="AssignUserToRoles_Deactivate">

<table>

<tr>

<td>

Select one or more roles for the user:

</td>

</tr>

<tr>

<td>

<asp:ListBox ID="AvailableRoles" runat="server"

SelectionMode="Multiple" >

</asp:ListBox>

</td>

</tr>

</table>

</asp:WizardStep>



It simply contains a <asp:listbox> control named "AvailableRoles". When this wizard step is loaded (after the user hits the next button on the first step in the wizard), it will fire the "OnActivate" event. We can use this to databind the list of all roles in the system to the above listbox. When the user hits next again, the wizard will fire the "OnDeactivate" event. We can then use this to determine which roles were selected in the above listbox, and use them to update the role-manager system.

The code to-do both of these actions looks like this:

// Activate event fires when user hits "next" in the CreateUserWizard

public void AssignUserToRoles_Activate(object sender, EventArgs e) {



// Databind list of roles in the role manager system to listbox

AvailableRoles.DataSource = Roles.GetAllRoles(); ;

AvailableRoles.DataBind();

}



// Deactivate event fires when user hits "next" in the CreateUserWizard

public void AssignUserToRoles_Deactivate(object sender, EventArgs e) {



// Add user to all selected roles from the roles listbox

for (int i = 0; i < AvailableRoles.Items.Count; i++) {

if (AvailableRoles.Items[i].Selected == true)

Roles.AddUserToRole(CreateUserWizard1.UserName, AvailableRoles.Items[i].Value);

}

}









That is all of the code for the CreateNewWizard.aspx.cs file - 17 lines total if you omit comments and whitespace (if my count is right).

Next Step: Displaying User Profile Data

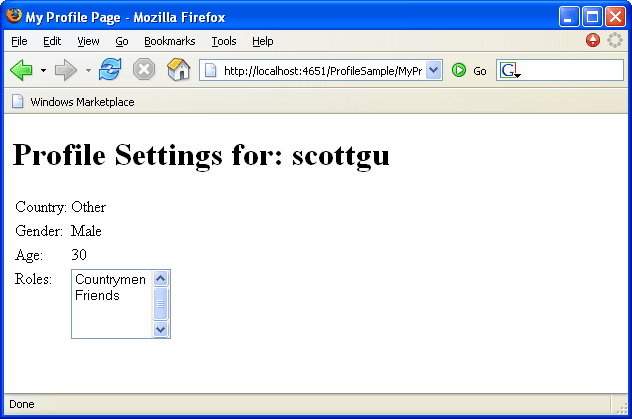

The only other page in this scenario that required me to add code was the MyProfile.aspx page. This page looks like this:


The page itself was pretty simple to implement. I simply added a few asp:label controls on the page, as well a listbox for the roles. Populating these controls with the profile and role information involved added a Page_Load event with 7 lines of code like so:

protected void Page_Load(object sender, EventArgs e) {



Country.Text = Profile.Country;

Gender.Text = Profile.Gender;

Age.Text = Profile.Age.ToString();



RoleList.DataSource = Roles.GetRolesForUser(User.Identity.Name);

RoleList.DataBind();

}



Note that the profile object is strongly typed - which means profile properties will get statement completion and compilation checking in VS 2005 with it. I can also then query the role management system to retrieve an array of all the roles the current user belongs to and then databind this to the listbox control.

Since the MyProfile.aspx page requires a user to be logged in (otherwise retrieving profile information about them doesn't make a lot of sense), I also added a <location> based authorization control tag in my web.config file:

<location path="MyProfile.aspx">

<system.web>

<authorization>

<deny users="?"/>

<allow users="*"/>

</authorization>

</system.web>

</location>



This is the same configuration I would have added in ASP.NET V1.1 - and basically tells the system to deny all users who aren't logged in (the ? = anonymous), and then allow all users who are logged in (the * = all).

Those who aren't logged in will get automatically re-directed to the login.aspx page. The <asp:login> control can be used there to allow users who have already registered to log-in without the developer having to write any custom code.
