This article explains how to check or uncheck all checkboxes in your GridView using jQuery. Use the following procedure to do that.
Step 1: Create a page named "Default.aspx" in the web application project/website and open its "Design Mode" and add a GridView into it from the toolbox.

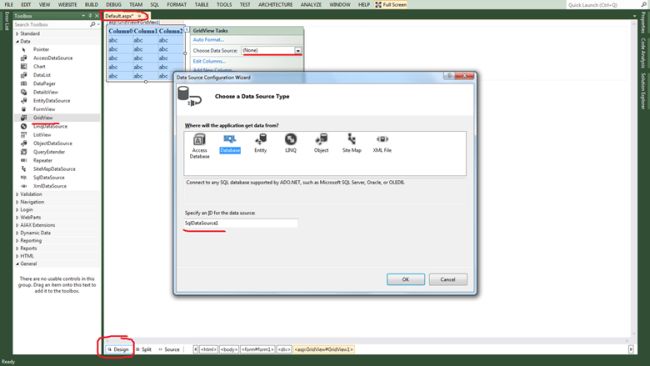

- Right-click on GridView after selecting it and choose the datasouce as "new datasource".
- Select the "SQL" database and also specify the ID of the data source otherwise it will use an auto generated ID, now click on "OK".
![]()

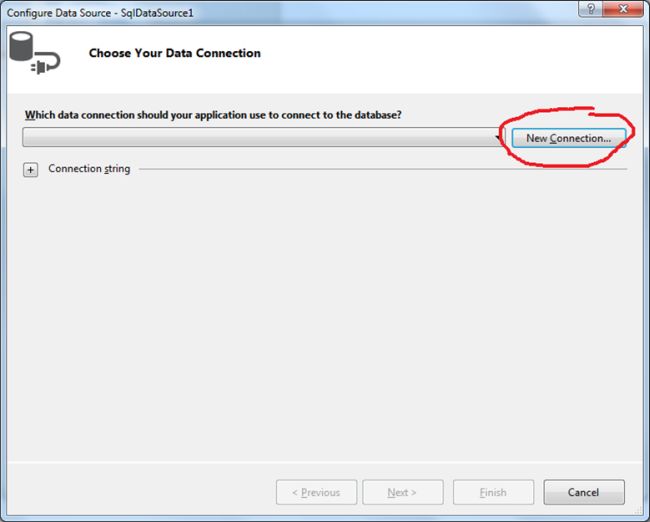

Click on "New connection..." as in the following:
![]()

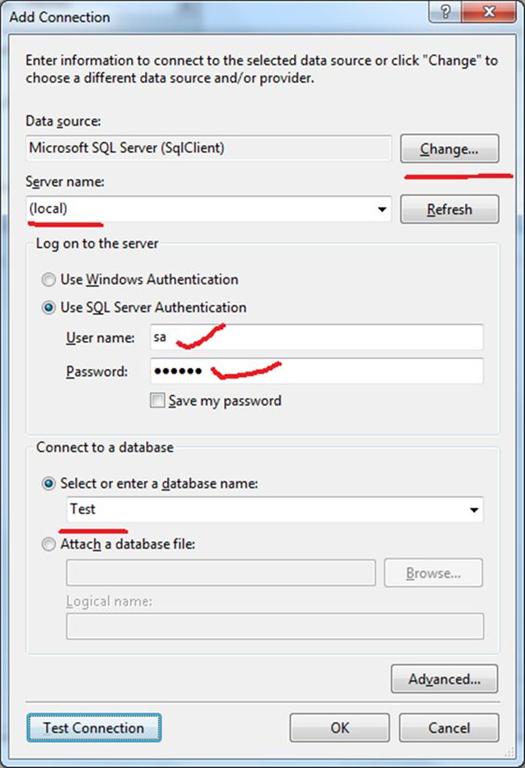

It will show a new window to "Add connection" with the following properties:
- Data Source: select the sqlclient via change button.
- Server name: your server IP or Local (I am using the local databases of my system)
- SQL Authentication: UserID and password of your server.
- Database: select the database name that contains data table.
![]()

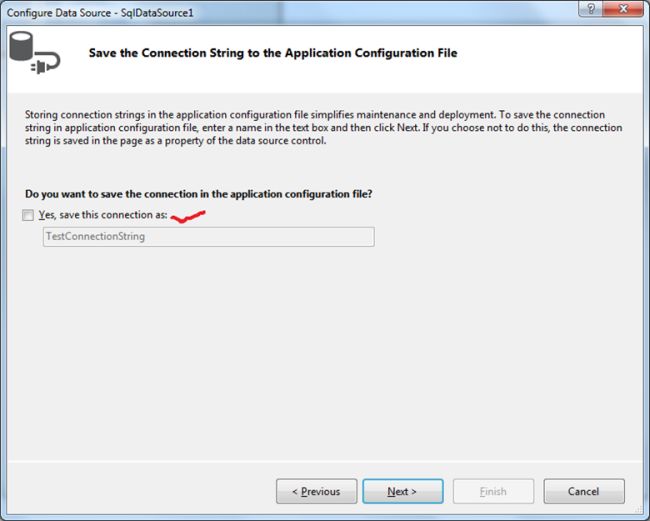

After clicking the "OK" button it shows the following window and you can save the connection string if you click on the checkbox. Click the "Next" button.
![]()

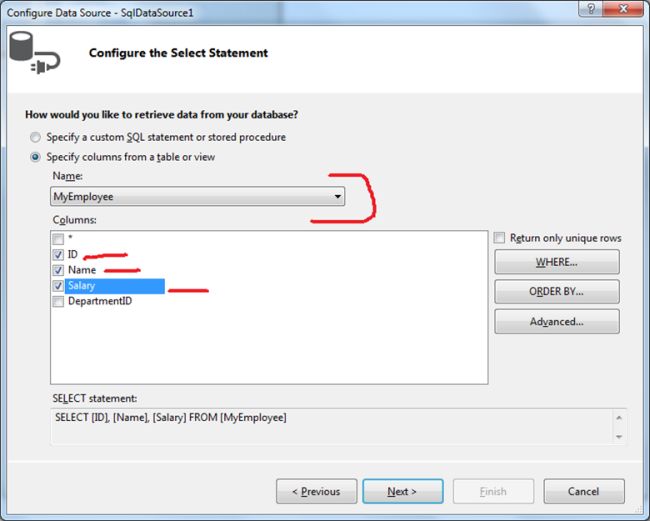

Select the table name and then select the column names. Click the "Next" button.
![]()

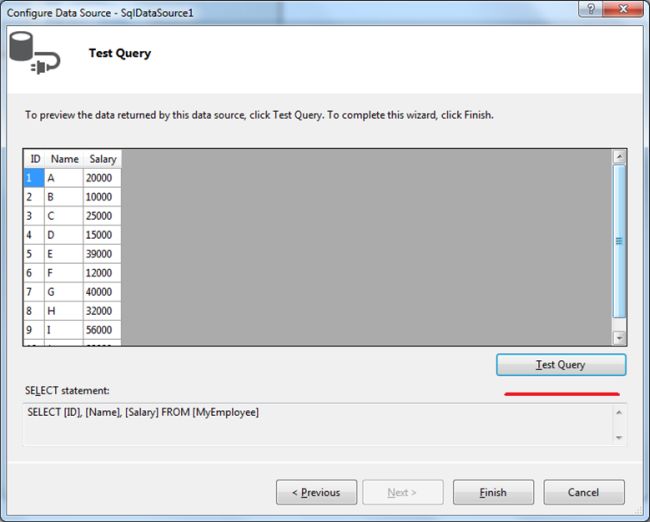

Click on the "Test Query" for checking the query and click on the "Finish" button.
![]()

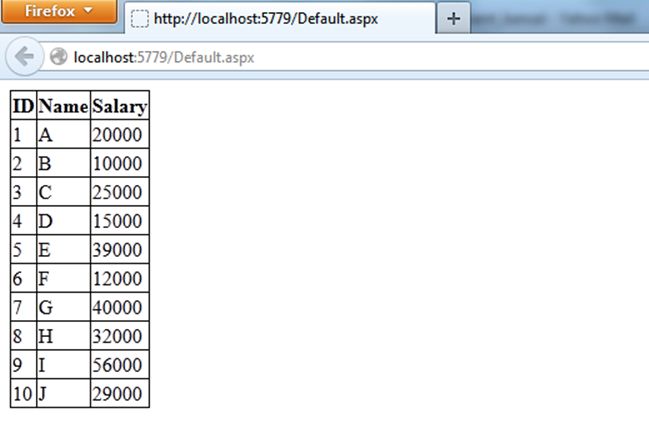

Run the default page that shows the grid like this:
![]()

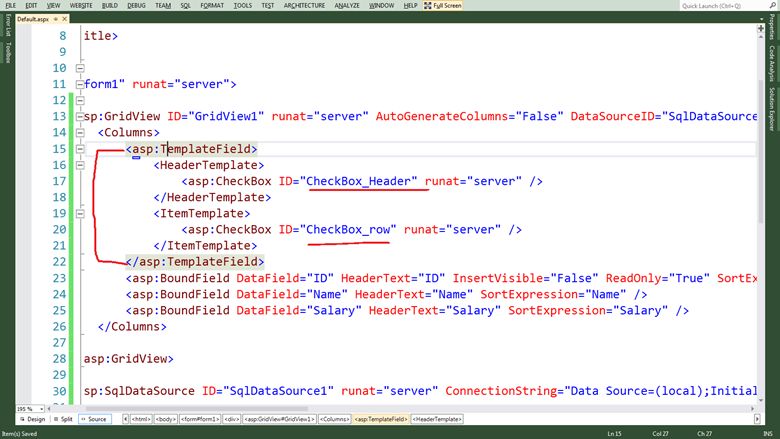

Step 2: Create a "TemplateField" field into the columns section of the gidview that has the Header template for the header checkbox named "CheckBox_Header" and itemtemplate from the row checkbox named "CheckBox_row" as in the following:
<asp:TemplateField>
<HeaderTemplate>
<asp:CheckBox ID="CheckBox_Header" runat="server" />
</HeaderTemplate>
<ItemTemplate>
<asp:CheckBox ID="CheckBox_row" runat="server" />
</ItemTemplate>
</asp:TemplateField>
![]()

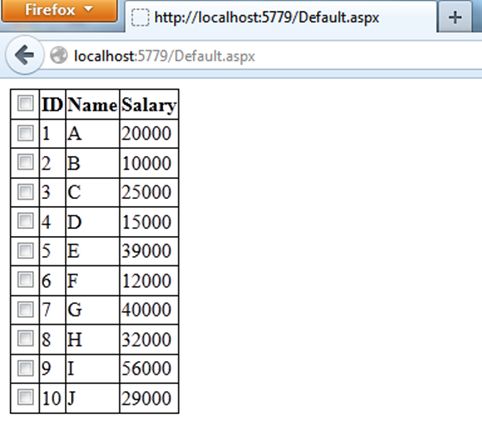

Run the page to check it.
![]()
Step 3: Add the source by which you can get the jQuery library into your page as in the following:
<script src="http://ajax.googleapis.com/ajax/libs/jquery/1.7/jquery.min.js" type="text/javascript">
</script>

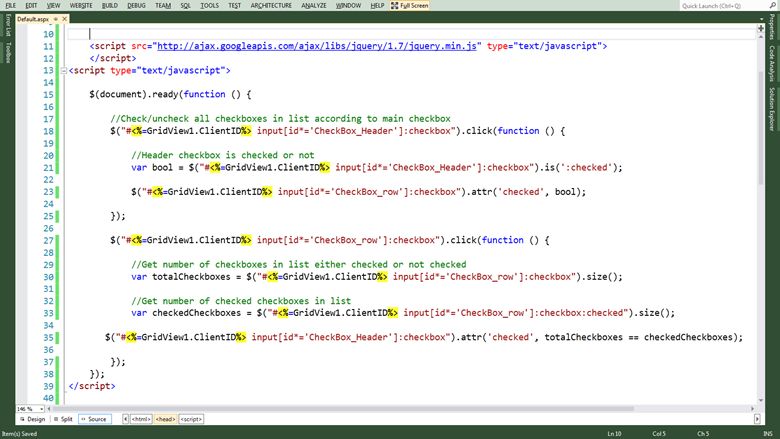

Add a Document.ready section to ready the code after the document is loaded: $(document).ready(function () { //code section });
Add 2 events in the code section.
For Header Checkbox: to check and uncheck all the lower checkboxes
//Check/uncheck all checkboxes in list according to main checkbox
$("#<%=GridView1.ClientID%>input[id*='CheckBox_Header']:checkbox").click(function ()
{
//Header checkbox is checked or not
var bool = $("#<%=GridView1.ClientID%>input[id*='CheckBox_Header']:checkbox").is(':checked');
//check and check the checkboxes on basis of Boolean value
$("#<%=GridView1.ClientID%> input[id*='CheckBox_row']:checkbox").attr('checked', bool);
});
For Lower Checkboxes: to check the header checkbox if all are checked otherwise uncheck the header checkbox.
$("#<%=GridView1.ClientID%> input[id*='CheckBox_row']:checkbox").click(function () {
//Get number of checkboxes in list either checked or not checked
var totalCheckboxes = $("#<%=GridView1.ClientID%>input[id*='CheckBox_row']:checkbox").size();
//Get number of checked checkboxes in list
var checkedCheckboxes = $("#<%=GridView1.ClientID%>input[id*='CheckBox_row']:checkbox:checked").size();
//check and uncheck the header checkbox on the basis of difference of both values
$("#<%=GridView1.ClientID%> input[id*='CheckBox_Header']:checkbox").attr('checked', totalCheckboxes == checkedCheckboxes);
});
![]()

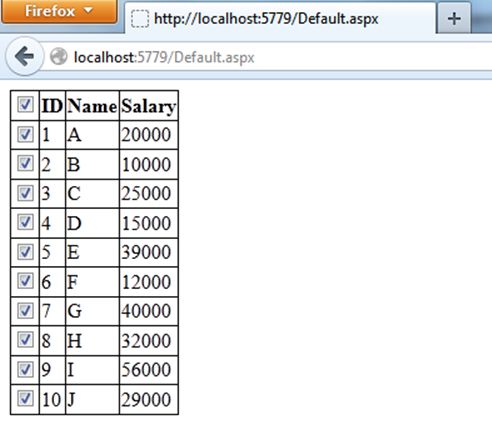

Run the page and see the functionality.
![]()
