Learn How to configure Lightswitch with MVC Part 2

 Introduction



This article shows the walk through of how to use MVC with Visual Studio LightSwitch In previous article we have seen how to get started by creating a LightSwitch Application..Now lets continue by creating the MVC structure.

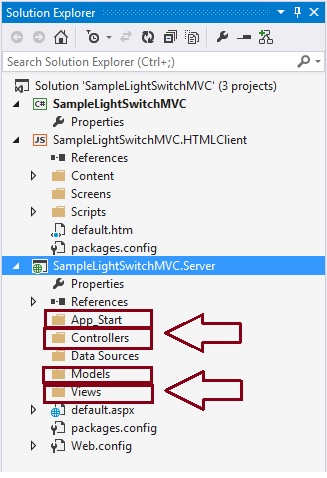

• Step 1: Create the following folders in the Server project as shown

1. App_Start
2. Controllers
3. Models
4. Views





•  Step 2 Add a class file named RouteConfig.cs to the App_Start folder and add the following implementation

using System.Web.Mvc;
using System.Web.Routing;
namespace LightSwitchApplication
{
    public class RouteConfig
    {
        public static void RegisterRoutes(RouteCollection routes)
        {

            routes.IgnoreRoute("{*allsvc}", new { allsvc = @".*\.svc(/.*)?" });
            routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
            routes.MapRoute(
                name: "Default",
                url: "{controller}/{action}/{id}",
                defaults: new
                {
                    controller = "Home",
                    action = "Index",
                    id = UrlParameter.Optional
                }
            );
        }
    }
}

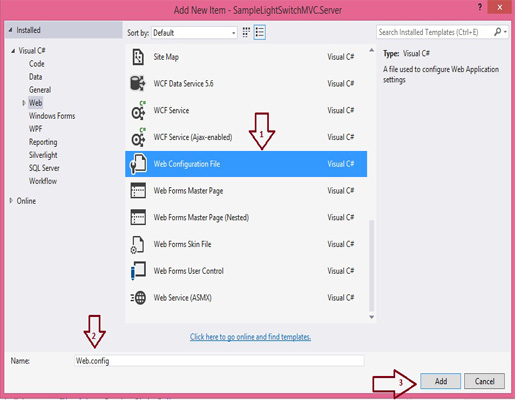

• Step 3 Right click on views folder and add Web.config file and use the following code







<?xml version="1.0"?>
<configuration>
  <configSections>
    <sectionGroup name="system.web.webPages.razor"
                  type="System.Web.WebPages.Razor.Configuration.RazorWebSectionGroup,
                  System.Web.WebPages.Razor, Version=3.0.0.0,
                  Culture=neutral, PublicKeyToken=31BF3856AD364E35">
      <section name="host" type="System.Web.WebPages.Razor.Configuration.HostSection,
               System.Web.WebPages.Razor, Version=3.0.0.0,
               Culture=neutral, PublicKeyToken=31BF3856AD364E35"
               requirePermission="false" />
      <section name="pages" type="System.Web.WebPages.Razor.Configuration.RazorPagesSection,
               System.Web.WebPages.Razor, Version=3.0.0.0,
               Culture=neutral, PublicKeyToken=31BF3856AD364E35"
               requirePermission="false" />
    </sectionGroup>
  </configSections>
  <system.web.webPages.razor>
    <host factoryType="System.Web.Mvc.MvcWebRazorHostFactory,
          System.Web.Mvc, Version=5.0.0.0,
          Culture=neutral, PublicKeyToken=31BF3856AD364E35" />
    <pages pageBaseType="System.Web.Mvc.WebViewPage">
      <namespaces>
        <add namespace="System.Web.Mvc" />
        <add namespace="System.Web.Mvc.Ajax" />
        <add namespace="System.Web.Mvc.Html" />
        <add namespace="System.Web.Routing" />
      </namespaces>
    </pages>
  </system.web.webPages.razor>
  <appSettings>
    <add key="webpages:Enabled" value="false" />
  </appSettings>
  <system.web>
    <httpHandlers>
      <add path="*" verb="*" type="System.Web.HttpNotFoundHandler"/>
    </httpHandlers>

    <pages
        validateRequest="false"
        pageParserFilterType="System.Web.Mvc.ViewTypeParserFilter,
        System.Web.Mvc, Version=5.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"
        pageBaseType="System.Web.Mvc.ViewPage,
        System.Web.Mvc, Version=5.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35"
        userControlBaseType="System.Web.Mvc.ViewUserControl,
        System.Web.Mvc, Version=5.0.0.0, Culture=neutral, PublicKeyToken=31BF3856AD364E35">
      <controls>
        <add assembly="System.Web.Mvc, Version=5.0.0.0,
             Culture=neutral, PublicKeyToken=31BF3856AD364E35"
             namespace="System.Web.Mvc" tagPrefix="mvc" />
      </controls>
    </pages>
  </system.web>
  <system.webServer>
    <validation validateIntegratedModeConfiguration="false" />
    <handlers>
      <remove name="BlockViewHandler"/>
      <add name="BlockViewHandler" path="*" verb="*"
           preCondition="integratedMode" type="System.Web.HttpNotFoundHandler" />
    </handlers>
  </system.webServer>
</configuration>



 Summary

In this small article, I explained how to prepare LightSwitch Application to use MVC, In next article we will see the complete configuration.
