List Controls in ASP.NET: Part 3

Introduction

In Part - 2 article of this series, we have discussed how to bind the database to list controls but we have not still checked how to determine which list item is selected. In this article we will discuss how to determine selected list item.

Determining the Selected List Item

Displaying options with the List controls is all very nice, but at some point we need to be able to determine which option a user has selected. The List controls support three properties that we can use to determine the selected list item:

  • SelectedIndex: Gets or sets the index of the selected list item.
  • SelectedItem: Gets the first selected list item.
  • SelectedValue: Gets or sets the value of the first selected list item.

In the example given below, the page in enable us to select an item from the DropDownList control and display the value of the selected item's Text property.


<%@ Page Language="VB" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<script runat="server">
    Protected Sub btnSelect_Click(ByVal sender As ObjectByVal e As EventArgs)
        lblSelectedProduct.Text = ddlProducts.SelectedItem.Text
    End
Sub
</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title
>
</head>
<
body>
    <form id="form1" runat="server">
    <div
>

    <asp:DropDownList
        id="ddlProducts"
        DataSourceID="SqlDataSource1"
        DataTextField="NAME"
        DataValueField="ID"
        Runat="server"
/>

    <asp:Button
        id="btnSelect"
        Text="Select"
        OnClick="btnSelect_Click"
        Runat="server"
/>

    <hr />

    <asp:Label
        id="lblSelectedProduct"
        Runat="server"
/>

        <asp:SqlDataSource ID="SqlDataSource1" runat="server"
            ConnectionString="<%$ ConnectionStrings:DatabaseConnectionString1 %>"
            ProviderName="<%$ ConnectionStrings:DatabaseConnectionString1.ProviderName %>"
            SelectCommand="SELECT [ID], [NAME] FROM [PRODUCT_LIST]"></asp:SqlDataSource
>

       </div>
    </form
>
</body>
</
html>

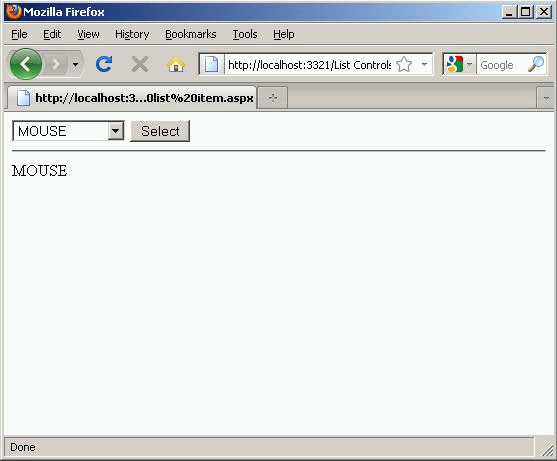

The SelectedItem property is used to retrieve the selected ListItem control from the DropDownList control. The value of the selected item's Text property is displayed in the Label control.

We can use these properties when we want to associate a List control with another DataBound control. For example, the page given below contains a DropDownList control that displays a list of product list based on product id and a GridView control that displays a list of products that match the selected id in listbox.

<%@ Page Language="VB" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<script runat="server">

</script>

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">

<style type="text/css">
        .gridView
        {
            margin-top:20px;
        }
        .gridView td.gridView th
        {
            padding:10px;
        }
    </style
>

    <title></title>
</head>
<
body>
    <form id="form1" runat="server">
    <div
>

    <asp:DropDownList
        id="ddlProductDetails"
        DataSourceID="SqlDataSource1"
        DataTextField="NAME"
        DataValueField="ID"
        Runat="server"
/>

    <asp:Button
        id="btnSelect"
        Text="Select"
        Runat="server"
/>

    <asp:GridView
        id="grdProductDetails"
        DataSourceID="SqlDataSource2"
        CssClass="gridView"
        Runat="server" />
        <br />
        <br />
        <asp:SqlDataSource ID="SqlDataSource1" runat="server"
            ConnectionString="<%$ ConnectionStrings:DatabaseConnectionString1 %>"
            ProviderName="<%$ ConnectionStrings:DatabaseConnectionString1.ProviderName %>"
            SelectCommand="SELECT [ID], [NAME] FROM [PRODUCT_LIST]"></asp:SqlDataSource>
        <br />
        <br />
        <asp:SqlDataSource ID="SqlDataSource2" runat="server"
            ConnectionString="<%$ ConnectionStrings:DatabaseConnectionString1 %>"
            ProviderName="<%$ ConnectionStrings:DatabaseConnectionString1.ProviderName %>"
            SelectCommand
="SELECT [ID], [NAME], [COMP_NAME], [PRICE] FROM [DTLS_PRODUCT] WHERE ID=@ID">

            <SelectParameters>
            <asp:ControlParameter
                Name="ID"
                ControlID="ddlProductDetails"
                PropertyName="SelectedValue" />
            </SelectParameters
>

        </asp:SqlDataSource>

       </div>
    </form
>
</body>
</
html>

The DropDownList control is bound to the SqlDataSource1 to SqlDataSource control, and the GridView control is bound to the SqlDataSource2 to SqlDataSource control. The SqlDataSource1 SqlDataSource control includes a ControlParameter, which represents the SelectedValue property of the DropDownList control. When we select a product name from the DropDownList control, the selected value changes and the GridView control displays a list of matching ID in SqlDataSource2.

Note: Continue in Next Part.

HAVE A GREAT CODING!
