Working with Device Information in WP7


Introduction

In this article we are going to see how to get the Device information for managing the device. We will see how to make use of the Device detection API's available with the Windows Phone 7 SDK to detect the Device information, Memory detection, Keyboard installed or not etc with the API.

To detect the device information, we are going to use the DeviceExtendedProperties class. We have different options to get the information of the device, network etc.. with the API. We will see only retrieving the device information here with this article. We are going to retrieve the below list of device information

S.No

       Information

Description

1DeviceUniqueIdGets device Unique ID.
2DeviceManufacturerGets Device Manufacture details.
3ApplicationCurrentMemoryUsageGets Application Memory Usage.
4ApplicationPeakMemoryUsageGets Application Memory Leak Usage.
5DeviceNameGets the Device Name.
6DeviceFirmwareVersionGets the Firmware Version.
7DeviceHardwareVersionGets the Hardware Version.
8DeviceTotalMemoryGets the physical Memory RAM Usage.
9Power SourceIndicates if the device works with power or battery.
10IsKeyboardpresentIndicates if any physical keyboard is installed with device.
11IsKeyboardDeployedIndicates if the user deploy the physical keyboard.
12ApplicationMemoryUsageLimitGets the maximum amount of memory.

Let us jump start to see the step by step process on how to implement the device information class to get the information and show it to the end users.

Steps:

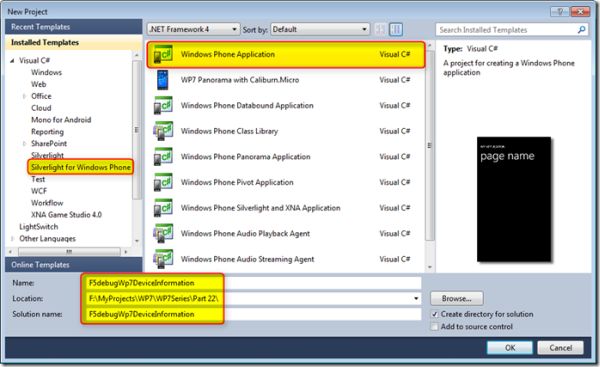

Open Visual Studio 2010 and create a new Silverlight for Windows Phone 7 Application with a valid project name as shown in the screen below.

image 1.jpg

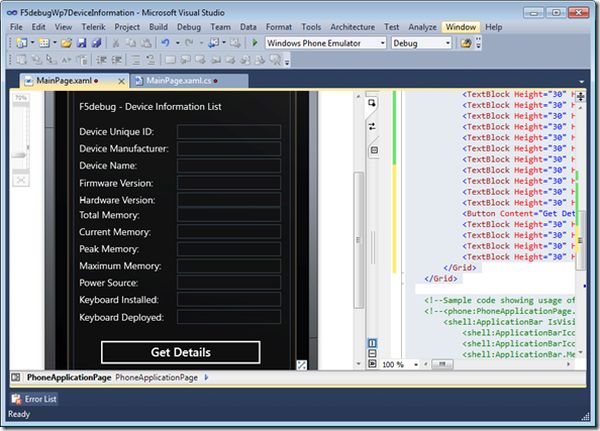

Now let us start with our design to see the device informations in one page. Once we are done with the design we can see the screen looks like below screen. Just copy the XAML code to get the same look and feel. Else we can directly drag and drop the controls from the tool box and design it as per the requirement.

XAML Code:

<phone:PhoneApplicationPage
x:Class="F5debugWp7DeviceInformation.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"
xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"
FontFamily="{StaticResource PhoneFontFamilyNormal}"
FontSize="{StaticResource PhoneFontSizeNormal}"
Foreground="{StaticResource PhoneForegroundBrush}"
SupportedOrientations="Portrait" Orientation="Portrait"
shell:SystemTray.IsVisible="True">
    <!--LayoutRoot is the root grid where all page content is placed-->|
    <Grid x:Name="LayoutRoot" Background="Transparent">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>
        <!--TitlePanel contains the name of the application and page title-->
        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">
            <TextBlock x:Name="ApplicationTitle" Text="F5DEBUG WP7 TUTORIALS" Style="{StaticResource PhoneTextNormalStyle}"/>
            <TextBlock x:Name="PageTitle" Text="Device Info" Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>
        </StackPanel>
        <!--ContentPanel - place additional content here-->
        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,23,0,0" Name="ttDeviceInfo" Text="F5debug - Device Information List" VerticalAlignment="Top" Width="438" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,76,0,0" Name="ttdeviceuniqueid" Text="Device Unique ID:" VerticalAlignment="Top"Width="176" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,76,0,0" Name="txtDeviceUniqueID" Text="" VerticalAlignment="Top" Width="219"/>
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,112,0,0" Name="textBlock4" Text="Device Manufacturer:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,112,0,0" Name="txtDeviceManufacturer" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,148,0,0" Name="textBlock6" Text="Device Name:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,148,0,0" Name="txtDeviceName" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,184,0,0" Name="textBlock8" Text="Firmware Version:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,184,0,0" Name="txtFirmwareVersion" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,220,0,0" Name="textBlock10" Text="Hardware Version:" VerticalAlignment="Top"     Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,220,0,0" Name="txtHardwareVersion" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,251,0,0" Name="textBlock12" Text="Total Memory:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,251,0,0" Name="txtTotalMemory" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,287,0,0" Name="textBlock14" Text="Current Memory:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,287,0,0" Name="txtCurrentMemory" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,323,0,0" Name="textBlock16" Text="Peak Memory:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,323,0,0" Name="txtPeakMemory" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,394,0,0" Name="textBlock18" Text="Power Source:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,394,0,0" Name="txtPowerSource" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,430,0,0" Name="textBlock20" Text="Keyboard Installed:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,430,0,0" Name="txtkeyboardinstalled" Text="" VerticalAlignment="Top" Width="219" />
            <Button Content="Get Details" Height="72" HorizontalAlignment="Left" Margin="46,520,0,0" Name="button1" VerticalAlignment="Top" Width="359" Click="button1_Click" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,467,0,0" Name="textBlock3" Text= "Keyboard Deployed:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,467,0,0" Name="txtKeyboardDeployed" Text="" VerticalAlignment="Top" Width="219" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="12,359,0,0" Name="textBlock1" Text="Maximum Memory:" VerticalAlignment="Top" Width="200" />
            <TextBlock Height="30" HorizontalAlignment="Left" Margin="218,359,0,0" Name="txtMaximuMemory" Text="" VerticalAlignment="Top" Width="219" />
        </Grid>
    </Grid>
    <!--Sample code showing usage of ApplicationBar-->
    <!--<phone:PhoneApplicationPage.ApplicationBar>
<shell:ApplicationBar IsVisible="True" IsMenuEnabled="True">
<shell:ApplicationBarIconButton IconUri="/Images/appbar_button1.png" Text="Button 1"/>
<shell:ApplicationBarIconButton IconUri="/Images/appbar_button2.png" Text="Button 2"/>
<shell:ApplicationBar.MenuItems>
<shell:ApplicationBarMenuItem Text="MenuItem 1"/>
<shell:ApplicationBarMenuItem Text="MenuItem 2"/>
</shell:ApplicationBar.MenuItems>
</shell:ApplicationBar>|
</phone:PhoneApplicationPage.ApplicationBar>-->

</phone:PhoneApplicationPage>

image 2.jpg

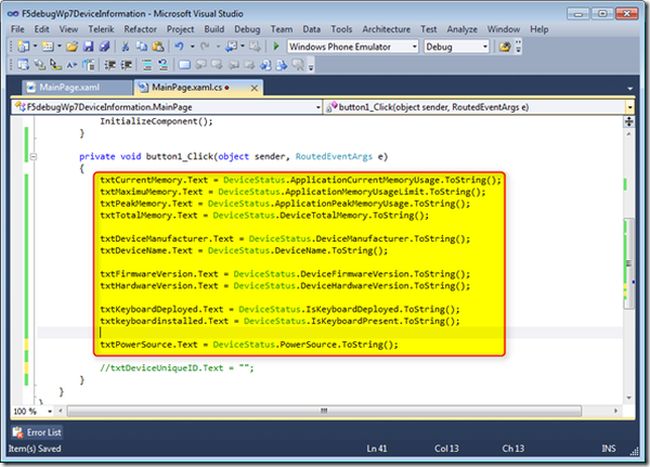

Now let us start with our code to get the device information and load it to the respective text blocks one by one as shown in the code below. We can use the Device Status class to get the details of the device properties except the device unique ID. We will write the code later to get the unique id of the device.

Code Behind:

using System;
using
System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Info;
using System.Windows.Threading;
namespace F5debugWp7DeviceInformation
{
    public partial class MainPage : PhoneApplicationPage
    {

// Constructor
        public MainPage()
        {
            InitializeComponent();
        }
        private void button1_Click(object sender, RoutedEventArgs e)
        {
            txtCurrentMemory.Text = DeviceStatus.ApplicationCurrentMemoryUsage.ToString();
            txtMaximuMemory.Text = DeviceStatus.ApplicationMemoryUsageLimit.ToString();
            txtPeakMemory.Text = DeviceStatus.ApplicationPeakMemoryUsage.ToString();
             txtDeviceManufacturer.Text = DeviceStatus.DeviceManufacturer.ToString();
           txtDeviceName.Text = DeviceStatus.DeviceName.ToString();
            txtFirmwareVersion.Text = DeviceStatus.DeviceFirmwareVersion.ToString();
            txtHardwareVersion.Text = DeviceStatus.DeviceHardwareVersion.ToString();
            txtKeyboardDeployed.Text = DeviceStatus.IsKeyboardDeployed.ToString();
            txtkeyboardinstalled.Text = DeviceStatus.IsKeyboardPresent.ToString();
            txtPowerSource.Text = DeviceStatus.PowerSource.ToString();

//txtDeviceUniqueID.Text = "";
        }
    }
}

image 3.jpg

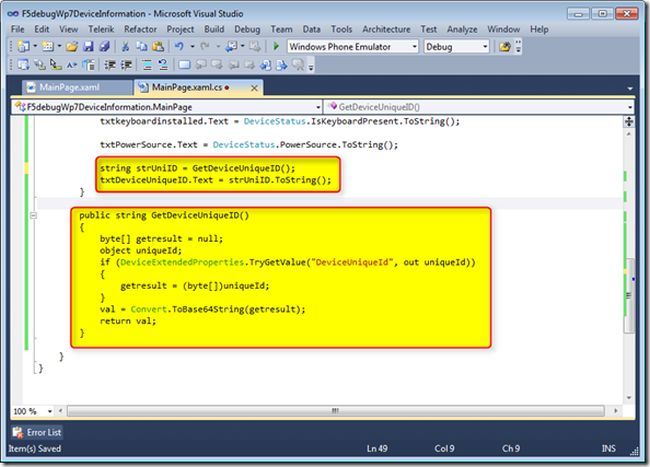

Now let us write the code for getting the Device Unique ID as shown in the code below. We use the DeviceExtendedProperties property TryGetValue to get the Unique ID, since we get it as a byte array we do a conversion to the string and assign it to the text block as shown below.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using
System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Microsoft.Phone.Controls;
using Microsoft.Phone.Info;
using System.Windows.Threading;

namespace F5debugWp7DeviceInformation
{
    public partial class MainPage : PhoneApplicationPage
    {
        public static string val;
         // Constructor
       public MainPage()
        {
            InitializeComponent();
        }
        private void button1_Click(object sender, RoutedEventArgs e)
        {
            txtCurrentMemory.Text = DeviceStatus.ApplicationCurrentMemoryUsage.ToString();
            txtMaximuMemory.Text = DeviceStatus.ApplicationMemoryUsageLimit.ToString();
            txtPeakMemory.Text = DeviceStatus.ApplicationPeakMemoryUsage.ToString();
            txtTotalMemory.Text = DeviceStatus.DeviceTotalMemory.ToString();
            txtDeviceManufacturer.Text = DeviceStatus.DeviceManufacturer.ToString();
            txtDeviceName.Text = DeviceStatus.DeviceName.ToString();
            txtFirmwareVersion.Text = DeviceStatus.DeviceFirmwareVersion.ToString();
            txtHardwareVersion.Text = DeviceStatus.DeviceHardwareVersion.ToString();
            txtKeyboardDeployed.Text = DeviceStatus.IsKeyboardDeployed.ToString();
            txtkeyboardinstalled.Text = DeviceStatus.IsKeyboardPresent.ToString();
             txtPowerSource.Text = DeviceStatus.PowerSource.ToString();
           string strUniID = GetDeviceUniqueID();
            txtDeviceUniqueID.Text = strUniID.ToString();
        }
        public string GetDeviceUniqueID()
        {
            byte[] getresult = null;
            object uniqueId;
            if (DeviceExtendedProperties.TryGetValue("DeviceUniqueId", out uniqueId))
            {
                getresult = (byte[])uniqueId;
            }
            val = Convert.ToBase64String(getresult);
        }
    }
}


image 4.jpg

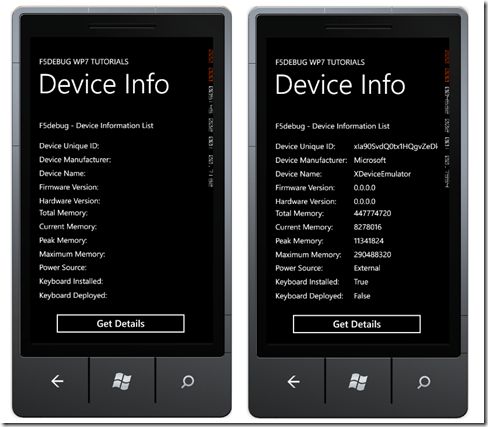

Now we are done with our code, let us build and execute the application by pressing F5 directly from the keyboard and we can see the application loaded to the Windows Phone 7 Emulator as shown in the screen below with the expected output.

image 5.jpg

Conclusion

So in this article we have seen how to get the device information details and the device unique id using the Device Status class in detail.
