Introduction

We can expose a Web API from ASP.NET MVC4. It is a new feature from Microsoft. Clients can get data from a Web API in any format such as JSON, XML, JSONP, HTML and etc.

I have already written about the Web API based methods in the http://www.c-sharpcorner.com/Blogs/9470/mvc4-web-api-that-supports-crud-operations-part-1.aspx blog. Now in this article I am going to explain how to create a new Web API application and how to get data in various formats such as I mentioned above.

Purpose

HTTP is not just for serving up web pages. It is also a powerful platform for building APIs that expose services and data. HTTP is simple, flexible, and ubiquitous. Almost any platform that you can think of has an HTTP library, so HTTP services can reach a broad range of clients, including browsers, mobile devices, and traditional desktop applications.

The ASP.NET Web API is a framework for building web APIs on top of the .NET Framework. In this tutorial, you will use the ASP.NET Web API to create a web API that returns a list of products.

The following are the steps to create a new Web API application in Visual Studio 2011.

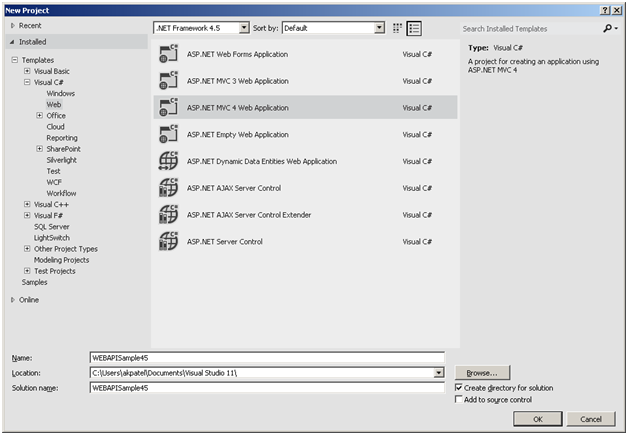

Step 1: We will create a new project and the project type will be MVC4. See the following image:

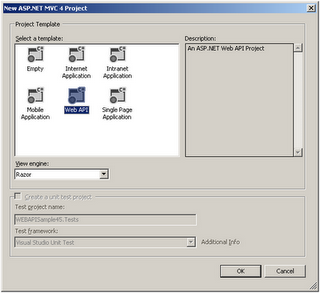

Step 2: Now we will select a Web API template from the Project template Dialog window.

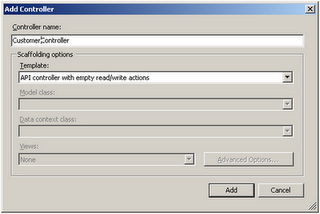

Step 3: Now we will create a Customer controller inside the Controller folder and will select an API controller with read/write actions.

Step 4: Now we will add an Entity Data Model for our Database where we have a Customer Table. You can see it in the attached Source code.

Step 5: It's time to modify our CustomerController to fetch and save data. See the code below.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net.Http;
using System.Web.Http;
using WEBAPISample45.Models;

namespace WEBAPISample45.Controllers
{
    public class CustomerController : ApiController
    {
        private CompanyDBEntities context = new CompanyDBEntities();
        // GET /api/customer
        public IEnumerable<CustomerModel> Get()
        {
            IEnumerable<CustomerModel> list = null;
            list = (from c in context.Customers
                    select new CustomerModel { Id = c.Id, Name = c.Name, Salary = (long)c.Salary }
.AsEnumerable<CustomerModel>();
            return list;
        }
      // GET /api/customer/5
        public CustomerModel Get(int id)
        {
     return (from c in context.Customers
                    where c.Id == id
                    select new CustomerModel
                    {
                        Id = c.Id,
                        Name = c.Name,
                        Salary = (long)c.Salary
                    }).FirstOrDefault<CustomerModel>();
   }
   // POST /api/customer
        public void Post(CustomerModel customer)
        {
            context.AddToCustomers(new Customer { Id = customer.Id, Name = customer.Name, Salary =
customer.Salary });
            context.SaveChanges(System.Data.Objects.SaveOptions.AcceptAllChangesAfterSave);
        }
  // PUT /api/customer/5
        public void Put(int id, CustomerModel customer)
        {
            var cust = context.Customers.First(c => c.Id == id);
            cust.Name = customer.Name;
            cust.Salary = customer.Salary;
            context.SaveChanges();
        }
  // DELETE /api/customer/5
        public void Delete(int id)
        {
            var cust = context.Customers.First(c => c.Id == id);
            context.Customers.DeleteObject(cust);
            context.SaveChanges();
}
    }
}

Step 6: Now the most important thing is that in the global.asax, MapHttpRoute should be registered. See the highlighted code below:

public static void RegisterRoutes(RouteCollection routes)
        {
            routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
routes.MapHttpRoute(
                name: "DefaultApi",
                routeTemplate: "api/{controller}/{id}",
                defaults: new { id = RouteParameter.Optional }
            );
routes.MapRoute(
                name: "Default",
                url: "{controller}/{action}/{id}",
                defaults: new { controller = "Home", action = "Index", id = UrlParameter.Optional }
            );
        }

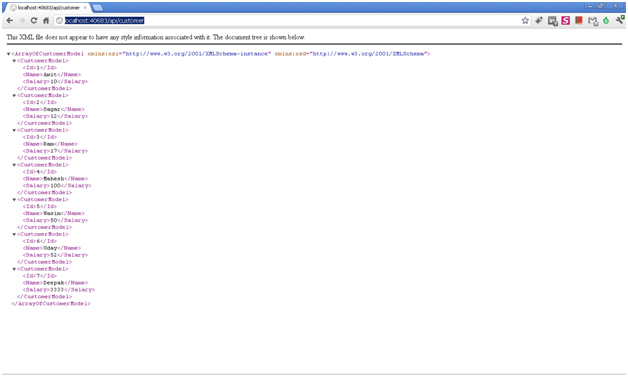

Step 7: Now we will run our application and see the output of the web API. Applications will run on the local server http://localhost:40683/ and you have to add the api/customer to the URL. So now your URL will be http://localhost:40683/api/customer.

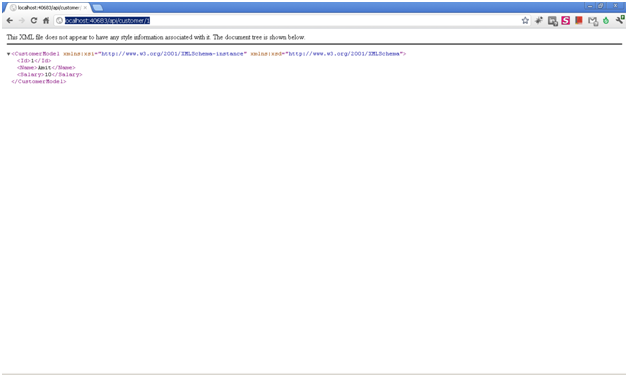

If you want to access a customer by id then you can use http://localhost:40683/api/customer/1 as the URL.

Now I am going to discuss a very important thing here. In the Web API, whatever format we use to send a request is the format of the returned response.

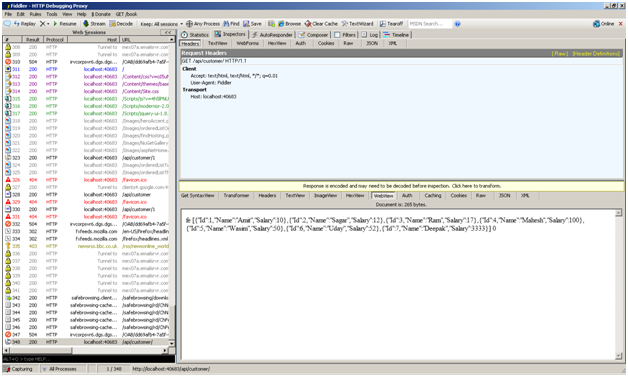

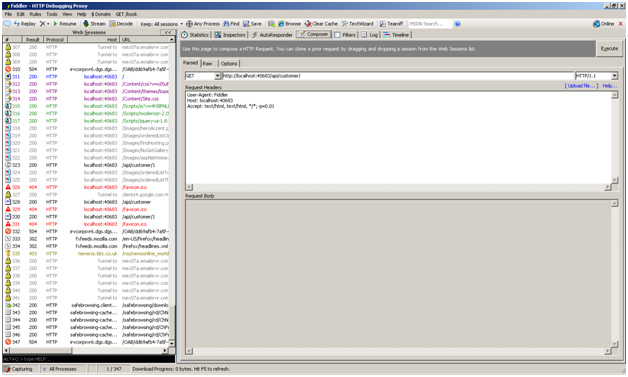

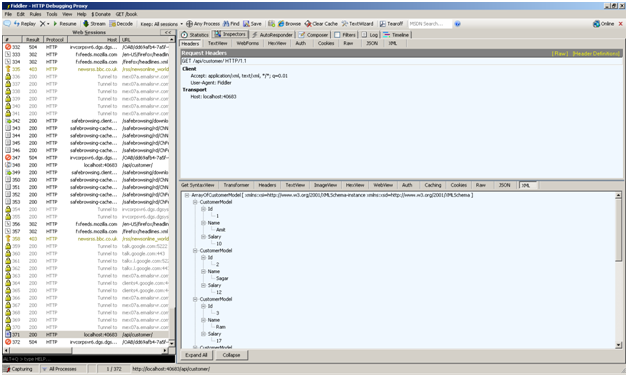

In the following JavaScript code we are requesting data in JSON format. So the response will be returned in the JSON format. I will explain via Fiddler.

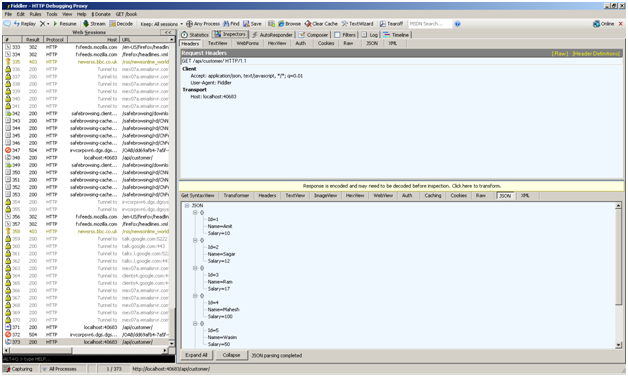

JSON

<script type="text/javascript">
$(document).ready(function () {
$.ajax({

            type: "GET",
            url: "api/customer/1",
            dataType: "json",
            success: function (data) {
                     alert(data);
            }
        });
    });
</script>

XML

            type: "GET",
            url: "api/customer/1",
            dataType: "xml",
            success: function (data) {
                     alert(data);
            }
        });
    });
</script>

HTML

            type: "GET",
            url: "api/customer/1",
            dataType: "html",
            success: function (data) {
                     alert(data);
            }
        });
    });
</script>
