Introduction
SharePoint 2013 introduces a Representational State Transfer (REST) service that is comparable to the existing SharePoint client object models. This allows the developers to interact remotely with SharePoint data by using any technology that supports REST web requests. This means that developers can perform Create, Read, Update and Delete (CRUD) operations from their apps for SharePoint, solutions and client applications, using REST web technologies and standard Open Data Protocol (OData) syntax. I have a Document Library named “Documents” in which I have created a folder named “FolderA”. FolderA has the following files.
![files]()
In this article you will see the following:
- Create an app using the NAPA Tool in SharePoint 2013 Online.
- Cross-Domain Requests.
- Gets the check-out type associated with the file using the REST API.
Endpoint URI
https://c986.sharepoint.com/_api/Web/GetFileByServerRelativeUrl('fileURL')/CheckOutType
fileURL Example
/Shared%20Documents/FolderA/How%20to%20create%20a%20calculated%20field%20in%20SharePoint%202013%20Online%20using%20REST%20Service.docx
Note: If you are making cross-domain requests then you need to add SP.AppContextSite(@target) and ?@target='<host web url>' to the endpoint URI.
HTTP Request
GET: Read a Resource

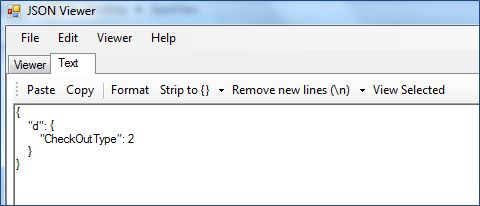

JSON
![JSON]()
Use the following procedure to create an app using the NAPA Tool:
- Navigate to the SharePoint 2013 Online site.
- Click on the Site Contents in the quick launch bar.

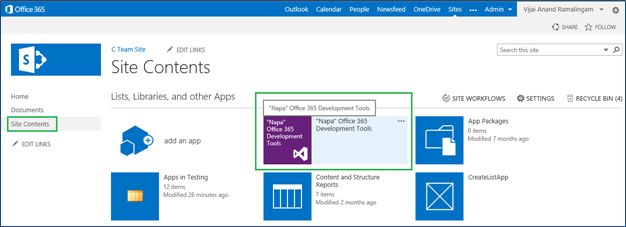

- Click on the “Napa” Office 365 Development Tools.
![Office 365 Development Tools]()
- Click on Add New Project.
![Add New Project]()

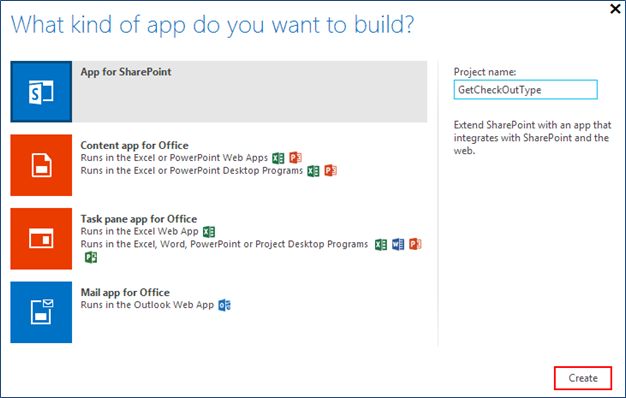

- Select App for SharePoint, enter the Project name and then click on Create.
![App for SharePoint]()
Permissions

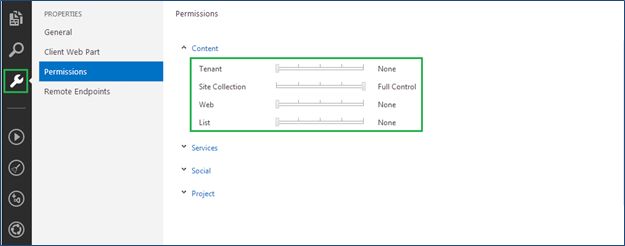

Ensure appropriate permission is provided to access the content. Click on the Properties button, and then click on Permissions. Set the required permission to access the content.
![Permissions]()
Default.aspx
Replace the contents of Default.aspx with the following:
<%-- The markup and script in the following Content element will be placed in the <head>of the page --%>
<asp:content contentplaceholderid="PlaceHolderAdditionalPageHead" runat="server">
<script type="text/javascript" src="https://ajax.aspnetcdn.com/ajax/jQuery/jquery-1.9.1.min.js"></script>
<script type="text/javascript" src="/_layouts/15/sp.runtime.js"></script>
<script type="text/javascript" src="/_layouts/15/sp.js"></script>
<!-- Add your CSS styles to the following file -->
<link rel="Stylesheet" type="text/css" href="../Content/App.css" />
<!-- Add your JavaScript to the following file -->
<script type="text/javascript" src="../Scripts/App.js"></script>
</asp:content>
<%-- The markup in the following Content element will be placed in the TitleArea of the page --%>
<asp:content contentplaceholderid="PlaceHolderPageTitleInTitleArea" runat="server">Page Title</asp:content>
<%-- The markup and script in the following Content element will be placed in the <body>of the page --%>
<asp:content contentplaceholderid="PlaceHolderPageTitleInTitleArea" runat="server">REST API Examples</asp:content>
<%-- The markup and script in the following Content element will be placed in the <body>of the page --%>
<asp:content contentplaceholderid="PlaceHolderMain" runat="server">
<div>
<p>
<b>Check Out Type</b>
<br />
<input type="text" value="File URL Here" id="getfileurl" />
<button id="getcheckouttypetbutton">Check Out Type</button>
</p>
</div>
</asp:content>
App.js
Replace the contents of App.js with the following:
'use strict';
var hostweburl;
var appweburl;
// Load the required SharePoint libraries.
$(document).ready(function () {
//Get the URI decoded URLs.
hostweburl = decodeURIComponent(
getQueryStringParameter("SPHostUrl"));
appweburl = decodeURIComponent(
getQueryStringParameter("SPAppWebUrl"));
//Assign events to buttons
$("#getcheckouttypetbutton").click(function (event) {
getCheckOutType();
event.preventDefault();
});
// Resources are in URLs in the form:
// web_url/_layouts/15/resource
var scriptbase = hostweburl + "/_layouts/15/";
// Load the js file and continue to load the page.
// SP.RequestExecutor.js to make cross-domain requests
$.getScript(scriptbase + "SP.RequestExecutor.js");
});
// Utilities
// Retrieve a query string value.
// For production purposes you may want to use a library to handle the query string.
function getQueryStringParameter(paramToRetrieve) {
var params = document.URL.split("?")[1].split("&");
for (var i = 0; i < params.length; i = i + 1) {
var singleParam = params[i].split("=");
if (singleParam[0] == paramToRetrieve) return singleParam[1];
}
}
// Get the file Check Out Type
function getCheckOutType() {
var getfileurl = document.getElementById("getfileurl").value;
var executor;
// Initialize the RequestExecutor with the app web URL.
executor = new SP.RequestExecutor(appweburl);
executor.executeAsync({
url: appweburl + "/_api/SP.AppContextSite(@target)/web/GetFileByServerRelativeUrl('" + getfileurl + "')/CheckOutType?@target='" + hostweburl + "'",
method: "GET",
headers: {
"Accept": "application/json; odata=verbose"
},
success: getCheckOutTypeSuccessHandler,
error: getCheckOutTypeErrorHandler
});
}
// Success Handler
function getCheckOutTypeSuccessHandler(data) {
var jsonObject = JSON.parse(data.body);
// Display the File Check Out Type
alert("File Check Out Type: " + jsonObject.d.CheckOutType);
}
// Error Handler
function getCheckOutTypeErrorHandler(data, errorCode, errorMessage) {
alert("Could not get the check out type: " + errorMessage);
}
Deploy the App
- Click on Run Project.
![Run]()

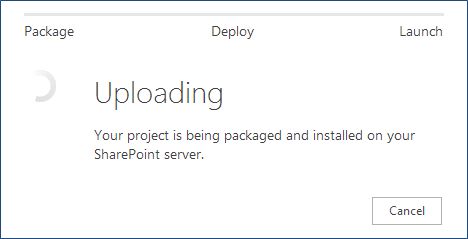

- The app will be packaged, deployed and launched.
![packaged]()
![Installing]()

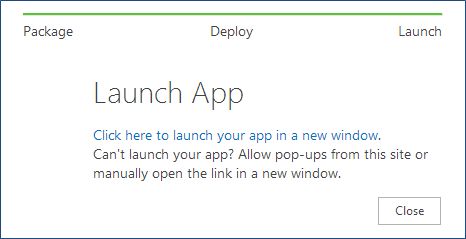

- Click on “Click here to launch your app in a new window”.
![new window]()

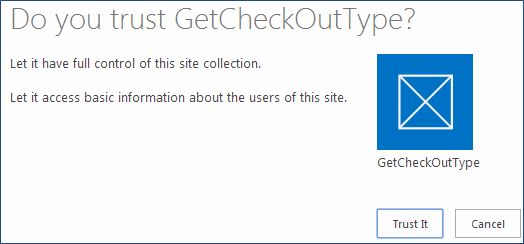

- Click on Trust it.
![Trust]()

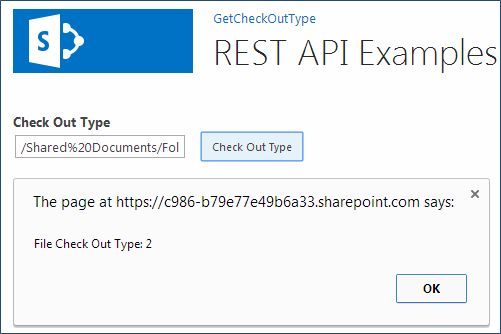

- Enter the file URL and then click on the Check Out Type button.
- File Check Out Type is displayed.
![Out Type]()
Reference
For more information on Check Out Type: SPFile.SPCheckOutType enumeration
Summary
Thus in this article you saw how to get the check-out type associated with the file using the REST API in SharePoint 2013 Online.
