This article explains how to create an image gallery in ASP.NET using the FileUpload control and a DataList.
I have designed the form and added the following two controls:
- Fileupload control: control to upload the image file to a folder and the information is saved into a SQL Server database table.
- DataList: to display the image in a repeating column row.
The following is the step-by-step procedure to create an Image Gallery in ASP.NET C# using a FileUpload control and a DataList.

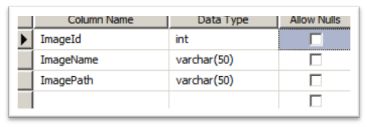

Step 1: Create a table in your database as below:
![table]()
The Image id is the identity column.
Step 2: Design the form as follows:
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="ImageGallery.aspx.cs" Inherits="Image_Library.ImageGallery" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
</head>
<body>
<form id="form1" runat="server">
<div>
<table>
<tr>
<td colspan="3">
<h2>
Image Gallery</h2>
</td>
</tr>
<tr>
<td>
Upload Image
</td>
<td>
<asp:FileUpload ID="imgFileUpload" runat="server" />
</td>
<td>
<asp:Button ID="btnUpload" runat="server" Text="Upload" OnClick="btnUpload_Click" />
</td>
</tr>
</table>
</div>
<div id="divImageList" runat="server">
<asp:DataList ID="dtListImageGallery" runat="server" RepeatColumns="3" RepeatDirection="Horizontal"
Width="50%" BorderColor="#336699" BorderStyle="Solid" BorderWidth="2px">
<ItemTemplate>
<asp:Label ID="Label1" runat="server" Text='<%# Eval("ImageName") %>' Font-Bold="True"
Font-Size="10pt" ForeColor="#336699" Width="100%" />
<br />
<asp:Image Width="100" ID="imgGallery" ImageUrl='<%# Bind("ImagePath", "~/ImageGallery/{0}") %>'
runat="server" />
</ItemTemplate>
<ItemStyle HorizontalAlign="Center" VerticalAlign="Top" />
</asp:DataList>
</div>
</form>
</body>
</html>
Step 3: Add the following code on the click of the button.
SqlConnection conn = new SqlConnection(@"Data Source=.\sqlexpress;Initial Catalog=LMS;Integrated Security=True");
if (imgFileUpload.PostedFile != null)
{
string imagename = Path.GetFileName(imgFileUpload.PostedFile.FileName);
imagename = imagename.Split('.')[0].ToString();
string pathname;
pathname = Server.MapPath("~\\ImageGallery\\") + DateTime.Now.ToString("ddMMyyhhmmsstt") + imgFileUpload.FileName;
imgFileUpload.PostedFile.SaveAs(pathname);
try
{
conn.Open();
string insquery = "Insert into MyImageGallery(ImageName,ImagePath) values('" + imagename + "','"+DateTime.Now.ToString("ddMMyyhhmmsstt") + imgFileUpload.FileName.ToString() + "')";
SqlCommand cmd = new SqlCommand(insquery, conn);
cmd.ExecuteNonQuery();
conn.Close();
BindDataList();
}
catch (Exception ex)
{
Response.Write(ex.Message);
}
}
Step 4: Call a method BindDataList on page load and write the following code inside the method:
private void BindDataList()
{
SqlConnection conn = new SqlConnection(@"Data Source=.\sqlexpress;Initial Catalog=LMS;Integrated Security=True");
conn.Open();
sqlda = new SqlDataAdapter("SELECT * FROM MyImageGallery", conn);
dt = new DataTable();
sqlda.Fill(dt);
sqlda.Dispose();
dtListImageGallery.DataSource = dt;
dtListImageGallery.DataBind();
conn.Close();
}

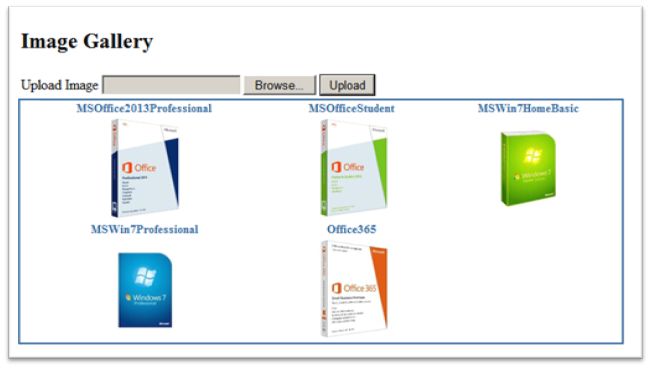

Step 5: Run the application, the Image gallery will be shown as below:
![Run]()
ConclusionIn this article I explained how to design and develop the image gallery in ASP.NET C#.
