Introduction
In this article I will explain how to create a registration form in ASP.NET C#. This article also explains how we to use Stored Procedures instead of explicit SQL statements to add data from a form to a database.
![registration form]()
Use the following procedure to create a sample.

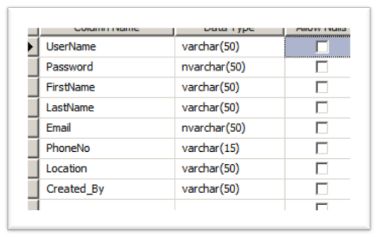

Step 1: Create a database and add a table for storing the data as in the following:
![table]()
Step 2: Create a Stored Procedure to store the records in the database as in the following:
Create PROCEDURE [dbo].[sp_EmpInformation]
@UserName varchar(50),
@Password varchar(50),
@FirstName varchar(50),
@LastName varchar(50),
@Email varchar(50),
@PhoneNo varchar(50),
@Location varchar(50),
@Created_By varchar(50),
@ERROR VARCHAR(100) OUT
AS
BEGIN-- SET NOCOUNT ON added to prevent extra result sets from-- interfering with SELECT statements.
SET NOCOUNT ON;
---Checking Condition if User exists or not if user not exists returns different message if exists returns different message
IF NOT EXISTS(SELECT * FROM Employee_Information WHERE UserName=@UserName)
BEGIN INSERT INTO Employee_Information
(
UserName,
[Password],
FirstName,
LastName,
Email,
PhoneNo,
Location,
Created_By
)VALUES(@UserName,
@Password,
@FirstName,
@LastName,
@Email,
@PhoneNo,
@Location,
@Created_By
)
SET @ERROR=@UserName+' has registered successfully.'
END
ELSE
BEGIN
SET @ERROR=@UserName + ' has already exists.'
END
End
Step 3: Open Visual Studio and select create Web application.
Step 4: Add a new Web page Emp_Registration.aspx and design it as below:
<div>
<asp:ScriptManager ID="SM1" runat="server">
</asp:ScriptManager>
<table align="center">
<tr>
<td align="center" colspan="2">
<h2>
Registration Form</h2>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lbluser" runat="server" Text="Username"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtuser" runat="server"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lblpwd" runat="server" Text="Password"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtpwd" runat="server" TextMode="Password"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lblcnfmpwd" runat="server" Text="Confirm Password"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtcnmpwd" runat="server" TextMode="Password"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lblfname" runat="server" Text="FirstName"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtfname" runat="server"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lbllname" runat="server" Text="LastName"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtlname" runat="server"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lblemail" runat="server" Text="Email"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtEmail" runat="server"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lblCnt" runat="server" Text="Phone No"></asp:Label>
</td>
<td>
<asp:TextBox ID="txtphone" runat="server"></asp:TextBox>
</td>
</tr>
<tr>
<td>
<asp:Label ID="lbladd" runat="server" Text="Location"></asp:Label>
</td>
<td align="left">
<asp:TextBox ID="txtlocation" runat="server"></asp:TextBox>
</td>
</tr>
<tr>
<td>
</td>
<td valign="middle">
<asp:UpdatePanel ID="UP1" runat="server">
<ContentTemplate>
<table>
<tr>
<td style="height: 50px; width: 100px;">
<asp:Image ID="imgCaptcha" runat="server" />
</td>
<td valign="middle">
<asp:Button ID="btnRefresh" runat="server" Text="Refresh" OnClick="btnRefresh_Click" />
</td>
</tr>
</table>
</ContentTemplate>
</asp:UpdatePanel>
</td>
</tr>
<tr>
<td>
Enter above captcha code :
</td>
<td>
<asp:TextBox ID="txtCaptcha" runat="server" Width="200px"></asp:TextBox>
</td>
</tr>
<tr>
<td align="left" colspan="2">
<asp:Button ID="btnsubmit" runat="server" Text="Save" OnClick="btnsubmit_Click" />
<asp:Button ID="btnReset" Text="Reset" runat="server" />
</td>
</tr>
<tr>
<td colspan="2">
<span style="color: Red; font-weight: bold">
<asp:Label ID="lblErrorMsg" runat="server"></asp:Label></span>
</td>
</tr>
</table>
</div>
Step 5: Go to the Emp_Registration.aspx.cs page and add code.
Step 6 : Add code for the Page Load as below:
protected void Page_Load(object sender, EventArgs e)
{
FillCapctha();
}
void FillCapctha()
{
try
{
Random random = new Random();
string combination = "0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz";
StringBuilder captcha = new StringBuilder();
for (int i = 0; i < 6; i++)
{
captcha.Append(combination[random.Next(combination.Length)]);
Session["captcha"] = captcha.ToString();
imgCaptcha.ImageUrl = "GenerateCaptcha.aspx?" + DateTime.Now.Ticks.ToString();
}
catch
{
throw;
}
}
Step 7: Add code for the button Submit click as in the following:
protected void btnsubmit_Click(object sender, EventArgs e)
{
if (Session["captcha"].ToString() != txtCaptcha.Text)
lblErrorMsg.Text = "Invalid Captcha Code";
else
{
if (txtpwd.Text == txtcnmpwd.Text)
{
string UserName = txtuser.Text;
string Password = txtpwd.Text;
string ConfirmPassword = txtcnmpwd.Text;
string FirstName = txtfname.Text;
string LastName = txtlname.Text;
string Email = txtEmail.Text;
string Phoneno = txtphone.Text;
string Location = txtlocation.Text;
string Created_By = txtuser.Text;
SqlConnection con = new SqlConnection(@"Data Source=.\sqlexpress;Initial Catalog=LMS;Integrated Security=True");
con.Open();
SqlCommand cmd = new SqlCommand("sp_EmpInformation", con);
cmd.CommandType = CommandType.StoredProcedure;
cmd.Parameters.AddWithValue("@UserName", UserName);
cmd.Parameters.AddWithValue("@Password", Password);
cmd.Parameters.AddWithValue("@FirstName", FirstName);
cmd.Parameters.AddWithValue("@LastName", LastName);
cmd.Parameters.AddWithValue("@Email", Email);
cmd.Parameters.AddWithValue("@PhoneNo", Phoneno);
cmd.Parameters.AddWithValue("@Location", Location);
cmd.Parameters.AddWithValue("@Created_By", Created_By);
cmd.Parameters.Add("@ERROR", SqlDbType.Char, 500);
cmd.Parameters["@ERROR"].Direction = ParameterDirection.Output;
cmd.ExecuteNonQuery();
if (!string.IsNullOrEmpty(cmd.Parameters["@ERROR"].Value.ToString()))
{
message = (string)cmd.Parameters["@ERROR"].Value;
}
con.Close();
}
else
{
Page.RegisterStartupScript("UserMsg", "<Script language='javascript'>alert('" + "Password mismatch" + "');</script>");
}
lblErrorMsg.Text = message;
ClearControls();
}
}
Step 8: Add code for the Refresh button as in the following:
protected void btnRefresh_Click(object sender, EventArgs e)
{
FillCapctha();
}
Step 9: Add another Webform GenerateCaptcha.aspx
Step 10: Add the following code on the page Load of GenerateCaptcha.aspx:
Response.Clear();
int height = 30;
int width = 100;
Bitmap bmp = new Bitmap(width, height);
RectangleF rectf = new RectangleF(10, 5, 0, 0);
Graphics g = Graphics.FromImage(bmp);
g.Clear(Color.White);
g.SmoothingMode = SmoothingMode.AntiAlias;
g.InterpolationMode = InterpolationMode.HighQualityBicubic;
g.PixelOffsetMode = PixelOffsetMode.HighQuality;
g.DrawString(Session["captcha"].ToString(), new Font("Thaoma", 12, FontStyle.Italic), Brushes.Chocolate, rectf);
g.DrawRectangle(new Pen(Color.Blue), 1, 1, width - 2, height - 2);
g.Flush();
Response.ContentType = "image/jpeg";
bmp.Save(Response.OutputStream, ImageFormat.Jpeg);
g.Dispose();
bmp.Dispose();
Step 11: Press F5 to run the application.

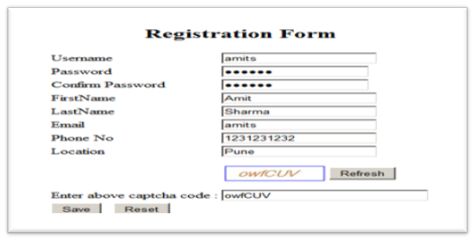

Step 12: Add a new entry in the registration form as in the following:
![Entry in registration form]()

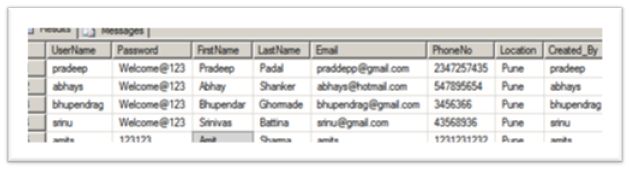

Step 13: Records are stored in the database as below:
![Records stored in the database]()
ConclusionIn this article I have explained how to work with a registration form with Captcha feature and store data in SQL Server using Stored Procedure.
