Cascading Dropdown List in Three Tier ASP.NET Application

I will explain step-by-step Cascading Dropdown lists in the following.

1: SQL Database

In this database section create the two tables, State and City.

Table 1: State

  1. Create table India_State
  2. (
  3.    S_id int identity(1,1) primary key,
  4.    S_name varchar(30)
  5. )
Table 2: City
  1. create table City
  2. (
  3.    City_id int identity(1,1) primary key,
  4.    City_name varchar(30),
  5.    S_id int foreign key references India_state(S_id)
  6. )

2: Visual Studio

In this section add a UI Page, BAL class file and DAL class file.

Step 1

Create a DAL file as in the following.

Go to the project in the Solution Explorer and add a DAL class file as in Figure 1.

Add DAL class File
Figure 1: Add DAL class File.

DAL Code

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Configuration;
  6. using System.Data;
  7. using System.Data.SqlClient;
  8.
  9. namespace EWD.DAL
  10. {
  11.     public class DAL_DropDownList
  12.     {
  13.         public static DataTable StateList()
  14.         {
  15.             string connection = ConfigurationManager.ConnectionStrings["Conncet_DB"].ConnectionString;
  16.             //  bool status = false;
  17.             SqlConnection con = new SqlConnection(connection);
  18.             SqlCommand cmd = new SqlCommand("select S_id,S_name from India_State", con);
  19.             con.Open();
  20.             cmd.CommandType = CommandType.Text;
  21.             SqlDataReader dr = cmd.ExecuteReader();
  22.             DataTable dt = null;
  23.             if (dr.HasRows)
  24.             {
  25.                 dt = new DataTable("India_State");
  26.                 dt.Load(dr);
  27.                 //   status = true;
  28.                 return dt;
  29.             }
  30.             if (cmd != null)
  31.             {
  32.                 cmd.Dispose();
  33.                 cmd = null;
  34.             }
  35.             return dt;
  36.         }
  37.
  38.         public static DataTable GetCityList(int S_id)
  39.         {
  40.             string connection = ConfigurationManager.ConnectionStrings["Conncet_DB"].ConnectionString;
  41.             //  bool status = false;
  42.             SqlConnection con = new SqlConnection(connection);
  43.             SqlCommand cmd = new SqlCommand("select City_id,City_name from City Where S_id=@S_id", con);
  44.             con.Open();
  45.             cmd.CommandType = CommandType.Text;
  46.             cmd.Parameters.AddWithValue("@S_id", SqlDbType.Int).Value = S_id;
  47.             SqlDataReader dr = cmd.ExecuteReader();
  48.             DataTable dt = null;
  49.             if (dr.HasRows)
  50.             {
  51.                 dt = new DataTable("City");
  52.                 dt.Load(dr);
  53.                 //   status = true;
  54.                 return dt;
  55.             }
  56.             if (cmd != null)
  57.             {
  58.                 cmd.Dispose();
  59.                 cmd = null;
  60.             }
  61.             return dt;
  62.         }
  63.     }
  64. }

Step 2

Add a BAL File as in Figure 2.

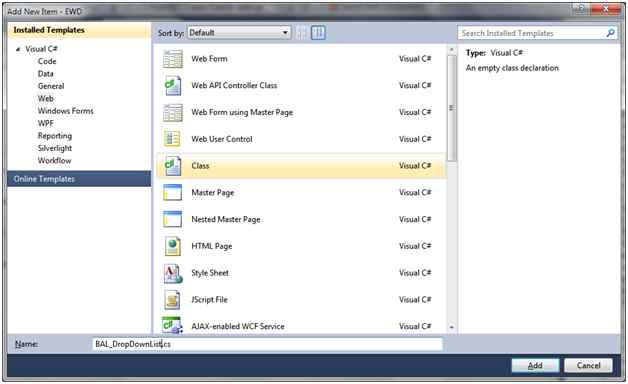

Add BAL Class
Figure 2: Add BAL Class

BAL Code

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Data;
  6. using EWD;
  7.
  8. namespace EWD.BAL
  9. {
  10.     public class BAL_DropDownList
  11.     {
  12.         public static DataTable GetStateList()
  13.         {
  14.             return DAL.DAL_DropDownList.StateList();
  15.         }
  16.
  17.         public static DataTable GetCityList(int S_id)
  18.         {
  19.             return DAL.DAL_DropDownList.GetCityList(S_id);
  20.         }
  21.     }
  22. }

Step 3

Create the UI Design.

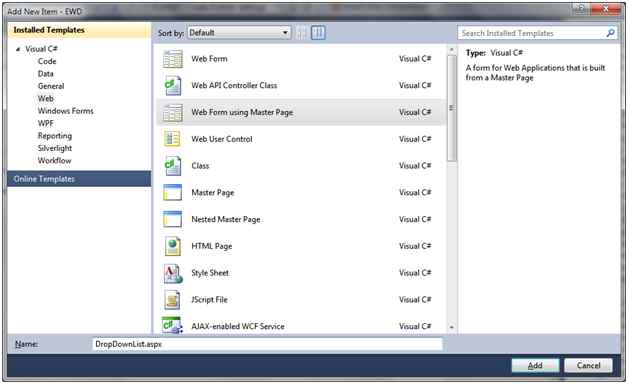

Add Design Page
Figure 3: Add Design Page,

UI Design Code

In this section add a dropdown list to bind a State and City record from the database.

Also the State dropdownlist AutoPostBack event true bind for Child City Record.

  1. <%@ Page Title="" Language="C#" MasterPageFile="~/Site.Master" AutoEventWireup="true" CodeBehind="DropDownList.aspx.cs" Inherits="EWD.UI.DropDownList" %>
  2. <asp:Content ID="Content1" ContentPlaceHolderID="HeadContent" runat="server">
  3. </asp:Content>
  4. <asp:Content ID="Content2" ContentPlaceHolderID="MainContent" runat="server">
  5. <h2>Cascading DropDownList in three tier Application </h2>
  6. <table>
  7.     <tr>
  8.         <td>Select State</td><td><asp:DropDownList ID="ddlState" runat="server"
  9.  onselectedindexchanged="ddlState_SelectedIndexChanged" AutoPostBack="true" ></asp:DropDownList></td>
  10.
  11.  <td>Select City</td><td><asp:DropDownList ID="ddlCity" runat="server"></asp:DropDownList></td>
  12.     </tr>
  13.   </table>
  14.
  15. </asp:Content>
UI Code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using EWD.BAL;
  9.
  10. namespace EWD.UI
  11. {
  12.     public partial class DropDownList : System.Web.UI.Page
  13.     {
  14.         protected void Page_Load(object sender, EventArgs e)
  15.         {
  16.             if (!IsPostBack)
  17.             {
  18.                 BindState();
  19.             }
  20.         }
  21.
  22.         public void BindState()
  23.         {
  24.             BAL_DropDownList DDL = new BAL_DropDownList();
  25.
  26.             DataTable dtState = EWD.BAL.BAL_DropDownList.GetStateList();
  27.             ddlState.DataSource = dtState;
  28.             ddlState.DataTextField = "S_name";
  29.             ddlState.DataValueField = "S_id";
  30.             ddlState.DataBind();
  31.             ddlState.Items.Insert(0, new ListItem("---Select State---"));
  32.         }
  33.
  34.         protected void ddlState_SelectedIndexChanged(object sender, EventArgs e)
  35.         {
  36.             BindCity();
  37.         }
  38.
  39.         public void BindCity()
  40.         {
  41.             int S_id;
  42.             int.TryParse(ddlState.SelectedValue, out S_id);
  43.
  44.             DataTable dtCity = EWD.BAL.BAL_DropDownList.GetCityList(S_id);
  45.
  46.             ddlCity.DataSource = dtCity;
  47.             ddlCity.DataTextField = "City_name";
  48.             ddlCity.DataValueField = "City_id";
  49.             ddlCity.DataBind();
  50.             ddlCity.Items.Insert(0, new ListItem("---Select City---"));
  51.         }
  52.     }
  53. }
Output

Now run the code and display the results in the web page.

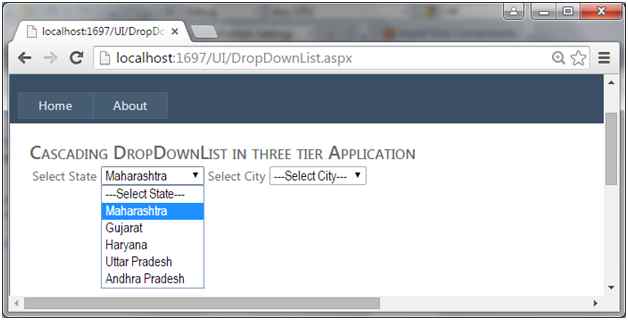

Parent DropDownList
Figure 4: Parent DropDownList

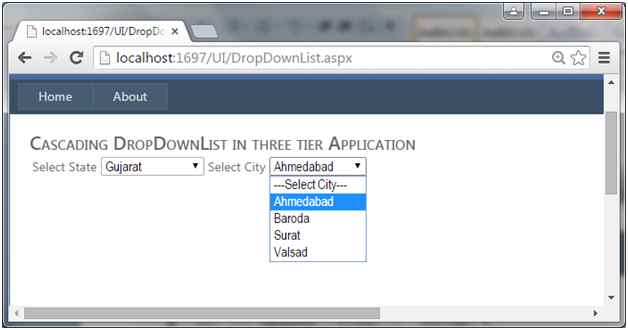

Child DropDownList
Figure 5: Child DropDownList

Thanks for reading this article. Have a nice day sir.
