Export GridView Data Into Excel File Format

A GridView is a very important and useful control of ASP.Net. In this article a grid is exported into an .xls file using HtmlTextWriter and StringWriter ASP.Net controls.

Now we will see one by one how to fill a GridView from a database and then get the GridView data saved as an Excel file from the GridView.

Step 1

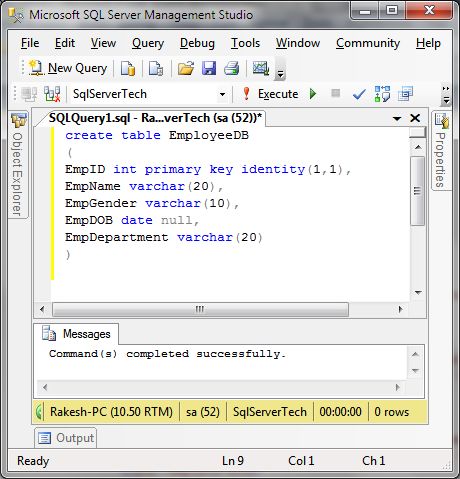

Go to the SQL Database side.

Create an Employee Information table.

create table EmployeeDB
(
EmpID int primary key identity(1,1),
EmpName varchar(20),
EmpGender varchar(10),
EmpDOB date null,
EmpDepartment varchar(20)
)

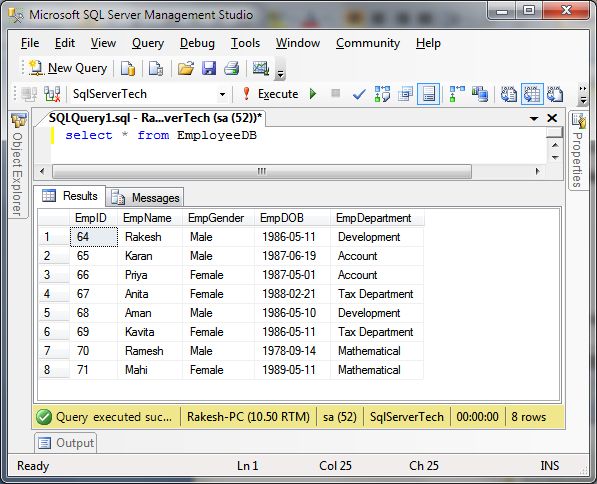

Some data is inserted into the database as in the following screen.



Now we will do something with all this selected data filled into the GridView.

Step 2

Go to the Visual Studio side as in the following.

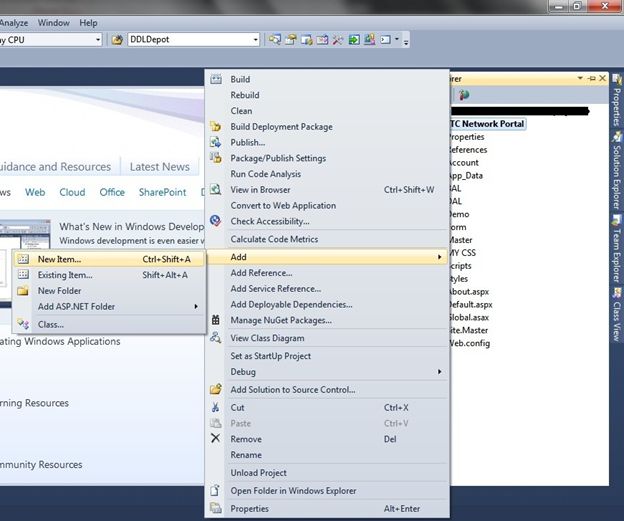

Now go to your project design (.aspx) page.

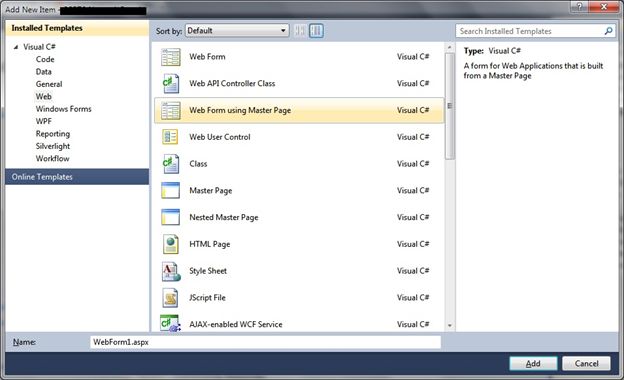

Add a page using Master page.



Provide a specific name for the page and click the Add button.

Next add a GridView control and button control on the design page.

Configure your database connection string in your project's web.config file.

<connectionStrings>
   <add name="connstr" connectionString="Data Source=RAKESH-PC;Initial Catalog=SqlServerTech;User ID=sa;Password=your SQL DB Password" providerName="System.Data.SqlClient"/>

   <add name="Pratical_testConnectionString" connectionString="Data Source=RAKESH-PC;Initial Catalog=Pratical_test;User ID=sa password=****" providerName="System.Data.SqlClient"/>
</connectionStrings>

Page.aspx.cs side

Go to the Page Code side and write code to fill in the GridView and the GridView data is exported into Excel file format.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Configuration;
using System.Data;
using System.Data.SqlClient;
using System.IO;
using System.Text;
using System.Web.UI.HtmlControls;

namespace Test_WebApplication.UI
{
    public partial class GridToExcel : System.Web.UI.Page
    {
        string conString = ConfigurationManager.ConnectionStrings["connstr"].ConnectionString;
        protected void Page_Load(object sender, EventArgs e)
        {
            if (!Page.IsPostBack)
            {
                EmployeeDataGrid();
            }
        }
        private void EmployeeDataGrid()
        {
            using (SqlConnection con = new SqlConnection(conString))
            {
                using (SqlCommand cmd = new SqlCommand("select * from EmployeeDB"))
                {
                    SqlDataAdapter dt = new SqlDataAdapter();
                    try
                    {
                        cmd.Connection = con;
                        con.Open();
                        dt.SelectCommand = cmd;

                        DataTable dTable = new DataTable();
                        dt.Fill(dTable);
                        SqlDataReader sdr = cmd.ExecuteReader();
                        GridEmpData.DataSource = dTable;
                        GridEmpData.DataBind();
                    }
                    catch (Exception)
                    {
                       // Error msg display here
                    }
                }
            }
        }

        protected void btnExportGridintoExcel_Click(object sender, EventArgs e)
        {
            ExportGridToExcel();
        }

        private void ExportGridToExcel()
        {
            Response.Clear();
            Response.AddHeader("content-disposition", "attachment;filename=ExportGridData.xls");
            Response.ContentType = "File/Data.xls";
            StringWriter StringWriter = new System.IO.StringWriter();
            HtmlTextWriter HtmlTextWriter = new HtmlTextWriter(StringWriter);

            GridEmpData.RenderControl(HtmlTextWriter);
            Response.Write(StringWriter.ToString());
            Response.End();
        }

        public override void VerifyRenderingInServerForm(Control control)
        {
            // controller
        }
    }
}

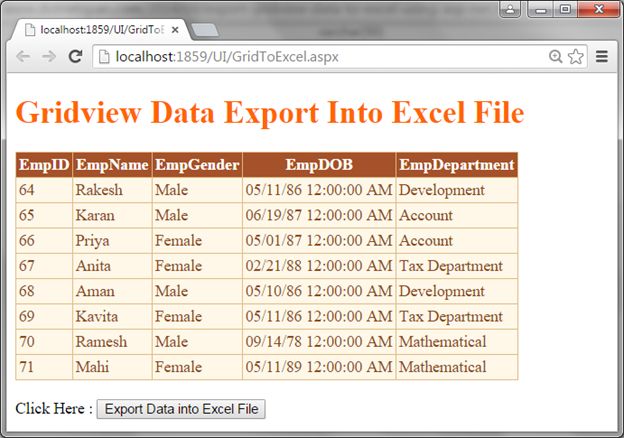

Now run your page and display the data in the web page as in the following:

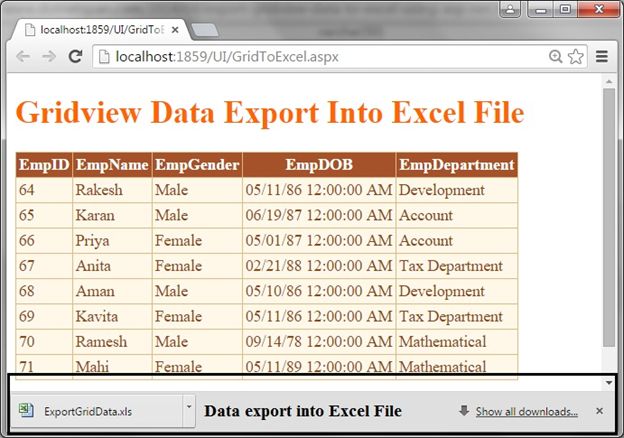

Now click on the button and save the displayed data in the .xls file as in the following:

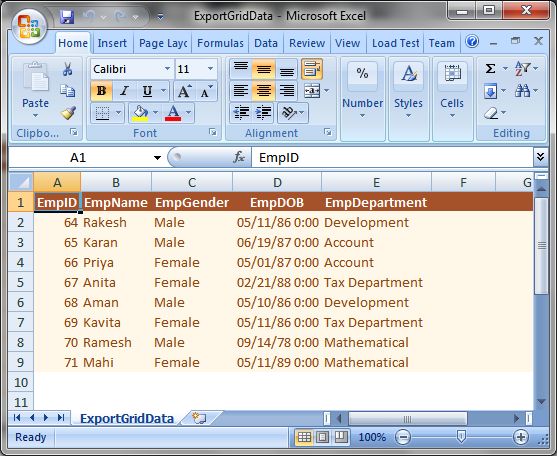

Finally you are seeing the GridView data in the Excel file.



Finally I hope you understand how to GridView data is exported into an Excel file and saved on disk.
