How to Add URL to Trusted Zone in IE

You can do this using the registry. You need to first add your URL to the registry of IE then the IE browser will read the data from the registry.

In the registry there will be two locations. If you need to add a domain name like: http://www.c-sharpcorner.com/ then you need to store this value in this location:

"Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap\Domains"

If you need to store an IP address in the IE registry then you to store the key and value in this location:

"Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap\Ranges"

Now we will create a sample code for saving in the registry.

Step 1

To create the form write the code like this:

Public Class WebForm1
    Inherits System.Web.UI.Page

    Protected Sub Page_Load(ByVal sender As Object, ByVal e As System.EventArgs) Handles Me.Load


        Try
            AddVenture21UrlToTrustedSitesForIE("http://sdw2078:30/")
            AddVenture21UrlToTrustedSitesForIE("http://10.10.223.27:49181/")
            ApiHostConfigurator.ConfigurApiHost()
        Catch ex As Exception
            'code for exception logger.
        End Try

    End Sub


    ''' <summary>
    ''' This is used to validated the input and pass the data for saving in registry.
    ''' </summary>
    ''' <param name="url">String</param>
    ''' <remarks></remarks>
    Private Sub AddVenture21UrlToTrustedSitesForIE(url As String)
        Dim input As String = String.Empty
        Dim ur As New Uri(url)
        Dim browser As String = TrustedSiteRegistry.GetDefaultBrowser()
        Try
            If (browser = "Internet Explorer") Then
                input = ur.Host
                If ur.HostNameType = UriHostNameType.IPv4 Then
                    TrustedSiteRegistry.AddIpAddress(input)
                ElseIf ur.HostNameType = UriHostNameType.Dns Then
                    TrustedSiteRegistry.SaveToTrustedSite(input)
                End If
            End If
        Catch ex As Exception
            'code for exception logger.
        End Try
    End Sub

End Class

Step 2

Now create the TrustedSiteRegistry class and write the method for saving it in the Trusted Zone like this:

Imports Microsoft.Win32
Imports System.Runtime.CompilerServices

''' <summary>
''' This class hold the function and method related with saving Trusted Site in Registry.
''' </summary>
''' <remarks></remarks>
Public Class TrustedSiteRegistry

#Region "Constants for Trusted sites"
    Const DomainsKeyLocation As String = "Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap\Domains"
    Const RANGES_KEY As String = "Software\Microsoft\Windows\CurrentVersion\Internet Settings\ZoneMap\Ranges"
    Const TRUSTED_SITE_CODE As Integer = &H2
    Const ALL_PROTOCOL As String = "http"
    Const RANGE_ADDRESS As String = ":Range"

#End Region

    ''' <summary>
    ''' Returns the default Browser name.
    ''' </summary>
    ''' <returns></returns>
    ''' <remarks></remarks>
    Public Shared Function GetDefaultBrowser() As String
        Dim returnValue As String = String.Empty

        Using baseKey As RegistryKey = My.Computer.Registry.CurrentUser.OpenSubKey("Software\Clients\StartmenuInternet")
            Dim baseName As String = baseKey.GetValue("").ToString
            Const software As String = "SOFTWARE\"
            Const path As String = "Clients\StartMenuInternet\"
            'key value for the default browser
            Dim subKey As String = String.Format("{0}{1}{2}{3}", software, IIf(Environment.GetEnvironmentVariable("PROCESSOR_ARCHITECTURE") = "AMD64", "Wow6432Node\", ""), path, baseName)
            'Default browser name
            Using browserKey As RegistryKey = My.Computer.Registry.LocalMachine.OpenSubKey(subKey)
                returnValue = browserKey.GetValue("").ToString
            End Using
        End Using
        Return returnValue
    End Function

    ''' <summary>
    ''' This method is used save data as Trusted Site in IE.
    ''' </summary>
    ''' <param name="domain">String</param>
    ''' <remarks></remarks>
    Public Shared Sub SaveToTrustedSite(domain As String)
        Dim subdomains As Dictionary(Of String, String) = New Dictionary(Of String, String)() From { _
                   {String.Empty, "http"} _
                                                                                                   }
        Using currentUserKey As RegistryKey = Registry.CurrentUser
            currentUserKey.GetOrCreateSubKey(DomainsKeyLocation, domain)
            For Each subdomain As Object In subdomains
                CreateSubdomainKeyAndValue(currentUserKey, DomainsKeyLocation, domain, CType(subdomain, Global.System.Collections.Generic.KeyValuePair(Of String, String)), TRUSTED_SITE_CODE)
            Next
        End Using
    End Sub






    ''' <summary>
    ''' This method is used to add the IP address.
    ''' </summary>
    ''' <param name="ipAddress">String</param>
    ''' <remarks></remarks>
    Public Shared Sub AddIpAddress(ipAddress As String)
        Dim rangeKey As RegistryKey = GetRangeKey(ipAddress)
        rangeKey.SetValue(ALL_PROTOCOL, TRUSTED_SITE_CODE, RegistryValueKind.DWord)
        rangeKey.SetValue(RANGE_ADDRESS, ipAddress, RegistryValueKind.[String])
    End Sub



    ''' <summary>
    ''' This method is used to Get the Range key.
    ''' </summary>
    ''' <param name="ipAddress">String</param>
    ''' <returns></returns>
    ''' <remarks></remarks>
    Private Shared Function GetRangeKey(ipAddress As String) As RegistryKey
        Using currentUserKey As RegistryKey = Registry.CurrentUser
            For i As Integer = 1 To Integer.MaxValue - 1
                Dim rangeKey As RegistryKey = currentUserKey.GetOrCreateSubKey(RANGES_KEY, "Range" + i.ToString())

                Dim addressValue As Object = rangeKey.GetValue(RANGE_ADDRESS)
                If addressValue Is Nothing Then
                    Return rangeKey
                Else
                    If Convert.ToString(addressValue) = ipAddress Then
                        Return rangeKey
                    End If
                End If
            Next
            Throw New Exception("No range slot can be used.")
        End Using
    End Function
    ''' <summary>
    ''' This method is used to Create Subdomain Key And Value.
    ''' </summary>
    ''' <param name="domainsKeyLocation">String</param>
    ''' <param name="domain">String</param>
    ''' <param name="subdomain">KeyValuePair</param>
    ''' <param name="zone">Integer</param>
    ''' <remarks></remarks>
    Private Shared Sub CreateSubdomainKeyAndValue(currentUserKey As RegistryKey, domainsKeyLocation As String, domain As String, subdomain As KeyValuePair(Of String, String), zone As Integer)
        Using subdomainRegistryKey As RegistryKey = currentUserKey.GetOrCreateSubKey(String.Format("{0}\{1}", domainsKeyLocation, domain), subdomain.Key)
            Dim objSubDomainValue As Object = subdomainRegistryKey.GetValue(subdomain.Value)
            If objSubDomainValue Is Nothing OrElse Convert.ToInt32(objSubDomainValue) <> zone Then
                subdomainRegistryKey.SetValue(subdomain.Value, zone, RegistryValueKind.DWord)
            End If
        End Using
    End Sub

End Class

Step 3

Create the Extension method in VB.Net using a module like this:

Imports Microsoft.Win32
Imports System.Runtime.CompilerServices

''' <summary>
''' This Module hold the Extension method of Registry.
''' </summary>
''' <remarks></remarks>
Public Module RegistryKeyExtensionMethods

    ''' <summary>
    ''' This extension method is used to read the existing key and Create the Key.
    ''' </summary>
    ''' <param name="registryKey">RegistryKey</param>
    ''' <param name="parentString">String</param>
    ''' <param name="subString">String</param>
    ''' <returns>RegistryKey</returns>
    ''' <remarks></remarks>
    <Extension()> _
    Public Function GetOrCreateSubKey(registryKey As RegistryKey, parentString As String, subString As String) As RegistryKey
        Dim subKey As RegistryKey = registryKey.OpenSubKey(Convert.ToString(parentString & Convert.ToString("\")) & subString, True)
        If subKey Is Nothing Then
            subKey = registryKey.CreateSubKey(parentString, subString)
        End If
        Return subKey
    End Function

    ''' <summary>
    ''' This extension method is used to Create Sub key.
    ''' </summary>
    ''' <param name="registryKey">RegistryKey</param>
    ''' <param name="parentKeyLocation">String</param>
    ''' <param name="key">String</param>
    ''' <returns>RegistryKey</returns>
    ''' <remarks></remarks>
    <Extension()> _
    Public Function CreateSubKey(registryKey As RegistryKey, parentKeyLocation As String, key As String) As RegistryKey
        Dim parentKey As RegistryKey = registryKey.OpenSubKey(parentKeyLocation, True)
        If parentKey Is Nothing Then
            Throw New NullReferenceException(String.Format("Missing parent key: {0}", parentKeyLocation))
        End If
        Dim createdKey As RegistryKey = parentKey.CreateSubKey(key)
        If createdKey Is Nothing Then
            Throw New Exception(String.Format("Key not created: {0}", key))
        End If
        Return createdKey
    End Function
End Module

Step 4

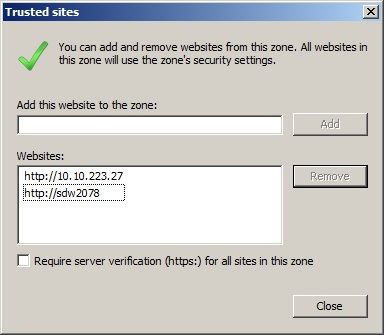

Now run the application and check in the trusted site list in IE browser. You will see it as in the following:



Note: If you need to add a complete URL name with .com then you need to give com in the dictionary like this code.



Dim subdomains As Dictionary(Of String, String) = New Dictionary(Of String, String)() From { _
                   {com, "http"} _
                                                                                                   }
