C# Concepts: Value Type and Reference Type

This seems to be a basic but very part of C# programming.

Value type: Value types are generally (not always) stored on the stack and are passed by copying.

The way in which a variable assignment works differs between reference and value types.

If we have something like:

class Program
{
    static void Main(string[] args)
    {
        A obj1 = new A(12);
        int v1 = 12;
        int v2 = 22;
        v2 = v1;
        Console.WriteLine(v2);
        Console.ReadLine();
    }
}

Implementation: Here both v1 and v2 will be on the stack and are different entities.

Refrence Type: A value type is basically stored on the heap and passed by creating a reference.

using System;
class A {
    public int value
    {
        get;
        set;
    }
    public A(int passbyref)
    {
        this.value = passbyref;
    }
}
class Program
{
    static void Main(string[] args)
    {
        A v1 = new A(12);
        A v2 = new A(22); //Breakpoint
        v2 = v1;
        Console.WriteLine(v1.value);
        Console.WriteLine(v2.value);
        Console.ReadLine();
    }
}

Implementation: v1 and v2 will be on the heap as two entities until a breakpoint.

And after the breakpoint they both point to one entity.

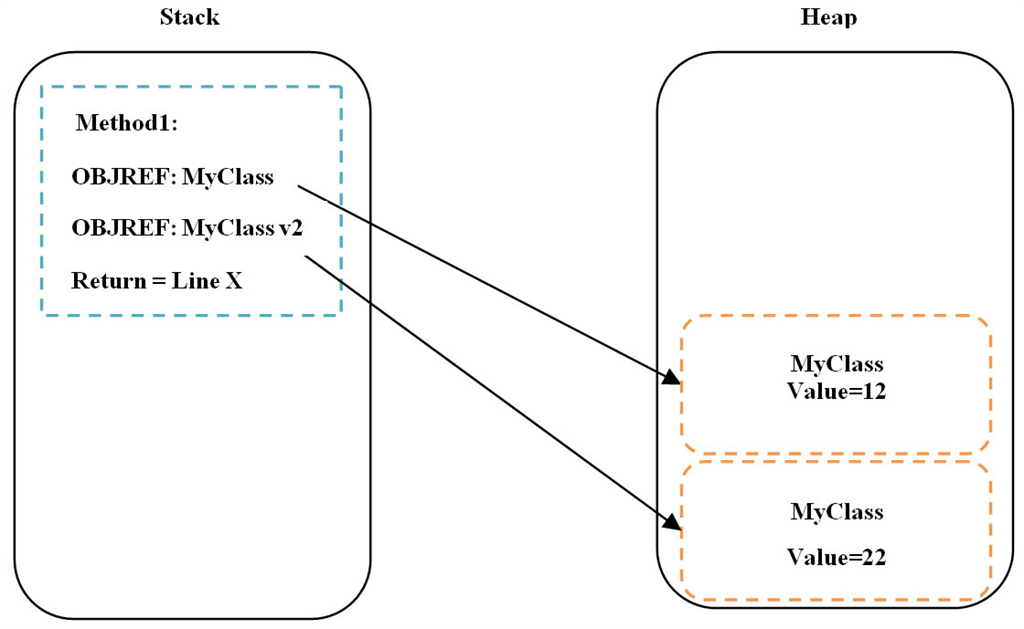

Figure 1: BreakPoin1

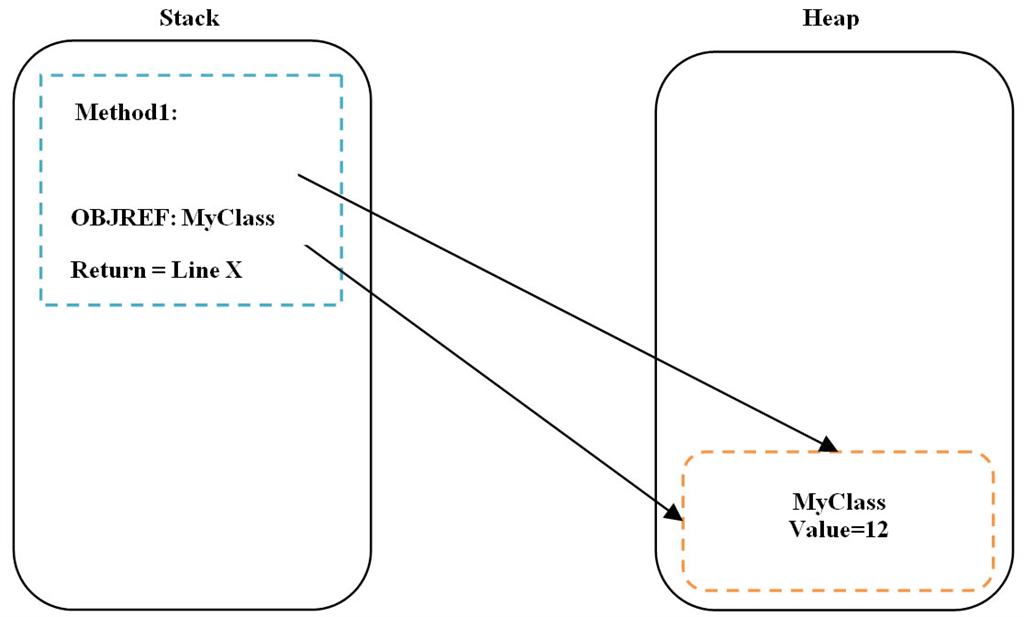

Figure 2: BreakPoint2

So, a change in one will affect the other.

Conclusion: once you pass a value type, you pass a copy to the other method.

But what if we want to change it? Use the “ref” keyword for that.

Suggestion: the difference between ref and out should be studied (I will try to write another article for that topic).

Use of ref in value types: the ref keyword passes the value by reference (details to be explained later).

class Program
{
    static void Main(string[] args)
    {
        int v1 = 12;
        methodtoshowref(ref v1);
        Console.WriteLine(v1);
        Console.ReadLine();
    }
    public static void methodtoshowref(ref int v2)
    {
        v2 = 100;
    }
}

Now, v1 becomes 100 because both share the same reference (one entity).

Passing Arguments

We have the following four possibilities:

1. Pass value type by value.
2. pass value type by reference
3. pass reference type by value.
4. pass reference type by reference.

Pass value type by value

struct A
{
    public int val
    {
        get;
        set;
    }
}
class Program
{
    static void Main(string[] args)
    {
        A v1 = new A();
        v1.val = 10;
        methodtoshowref(v1);
        Console.WriteLine(v1.val);
        Console.ReadLine();
    }
    public static void methodtoshowref(A obj)
    {
        obj = new A();;
    }
}

Output: 10 (because one more copy is created and thus the original is not affected).

Pass value type by reference

using System;
struct A
{
    public int val
    {
        get;
        set;
    }
}
class Program
{
    static void Main(string[] args)
    {
        A v1 = new A();
        v1.val = 10;
        methodtoshowref(ref v1);
        Console.WriteLine(v1.val);
        Console.ReadLine();
    }
    public static void methodtoshowref(ref A obj)
    {
        obj = new A();;
    }
}

Output: 0 (since now one copy is shared by both methods).

Pass reference type by value (by default)

using System;
class A
{
    public int val
    {
        get;
        set;
    }
}
class Program
{
    static void Main(string[] args)
    {
        A v1 = new A();
        v1.val = 10;
        methodtoshowref(v1);
        Console.WriteLine(v1.val);
        Console.ReadLine();
    }
    public static void methodtoshowref(A obj)
    {
        obj = null;
    }
}

Output: 10 (this happens because we are passing it by value).

Now here if we do, obj.val=100 then it will print 100 (this is because passing a variable to a function by value is equivalent to instantiating a new variable and assigning it to the first).

More to be discussed in the section on shallow copy vs deep copy (in a later article).

Pass reference type by reference

using System;
class A
{
    public int val
    {
        get;
        set;
    }
}
class Program
{
    static void Main(string[] args)
    {
        A v1 = new A();
        v1.val = 10;
        methodtoshowref(ref v1);
        Console.WriteLine(v1.val);
        Console.ReadLine();
    }
    public static void methodtoshowref(ref A obj)
    {
        obj = null;
    }
}

Output: The error we have now is obj=null so it will give a nullobject error.

Disclaimer: I got inspiration from JonSkeet and various other talented guys.
