Implementing Navigation Drawer For Windows Phone 8.1

You've all seen the new One Drive Windows Phone app with the so-called "hamburger" menu. Users were not happy with Microsoft trying to copy the Android design, they even opened up a feature suggestion in the WP uservoice forum calling Microsoft to "stick to the modern UI". Still, maybe you want to build an app to provide a unified experience on all platforms.



Android has a built-in DrawerLayout that allows an interactive drawer to be pulled out from the edge of the windows. Here is how to add a Drawer Layout to your Windows Phone 8.1 app:



1. Open Visual Studio 2013.

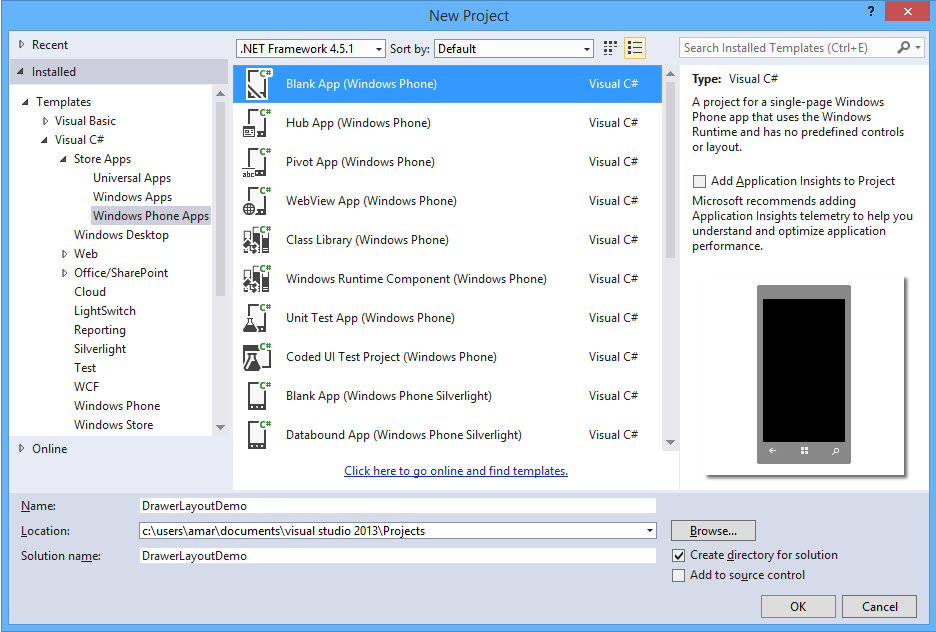

2. Create a new Windows Phone 8.1 Universal App Project.





3. Go to the Project – Manage NuGet Packages, type "DrawerLayout" and add to your project.





4. Open MainPage.xaml and add the namespace:

xmlns:drawerLayout="using:DrawerLayout"

5. Now, let's add some XAML code to our page. Create a Grid with two rows, the first one for the title bar (with drawer icon) and the second for the Drawer Layout.

<Grid x:Name="RootLayout">
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto" />
        <RowDefinition Height="*" />
    </Grid.RowDefinitions>
    <!-- Title Bar -->
    <Grid x:Name="TitleBar" Grid.Row ="0" Height="60">
        <!-- —Title Bar Code Goes Here -->
    </Grid>
    <!-- Drawer Layout -->
    <drawerLayout:DrawerLayout Grid.Row="1"  x:Name="DrawerLayout">
        <!-- DrawerLayout code goes here -->
    </drawerLayout:DrawerLayout>
</Grid>

6. We'll add a drawer icon and a title for our app in the title bar grid. Title bar XAML:

<Grid x:Name="TitleBar" Background="#00ADEF" Grid.Row ="0" Height="60">
    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="Auto" />
        <ColumnDefinition Width="*" />
    </Grid.ColumnDefinitions>

    <Image Margin="5"  x:Name="DrawerIcon"  Grid.Column="0" Source="/Assets/drawer_icon.png" HorizontalAlignment="Left" Tapped="DrawerIcon_Tapped" />
    <TextBlock Grid.Column="1" Text="DRAWER LAYOUT DEMO" Foreground="White" VerticalAlignment="Center" FontSize="18"/>
</Grid>

Note: The image has a Tapped event that will be used to open/close the drawer. You can download the drawer icon here.



7. Inside DrawerLayout, create two child controls, one for the main content and one for the ListView:

<drawerLayout:DrawerLayout Grid.Row="1"  x:Name="DrawerLayout">
   <Grid x:Name="MainFragment" Background="White">
     <!-- Main Content goes here -->
   </Grid>

   <Grid x:Name="ListFragment" Background="#F4F4F4">
       <ListView x:Name="ListMenuItems">
           <ListView.ItemTemplate>
               <DataTemplate>
                    <TextBlock Text="{Binding}" Margin="10" HorizontalAlignment="Left" VerticalAlignment="Center" FontSize="18" Foreground="Black" />
               </DataTemplate>
           </ListView.ItemTemplate>
       </ListView>

   </Grid>
</drawerLayout:DrawerLayout>

Now let's do some coding. First we need to initialize the Drawer Layout then add some items to our list. Add the following code to the MainPage constructor:

DrawerLayout.InitializeDrawerLayout();

string[] menuItems = new string[5] { "Item1", "Item2", "Item3", "Item4", "Item5" };
ListMenuItems.ItemsSource = menuItems.ToList();

Next, we want to open/close the drawer when the user taps on the drawer icon. To to this, DrawerLayout uses OpenDrawer() and CloseDrawer() and the IsDrawerOpen property:

private void DrawerIcon_Tapped(object sender, TappedRoutedEventArgs e)
    {
        if (DrawerLayout.IsDrawerOpen)
            DrawerLayout.CloseDrawer();
        else
            DrawerLayout.OpenDrawer();
    }

You can also override the default HardwareButton Back Key Event so that the drawer closes on back key press:

protected override void OnNavigatedTo(NavigationEventArgs e)
        {
            Windows.Phone.UI.Input.HardwareButtons.BackPressed += HardwareButtons_BackPressed;
        }

 void HardwareButtons_BackPressed(object sender, Windows.Phone.UI.Input.BackPressedEventArgs e)
        {
            if (DrawerLayout.IsDrawerOpen)
            {
                DrawerLayout.CloseDrawer();
                e.Handled = true;
            }
            else
            {
                Application.Current.Exit();
            }
        }

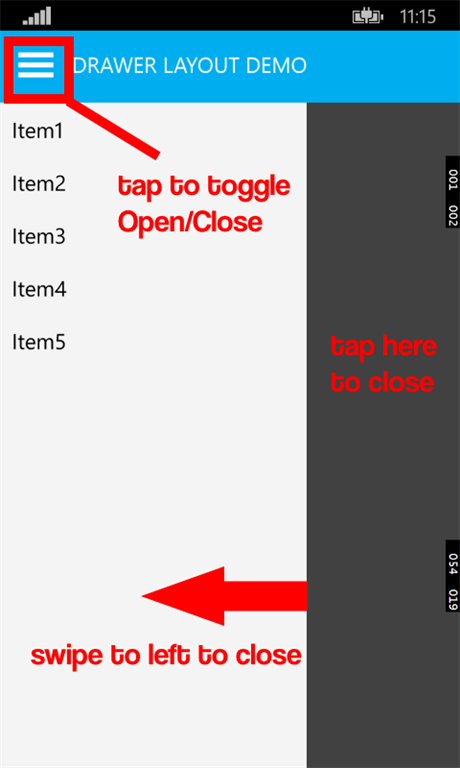

There you go. Run the app, try swiping the drawer from the left. You can close the drawer in one the following of 3 ways:

• Tap and hold on the right edge of the list view and then drag the list to the left.


• Tap on the shaded background.


• Tap on the drawer icon in the title bar.



For more information, check out the DrawerLayout project on GitHub.
