Create partial view in ASP.NET MVC 3 application


Introduction

This is the simple application for beginners that help how to create the partial view in ASP.NET MVC 3 application. This article also help how to display the person details used MVC 3 tools. We have know that the MVC is the integrated modules that is models,views,controllers. Model is provide the business logic, View is provide the presentation and Controllers is handle the all request provided by models and views. In this application we have create the two partial view that name is "person" and "address" and show the records. The Model-View-Controller (MVC) pattern is an architectural design principle that separates the components of a Web application. This separation gives you more control over the individual parts of the application which lets you more easily develop, modify, and test them.

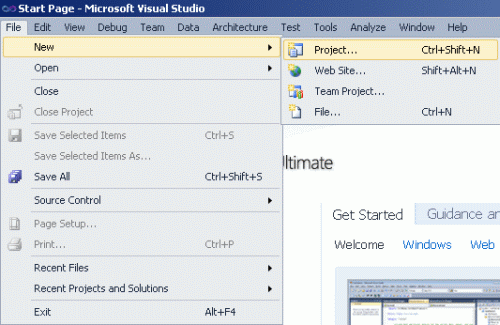

Step1: Open Visual Studio 2010.

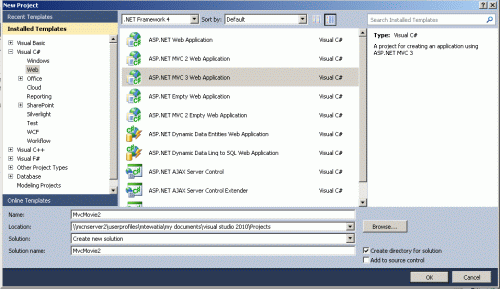

  • Go to file -> New->Projects.

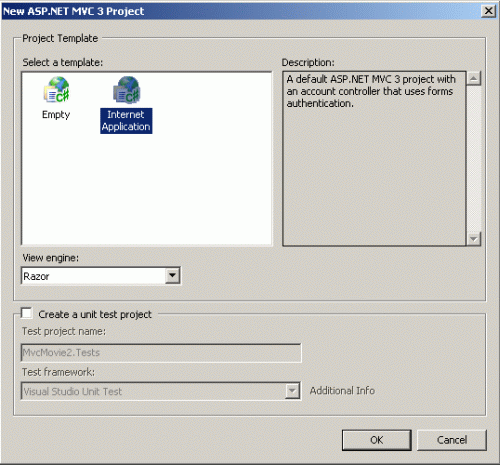

  • Create an ASP.NET MVC 3 Web Application.
  • Name of "MvcMovie".

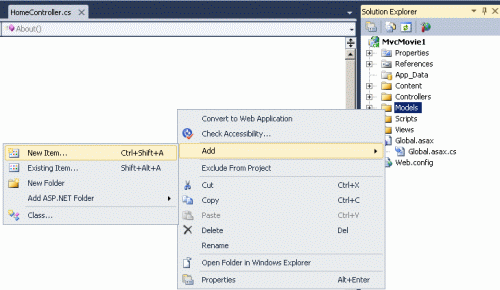

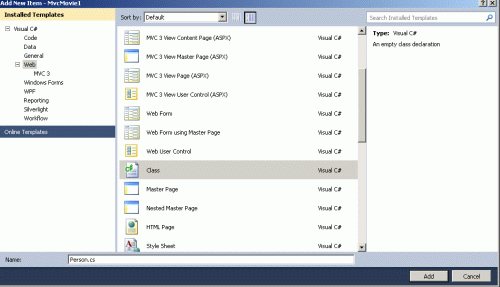

Step2: Add a class in the model folder.

  • Right click on the Models folder ->add new items->add class.
  • Name of Class is "Person".
  • In a class define the properties.



Code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace MvcMovie1.Models
{
    public class Address
    {
        public string StreetAddress { get; set; }
        public string City { get; set; }
        public string PostalCode { get; set; }
    }

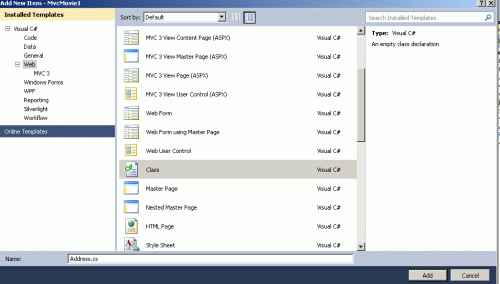

Step3: Add a class in the model folder.

  • Right click on the Models folder ->add new items->add class.
  • Name of Class is "Address".
  • In a class define the properties.


Code:
public class Person
    {
        public int ID { get; set; }
        public string FirstName { get; set; }
        public string LastName { get; set; }
        public string Phone { get; set; }
        public Address HomeAddress;
}

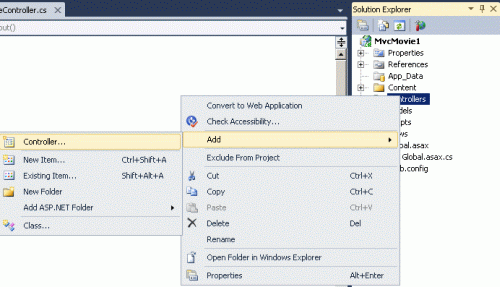

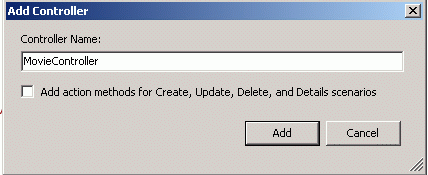

Step4: Add a controller.

  • Right click on the Controllers folder ->add->Controllers.
  • Name of Controllers is "MovieController".
  • In a controller, define the request.



Code:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.Mvc;
using MvcMovie1.Models;
namespace MvcMovie1.Controllers
{
    public class MovieController : Controller
    {
        //
        // GET: /Movie/
        public ActionResult Index()
        {
            return View();
        }
        Person GetPerson(int id)
        {
            var p = new Person
            {
                ID = 1,
                FirstName = "Joe",
                LastName = "Smith",
                Phone = "123-456",
                HomeAddress = new Address
                {
                    City = "Great Falls",
                    StreetAddress = "1234 N 57th St",
                    PostalCode = "95045"
                }
            };
            return p;
        }
        public ActionResult PersonDetail(int id = 0)
        {
            return View(GetPerson(id));
        }
    }
}

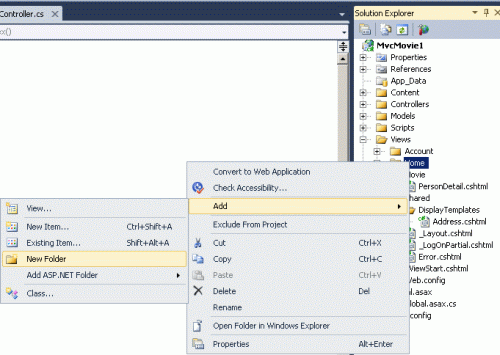

Step5: Add a Folder in view

  • Right click  of Home folder->add->add folder.
  • The name of folder is "Movie".

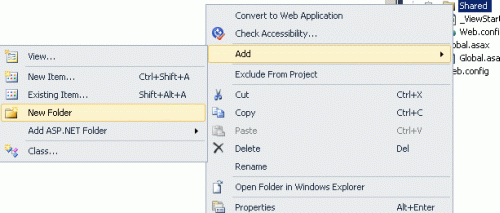

Step6:  Add a another Folder in view

  • Right click  of  Shared Folder->Add->Add Folder.
  • The name of Folder is "DisplayTemplates".

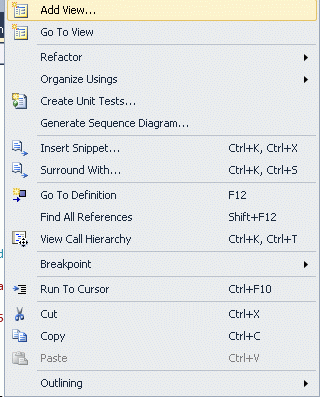

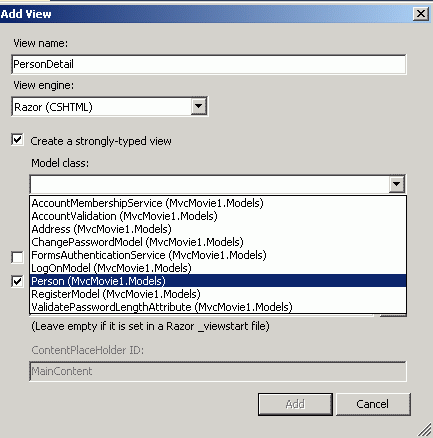

Step7: Add the view in Movie Folder.

  • Right click of Movie Folder->Add->view.
  • Name of view is "PersonDetails".



Code:
@model MvcMovie1.Models.Person
@{
    ViewBag.Title = "PersonDetail";
}
<h2>Person Detail</h2>
@Html.DisplayForModel()
@Html.DisplayFor( x => x.HomeAddress )
<fieldset>
    <legend>Person</legend>
    <div class="display-label">FirstName</div>
    <div class="display-field">@Model.FirstName</div>
    <div class="display-label">LastName</div>
    <div class="display-field">@Model.LastName</div>
    <div class="display-label">Phone</div>
    <div class="display-field">@Model.Phone</div>
</fieldset>
<
p>
    @Html.ActionLink("Edit", "Edit", new { id=Model.ID }) |
    @Html.ActionLink("Back to List", "Index")
</p>

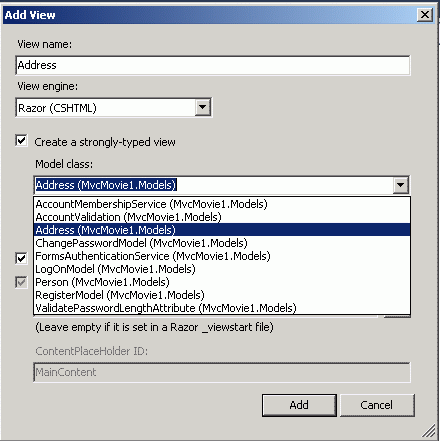

Step8: Add the view in DisplayTemplates folder.

  • Right click of DisplayTemplates Folder->Add->view.
  • Name of view is "Address.cshtml".


Code:
@model MvcMovie1.Models.Address
<fieldset>
    <legend>Address</legend>
    <div class="display-label">StreetAddress</div>
    <div class="display-field">@Model.StreetAddress</div>
    <div class="display-label">City</div>
    <div class="display-field">@Model.City</div>
    <div class="display-label">PostalCode</div>
    <div class="display-field">@Model.PostalCode</div>
</fieldset>
<
p>
    @Html.ActionLink("Edit", "Edit", new { /* id=Model.PrimaryKey */ }) |
    @Html.ActionLink("Back to List", "Index")
</p>

Step9: Set the root of your application.

  • Open Global.aspx file.

Code:
public static void RegisterRoutes(RouteCollection routes)
        {
            routes.IgnoreRoute("{resource}.axd/{*pathInfo}");
            routes.MapRoute(
                "Default", // Route name
                "{controller}/{action}/{id}", // URL with parameters
                new { controller = "Movie", action = "PersonDetail", id = UrlParameter.Optional } // Parameter defaults
            );
}

Step10: Press crtl+f5 run the program.

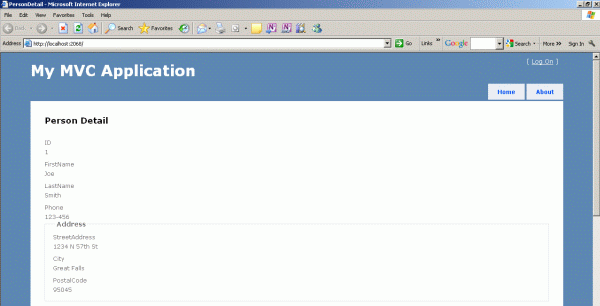

Output:
