Bind Textbox Using Knockout In MVC

Introduction

In today's article you will learn how to bind various HTML Controls using Knockout in MVC.

There are many types of HTML Controls and each can be bound using Knockout. If you are using Knockout with MVC then this article will help you to understand how to bind them.

Step 1

First of all you need to add a few external files to your application that are as follows:

  1. Knockout-2.3.0.js
  2. Pepetuum.js
  3. Knockout.mapping-Latest.js

These files can be downloaded from the internet.

Step 2

After adding these files to your application you need to call these files, so that they can be used by the application. For that you need to add a View Class.

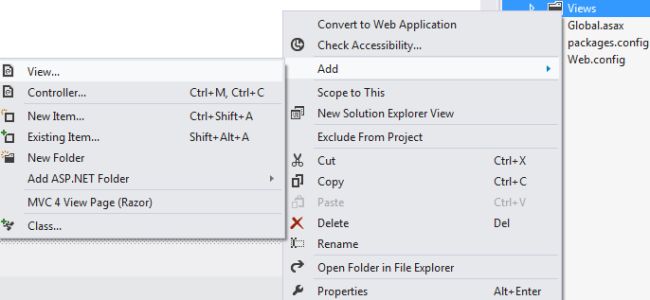

This can be added by right-clicking on the View Folder and then choosing to add a new View Class.

html controls knockout mvc1.jpg

Step 3

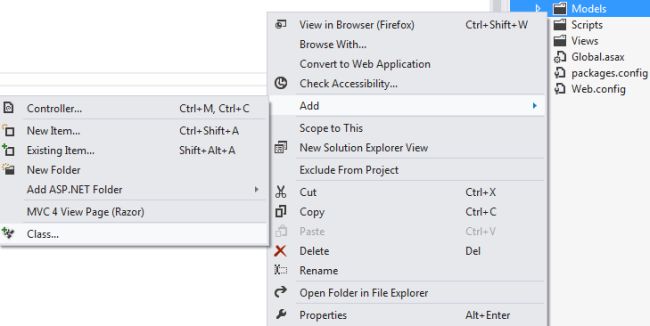

Now these files can be used in our application so let's work on the application. First we will add a Model Class to our Model Folder, this can be done by right-clicking on the Model Class and then choosing to add a new class.

html controls knockout mvc2.jpg

Now in this class write the following code:

using PerpetuumSoft.Knockout;

using PerpetuumSoft;

using DelegateDecompiler;

using System.ComponentModel;

using System.ComponentModel.DataAnnotations;

using System.ComponentModel.DataAnnotations.Schema;



namespace MvcApplication20.Models

{

    public class Class1

    {

        public string StringValue { get; set; }

}
 }

This code will add a new variable named "StringValue".

Step 4

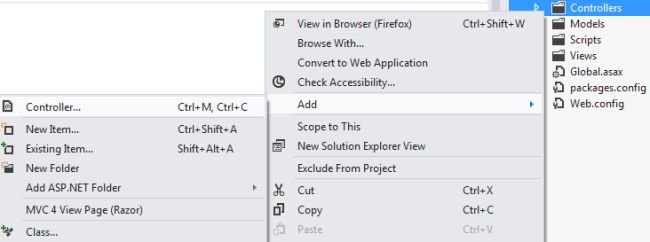

Now we will work on the Controller class of our application, for that you need to add a Controller class to your application, this can be done by right-clicking on the Controller Folder and then choosing to add a new Controller.

html controls knockout mvc3.jpg

After adding the Controller file, add this code to your class:

using MvcApplication20.Models;

using PerpetuumSoft.Knockout;



namespace MvcApplication20.Controllers

{

    public class HomeController : Controller

    {



        public ActionResult Index()

        {

             var model = new Class1

    {

      StringValue = "Hello",

      };

             return View(model);

  }
}
}

Here I have passed some default value in the "StringValue", this value will be available at the run time of the application.

Step 5

Now it's time to work on the view of our application, since we already added a View class in the first step of this article, we can directly work on that class.

Write this code on the View class of your application.

<script src="~/Scripts/knockout-2.3.0.js"></script>

<script src="~/Scripts/knockout.mapping-latest.js"></script>

<script src="~/Scripts/perpetuum.knockout.js"></script>

@using PerpetuumSoft.Knockout

@model MvcApplication20.Models.Class1



@{

  var ko = Html.CreateKnockoutContext();

}

<table id="maintable">

  <tr>

    <td>

      <h3>HTML controls</h3>

      <table>

        <tr>

          <td>Text value (updates on change):</td>

          <td>@ko.Html.TextBox(m => m.StringValue)</td>

        </tr>

        <tr>

          <td>Text value (updates on keystroke):</td>

          <td>@ko.Html.TextBox(m => m.StringValue).ValueUpdate(KnockoutValueUpdateKind.AfterKeyDown)</td>

        </tr>

        </table>

        </td>

      </tr>

    <tr>

        <td>

        <table>

        <tr>

          <td>Text value:</td>

          <td @ko.Bind.Text(m => m.StringValue)></td>

        </tr>

            </table>

            </td>

        </tr>

        </table>

@ko.Apply(Model)

Here first I called the three external files that we had added earlier at the start of this article, after that I had created a table in which two other tables are created.

In the first table two TextBoxes are used, the first TextBox will update the viewModel when the user clicks outside this TextBox after making the changes in it, but the second TextBox will show the updates as the user makes changes in it.

For showing the changes a Label is also used in the second table. So when the user makes changes in any of the TextBoxes then all the remaining TextBoxes with a label of the second table will be updated at run time.

Output

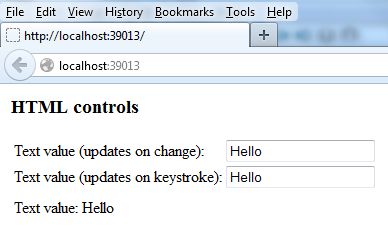

On running the application you will get output like this one:

html controls knockout mvc7.jpg

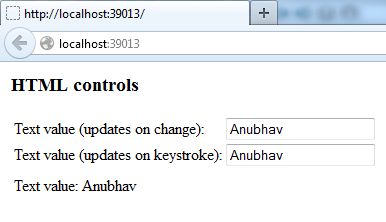

Now if I make changes in the first TextBox and click outside then all the remaining TextBoxes along with Label will be updated.

html controls knockout mvc8.jpg

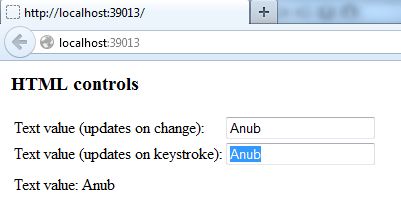

But if I make changes in the second TextBox then the updates will be shown with the changes made.

html controls knockout mvc9.jpg
