Creating Two Way Realm Trust For Both Side of Trust

Introduction

In my previous articles I explained How to Create One Way Incoming Realm Trust and One Way Outgoing Realm Trust.

In this article I will create a two-way Realm Trust for both sides of a trust.

The trust created in this article will work for both incoming and for outgoing.

Step 1

First of all open the Administrative Tools from the Start menu.

In the Administrative Tools Wizard a list of Installed Items will be available, here an option will be available named "Active Directory Domains and Trusts", double-click on it to open it.


Now the Active Directory Domains and Trust Wizard will be opened, here a Domain Node will be available on the left hand side in the ADDT Pane.


Step 2

Right-click on the Domain Node and click on it's Properties.

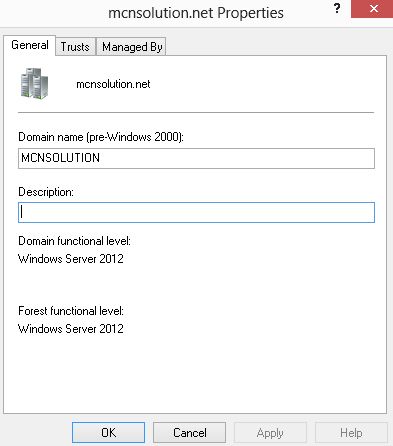

Now the Property Window will be opened, here by default the General tab will be open.


Step 3

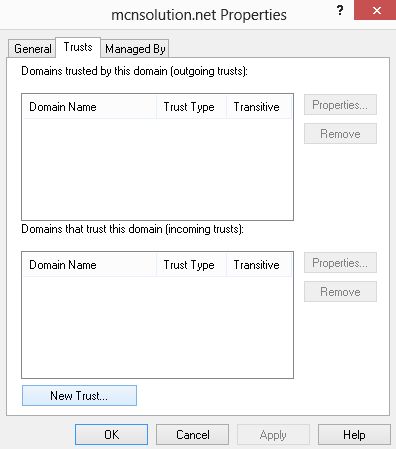

Click on the "Trusts" Tab available beside the General Tab and after that click on the "New Trust" Tab.

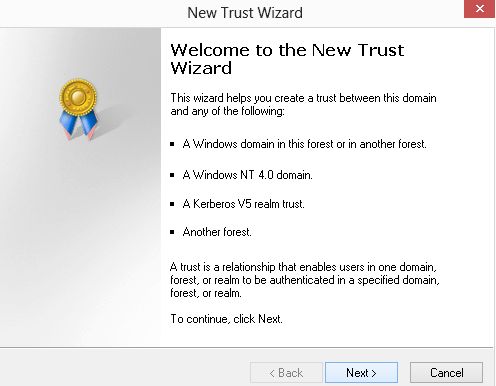

Now the New Trust Wizard will be opened, here first some information about the Trust will be provided, click on the "Next" Tab to start adding the trust.


Step 4

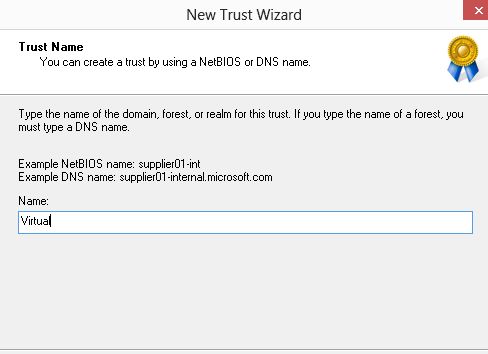

On the next page provide the Name for the Trust and then click on the "Next" button.

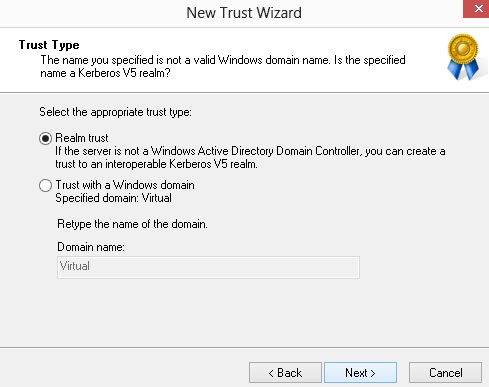

On the Next Page you need to select the Type of trust, click on the first option to choose "Realm Trust".


Step 5

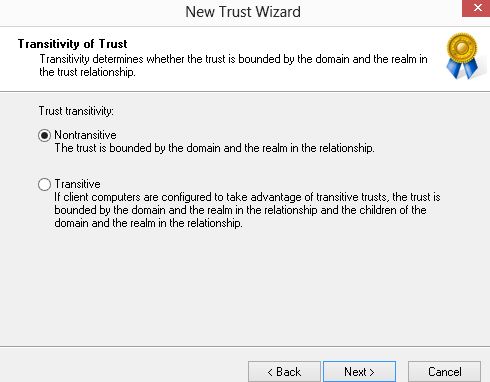

On the next page you will be asked to select one of the options for "Trust Transitivity", click on the First Option, in other words "Non Transitivity"; this will cerate a Trusted Relation between the Domain and the specified Realm.

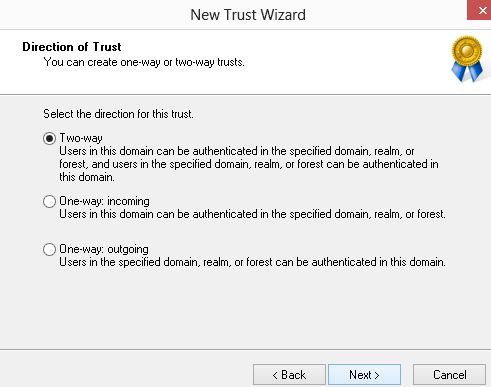

The next page is for the Direction of the Trust, click on the first option, in other words "Two Way", this will authenticate the users in the Specified Domain, Forest or Realm and also authenticates the users that are in this domain.

trust twoway1.jpg

Step 6

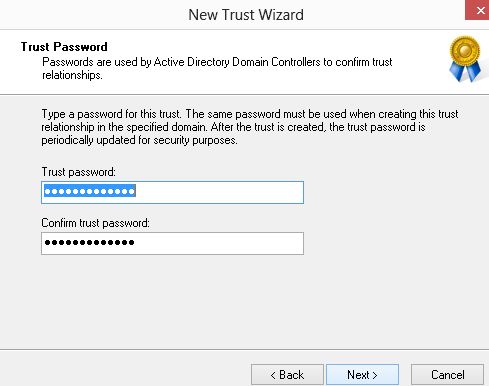

Provide the password to confirm the relationship, confirm your password and then click on the "Next" button.

trust twoway2.jpg

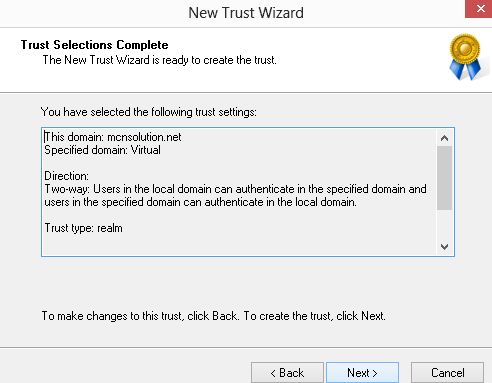

Now a brief description of your selection process will be shown to you, click on the "Next" button to reach the final page of the process.

trust twoway3.jpg

Step 7

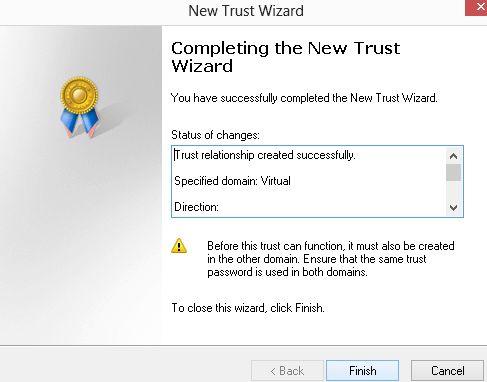

The final page will just ask for the final confirmation and you can provide that by clicking on the "Finish" button.

trust twoway4.jpg

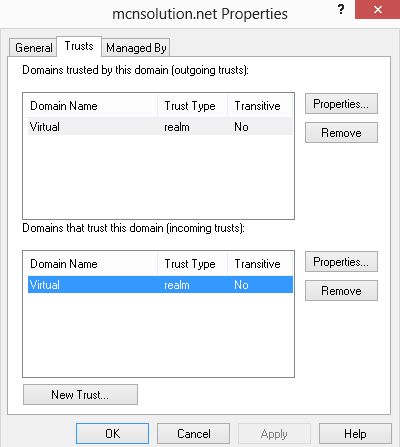

Now you can see that Trust is created both for the Incoming and for the Outgoing as well.

trust twoway5.jpg
