Using Datagrid in Expression Blend


A DataGrid is used as a placeholder/container to display a collection of data bound to it in a tabular format. When you are working with WPF or Silverlight, Expression Blend can be very handy when designing user interfaces. Blend is a designer tool that saves developers lots of time while building user interfaces. By using it's designer and drag and drop features, interfaces can be built in no time.

In this article, we will see how to use Expression Blend to use a DataGrid control.

Follow the steps below.

Step 1 : Open a WPF application in Expression blend and give it any name you wish.

  • Now the design panel or the artboard opens up.
  • Go to data panel.

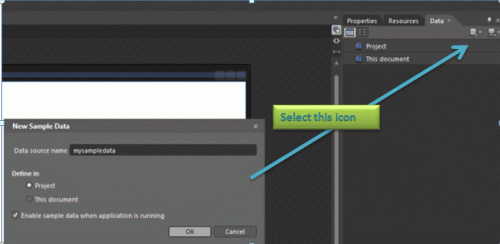

  • Click on the add new sample.
  • Then select "new sample data".

adding new sample data.gif

Step 2 : Now a window appears prompting you for the sample data name. Enter the sample data name, here I have named it as "mysampledata".

  • Now a new sample data is created.
  • Click on the Datasource option. you will see following options.
    • Reimport sample data from XML.
    • Enable when running applicaion.
    • Remove "your sample name".
  • check the option "Enable when running applicaion".
  • Enabling this option lets you see the sample data when the application is run otherwise it shows blank space in place of sample data.

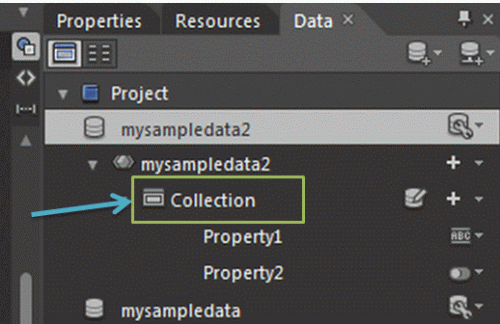

Step 3 : You'll see that as soon as you name the sample data, the sample data is added to the data panel and it has another sub part named "Collection".

  • By default few properties are added to the collection list.
  • You can add more properties by clicking on the "+" in front of collection.

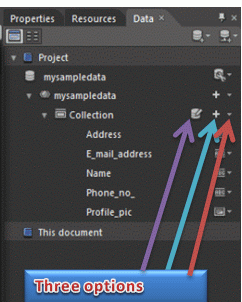

Step 4 : There are mainly three options in front of the collection folder.


  1. Edit sample values : This option is used to edit the properties added so far.
  2. Add property : this option adds a new property to the collection folder.
  3. Dropdown list showing:
    • Add Simple Property : This option adds a String, Number, Boolean, or Image property. String property is added to the simple property by default, but you can also select Change property type Ee341407.c4968582-0dae-407e-961b-80ffa2838f3b(en-us,Expression.30).png and select a different type.
    • Add Complex Property : This option is used to create a property that can contain child properties. For example, RSS feeds often represent a channel using a complex property whose child properties include the category, description, and a collection of news items related to the channel.
    • Add Collection Property : This option creates a collection of records and each record can contain multiple items of data. For example, RSS feeds often represent news items in a collection where each record in the collection includes the title of the news item, the description, and other related information.
    • convert to hierarchical collection

Step 5 : You can change the name of the property so added by double clicking on the property and naming it thence.

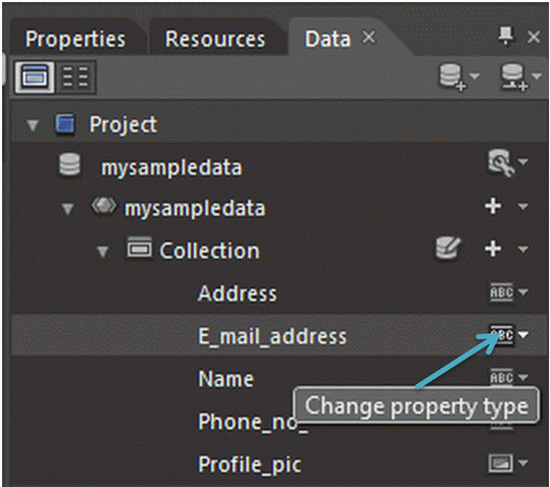

Step 6 : Then you will see that there are "change property" option in front of the property. Click on this and the following list opens up.

change property.gif

  1. Type : This refers to the type of property you want to use. There are four main types of properties available to you here.
    • String : It refers to the simple collection of string of information that you want to use in your property such as biography, Project details, ingredients etc.
    • Number : This refers to the integer type of numbers that you would like to add in your property such as quantity, amount, average etc.
    • Boolean : This refers to data that have only two options of choice i.e. either yes or no, Check or uncheck etc.
    • Image : As soon as this option is selected Two property opens up namely Type and Image location. In this property you can chose the images that can be assigned to other property like String, Boolean, Number etc.

  2. Format : This is the option you get when you select the change property option after the TYPE option. This property has following list of options predefined in it.
    • Liuem Ipsum
    • Address
    • Colors
    • Company name
    • Data
    • Email Address
    • Name
    • Phone number
    • Price
    • Time
    • Website Url
      you can use these properties depending on the requirement of the data you are using.
  3. Max word count : This option is used to limit the total number of words in the property information
  4. max word length : This option limits the maximum number of words in a property information

NOTE: The option 3rd and 4th are visible only when the Format property has Lieum Ipsum slelected.

Step 7 : Now you would be thinking how to change the already defined name, address, image e-mail properties. for this.

  • Go to Data panel.
  • Go to Collection--> There is a option named Edit sample values in front of collection.

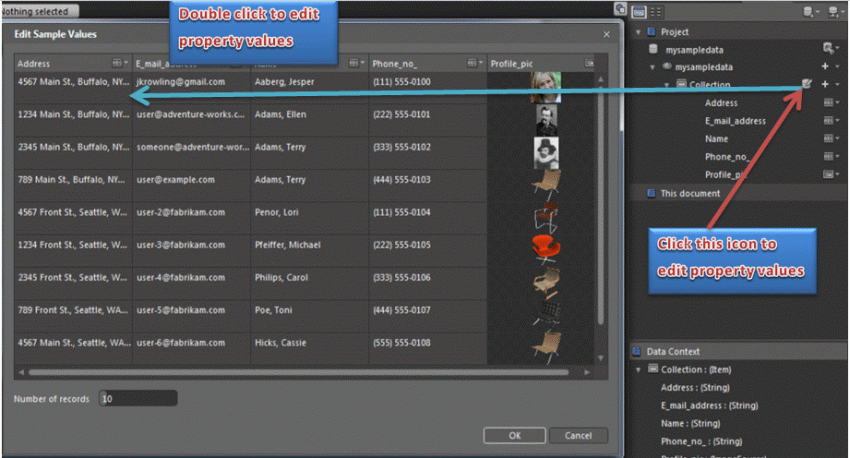

  • Click on this option and a window opens up as shown below.

edit sample values.gif

  • Now in this window double click on any property and change it. That's all.

Step 8 : Now Adding the data grid.

  • Go to Asset library.
  • Select categories.
  • Inside categories select Data.
  • Now the datagrid appears in the library.

Step 9 : Now drag this datagrid onto the artboard. Resize this by selecting the selection tool from the asset library as per the need.

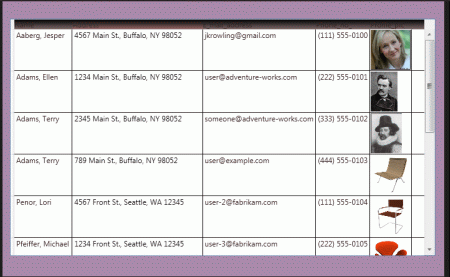

  • Now drag the collection list from the data panel--> Sample data created.
  • You will see that the properties defined in the sample data are displayed in the datagrid.
  • A new column is added to the end of the Datagrid object, and displays the data in the property.
  • If you want to reorder the columns in the Datagrid object, drag the columns to different locations under the Columns node in the Objects and Timeline panel.

Step 10 : You can also change the look of the datagrid columns. For this.

  • Go to the Object and Timeline.
  • In the Objects and Timeline panel expand the datagrid .
  • Select the first column object for example in my application it is [DataGridTextColumn] "Name". In order to change the heading of the list go to the property panel and change the Header property change the name.
  • You may change the other columns also if you want.

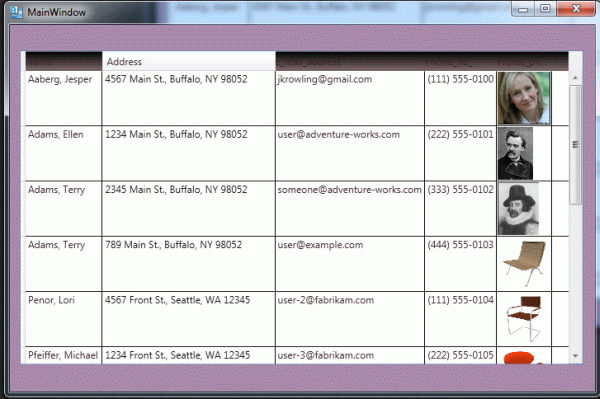

  • Press F5 to see how your application looks like.

Step 11 : To change the appearance of column headers do the following.

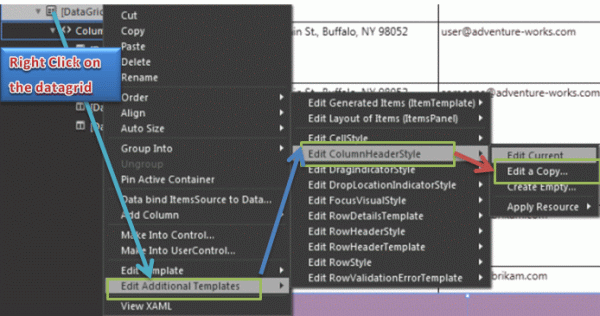

  • In the Objects and Timeline panel right-click on the datagrid object, select "Edit Additional Templates", then select Edit ColumnHeaderStyle, and then click Edit a Copy.

change template.gif

  • Now a new window named Create Style Resource opens up, click OK.
  • Now you can edit template.

  • In the Objects and Timeline panel, add other objects to the template, or modify the other properties of datagrid other than header.

Step 12 : The XAML coding that generated is.

<Window xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:Microsoft_Windows_Themes="clr-namespace:Microsoft.Windows.Themes;assembly=PresentationFramework.Aero" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"
        x:Class="WpfApplication5.MainWindow"
        x:Name="Window"
        Title="MainWindow"
        Width="725" Height="483" Background="#FFA988AB">
  <Window.Resources>
    <DataTemplate x:Key="ItemTemplate">
      <StackPanel>
        <Image Source="{Binding Property2}" HorizontalAlignment="Left" Height="64" Width="64"/>
      </StackPanel>
    </DataTemplate>
    <DataTemplate x:Key="ItemTemplate1">
      <StackPanel>
        <Image Source="{Binding Name}" HorizontalAlignment="Left" Height="64" Width="64"/>
      </StackPanel>
    </DataTemplate>
    <DataTemplate x:Key="ItemTemplate2">
      <StackPanel>
        <TextBlock Text="{Binding Phone_no_}"/>
      </StackPanel>
    </DataTemplate>
    <DataTemplate x:Key="ItemTemplate3">
      <StackPanel>
        <Image Source="{Binding E_mail_address}" HorizontalAlignment="Left" Height="64" Width="64"/>
      </StackPanel>
    </DataTemplate>
    <DataTemplate x:Key="ItemTemplate4">
      <StackPanel>
        <TextBlock Text="{Binding E_mail_address}"/>
      </StackPanel>
    </DataTemplate>
    <DataTemplate x:Key="ItemTemplate5">
      <StackPanel>
        <TextBlock Text="{Binding Phone_no_}"/>
      </StackPanel>
    </DataTemplate>
    <DataTemplate x:Key="Profile_picTemplate">
      <StackPanel>
        <Image Source="{Binding Profile_pic}" HorizontalAlignment="Left" Height="64" Width="64"/>
      </StackPanel>
    </DataTemplate>
    <Style x:Key="ColumnHeaderGripperStyle" TargetType="{x:Type Thumb}">
      <Setter Property="Width" Value="8"/>
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="Cursor" Value="SizeWE"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type Thumb}">
            <Border Background="{TemplateBinding Background}" Padding="{TemplateBinding Padding}"/>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
    </Style>
    <Style x:Key="DataGridColumnHeaderStyle1" TargetType="{x:Type DataGridColumnHeader}">
      <Setter Property="VerticalContentAlignment" Value="Center"/>
      <Setter Property="Template" Value="{DynamicResource DataGridColumnHeaderControlTemplate1}"/>
    </Style>
    <ControlTemplate x:Key="DataGridColumnHeaderControlTemplate1" TargetType="{x:Type DataGridColumnHeader}">
      <Grid Margin="0" HorizontalAlignment="Left" Width="383.62">
        <Microsoft_Windows_Themes:DataGridHeaderBorder BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding
BorderThickness}
" Background="{TemplateBinding Background}" IsClickable="{TemplateBinding CanUserSort}" IsPressed="{TemplateBinding IsPressed}
IsHovered="{TemplateBinding IsMouseOver}" Padding="{TemplateBinding Padding}" SortDirection="{TemplateBinding SortDirection}" SeparatorBrush="{TemplateBinding SeparatorBrush}" SeparatorVisibility="{TemplateBinding SeparatorVisibility}" Margin="0,0,0,-2" Height="Auto" VerticalAlignment="Stretch" RenderTransformOrigin="0.5,0.464" Width="189.62" HorizontalAlignment="Left" d:LayoutOverrides="HorizontalAlignment"
>

          <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
        </Microsoft_Windows_Themes:DataGridHeaderBorder>
        <Thumb x:Name="PART_LeftHeaderGripper" HorizontalAlignment="Left" Style="{StaticResource ColumnHeaderGripperStyle}"/>
        <Thumb x:Name="PART_RightHeaderGripper" HorizontalAlignment="Right" Style="{StaticResource ColumnHeaderGripperStyle}" Width="109"/>
      </Grid>
    </ControlTemplate>
    <SolidColorBrush x:Key="{x:Static DataGrid.FocusBorderBrushKey}" Color="#FF000000"/>
    <Style x:Key="DataGridCellStyle1" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding
Background}
" SnapsToDevicePixels="True"
>

              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" Margin="-135,0,0,0" HorizontalAlignment="Left" Width="124.83"/>

            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/
        </Trigger>
        <Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <Style x:Key="{ComponentResourceKey ResourceId=DataGridSelectAllButtonStyle, TypeInTargetAssembly={x:Type DataGrid}}
TargetType="{x:Type Button}"
>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type Button}">
            <Grid>
              <Rectangle x:Name="Border" Fill="{DynamicResource {x:Static SystemColors.ControlBrushKey}}" SnapsToDevicePixels="True"/>
              <Polygon x:Name="Arrow" Fill="Black" HorizontalAlignment="Right" Margin="8,8,3,3" Opacity="0.15" Points="0,10 10,10 10,0" Stretch="Uniform
VerticalAlignment="Bottom"
/>
            </Grid>
            <ControlTemplate.Triggers>
              <Trigger Property="IsMouseOver" Value="True">
                <Setter Property="Stroke" TargetName="Border" Value="{DynamicResource {x:Static SystemColors.ControlDarkBrushKey}}"/>
              </Trigger>
              <Trigger Property="IsPressed" Value="True">
                <Setter Property="Fill" TargetName="Border" Value="{DynamicResource {x:Static SystemColors.ControlDarkBrushKey}}"/>
              </Trigger>
              <Trigger Property="IsEnabled" Value="False">
                <Setter Property="Visibility" TargetName="Arrow" Value="Collapsed"/>
              </Trigger>
            </ControlTemplate.Triggers>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
    </Style>
    <Style x:Key="DataGridStyle1" TargetType="{x:Type DataGrid}">
      <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.ControlBrushKey}}"/>
      <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.ControlTextBrushKey}}"/>
      <Setter Property="BorderBrush" Value="#FF688CAF"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="RowDetailsVisibilityMode" Value="VisibleWhenSelected"/>
      <Setter Property="ScrollViewer.CanContentScroll" Value="true"/>
      <Setter Property="ScrollViewer.PanningMode" Value="Both"/>
      <Setter Property="Stylus.IsFlicksEnabled" Value="False"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGrid}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding
Background}
" Padding="{TemplateBinding Padding}" SnapsToDevicePixels="True"
>

              <ScrollViewer x:Name="DG_ScrollViewer" Focusable="false">
                <ScrollViewer.Template>

                  <ControlTemplate TargetType="{x:Type ScrollViewer}">
                    <Grid>
                      <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="Auto"/>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="Auto"/>
                      </Grid.ColumnDefinitions>
                      <Grid.RowDefinitions>
                        <RowDefinition Height="Auto"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="Auto"/>
                      </Grid.RowDefinitions>
                      <Button Command="{x:Static DataGrid.SelectAllCommand}" Focusable="false" Style="{DynamicResource {ComponentResourceKey
ResourceId=DataGridSelectAllButtonStyle, TypeInTargetAssembly={x:Type DataGrid}}}
" Visibility="{Binding HeadersVisibility, ConverterParameter
{x:Static DataGridHeadersVisibility.All}, Converter={x:Static DataGrid.HeadersVisibilityConverter}, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}
" Width="{Binding CellsPanelHorizontalOffset, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}"
/>

                      <DataGridColumnHeadersPresenter x:Name="PART_ColumnHeadersPresenter" Grid.Column="1" Visibility="{Binding HeadersVisibility, ConverterParameter={x:Static DataGridHeadersVisibility.Column}, Converter={x:Static DataGrid.HeadersVisibilityConverter}, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}"/>

                      <ScrollContentPresenter x:Name="PART_ScrollContentPresenter" CanContentScroll="{TemplateBinding CanContentScroll}" Grid.ColumnSpan="2" Grid.Row="1"/>

                      <ScrollBar x:Name="PART_VerticalScrollBar" Grid.Column="2" Maximum="{TemplateBinding ScrollableHeight}" Orientation="Vertical" Grid.Row="1" Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}" Value="{Binding VerticalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}" ViewportSize="{TemplateBinding ViewportHeight}"/>

                      <Grid Grid.Column="1" Grid.Row="2">
                        <Grid.ColumnDefinitions>
                          <ColumnDefinition Width="{Binding NonFrozenColumnsViewportHorizontalOffset, RelativeSource={RelativeSource AncestorType=

x:Type DataGrid}}}"/>

                          <ColumnDefinition Width="*"/>
                        </Grid.ColumnDefinitions>
                        <ScrollBar x:Name="PART_HorizontalScrollBar" Grid.Column="1" Maximum="{TemplateBinding ScrollableWidth}" Orientation="Horizontal" Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}" Value="{Binding HorizontalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}" ViewportSize="{TemplateBinding ViewportWidth}"/>

                      </Grid>
                    </Grid>
                  </ControlTemplate>
                </ScrollViewer.Template>
                <ItemsPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" Width="587" Height="367.04">
                  <ItemsPresenter.OpacityMask>
                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                      <GradientStop Color="#FF1EA162" Offset="0"/>
                      <GradientStop Color="#FF2436CA" Offset="1"/>
                      <GradientStop Color="#FFB1C826" Offset="0.33"/>
                    </LinearGradientBrush>
                  </ItemsPresenter.OpacityMask>
                </ItemsPresenter>
              </ScrollViewer>
            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsGrouping" Value="true">
          <Setter Property="ScrollViewer.CanContentScroll" Value="false"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <Style x:Key="DataGridCellStyle2" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template" Value="{DynamicResource DataGridCellControlTemplate1}"/>
      <Style.Triggers>
        <Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <ControlTemplate x:Key="DataGridCellControlTemplate1" TargetType="{x:Type DataGridCell}">
      <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" SnapsToDevicePixels="True">

        <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" Width="158.62" HorizontalAlignment="Left">

          <ContentPresenter.OpacityMask>
            <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
              <GradientStop Color="#FFD62A2A" Offset="0"/>
              <GradientStop Color="White" Offset="1"/>
              <GradientStop Color="#FF41EB20" Offset="0.3"/>
              <GradientStop Color="#FF344BCA" Offset="0.643"/>
            </LinearGradientBrush>
          </ContentPresenter.OpacityMask>
       </
ContentPresenter>
      </Border>
    </ControlTemplate>
    <Style x:Key="DataGridCellStyle3" TargetType="{x:Type DataGridCell}">
     <
Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" SnapsToDevicePixels="True" OpacityMask="#FFDEBB19">

              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" Margin="-309,0,0,0" HorizontalAlignment="Left" Width="88.477"/>

            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <Style x:Key="TextBlockStyle1" TargetType="{x:Type TextBlock}">
      <Setter Property="Margin" Value="2,0"/>
    </Style>
    <Style x:Key="DataGridCellStyle4" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>

      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding
Background}
" SnapsToDevicePixels="True"
>

              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" Margin="-132,0,0,0" HorizontalAlignment="Left" Width="88.027" OpacityMask="#FF2546A9"/>

            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <Style x:Key="DataGridCellStyle5" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" SnapsToDevicePixels="True">

              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" Margin="-129,0,0,0" HorizontalAlignment="Left" Width="86"/>

            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <Style x:Key="DataGridStyle2" TargetType="{x:Type DataGrid}">
      <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.ControlBrushKey}}"/
      <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.ControlTextBrushKey}}"/>
      <Setter Property="BorderBrush" Value="#FF688CAF"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="RowDetailsVisibilityMode" Value="VisibleWhenSelected"/>
      <Setter Property="ScrollViewer.CanContentScroll" Value="true"/>
      <Setter Property="ScrollViewer.PanningMode" Value="Both"/>
      <Setter Property="Stylus.IsFlicksEnabled" Value="False"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGrid}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" Padding="{TemplateBinding Padding}" SnapsToDevicePixels="True">

              <ScrollViewer x:Name="DG_ScrollViewer" Focusable="false">
                <ScrollViewer.Template>
                  <ControlTemplate TargetType="{x:Type ScrollViewer}">
                    <Grid>
                      <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="Auto"/>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="Auto"/>
                      </Grid.ColumnDefinitions>
                      <Grid.RowDefinitions>
                        <RowDefinition Height="Auto"/>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="Auto"/>
                      </Grid.RowDefinitions>

                      <Button Command="{x:Static DataGrid.SelectAllCommand}" Focusable="false" Style="{DynamicResource {ComponentResourceKey ResourceId=DataGridSelectAllButtonStyle, TypeInTargetAssembly={x:Type DataGrid}}}" Visibility="{Binding HeadersVisibility, ConverterParameter={x:Static DataGridHeadersVisibility.All}, Converter={x:Static DataGrid.HeadersVisibilityConverter}, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}" Width="{Binding CellsPanelHorizontalOffset, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}"/>

                      <DataGridColumnHeadersPresenter x:Name="PART_ColumnHeadersPresenter" Grid.Column="1" Visibility="{Binding HeadersVisibility, ConverterParameter={x:Static DataGridHeadersVisibility.Column}, Converter={x:Static DataGrid.HeadersVisibilityConverter}, RelativeSource={RelativeSource AncestorType={x:Type DataGrid}}}"/>

                      <ScrollContentPresenter x:Name="PART_ScrollContentPresenter" CanContentScroll="{TemplateBinding CanContentScroll}" Grid.ColumnSpan="2" Grid.Row="1"/>

                      <ScrollBar x:Name="PART_VerticalScrollBar" Grid.Column="2" Maximum="{TemplateBinding ScrollableHeight}" Orientation="Vertical" Grid.Row="1" Visibility="{TemplateBinding ComputedVerticalScrollBarVisibility}" Value="{Binding VerticalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}" ViewportSize="{TemplateBinding ViewportHeight}"/>

                      <Grid Grid.Column="1" Grid.Row="2">
                        <Grid.ColumnDefinitions>
                          <ColumnDefinition Width="{Binding NonFrozenColumnsViewportHorizontalOffset, RelativeSource={RelativeSource AncestorType
{x:Type DataGrid}}}
"
/>
                          <ColumnDefinition Width="*"/>
                        </Grid.ColumnDefinitions>
                        <ScrollBar x:Name="PART_HorizontalScrollBar" Grid.Column="1" Maximum="{TemplateBinding ScrollableWidth}" Orientation="Horizontal" Visibility="{TemplateBinding ComputedHorizontalScrollBarVisibility}" Value="{Binding HorizontalOffset, Mode=OneWay, RelativeSource={RelativeSource TemplatedParent}}" ViewportSize="{TemplateBinding ViewportWidth}"/>

                      </Grid>
                    </Grid>
                  </ControlTemplate>
                </ScrollViewer.Template>
                <ItemsPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" OpacityMask="#FFB63E3E"/>
              </ScrollViewer>
            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsGrouping" Value="true">
          <Setter Property="ScrollViewer.CanContentScroll" Value="false"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <DataTemplate x:Key="Profile_picTemplate1">
      <StackPanel>
        <Image Source="{Binding Profile_pic}" HorizontalAlignment="Left" Height="64" Width="64"/>
      </StackPanel>
    </DataTemplate>
    <Style x:Key="DataGridColumnHeaderStyle2" TargetType="{x:Type DataGridColumnHeader}">
      <Setter Property="VerticalContentAlignment" Value="Center"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridColumnHeader}">
            <Grid>
              <Microsoft_Windows_Themes:DataGridHeaderBorder BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" IsClickable="{TemplateBinding CanUserSort}" IsPressed="{TemplateBinding IsPressed}" IsHovered="{TemplateBinding IsMouseOver}" Padding="{TemplateBinding Padding}" SortDirection="{TemplateBinding SortDirection}" SeparatorBrush="{TemplateBinding SeparatorBrush}" SeparatorVisibility="{TemplateBinding SeparatorVisibility}">

                <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}">

                  <ContentPresenter.OpacityMask>
                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                      <GradientStop Color="#FF7E7777" Offset="0"/>
                      <GradientStop Color="White" Offset="1"/>
                      <GradientStop Color="#FFE9B6B6" Offset="0.483"/>
                    </LinearGradientBrush>
                  </ContentPresenter.OpacityMask>
                </ContentPresenter>
              </Microsoft_Windows_Themes:DataGridHeaderBorder>
              <Thumb x:Name="PART_LeftHeaderGripper" HorizontalAlignment="Left" Style="{StaticResource ColumnHeaderGripperStyle}
Background="#0099DC3D"
/>|
              <Thumb x:Name="PART_RightHeaderGripper" HorizontalAlignment="Right" Style="{StaticResource ColumnHeaderGripperStyle}
Background="#002869A5"
/>
            </Grid>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
    </Style>
    <Style x:Key="DataGridCellStyle6" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" SnapsToDevicePixels="True">

              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
            </Border>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Style.Triggers>
        <Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </Style.Triggers>
    </Style>
    <Style x:Key="DataGridColumnHeaderStyle3" TargetType="{x:Type DataGridColumnHeader}">
      <Setter Property="VerticalContentAlignment" Value="Center"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridColumnHeader}">
            <Grid>
              <Microsoft_Windows_Themes:DataGridHeaderBorder BorderThickness="{TemplateBinding BorderThickness}" IsClickable="{TemplateBinding
CanUserSort}
" IsPressed="{TemplateBinding IsPressed}" IsHovered="{TemplateBinding IsMouseOver}" Padding="{TemplateBinding Padding}" SortDirection="{TemplateBinding SortDirection}" SeparatorVisibility="{TemplateBinding SeparatorVisibility}" SeparatorBrush="#FFBC3F3F"
>

                <Microsoft_Windows_Themes:DataGridHeaderBorder.Background>
                  <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                    <GradientStop Color="Black" Offset="0"/>
                    <GradientStop Color="#FF807676" Offset="1"/>
                  </LinearGradientBrush>
                </Microsoft_Windows_Themes:DataGridHeaderBorder.Background>
                <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>

              </Microsoft_Windows_Themes:DataGridHeaderBorder>
              <Thumb x:Name="PART_LeftHeaderGripper" HorizontalAlignment="Left" Style="{StaticResource ColumnHeaderGripperStyle}"/>
              <Thumb x:Name="PART_RightHeaderGripper" HorizontalAlignment="Right" Style="{StaticResource ColumnHeaderGripperStyle}"/>

            </
Grid>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
    </Style>
    <Style x:Key="DataGridColumnHeaderStyle4" TargetType="{x:Type DataGridColumnHeader}">

      <Setter Property="VerticalContentAlignment" Value="Center"/>
      <Setter Property="Template">
        <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridColumnHeader}">
            <Grid>
              <Microsoft_Windows_Themes:DataGridHeaderBorder BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" IsClickable="{TemplateBinding CanUserSort}" IsPressed="{TemplateBinding IsPressed}" IsHovered="{TemplateBinding IsMouseOver}" Padding="{TemplateBinding Padding}" SortDirection="{TemplateBinding SortDirection}" SeparatorBrush="{TemplateBinding SeparatorBrush}" SeparatorVisibility="{TemplateBinding SeparatorVisibility}">

                <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}">

                  <ContentPresenter.OpacityMask>
                    <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                      <GradientStop Color="#FF7E7777" Offset="0"/>
                      <GradientStop Color="White" Offset="1"/>
                      <GradientStop Color="#FFE9B6B6" Offset="0.483"/>
                    </LinearGradientBrush>
                  </ContentPresenter.OpacityMask>
                </ContentPresenter>
              </Microsoft_Windows_Themes:DataGridHeaderBorder>
              <Thumb x:Name="PART_LeftHeaderGripper" HorizontalAlignment="Left" Style="{StaticResource ColumnHeaderGripperStyle}" Background="#0099DC3D"/>

              <Thumb x:Name="PART_RightHeaderGripper" HorizontalAlignment="Right" Style="{StaticResource ColumnHeaderGripperStyle}" Background="#002869A5"/>

            </Grid>
          </ControlTemplate>
        </Setter.Value>
      </Setter>
      <Setter Property="Foreground" Value="#FF313131"/>
      <Setter Property="Background">
        <Setter.Value>
          <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
            <GradientStop Color="Black" Offset="0"/>
            <GradientStop Color="#FF976B6B" Offset="1"/>
          </LinearGradientBrush>
        </Setter.Value>
      </Setter>

      <Setter Property="SeparatorBrush" Value="#FFB82222"/>
      <Setter Property="OpacityMask" Value="#FFD48787"/>
      <Setter Property="BorderBrush">
        <Setter.Value>
          <LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
            <GradientStop Color="#FF2574BE" Offset="0"/>
            <GradientStop Color="White" Offset="1"/>
            <GradientStop Color="#FF5BC44C" Offset="0.362"/>
            <GradientStop Color="#FFD2643A" Offset="0.677"/>
          </LinearGradientBrush>
        </Setter.Value>
      </Setter>

      <Setter Property="FontWeight" Value="Normal"/>
      <Setter Property="FontSize" Value="12"/>
    </Style>
   <Style x:Key="DataGridColumnHeaderStyle5" TargetType="{x:Type DataGridColumnHeader}">
      <Setter Property="VerticalContentAlignment" Value="Center"/>
      <Setter Property="Template">
       <Setter.Value>
          <ControlTemplate TargetType="{x:Type DataGridColumnHeader}">
            <Grid>
              <Microsoft_Windows_Themes:DataGridHeaderBorder BorderThickness="{TemplateBinding BorderThickness}" IsClickable="{TemplateBindingCanUserSort}" IsPressed="{TemplateBinding IsPressed}" IsHovered="{TemplateBinding IsMouseOver}" Padding="{TemplateBinding Padding}" SortDirection="{TemplateBinding SortDirection}" SeparatorVisibility="{TemplateBinding SeparatorVisibility}" SeparatorBrush="#FFBC3F3F" BorderBrush="#FFC04444">

                <Microsoft_Windows_Themes:DataGridHeaderBorder.Background>
                 <
LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
                    <GradientStop Color="Black" Offset="0"/>
                    <GradientStop Color="#FF806C6C" Offset="1"/>
                  </LinearGradientBrush>
                </
Microsoft_Windows_Themes:DataGridHeaderBorder.Background>
                <
ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
              </Microsoft_Windows_Themes:DataGridHeaderBorder>
              <
Thumb x:Name="PART_LeftHeaderGripper" HorizontalAlignment="Left" Style="{StaticResource ColumnHeaderGripperStyle}"/>
              <Thumb x:Name="PART_RightHeaderGripper" HorizontalAlignment="Right" Style="{StaticResource ColumnHeaderGripperStyle}"/>
            </Grid>
          </
ControlTemplate>
        </
Setter.Value>
      </
Setter>
    </
Style>
    <
Style x:Key="DataGridCellStyle7" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <
ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" SnapsToDevicePixels="True">
              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
            </Border>
          </
ControlTemplate>
        </
Setter.Value>
      </
Setter>
      <
Style.Triggers>
        <
Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <
Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>\
        </Trigger>
      </
Style.Triggers>
    </
Style>
    <
Style x:Key="DataGridCellStyle8" TargetType="{x:Type DataGridCell}">
      <Setter Property="Background" Value="Transparent"/>
      <Setter Property="BorderBrush" Value="Transparent"/>
      <Setter Property="BorderThickness" Value="1"/>
      <Setter Property="Template">
        <Setter.Value>
          <
ControlTemplate TargetType="{x:Type DataGridCell}">
            <Border BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" SnapsToDevicePixels="True">
              <ContentPresenter SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
            </Border>
          </
ControlTemplate>
        </
Setter.Value>
      </
Setter>
      <
Style.Triggers>
        <
Trigger Property="IsSelected" Value="True">
          <Setter Property="Background" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
          <Setter Property="Foreground" Value="{DynamicResource {x:Static SystemColors.HighlightTextBrushKey}}"/>
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static SystemColors.HighlightBrushKey}}"/>
        </Trigger>
        <
Trigger Property="IsKeyboardFocusWithin" Value="True">
          <Setter Property="BorderBrush" Value="{DynamicResource {x:Static DataGrid.FocusBorderBrushKey}}"/>
        </Trigger>
      </
Style.Triggers>
    </
Style>
  </
Window.Resources>
 <
Grid x:Name="LayoutRoot" OpacityMask="#FF6DC8A9" Margin="0,0,-8,0" DataContext="{Binding Source={StaticResource mysampledata}}">
    <DataGrid Margin="12,31.333,22,32.667" Style="{DynamicResource DataGridStyle2}" AutoGenerateColumns="False" ItemsSource="{Binding Collection}" ColumnHeaderStyle="{DynamicResource DataGridColumnHeaderStyle5}" Foreground="#FF392525" HorizontalGridLinesBrush="#FF1B1414" CellStyle={DynamicResource DataGridCellStyle8}">
      <DataGrid.Columns>
        <
DataGridTextColumn Binding="{Binding Name}" Header="Name"/>
        <DataGridTextColumn Binding="{Binding Address}" Header="Address" HeaderStyle="{DynamicResource DataGridColumnHeaderStyle4}" CellStyle="{DynamicResource DataGridCellStyle7}" Foreground="#FF121010"/>
        <DataGridTextColumn Binding="{Binding E_mail_address}" Header="E_mail_address" CellStyle="{DynamicResource DataGridCellStyle6}"/>
        <DataGridTextColumn Binding="{Binding Phone_no_}" Header="Phone_no_"/>
        <DataGridTemplateColumn CellTemplate="{StaticResource Profile_picTemplate1}" Header="Profile_pic"/>
      </DataGrid.Columns>
      <
DataGrid.OpacityMask>
        <
LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
          <GradientStop Color="Black" Offset="0"/>
          <GradientStop Color="#FFAF1F1F" Offset="1"/>
        </LinearGradientBrush>
      </
DataGrid.OpacityMask>
    </
DataGrid>
  </
Grid>
</
Window>


Step 13 : Press F5 and see the output.


Up Next
    Ebook Download
    View all
    Learn
    View all
