Working with Multiple Dropdown Lists in ASP.NET

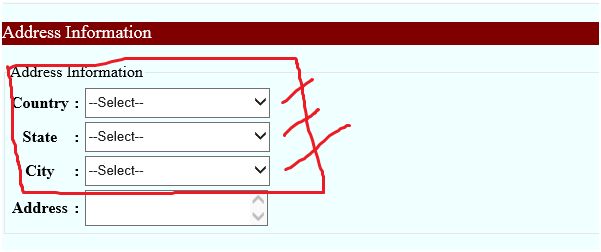

In most of the registration forms you can find a common thing; there will be 3 drop-down lists asking you to choose your country, state, and city as below.

Address information

The specialty of these drop-down lists is when you select a country from the first drop down list, it should show all the states of the corresponding country in the second drop-down list, and if you select a state from the second drop-down list, in the thirs drop-down list it should show all the city names of the corresponding state dynamically.

Let us take an example for better understanding.

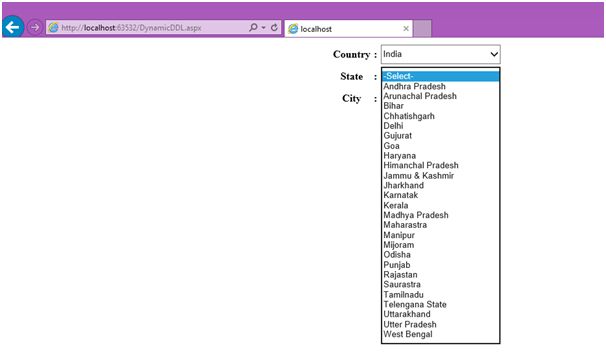

Select State
                                                 Figure 1

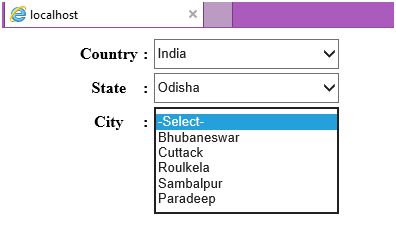

Select City
                                              Figure 2

Have a look at the above screen shots. In pic1, when I select the country as India, in the second drop-down list it shows all the states of India. In pic2 when I select the state as Odisha it shows all the cities of Odisha.

Lets learn step by step how to design it.

  • First we have to design our database.
  • Now create a database with name “CsharpCorner”.
  • Database: CsharpCorner

Now create a table to all the country names:

Table: tbl_country

create a table

Enter some data with in it like:

Country

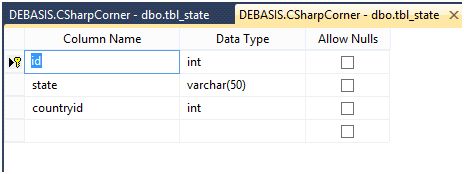

Now design the 2nd table “tbl_state” like this:

Design View

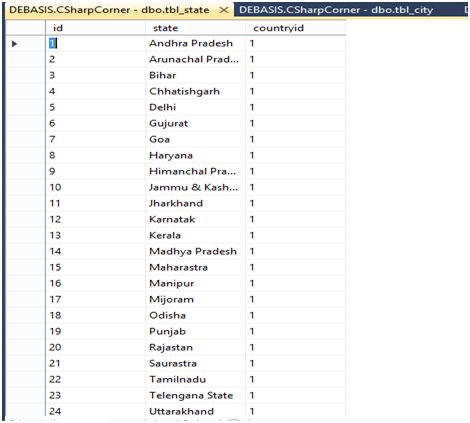

And enter some data.

enter some data

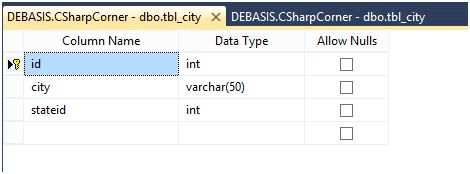

Now design the 3rd Table like this:

Table design

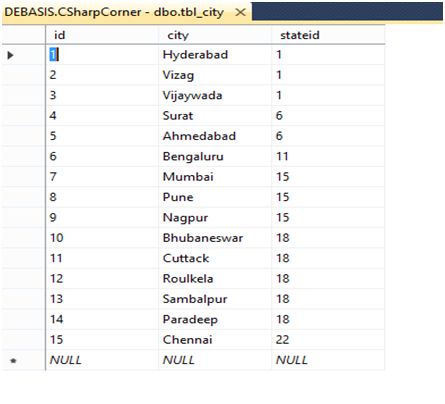

And enter some sample data like this:

enter some sample data

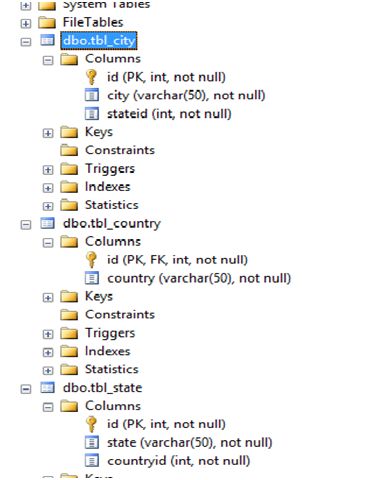

Now table creation is completed, establish a primary key and foreign key relationship between the tables.

tables

Now the database part is completed. Let us write code for it,

  • 1st create a ASP.NET empty project name it as “DynamicDataBindingWithDropDownList”.
  • Add a webform in it with name “DinamicDDL” and write the following code inside it.

Design View: (DynamicDDL.aspx)

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="DynamicDDL.aspx.cs" Inherits="DynamicDataBindingWithDropDownList.DynamicDDL" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.     <div align="center">
  12.     <table>
  13.             <tr>
  14.                 <th width="18%">Country</th>
  15.                 <th width="3%">:</th>
  16.                 <td>
  17.                     <asp:DropDownList ID="ddlCountry" runat="server" Width="185px" Height="30px" AutoPostBack="true" OnSelectedIndexChanged="ddlCountry_SelectedIndexChanged" >
  18.                         <asp:ListItem>--Select--</asp:ListItem>
  19.                         <asp:ListItem>India</asp:ListItem>
  20.                         <asp:ListItem>USA</asp:ListItem>
  21.                         <asp:ListItem>China</asp:ListItem>
  22.                         <asp:ListItem>Japan</asp:ListItem>
  23.                     </asp:DropDownList>
  24.                 </td>
  25.             </tr>
  26.             <tr>
  27.                 <th>State</th>
  28.                 <th>:</th>
  29.                 <td>
  30.                   <asp:DropDownList ID="ddlState" runat="server" Width="185px" Height="30px" AutoPostBack="true" OnSelectedIndexChanged="ddlState_SelectedIndexChanged" />
  31.                 </td>
  32.             </tr>
  33.             <tr>
  34.                 <th>City</th>
  35.                 <th>:</th>
  36.                 <td>
  37.                     <asp:DropDownList ID="ddlCity" runat="server" Width="185px" Height="30px" ></asp:DropDownList>
  38.                 </td>
  39.             </tr>
  40.                 </table>
  41.     </div>
  42.     </form>
  43. </body>
  44. </html>
Code View: (DynamicDDL.aspx.cs)
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. using System.Data;
  9. using System.Data.SqlClient;
  10. using System.Configuration;
  11.
  12. namespace DynamicDataBindingWithDropDownList
  13. {
  14.     public partial class DynamicDDL : System.Web.UI.Page
  15.     {
  16.         SqlConnection con = null;
  17.         SqlCommand cmd = null;
  18.         SqlDataReader dr = null;
  19.
  20.         string strSqlCmd = string.Empty;
  21.
  22.         protected void Page_Load(object sender, EventArgs e)
  23.         {
  24.              con = new SqlConnection(ConfigurationManager.ConnectionStrings["MyConStr"].ConnectionString);
  25.         }
  26.
  27.         protected void ddlCountry_SelectedIndexChanged(object sender, EventArgs e)
  28.         {
  29.
  30.             strSqlCmd = "select * from tbl_state where countryid=" + ddlCountry.SelectedIndex;
  31.             SqlCommand cmd = new SqlCommand(strSqlCmd,con);
  32.
  33.             if(con.State!=ConnectionState.Open)
  34.             {
  35.                 con.Open();
  36.             }
  37.             dr = cmd.ExecuteReader();
  38.
  39.             ddlState.DataSource = dr;
  40.             ddlState.DataTextField = "state";
  41.             ddlState.DataValueField = "id";
  42.             ddlState.DataBind();
  43.             ddlState.Items.Insert(0, new ListItem("-Select-", "0"));
  44.
  45.             if (con.State != ConnectionState.Closed)
  46.                 con.Close();
  47.         }
  48.
  49.         protected void ddlState_SelectedIndexChanged(object sender, EventArgs e)
  50.         {
  51.
  52.             strSqlCmd = "select * from tbl_city where stateid=" + ddlState.SelectedValue;
  53.             SqlCommand cmd = new SqlCommand(strSqlCmd, con);
  54.
  55.             if (con.State != ConnectionState.Open)
  56.             {
  57.                 con.Open();
  58.             }
  59.             dr = cmd.ExecuteReader();
  60.
  61.             ddlCity.DataSource = dr;
  62.             ddlCity.DataTextField = "city";
  63.             ddlCity.DataBind();
  64.             ddlCity.Items.Insert(0, new ListItem("-Select-", "0"));
  65.
  66.             if (con.State != ConnectionState.Closed)
  67.                 con.Close();
  68.         }
  69.     }
  70. }

Web.config:

  1. <configuration>
  2.   <connectionStrings >
  3.     <add name="MyConStr" connectionString="server=DEBASIS;database=CSharpCorner;trusted_connection=true"/>
  4.   </connectionStrings>
  5.     <system.web>
  6.       <compilation debug="true" targetFramework="4.5.1" />
  7.       <httpRuntime targetFramework="4.5.1" />
  8.     </system.web>
  9.
  10. </configuration>
Conclusion

We can use this code when we are creating registration pages like this

registration pages

Thanks for reading.
