Light Dependent Resistor With Arduino

Introduction:

LDR - Light Dependent Resistor

In this article I'll show you how to work with LDR to sense the light levels, measure those levels with the Arduino Uno and print the value to the serial port.

Required Components:
  • Arduino Uno
  • LDR
  • Bread Board
  • led

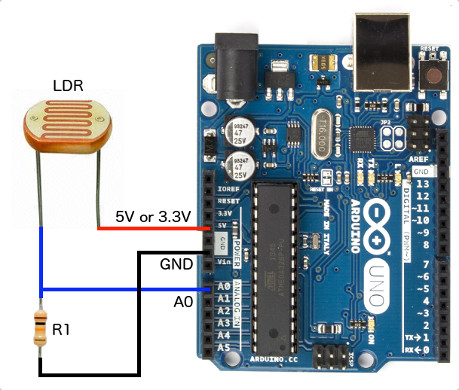

Connections:


  • Led Anode pin to Arduino digital pin.
  • Led Cathode pin to Gnd.
Programming:
  1. int LDR=A0;
  2. int led=13;
  3. int ldr reading=0;
  4. void setup()
  5. {
  6.   pinMode(led,OUTPUT);
  7.   Serial.begin(9600);
  8. }
  9. void loop()
  10. {
  11. ldr reading=analogRead(LDR);
  12.   if(value < 800)
  13. {
  14.   digitalWrite(led,HIGH);
  15. }
  16. else
  17. {
  18.   digitalWrite(led,LOW);
  19. }
  20.   Serial.println(ldr reading);
  21.   delay(200);
  22. }
Explanation:

Initialize the value to the LDR to the Analog Pin and set value "0." In setup() function we want to set the Baud Rate as 9600 and in the loop() function we want to make the condition to the LDR; such as, first we want to read the Analog Pin value from the Arduino board. If the value is less than 800, the led will br ON, else the led will be in the OFF condition, and then print the value in the serial monitor.

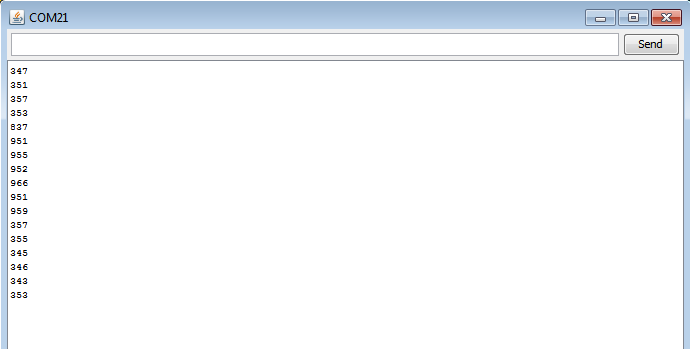

Output:
