LPG Sensor Using Arduino Uno

Introduction:

In this article I'll show you that how can we find out the LPG gas using the MQ2 Gas sensor and print the value in LCD (Liquid Crystal Display).

Requirements:
  • Arduino Mega
  • Bread Board
  • MQ2 Gas Sensor
  • LCD 16*2
  • Led
  • Buzzer
Connection:


Led:
  • Anode to Digital Pin 12
  • Cathode to Gnd
Buzzer:
  • Anode pin to Digital Pin10
  • Cathode pin to the gnd
Programming:
  1. #include < LiquidCrystal.h >
  2.     int mq = A0;
  3. int led = 12;
  4. int buz = 10;
  5. int m;
  6. float p;
  7.
  8. LiquidCrystal lcd(2, 3, 4, 5, 6, 7);
  9.
  10. void setup()
  11. {
  12.     pinMode(led, OUTPUT);
  13.     pinMode(buz, OUTPUT);
  14.     digitalWrite(led, LOW);
  15.     digitalWrite(buz, LOW);
  16.     lcd.begin(16, 2);
  17. }
  18. void loop()
  19. {
  20.     d = analogRead(mq);
  21.     lcd.setCursor(0, 0);
  22.     lcd.print("LPG GAS SENSOR");
  23.
  24.     if (m > 60)
  25.     {
  26.         p = 0;
  27.     } else
  28.     {
  29.         p = (m - 60) / 9.64;
  30.     }
  31.     lcd.setCursor(0, 1);
  32.     lcd.print(p);
  33.     lcd.setCursor(5, 1);
  34.     lcd.print("%");
  35.     if (p >= 30)
  36.     {
  37.         digitalWrite(led, LOW);
  38.         digitalWrite(buz, HIGH);
  39.         lcd.setCursor(9, 1);
  40.         lcd.print("Little Leakage");
  41.     } else
  42.     {
  43.         digitalWrite(led, HIGH);
  44.         digitalWrite(buz, LOW);
  45.     }
  46.     delay(500);
  47.     lcd.clear();
  48. }
Explanation:
  • The Gas Sensor is connected to the analog input pin A0.
  • The Digital pin 10 is used to control the buzzer.
  • The Digital Pin 12 is connected to the led.
  • If the Gas sensor value is less than 60.
  • The Buzzer and led is ON.
  • Displays the result in liquid crystal display.

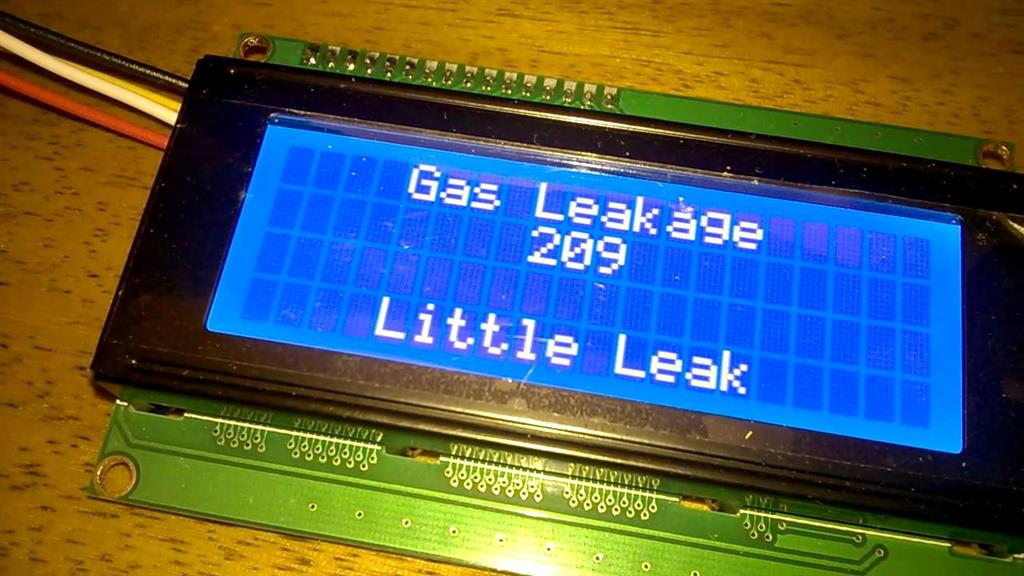

Output:
