Windows Form Application Using Arduino Uno

Introduction

In my previous article I explained about Bluetooth Connection using Arduino and in this article I'll show you working with Arduino Uno using Windows Form Application.

Requirements
  • Arduino Uno
  • Led
  • Arduino IDE
  • Visual Studio IDE

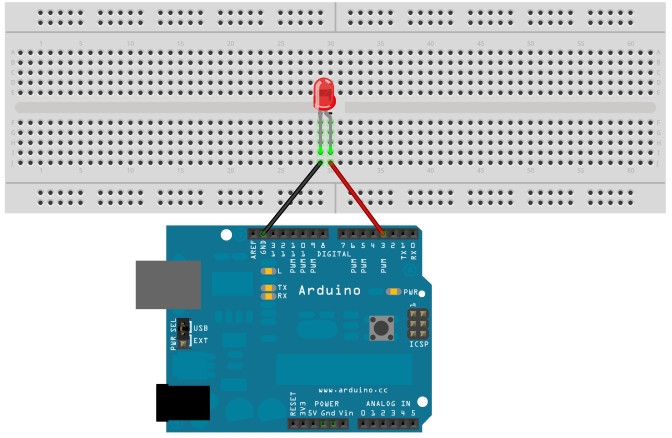

Connection

Anode Pin(+) to 3
Cathode Pin(-) to Gnd




Programming

Arduino: You can refer my first article for explanation.
  1. int led = 3;
  2. void setup()
  3. {
  4.     Serial.begin(9600); //Baud Rate
  5.     pinMode(led, OUTPUT);
  6. }
  7. void loop()
  8. {
  9.     char data = Serial.read();
  10.     switch (data) //Selection Control Statement
  11.     {
  12.         case 'ON':
  13.             digitalWrite(led, HIGH); // Sets the led ON
  14.             break;
  15.         case 'OFF':
  16.             digitalWrite(led, LOW); //Sets the led OFF
  17.             break;
  18.     }
  19. }
Windows Form:

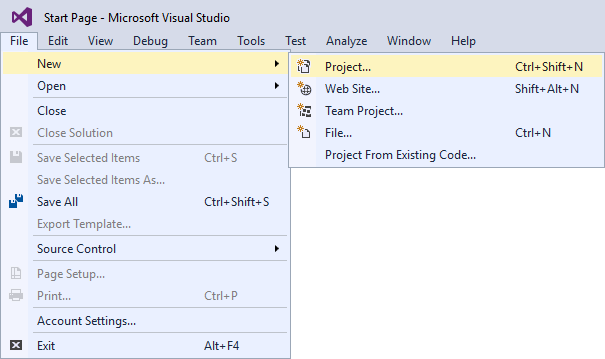

Step 1: Once Visual Studio Community 2015 and select FILE, then New, Project… from the Menu.

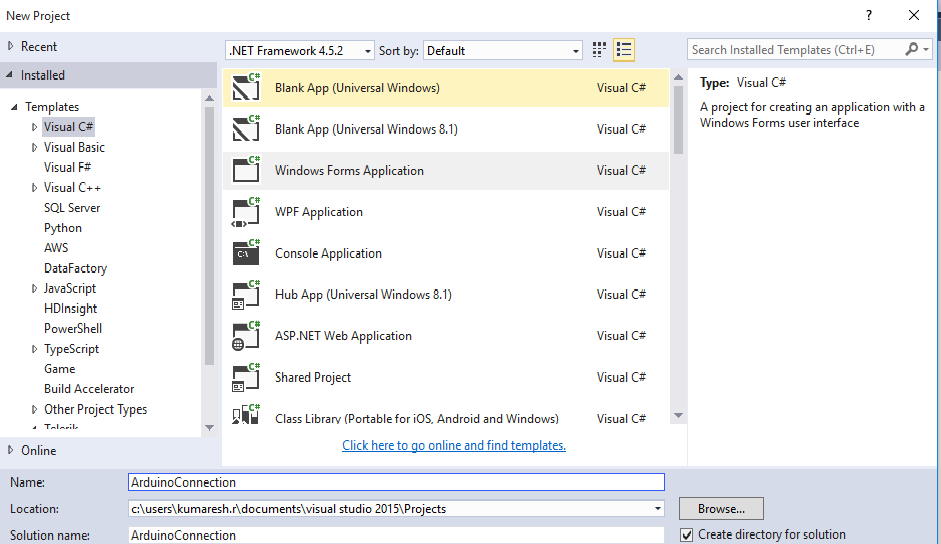

Step 2: From the New Project window select Visual C# from Installed, Templates, then select Windows Form Application.

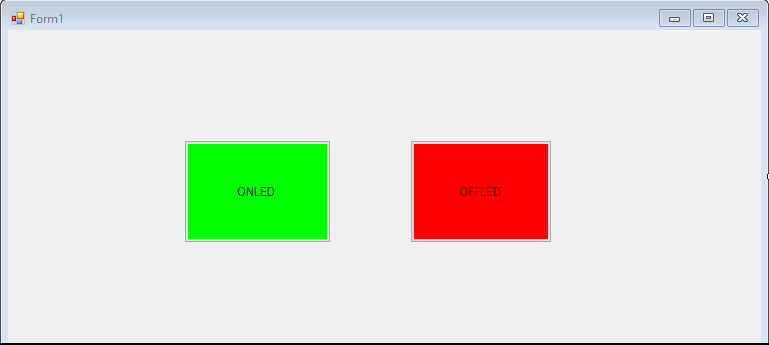

Step 3: Drag and drop the buttons in the designer window named ONLED and OFFLED.

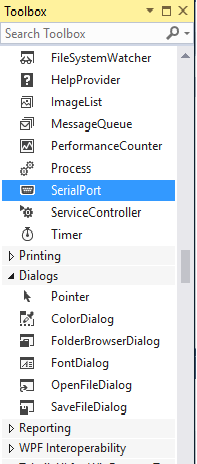

Step 4: And drag and drop the SerialPort Tool in the designer window and it will hide one.



Step 5: Start coding.
  1. using System;
  2. using System.Windows.Forms;
  3. using System.IO.Ports;
  4.
  5.
  6. namespace ArduinoConnection
  7. {
  8.     public partial class Form1 : Form
  9.     {
  10.         private SerialPort newport;
  11.         public Form1()
  12.         {
  13.             InitializeComponent();
  14.             Code();
  15.         }
  16.
  17.         private void Code()
  18.         {
  19.             newport = new SerialPort();
  20.             newport.BaudRate = 9600;
  21.             newport.PortName = "COM4";
  22.             newport.Open();
  23.
  24.             button1.Enabled = true;
  25.             button2.Enabled = false;
  26.
  27.
  28.         }
  29.
  30.         private void button1_Click(object sender, EventArgs e)  //Click Event For LEDON
  31.         {
  32.             newport.WriteLine("ON");  // LED ON
  33.
  34.             button1.Enabled = false;
  35.             button2.Enabled = true;
  36.
  37.         }
  38.
  39.         private void button2_Click(object sender, EventArgs e)  //Click Event For LEDOFF
  40.         {
  41.             newport.WriteLine("OFF");  // LED OFF
  42.
  43.             button1.Enabled = true;
  44.             button2.Enabled = false;
  45.
  46.         }
  47.     }
  48. }
Explanation
  1. using System.IO.Ports is a Namespace
  2. Create the object named as newport
  3. newport = new SerialPort(); //Intialize the new instance of Serial Port Class
  4. newport.BaudRate = 9600; //Set the Serial Baud Rate for transforming the data
  5. newport.PortName = "COM4"; //Set the COM Port
  6. newport.Open(); //Port Open
  7. button1.Enabled = true; // Conditions that true means Ledon
  8. button2.Enabled = false; // Ledoff
Conclusion

We saw working with Arduino using Windows Form Application
