Bookmark Brief
Introduction
In different environments, bookmark have different
definitions. When reading a book, a bookmark is a piece of paper which is inserted
in a book to record which page we have read to. When browsing websites, we can add
some interesting and useful webpages as bookmarks to conveniently and
quickly return another time. In MS Office, a bookmark is a function to help users go to a
specified location quickly and easily. This article focuses on how to realize
a bookmark function in MS Excel.
Preparation
In my example, I prepare two workbooks.
Workbook 1
This workbook is a sales report. It includes many
worksheets. From worksheet 2 to 6, it shows vendor sales reports, while the
latter worksheets show a commission report.
Vendor sales information includes two parts, Parts and

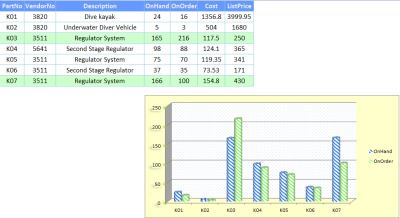

Orders. Orders information is related to Parts. For example, the fourth
worksheet shows orders information about PartNo K01-07. Commission report
includes information in year 2010 and 2011.
Workbook 2
This workbook just has only one worksheet which saves
information about staff.
Bookmark List
What I will do is to create a bookmark in the first
worksheet of Workbook 1. There are five main bookmark titles, vendor sales
report, 2010 commission report, 2011 commission report, Staff information and e-iceblue (a
website). Also, I set some other vice bookmark titles under the main bookmarks.

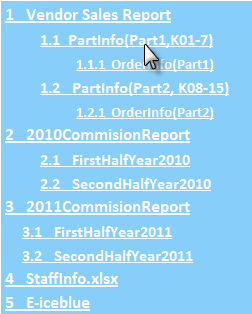

The effect will be as in the following image:
![bookmark list.png]()
![partinfo.png]()
Step
1. Write sub-methods for
calling them in main method.
DrawInternalHyperlink
If we want to move to other worksheets once clicking
relevant bookmark title, we need to draw hyperlink for titles. Select bookmark
range and add hyperlink in worksheet. Then, set type. Because the bookmark
points to internal worksheet, so set type as workbook. Finally, set hyperlink
text and jump to where after clicking it.
static
private
void
DrawInternalHyperlink(Worksheet
sheetSource, Worksheet
sheetDest, int rowIndex,string
text)
{
CellRange
range = sheetSource.Range[rowIndex, 2];
HyperLink
hyperlink = sheetSource.HyperLinks.Add(range);
hyperlink.Type =
HyperLinkType.Workbook;
hyperlink.Address = text;
hyperlink.SubAddress = sheetDest.Range["A1"].RangeGlobalAddress;
}
DrawExternalHyperlink
The fourth bookmark title points to Workbook 2, so set
external hyperlink. Also, select range, add hyperlink and set hyperlink type as
file. After setting text, add file path.
static
private
void
DrawExternalHyperlink(Worksheet
sheetSource, int
rowIndex, string
text)
{
CellRange
range = sheetSource.Range[rowIndex, 2];
HyperLink
hyperlink = sheetSource.HyperLinks.Add(range);
hyperlink.Type =
HyperLinkType.File;
hyperlink.TextToDisplay = text;
hyperlink.Address =
@"C:\Users\lenovo\Desktop\bookmark\bookmark\StaffInfo.xlsx";
}
DrawUrlHyperlink
The fifth bookmark title moves us to a website, so draw url
hyperlink. Select range, add hyperlink and set hyperlink type as url. Add text
and website address.
static
private
void
DrawUrlHyperlink(Worksheet
sheetSource,int
rowIndex,string
url)
{
CellRange
range = sheetSource.Range[rowIndex, 2];
HyperLink
hyperlink = sheetSource.HyperLinks.Add(range);
hyperlink.Type =
HyperLinkType.Url;
hyperlink.TextToDisplay =
"5 E-iceblue";
hyperlink.Address = url;
}
SetFormat
This method is used to set bookmark list format, including
font style, background color and indentation.
static
private
void
SetFormat(Worksheet
sheet, int
rowIndex,float
fontSize,int
indent)
{
sheet.Range[rowIndex, 2].Style.Font.Size = fontSize;
sheet.Range[rowIndex, 2].Style.Font.IsBold =
true;
sheet.Range[rowIndex, 2].Style.IndentLevel = indent;
sheet.Range[rowIndex, 2].Style.Font.Color =
Color.AliceBlue;
sheet.Range[rowIndex, 2].Style.Font.FontName =
"Calibri";
sheet.Range[rowIndex, 2].Style.Color =
Color.LightSkyBlue;
}
2. Load file from computer and set source sheet. Then,
define rowindex initial value, which means that the bookmark list will be input
from which row.
Workbook
workbook = new
Workbook();
workbook.LoadFromFile(@"..\..\bookmark
list.xlsx",
ExcelVersion.Version2010);
Worksheet
sheetSource = workbook.Worksheets[0];
int
rowIndex = 2;
3. Draw bookmark list 1. Bookmark list 1 includes one main
bookmark, two sub-bookmarks and two third-bookmarks. The main bookmark is linked
to worksheet 2. The two sub-bookmarks are linked to worksheet 2 and 4
respectively. The two third-bookmarks are linked to worksheet 3 and 5. All the
bookmark titles are worksheet name.
DrawInternalHyperlink(sheetSource, workbook.Worksheets[1], rowIndex++,String.Format("1
{0}",workbook.Worksheets[1].Name));
SetFormat(sheetSource, 2, 13,0);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[2],
rowIndex++,String.Format("1.1
{0}", workbook.Worksheets[2].Name));
SetFormat(sheetSource, 3, 12,4);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[3], rowIndex++, String.Format("1.1.1
{0}",workbook.Worksheets[3].Name));
SetFormat(sheetSource, 4, 11,8);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[4], rowIndex++,
String.Format("1.2
{0}", workbook.Worksheets[4].Name));
SetFormat(sheetSource, 5, 12,4);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[5], rowIndex++,
String.Format("1.2.1
{0}",workbook.Worksheets[5].Name));
SetFormat(sheetSource, 6, 11,8);
4. Draw bookmark list 2 and 3. Bookmark list 2 and 3 also
point to worksheets in Workbook 1. Therefore, draw it as the above step.
DrawInternalHyperlink(sheetSource, workbook.Worksheets[6], rowIndex++,
String.Format("2
{0}", workbook.Worksheets[6].Name));
SetFormat(sheetSource, 7, 13,0);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[7], rowIndex++,
String.Format("2.1
{0}", workbook.Worksheets[7].Name));
SetFormat(sheetSource, 8, 12,4);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[8], rowIndex++,
String.Format("2.2
{0}", workbook.Worksheets[8].Name));
SetFormat(sheetSource, 9, 12,4);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[9], rowIndex++,
String.Format("3
{0}", workbook.Worksheets[9].Name));
SetFormat(sheetSource, 10, 13,0);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[10], rowIndex++,
String.Format("3.1
{0}", workbook.Worksheets[10].Name));
SetFormat(sheetSource, 11, 12,2);
DrawInternalHyperlink(sheetSource, workbook.Worksheets[11], rowIndex++,
String.Format("3.2
{0}", workbook.Worksheets[11].Name));
SetFormat(sheetSource, 12, 12,2);
5. Draw bookmark list 4. Bookmark list 4 is linked to
Workbook 2. Set its location, title and format.
DrawExternalHyperlink(sheetSource, rowIndex++,
"4 StaffInfo.xlsx");
SetFormat(sheetSource, 13, 13,0);
6. Draw bookmark list 5. Bookmark list 5 is linked to a
website. Set its location and add site address. Then set format.
DrawUrlHyperlink(sheetSource, rowIndex++,
"http://www.e-iceblue.com");
SetFormat(sheetSource, 14, 13,0);
7. Set column width and row height.
sheetSource.AllocatedRange.AutoFitColumns();
sheetSource.AllocatedRange.RowHeight = 18;
8. Save and launch file
workbook.SaveToFile(@"..\..\result.xlsx",
ExcelVersion.Version2010);
System.Diagnostics.Process.Start(@"..\..\result.xlsx");
Conclusion
In this article, I show a method about how to realize
bookmark function in MS Excel. The bookmark can point to worksheet in one
workbook, in other workbook and website. After clicking bookmark title, we can
get the relevant contents about this title shows.
Note:
Spire.XLS
is used in this method to help me realize
this function.
*Workbook 1, workbook 2 and the whole project will be
packed. You can download to get details with coding.
