Customized Application Loader

Introduction

A loader is something in a service based app for loading data from the server, it takes time to download heavy data such as audio, images and so on. For a better user experience developers show an activity view until the download completes.

The following is the procedure to create and use it in an application.

Step 1

Open XCode by double-clicking on it.

Step 2

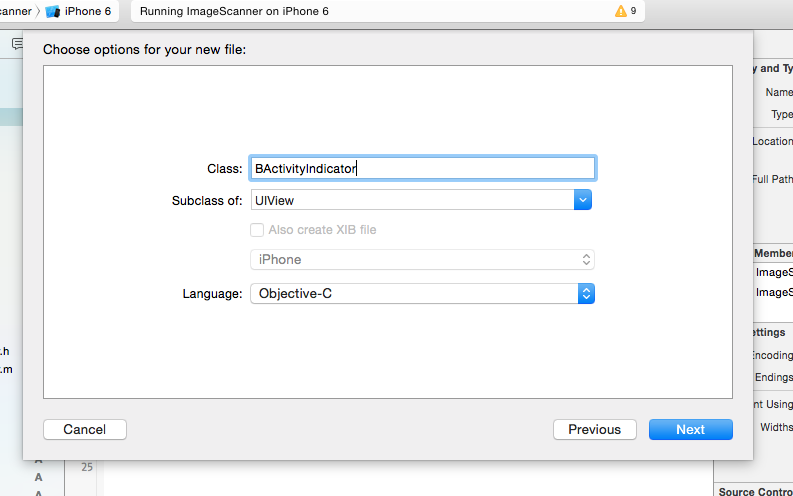

Create a UIView class like the following.

UIView Class

Step 3

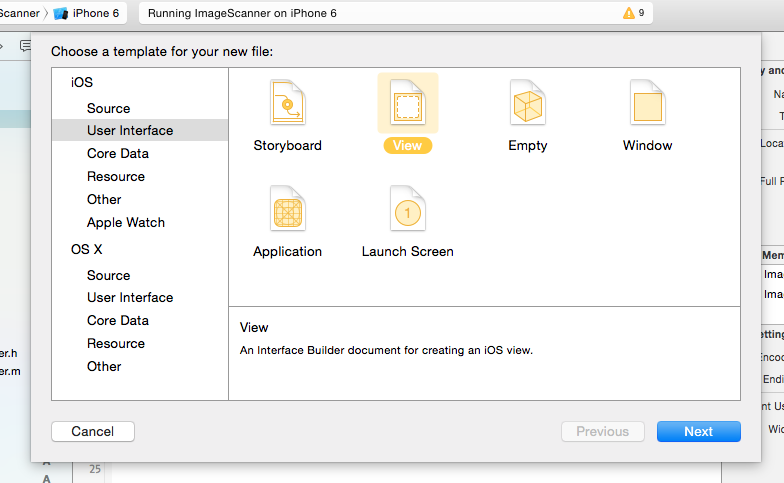

Take User Interface View like the following:

user interface view

Step 4

Now here we will write the code in the UIView class Objective-C file.

BActivityIndicator.h

  1. #import < UIKit / UIKit.h >
  2.
  3. @interface BActivityIndicator: UIView {
  4.     CGAffineTransform rotationTransform;
  5. }@property(weak, nonatomic) IBOutlet UILabel * pleaseWaitLabel;@property(weak, nonatomic) IBOutlet UIImageView * spinningImage;
  6.
  7. - (id) initWithView: (UIView * ) view;
  8.
  9. + (BActivityIndicator * ) showHUDAddedTo: (UIView * ) view animated: (BOOL) animated;
  10.
  11. + (BOOL) hideHUDForView: (UIView * ) view animated: (BOOL) animated;
  12.
  13. @end
BActivityIndicator.m
  1. #import "BActivityIndicator.h"
  2.
  3. @implementation BActivityIndicator
  4.
  5. - (id) initWithFrame: (CGRect) frame {
  6.     self = [super initWithFrame: frame];
  7.     if (self) {
  8.         self = [
  9.             [
  10.                 [NSBundle mainBundle] loadNibNamed: @
  11.                 "BActivityIndicator"
  12.                 owner: self
  13.                 options: nil] lastObject];
  14.         self.frame = frame;
  15.         [self rotateLayerInfinite];
  16.
  17.         self.pleaseWaitLabel.font = [UIFont fontWithName: @
  18.         "RobotoCondensed-Regular"
  19.         size: 14.0f];
  20.     }
  21.     return self;
  22. }
  23.
  24. - (id) initWithView: (UIView * ) view {
  25.     // Let's check if the view is nil (this is a common error when using the windw initializer above)
  26.     if (!view) {
  27.         [NSException raise: @
  28.         "MBProgressHUDViewIsNillException"
  29.         format: @
  30.         "The view used in the MBProgressHUD initializer is nil."];
  31.     }
  32.     id me = [self initWithFrame: CGRectMake(0, 0, [UIScreen mainScreen].bounds.size.width, [UIScreen mainScreen].bounds.size.height)];
  33.     // We need to take care of rotation ourselfs if we're adding the HUD to a window
  34.     if ([view isKindOfClass: [UIWindow class]]) {
  35.         [self setTransformForCurrentOrientation: NO];
  36.     }
  37.     [
  38.         [NSNotificationCenter defaultCenter] addObserver: self selector: @selector(deviceOrientationDidChange: )
  39.         name: UIDeviceOrientationDidChangeNotification object: nil];
  40.
  41.     return me;
  42. }
  43.
  44.
  45. - (void) rotateLayerInfinite {
  46.     CABasicAnimation * rotation;
  47.     rotation = [CABasicAnimation animationWithKeyPath: @
  48.     "transform.rotation"];
  49.     rotation.fromValue = [NSNumber numberWithFloat: 0];
  50.     rotation.toValue = [NSNumber numberWithFloat: (2 * M_PI)];
  51.     rotation.duration = 1.5f;
  52.     rotation.repeatCount = HUGE_VALF;
  53.     [_spinningImage.layer removeAllAnimations];
  54.     [_spinningImage.layer addAnimation: rotation forKey: @
  55.     "Spin"];
  56. }
  57.
  58. #pragma mark - #pragma mark Manual oritentation change
  59.
  60. #define RADIANS(degrees)((degrees * (float) M_PI) / 180.0f)
  61.
  62. - (void) deviceOrientationDidChange: (NSNotification * ) notification {
  63.     if (!self.superview) {
  64.         return;
  65.     }
  66.     if ([self.superview isKindOfClass: [UIWindow class]]) {
  67.         [self setTransformForCurrentOrientation: YES];
  68.     }
  69. }
  70.
  71. - (void) setTransformForCurrentOrientation: (BOOL) animated {
  72.     UIInterfaceOrientation orientation = [UIApplication sharedApplication].statusBarOrientation;
  73.     NSInteger degrees = 0;
  74.
  75.     // Stay in sync with the superview
  76.     if (self.superview) {
  77.         self.bounds = self.superview.bounds;
  78.         [self setNeedsDisplay];
  79.     }
  80.
  81.     if (UIInterfaceOrientationIsLandscape(orientation)) {
  82.         if (orientation == UIInterfaceOrientationLandscapeLeft) {
  83.             degrees = -90;
  84.         } else {
  85.             degrees = 90;
  86.         }
  87.         // Window coordinates differ!
  88.         self.bounds = CGRectMake(0, 0, self.bounds.size.height, self.bounds.size.width);
  89.     } else {
  90.         if (orientation == UIInterfaceOrientationPortraitUpsideDown) {
  91.             degrees = 180;
  92.         } else {
  93.             degrees = 0;
  94.         }
  95.     }
  96.
  97.     rotationTransform = CGAffineTransformMakeRotation(RADIANS(degrees));
  98.
  99.     if (animated) {
  100.         [UIView beginAnimations: nil context: nil];
  101.     }
  102.     [self setTransform: rotationTransform];
  103.     if (animated) {
  104.         [UIView commitAnimations];
  105.     }
  106. }
  107.
  108. + (BActivityIndicator * ) showHUDAddedTo: (UIView * ) view animated: (BOOL) animated {
  109.     BActivityIndicator * hud = [
  110.         [BActivityIndicator alloc] initWithView: view];
  111.     [view addSubview: hud];
  112.     return hud;
  113. }
  114.
  115. + (BOOL) hideHUDForView: (UIView * ) view animated: (BOOL) animated {
  116.     UIView * viewToRemove = nil;
  117.     for (UIView * v in [view subviews]) {
  118.         if ([v isKindOfClass: [BActivityIndicator class]]) {
  119.             viewToRemove = v;
  120.         }
  121.     }
  122.     if (viewToRemove != nil) {
  123.         [viewToRemove removeFromSuperview];
  124.         return YES;
  125.     } else {
  126.         return NO;
  127.     }
  128. }
  129.
  130. - (void) dealloc {
  131.     [_spinningImage.layer removeAnimationForKey: @
  132.     "Spin"];
  133. }
  134.
  135. @end

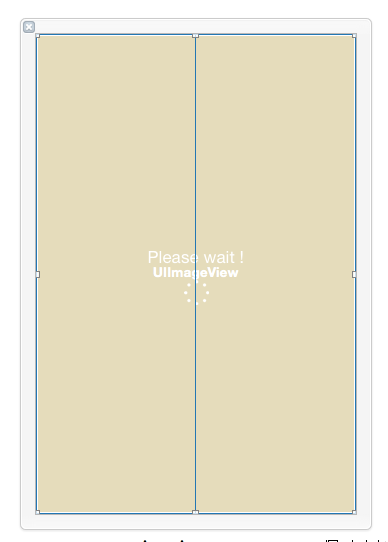

ViewController.Xib

ViewController

Step 7

Now here I’ll explain how to call that class within a project.

In your common Utility Class you need to write these functions for calling it:
  1. #pragma mark - Activity Indicator + (void) startActivityIndicatorInView: (UIView * ) aView withMessage: (NSString * ) aMessage {
  2.     //    MBProgressHUD *_hud = [MBProgressHUD showHUDAddedTo:aView animated:YES];
  3.     //    _hud.dimBackground  = YES;
  4.     //    _hud.labelText      = aMessage;
  5.
  6.     BActivityIndicator * _hud = [BActivityIndicator showHUDAddedTo: aView animated: YES];
  7.     //    _hud.pleaseWaitLabel.text  = aMessage;
  8.
  9. }
  10.
  11. + (void) stopActivityIndicatorInView: (UIView * ) aView {
  12.     // [MBProgressHUD hideHUDForView:aView animated:YES];
  13.     [BActivityIndicator hideHUDForView: aView animated: YES];
  14. }

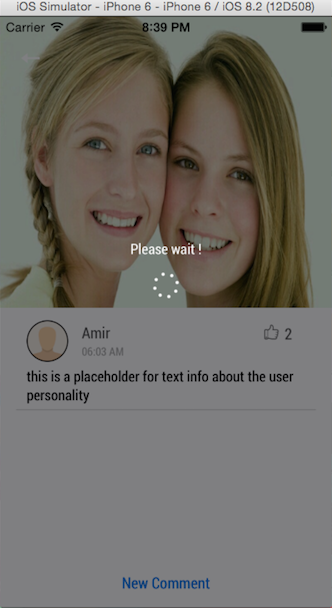

Output

output
