Validating input fields in Silverlight 4


Introduction

There are various options for validating input fields in Silverlight 4 such as Data Annotations, IDataErrorInfo interface, INotifyDataErrorInfo interface, property validation, and Context Validation. In this article we will discuss how we can validate any user input using IDataErrorInfo interface.

Setting Up a Silverlight Project

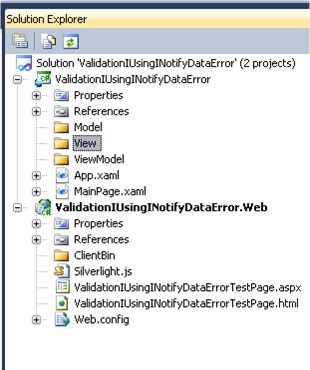

Open Visual Studio 2010 and create a new Silverlight application. In my case, I name the application ValidationIUsingINotifyDataError. We are following MVVM structure so place three new folder named View, Model, and ViewModel.


Lets Follow step wise procedure to implement validation using IDataErrorInfo

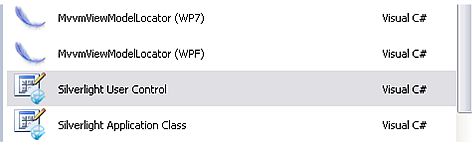

    1.    Add a new item SilverlightUserControl  to the view folder and named it as OrganizerView.

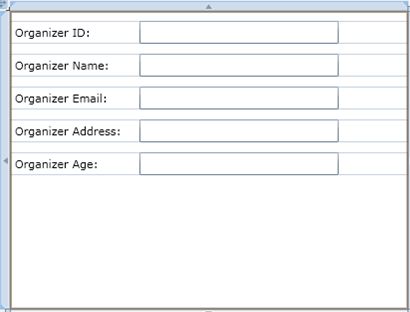

2.    Lets add some label and input fields to the  OrganizerView. The final UI looks like the following:


And the xaml will be

<UserControl xmlns:sdk="http://schemas.microsoft.com/winfx/2006/xaml/presentation/sdk"
    x:Class="ValidationIUsingINotifyDataError.View.OrganizerView"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    d:DesignHeight="300" d:DesignWidth="400">
    <Grid x:Name="LayoutRoot" Background="White">
        <StackPanel>
            <StackPanel Orientation="Horizontal" Margin="0,10,0,0" >
             <sdk:Label x:Name="organizerIDLabel" Content="Organizer ID:" Width="120" Margin="5,0,0,0," />                <TextBox Width="200" Height="23" Margin="5,0,0,0,"  />
            </StackPanel>
            <StackPanel Orientation="Horizontal" Margin="0,10,0,0">
                <sdk:Label x:Name="organizerNameLabel" Content="Organizer Name:" Width="120" Margin="5,0,0,0," />
                <TextBox Width="200" Height="23" Margin="5,0,0,0,"  />
            </StackPanel>

<StackPanel Orientation="Horizontal" Margin="0,10,0,0">
                <sdk:Label x:Name="organizerEmailLabel" Content="Organizer Email:" Width="120" Margin="5,0,0,0," />
                <TextBox Width="200" Height="23" Margin="5,0,0,0,"  />
            </StackPanel>

<StackPanel Orientation="Horizontal" Margin="0,10,0,0">
                <sdk:Label x:Name="organizerAddressLable" Content="Organizer Address:" Width="120" Margin="5,0,0,0," />
                <TextBox Width="200" Height="23" Margin="5,0,0,0,"  />
            </StackPanel>
            <StackPanel Orientation="Horizontal" Margin="0,10,0,0">
          <sdk:Label x:Name="organizerAgeLable" Content="Organizer Age:" Width="120" Margin="5,0,0,0,"/>
                <TextBox Width="200" Height="23" Margin="5,0,0,0,"  />
            </StackPanel>
        </StackPanel>
    </Grid>
</
UserControl>



     3.   Third step will be adding a class, we can name it "OrganizerViewModel.cs" inside  ViewModel.
4.
    Lastly will add a class "Organizer.cs" to model folder. So finally the folder structure will look something like this:


Here inside the Organizer.cs, this class has to implement IDataErrorInfo interface, after implementing the class will have some auto generated interface code resembling to.

public class Organizer : IDataErrorInfo
{
        public string Error
        {
            get { throw new NotImplementedException(); }
        }
        public string this[string columnName]
        {
            get { throw new NotImplementedException(); }
        }
 }


We need to have some property of this class so lets say the properties are OrganizerID , OrganizerName ,OrganizerEmail,OrganizerAddress and OrganizerAge. So now the new class looks like the following:


    public class Organizer : IDataErrorInfo
    {
        #region Property
        private int _organizerID;
        public int OrganizerID
        {
            get
            {
                return _organizerID;
            }
            set
            {
                _organizerID = value;
            }
        }
        private string _organizerName;
        public string OrganizerName
        {
            get

            {
                return _organizerName;
            }
            set
            {
                _organizerName = value;
            }
        }
        private string _organizerEmail;
        public string OrganizerEmail
        {
            get
            {
                return _organizerEmail;
            }
            set
            {
                _organizerEmail = value;
            }
        }
        private string _organizerAddress;
        public string OrganizerAddress
        {
            get
            {
                return _organizerAddress;
            }
            set
            {
                _organizerAddress = value;
           }
        }
        private int _organizerAge;
        public int OrganizerAge
        {
            get
            {
                return _organizerAge;
            }
            set
            {
                _organizerAge = value;
            }
        }
        #endregion
        #region
IDataErrorInfo Implementation
        public string Error
        {
          get { throw new NotImplementedException(); }
        }
        public string this[string columnName]
        {
            get { throw new NotImplementedException(); }
        }
        #endregion
    }
}

private string organizerError = string.Empty;
private Dictionary<string, string> organizerErrorDictionary = new Dictionary<string, string>();

 and lets change the implementation of IDataErrorInfo Part  after changing we will end up doing the following.
  #region IDataErrorInfo Implementation
        private string organizerError = string.Empty;
        private Dictionary<string, string> organizerErrorDictionary = new Dictionary<string, string>();

        public string Error
        {
            get { return organizerError; }
        }
        public string this[string columnName]
        {
            get
            {
                return ((organizerErrorDictionary.ContainsKey(columnName)) ? organizerErrorDictionary[columnName] : null);
            }
        }
   #endregion


Now we have to validate the properties of this class with our logic. For example we want the OrganizerName field to be required and we can't leave it empty or we want the OrganizerEmail Property  to match the email format etc.So lets move to that and change the property logic

  #region Property
        private int _organizerID;
        public int OrganizerID
        {
            get
            {
                return _organizerID;
            }
            set
            {
                if (value <= 0)
                {
                    organizerErrorDictionary["OrganizerID"] = "Invalid ID";
                }
                else if (organizerErrorDictionary.ContainsKey("OrganizerID"))
                {
                    organizerErrorDictionary.Remove("OrganizerID");
                }
                _organizerID = value;
            }
        }
        private string _organizerName;
        public string OrganizerName
        {
            get
            {
                return _organizerName;
            }
            set
            {
                if (string.IsNullOrEmpty(value))
                {
                    //For Null And Empty
                    organizerErrorDictionary["OrganizerName"] = "Organizer Name is required";
                }
                else if(organizerErrorDictionary.ContainsKey("OrganizerName"))
                {
                    organizerErrorDictionary.Remove("OrganizerName");
                }
                _organizerName = value;
            }
        }
        private static string EmailPattern = @"^([\w-\.]+)@((\[[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.)|(([\w-]+\.)+)[a-zA-Z]{2,4}|[0-9]{1,3})(\]?)$";
        private string _organizerEmail;
        public string OrganizerEmail
        {
            get
            {
                return _organizerEmail;
            }
            set
            {
                if (!Regex.IsMatch(value.Trim(), EmailPattern, RegexOptions.IgnoreCase))
                {
                    organizerErrorDictionary["OrganizerEmail"] = "Inputted Email is not in correct format";
                }
                else if (organizerErrorDictionary.ContainsKey("OrganizerEmail"))
                {
                organizerErrorDictionary.Remove("OrganizerEmail");
                }
                _organizerEmail = value;
            }
        }
        private string _organizerAddress;
        public string OrganizerAddress
        {
            get
            {
                return _organizerAddress;
            }
            set
            {
                if (string.IsNullOrEmpty(value))
                {
                    organizerErrorDictionary["OrganizerAddress"] = "Address is Required";
                }
            else if(value.Trim().Length < 10)
                 {                    organizerErrorDictionary["OrganizerAddress"] = "Length of address should be greater than 10 ";
                }
                else if (organizerErrorDictionary.ContainsKey("OrganizerAddress"))
                {
                    organizerErrorDictionary.Remove("OrganizerAddress");
                }
                _organizerAddress = value;
            }
        }
        private int _organizerAge;        public int OrganizerAge
        {
            get
            {
                return _organizerAge;
            }
            set
            {
                if (value <= 0 || value > 120)
                {
                    organizerErrorDictionary["OrganizerAge"] = "Invalid Age";
                }
                else if (organizerErrorDictionary.ContainsKey("OrganizerAge"))
                {
                    organizerErrorDictionary.Remove("OrganizerAge");
                }
                _organizerAge = value;
            }
        }
        #endregion


Ok we are done with the putting validation into the properties.

Now let's create an object of Organizer in OrganizerViewModel.cs and lets bind it to the UI.

We have to follow following steps :-

 a. Create an object of the OrganizerViewModel inside the constructor of OrganizerView and bind its datacontext like following:


OrganizerViewModel organizerViewModel = new OrganizerViewModel();
      this.DataContext = organizerViewModel;

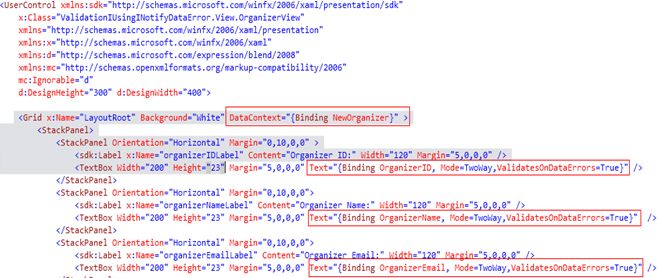

b. Than finally use the binding process in the OrganizerView.xaml


In very first red block I am binding NewOrganizer(object of Organizer Class) to whole grid. And than in subsequent red block I am binding the property of NewOrganizer to textbox. Here in binding inside textbox I have kept the mode to be two way and used ValidatesOnDataErrors as true .

 c. Change following line in App.xaml.cs

//this.RootVisual = new MainPage();
 this.RootVisual = new OrganizerView();

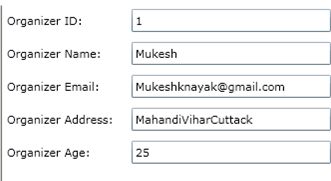

 Down below is the sequence of screen you will come across.

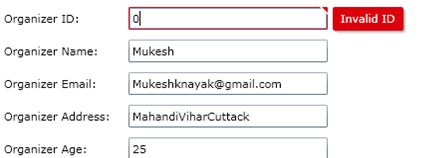

Change the Organizer ID to 0 and move to other field you will get following screen.


Here in the above screen ID should be Valid as mentioned in the property for Organizer class.

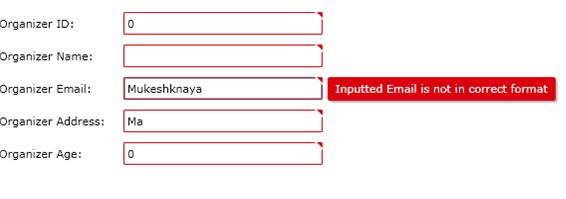

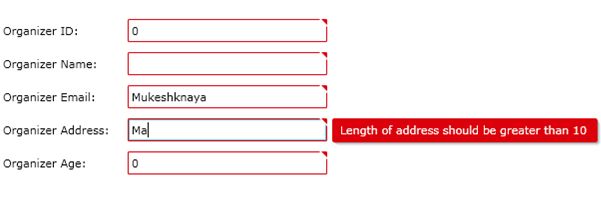

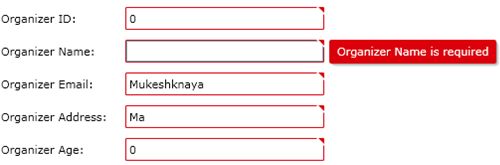

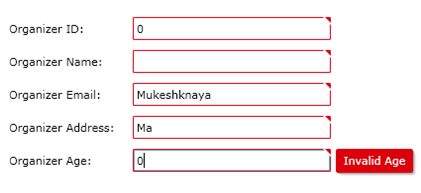

Similarly for others properties we will get respective validation.
