Box Shadow Property in HTML5

Introduction

In today's article you will learn about Box-Shadow. The Box-Shadow property allows designers to implement multiple drop shadows on a box element (<div>,<li> etc), specifying the color of a value, blur, offset and size.

Box-Shadow

Y- axis X -axis blur spread color inset

There are two types of shadows, they are:

  1. Outer shadow
  2. Inset shadow

The Box-Shadow property by default supports an outer shadow and blackground color.

Browser Support

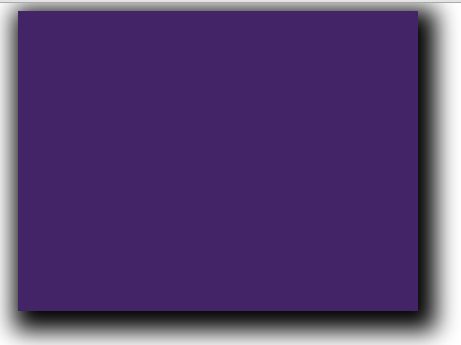

Here's a basic example of a div:

<!
DOCTYPE html>
<
head>

<title></title>
    <style>
        #main {

height: 800px;

width: 100%;
        }

#shadow {

margin: 0 auto;

height: 300px;

width: 400px;

background: #432567;

box-shadow: 7px 9px 37px 11px;
        }

</style>
</
head>
<
body>
    <div id="main">
        <div id="shadow"></div>
    </div>
</
body>
</html>

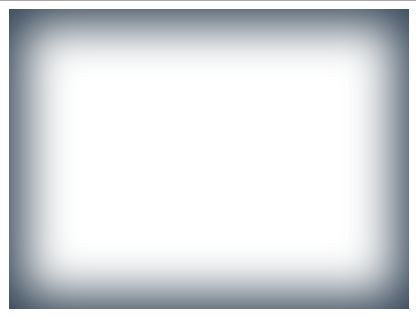

<style>
        #main {

height: 800px;

width: 100%;
        }

#shadow {

margin: 0 auto;

height: 300px;

width: 400px;

box-shadow: 1px 1px 77px 15px #345 inset;
        }

</style>

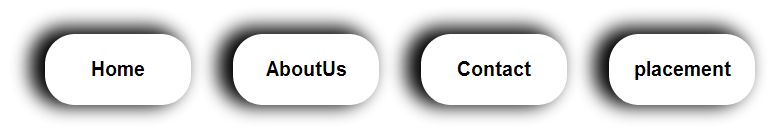

Here's a basic example of <ul> and <li>:

 <head>
    <style>
        #main {

height: 800px;

width: 100%;
        }

#shadow {

margin: 0 auto;

height: 300px;

width: 1024px;
        }

ul {list-style:none
        }

ul li {float:left;

width:100px;

text-align:center;

padding:23px;

font-weight:bold;

font-family:Arial;

font-size:20px;

margin:21px;

box-shadow:-11px -3px 29px 4px;

border-radius:30px;
            }

    </style>
</
head>
<
body>
    <div id="main">
        <div id="shadow">
            <ul>
                <li>Home </li>
                <li>AboutUs</li>
                <li> Contact</li>
                <li> placement</li>
            </ul>
        </div>
    </div>
</
body>
</html>

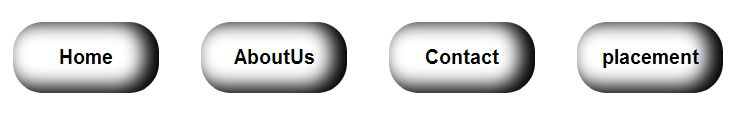

If you will change only:

box-shadow:-11px -3px 29px 4px inset;//You can give any color

This type:
image 5.jpg

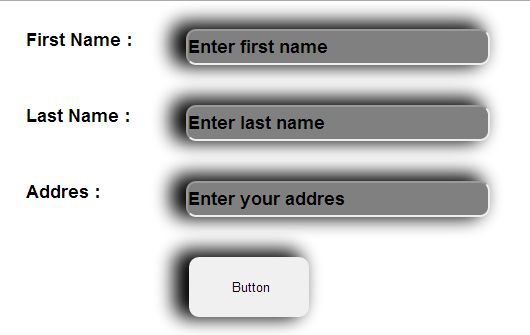

Here's a basic example of Input types showing a button and three text boxes:

<style>
        #main {

height: 800px;

width: 100%;
        }

#shadow {

margin: 0 auto;

height: 300px;

width: 1024px;
        }

label {width:120px;

float:left;

font-weight:bold;

font-family:Arial;
               font-size:18px;

margin:20px;
        }

input.button {

box-shadow:-11px -3px 29px 4px ;

height:60px; width:120px;

border:none;

border-radius:10px;

margin-left:170px;
        }

input.text {height:30px;

width:300px;

box-shadow:-11px -3px 29px 4px;

font-weight:bold;

font-family:Arial;

font-size:18px;

border-radius:10px;

margin:20px;

background:#808080;
                 }

</style>
</
head>
<
body>
    <div id="main">
        <div id="shadow">
   <label> First Name :</label><input type="text" class="text" value="Enter first name" /><br />
   <label> Last Name :</label><input type="text" class="text" value="Enter last name" /><br />
     <label> Addres :</label><input type="text" class="text" value="Enter your addres" /><br /><br />
             <input type="button" class="button" value=" Button" />


</div>
    </div>
</
body>
</html>

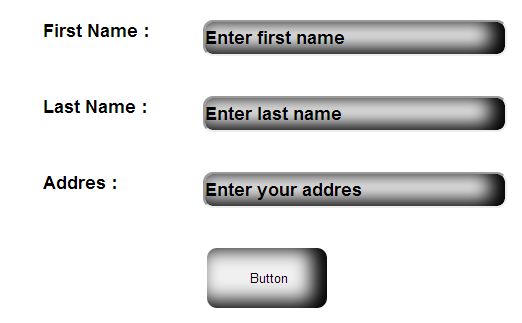

If you change the style in Box-shadow like:

 box-shadow:-11px -3px 29px 4px inset;

background:none;

Then you will find this type:
