Introduction

This article is about creation of an ASP.Net website having CRUD operations using Language Integrated Query (LINQ) to SQL classes.

This article explains LINQ, LINQ Architecture and LINQ Providers.

It also explains step-by-step implementation of LINQ to SQL class for CRUD operations.

What is LINQ?

Language Integrated Query (LINQ) is a common query programming model and syntax that can be used across all types of data i.e. databases, XML files and in-memory objects.

LINQ Architecture


LINQ Providers:

  • LINQ To Objects
  • LINQ To ADO.Net
  • LINQ To Dataset
  • LINQ To SQL
  • LINQ To Entities
  • LINQ To XML

Steps to implement LINQ to SQL:

Step 1: Create Database "StudentDb"

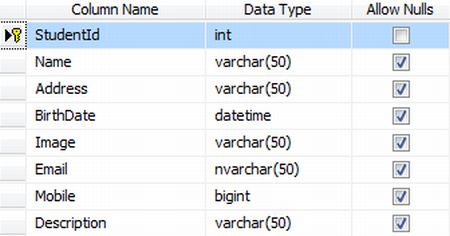

Step 2: Create Table "Student"

In the student table set "StudentId" as the primary key and set the identity increment to 1 and also set the identity seed to 1; see:


Step 3

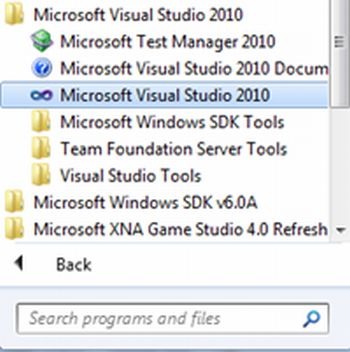

Start >> All Programs >> Microsoft Visual Studio 2010 >> Microsoft Visual Studio 2010

start- Microsoft-Visual-studio-2010.jpg

Step 4

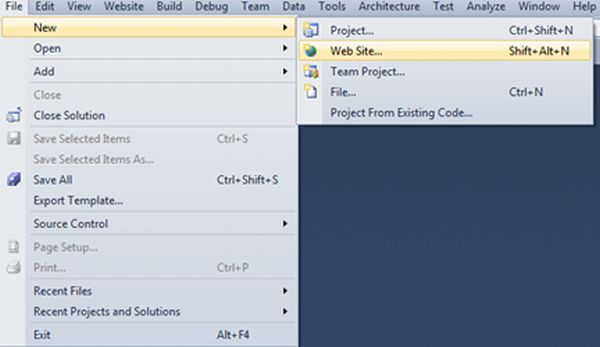

File >> New >> Website


Step 5

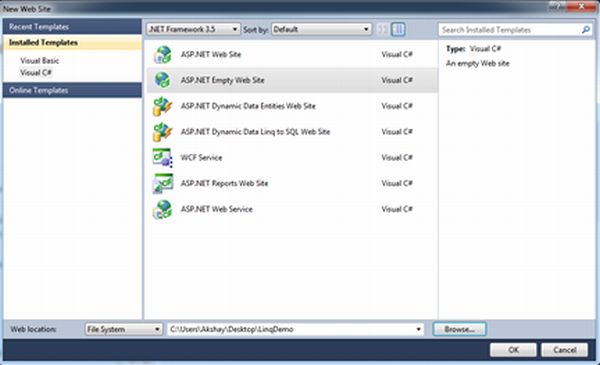

Select .Net framework 3.5 from the dropdown list and select "ASP.NET Empty Web Site" from the templates.

Select the location and give a proper name to your website.


Step 6

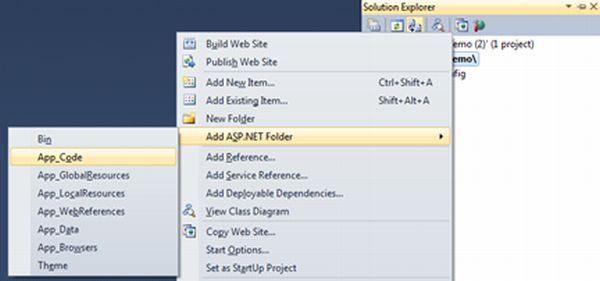

Right-click on the project. Inside the "Add ASP.NET Folder" select App_Code.

This will add an App_Code folder in your root directory.


Step 7

Right-click on the "App_Code" folder and select "Add New Item..."

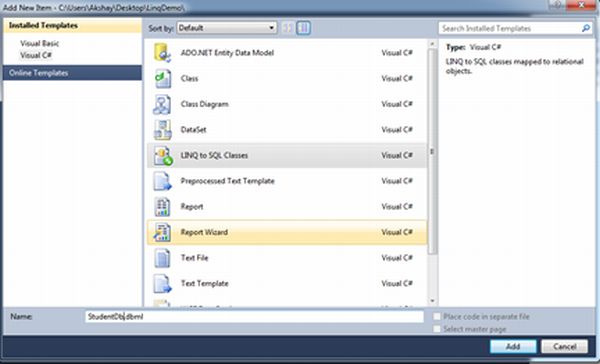

Select "LINQ to SQL Classes" and give the name "StudentDb.dbml".

Click on the "Add" button; see:

Select -LINQ -to-Sql-Classes.jpg

This will add a "StudentDb.dbml" file under the "App_Code" folder and opens the "Object Relational Designer". The Object Relational Designer allows us to visualize data classes in our code.

Step 8

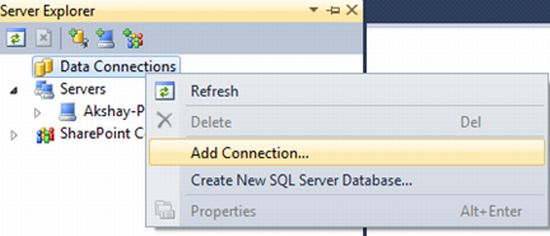

In the Server Explorer, right-click on "Data Connections" and select "Add Connection...".


Step 9

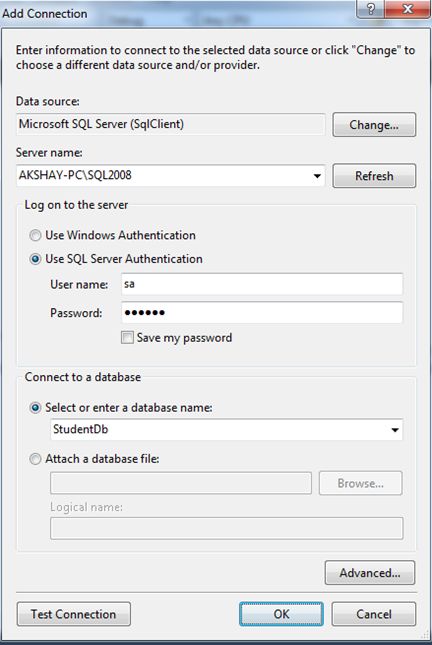

Select the Server name and enter the username and password for SQL Server authentication.

Select "StudentDb" for the database name.

Press the "OK" button; see:


Step 10

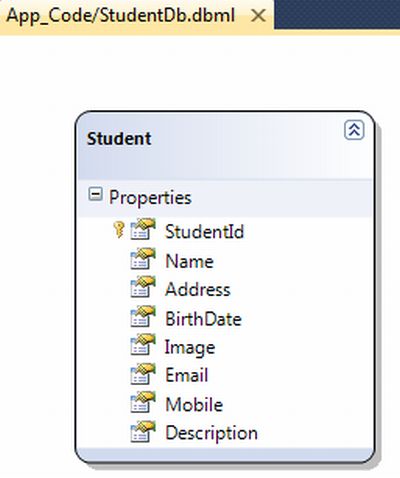

Now we can explore our database "StudentDb". From the Tables select the "Student" table and drag & drop it to "Object Relational Designer", as in:


This will add a connection string to your web.config file.


Step 11

Right-click on the project file and select "Add New Item...".

Select "Web Form" from the templates.

Give the name as "Default.aspx".

Press the "Add" button.

This will add a Default.aspx page to your website's root directory.

Step 12

Now add the following code in your Default.aspx page under the "form" control:

<table width="80%" cellspacing="1" cellpadding="5" style="background: #ccc">

    <tr style="background: #fff">

        <td colspan="2">

            <strong>Student Management</strong>

        </td>

    </tr>

    <tr style="background: #fff">

        <td colspan="2">

            <asp:Label ID="statusLabel" runat="server" Text="" ForeColor="Red">

            </asp:Label>

        </td>

    </tr>

    <tr style="background: #fff">

        <td colspan="2">

            <asp:GridView ID="grid"

                          runat="server"

                          DataKeyNames="StudentId"

                          OnSelectedIndexChanging="grid_SelectedIndexChanging"

                          OnRowDeleting="grid_RowDeleting"

                          AutoGenerateColumns="false"

                          Width="100%">

            <Columns>

                <asp:TemplateField>

                    <HeaderTemplate>

                        <table width="100%" cellpadding="5" cellspacing="1">

                            <tr>

                                <td align="center" style="width: 5%;">

                                    nbsp;

                                </td>

                                <td align="center" style="width: 5%;">

                                    &nbsp;

                                </td>

                                <td align="left" style="width: 15%">

                                    Name

                                </td>

                                <td align="left" style="width: 15%">

                                    Address

                                </td>

                                <td align="left" style="width: 15%">

                                    Birthdate

                                </td>

                                <td align="left" style="width: 10%">


                                </td>

                                <td align="left" style="width: 20%">

                                    Email

                                </td>

                                <td align="left" style="width: 15%">

                                    Mobile

                                </td>

                            </tr>

                        </table>

                    </HeaderTemplate>

                    <ItemTemplate>

                        <table width="100%" cellpadding="0" cellspacing="1">

                            <tr>

                                <td align="center" style="width: 5%;">

                                    <asp:ImageButton ID="ImageButton1"

                                                    runat="server"                                                                                CommandName="Select"

                                                     EnableTheming="false"

                                                     ImageUrl="~/Images/edit.png"

                                                     CausesValidation="false" />

                                </td>

                                <td align="center" style="width: 5%;">

                                    <asp:ImageButton ID="LinkButton2"

                                                     runat="server"

                                                      ImageUrl="~/Images/delete.png"

                                                     CommandName="Delete"

                                                       EnableTheming="false"

                                                     CausesValidation="false" />

                                </td>

                                <td align="left" style="width: 15%">

                                    <asp:Label ID="lblName" runat="server"

                                              Text='<%# Eval("Name")%>'></asp:Label>

                                </td>

                                <td align="left" style="width: 15%">

                                    <asp:Label ID="lblAddress" runat="server"

                                              Text='<%# Eval("Address")%>'></asp:Label>

                                </td>

                                <td align="center" style="width: 15%">

                                    <asp:Label ID="lblBirthdate" runat="server"

                                             Text='<%# Eval("Birthdate")%>'></asp:Label>

                                </td>

                                <td align="center" style="width: 10%">

                                    <asp:Image ID="imgPhoto" runat="server" Width="30"                                           Height="30"

                                        ImageUrl='<%# "~/Images/" + Eval("Image")%>' />

                                </td>

                                <td align="left" style="width: 20%">

                                    <asp:Label ID="lblEmail" runat="server"

                                              Text='<%# Eval("Email")%>'></asp:Label>

                                </td>

                                <td align="left" style="width: 15%">

                                    <asp:Label ID="lblMobile" runat="server"

                                              Text='<%# Eval("Mobile")%>'></asp:Label>

                                </td>

                            </tr>

                        </table>

                    </ItemTemplate>

                </asp:TemplateField>

            </Columns>

        </asp:GridView>

    </td>

</tr>

<tr style="background: #fff">

    <td>

        Name<asp:HiddenField ID="hdnId" runat="server" />

    </td>

    <td>

        <asp:TextBox ID="txtName" runat="server"></asp:TextBox>

    </td>

</tr>

<tr style="background: #fff">

    <td>

        Address

    </td>

    <td>

        <asp:TextBox ID="txtAddress" runat="server" TextMode="MultiLine"></asp:TextBox>

    </td>

</tr>

<tr style="background: #fff">

    <td>

        Birthdate

    </td>

    <td>

        <asp:TextBox ID="txtBirthdate" runat="server"></asp:TextBox>

        <asp:Calendar ID="calBirthdate" runat="server"

                      OnSelectionChanged="calBirthdate_SelectionChanged">

        </asp:Calendar>

    </td>

</tr>

<tr style="background: #fff">

    <td>


    </td>

    <td>

        <asp:Image ID="imgThumb" runat="server" Width="100" Height="100" />

        <asp:FileUpload ID="fupImage" runat="server" />

    </td>

</tr>

<tr style="background: #fff">

    <td>

        Email

    </td>

    <td>

        <asp:TextBox ID="txtEmail" runat="server"></asp:TextBox>

    </td>

</tr>

<tr style="background: #fff">

    <td>

        Mobile

    </td>

    <td>

        <asp:TextBox ID="txtMobile" runat="server"></asp:TextBox>

    </td>

</tr>

<tr style="background: #fff">

    <td>

        Description

    </td>

    <td>

        <asp:TextBox ID="txtDescription" runat="server" TextMode="MultiLine">

        </asp:TextBox>

    </td>

</tr>

<tr style="background: #fff">

    <td>

        &nbsp;

    </td>

    <td>

        <asp:Button ID="btnAdd" ValidationGroup="add" OnClick="btnAdd_Click"                               runat="server" Text="Submit">

        </asp:Button>

        <asp:Button ID="btnReset" OnClick="btnReset_Click" runat="server"                                        CausesValidation="false" Text="Reset">

        </asp:Button>

        <asp:Button ID="btnUpdate" ValidationGroup="add" OnClick="btnUpdate_Click"                            runat="server" Text="Update">

        </asp:Button>

        <asp:Button ID="btnCancel" CausesValidation="false" OnClick="btnCancel_Click"                      runat="server" Text="Cancel">

        </asp:Button>

    </td>

</tr>

</table>

Step 13

Now add the following code to your Default.aspx.cs file:


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Data.SqlClient;

using System.Configuration;

using System.IO;



public partial class _Default : System.Web.UI.Page

{

    StudentDbDataContext SDC = new StudentDbDataContext();

    protected void Page_Load(object sender, EventArgs e)

    {

        if (!IsPostBack)

        {

            btnUpdate.Visible = false;

            btnCancel.Visible = false;



            SqlConnection con = new SqlConnection(ConfigurationManager.ConnectionStrings["StudentDbConnectionString"].ConnectionString.ToString());



            BindGrid();

        }

    }



    private void BindGrid()

    {

        var students = from student in SDC.Students

                   select new

                   {

                       student.StudentId,

                       student.Name,

                       student.Address,

                       student.BirthDate,

                       student.Image,

                       student.Email,

                       student.Mobile,

                       student.Description

                   };



        grid.DataSource = students;

        grid.DataBind();

    }



    protected void grid_SelectedIndexChanging(object sender, GridViewSelectEventArgs e)

    {

        btnAdd.Visible = false;

        btnReset.Visible = false;

        btnUpdate.Visible = true;

        btnCancel.Visible = true;



        string id = grid.DataKeys[e.NewSelectedIndex].Value.ToString();

        hdnId.Value = id;



        SDC = new StudentDbDataContext();

        var singleStudent = SDC.Students.Single(student => student.StudentId ==Convert.ToInt32(id));



        txtName.Text = singleStudent.Name;

        txtAddress.Text = singleStudent.Address;

        txtBirthdate.Text = singleStudent.BirthDate.ToString();

        imgThumb.ImageUrl = "~//images//" + singleStudent.Image;

        imgThumb.Visible = true;

        txtEmail.Text = singleStudent.Email;

        txtMobile.Text = singleStudent.Mobile.ToString();

        txtDescription.Text = singleStudent.Description;



    }



    protected void btnAdd_Click(object sender, EventArgs e)

    {

        try

        {

            SDC = new StudentDbDataContext();

            Student student = new Student();



            student.Name = txtName.Text;

            student.Address = txtAddress.Text;

            student.BirthDate = Convert.ToDateTime(txtBirthdate.Text);

            if(fupImage.HasFile)

            {

                student.Image = fupImage.FileName;

                string path = Server.MapPath(".") + "\\images\\";

                fupImage.SaveAs(path + fupImage.FileName);

            }

            student.Email = txtEmail.Text;

            student.Mobile = Convert.ToInt64(txtMobile.Text);

            student.Description = txtDescription.Text;



            SDC.Students.InsertOnSubmit(student);

            SDC.SubmitChanges();



            ClearControls();

            statusLabel.Text = "Record Inserted Successfully.";

        }

        catch (Exception Err)

        {

            statusLabel.Text = Err.Message;

        }



        BindGrid();

    }



    protected void btnReset_Click(object sender, EventArgs e)

    {

        ClearControls();

    }



    protected void btnCancel_Click(object sender, EventArgs e)

    {

        ClearControls();



        btnAdd.Visible = true;

        btnReset.Visible = true;

        btnUpdate.Visible = false;

        btnCancel.Visible = false;

    }



    protected void btnUpdate_Click(object sender, EventArgs e)

    {

        try

        {

            SDC = new StudentDbDataContext();

            var singleStudent = SDC.Students.Single(student => student.StudentId == Convert.ToInt32(hdnId.Value));

            string ImageName = singleStudent.Image;

            string path = Server.MapPath(".") + "\\images\\";



            singleStudent.Name = txtName.Text;

            singleStudent.Address = txtAddress.Text;

            singleStudent.BirthDate = Convert.ToDateTime(txtBirthdate.Text);



            if (fupImage.HasFile)

            {

                if (File.Exists(path + ImageName))

                    File.Delete(path + ImageName);



                ImageName = fupImage.FileName;



                fupImage.SaveAs(path + ImageName);



                singleStudent.Image = ImageName;

            }



            singleStudent.Email = txtEmail.Text;

            singleStudent.Mobile = Convert.ToInt64(txtMobile.Text);

            singleStudent.Description = txtDescription.Text;

            SDC.SubmitChanges();



            ClearControls();

            statusLabel.Text = "Record Inserted Successfully.";



            btnAdd.Visible = true;

            btnReset.Visible = true;

            btnUpdate.Visible = false;

            btnCancel.Visible = false;

        }

        catch (Exception Err)

        {

            statusLabel.Text = Err.Message;

        }



        BindGrid();

    }



    protected void grid_RowDeleting(object sender, GridViewDeleteEventArgs e)

    {

        string id = grid.DataKeys[e.RowIndex].Value.ToString();



        StudentDbDataContext SDC = new StudentDbDataContext();

        var singleStudent = SDC.Students.Single(student => student.StudentId == Convert.ToInt64(id));



        string path = Server.MapPath(".") + "\\images\\";

        if (File.Exists(path + singleStudent.Image))

        {

            File.Delete(path + singleStudent.Image);

        }



        SDC.Students.DeleteOnSubmit(singleStudent);

        SDC.SubmitChanges();



        BindGrid();

    }



    private void ClearControls()

    {

        txtName.Text = string.Empty;

        txtAddress.Text = string.Empty;

        txtEmail.Text = string.Empty;

        txtMobile.Text = string.Empty;

        txtDescription.Text = string.Empty;

        txtBirthdate.Text = string.Empty;

        imgThumb.Visible = false;

    }



    protected void calBirthdate_SelectionChanged(object sender, EventArgs e)

    {

        txtBirthdate.Text = calBirthdate.SelectedDate.ToShortDateString();

    }

}


Step 14

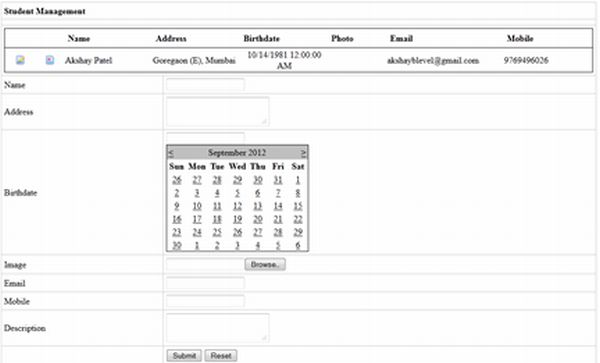

Now run your website.


Conclusion

Here we do insert, update, delete and select operations on a SQL Server database table with the help of the LINQ to SQL class. In this sample code we are not using a stored procedure. We use a data context to do the db related operations.
