Using Ng-grid in AngularUI Pages

It is a common requirement for any project to display data in a tabular format. The easiest way to do this is by using HTML tables, but soon this gets complex, you need a way to support sorting (single & multi columns), resizable columns, inline editing, filtering, pagination (client-side and server-side) and so on. There is a way to bind data to a HTML Table in AngularJs, but when it comes to sorting, paging, editing and dragging the columns, the grid choice is useful. ng-grid is Angular's native implementation of the Grid. There are many plugins from third-parties that can be integrated into AngularUI Pages, but ng-grid exists inside the AngularJs framework and is very rich in functionality and compatibility.

Let us create a sample ng-grid and understand how ng-grid works.

Example-1

  1. <!DOCTYPE html>
  2. <html ng-app="myApp">
  3. <head>
  4.     <title>NG Grid Demo</title>
  5.     <>
  6.         .gridStyle
  7.         {
  8.             border: 5px solid #d4d4d4;
  9.             width: 400px;
  10.             height: 200px;
  11.         }
  12.     </style>
  13.     <link rel="stylesheet" type="text/css" href="http://angular-ui.github.com/ng-grid/css/ng-grid.css" />
  14.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.8.0/jquery.min.js"></script>
  15.     <script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.0.2/angular.min.js"></script>
  16.     <script type="text/javascript" src="http://angular-ui.github.com/ng-grid/lib/ng-grid.debug.js"></script>
  17.     <script type="text/javascript">
  18.         var app = angular.module('myApp', ['ngGrid']);
  19.         app.controller('MyCtrl', function ($scope) {
  20.             $scope.Data = [{ Name: "Sachin", Skill: "ASP.NET" ,location:"Delhi"},
  21.                              { Name: "Ramesh", Skill: "C#.NET, VB", location: "Chenai" },
  22.                             { Name: "Pradeep", Skill: "ASP.NET MVC", location: "Bangalore" },
  23.                              { Name: "Manas", Skill: "SQL Server", location: "Chenai" },
  24.                            { Name: "Sachin", Skill: "ASP.NET", location: "Bangalore" }, ];
  25.             $scope.gridOptions = { data: 'Data' };
  26.         });
  27.     </script>
  28. </head>
  29. <body ng-controller="MyCtrl">
  30.     <div>
  31.         <labl><b> Sample Demo to NG Grid</b></labl>
  32.     </div>
  33.     <div class="gridStyle" ng-grid="gridOptions"></div>
  34. </body>
  35. </html>

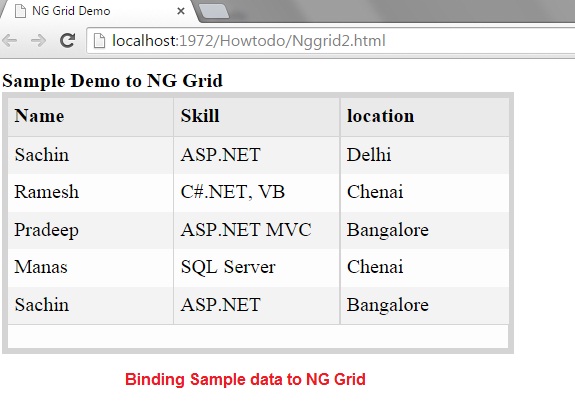

Output



There are four steps to show a sample grid, if we observe the preceding code.

Passed "ngGrid" as dependency to the module

  1. var app = angular.module('myApp', ['ngGrid']);

Assign some data to scope

  1. [{Name: "Sachin", Skill: "ASP.NET" ,location:"Delhi"},];

Set the data of the scope to gridOptions as

  1. $scope.gridOptions = {data: ‘Data’};

It is like assigning a datasource to nggrid, similar to Gridview1.datasource=dataset in ASP.NET.

Bind the data to the page

  1. <div class="gridStyle" ng-grid="gridOptions"></div>

It is like binding data to a GridView, similar to Gridview1.dataBind() in ASP.NET.

Don't forget to add the scripts and styles needed for ng-grid in the head section of the code.

Let us create a DB and Bind data to ng-grid by web API calls.

Example-2

Step 1

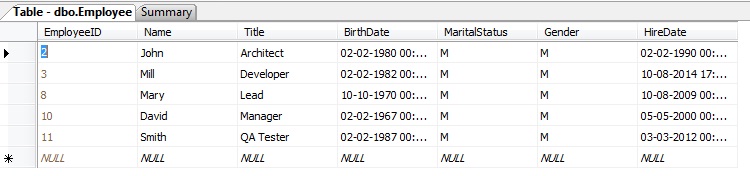

Let us create an Employee Table.


Step 2

We will create a web API that will return the employee data.

  1. public class EmployeeAPIController : ApiController
  2.     {
  3.         private EmployeeEntities db = new EmployeeEntities();
  4.
  5.         public IEnumerable<Employee> GetEmployees()
  6.         {
  7.             return db.Employees.AsEnumerable();
  8.         }
  9.     }

Step 3

Add module service controller and html code.

Module

  1. var app;
  2. (function () {
  3.     app = angular.module("EmployeeModule", ['ngGrid']);
  4. })();

Service

  1. app.service('EmployeeService', function ($http) {
  2.
  3.     this.getAllEmployee = function () {
  4.         return $http.get("/api/EmployeeAPI");
  5.     }
  6. });

Controller

  1. app.controller('EmployeeController', function ($scope, EmployeeService) {
  2.
  3.     GetAllRecords();
  4.     function GetAllRecords() {
  5.         var promiseGet = EmployeeService.getAllEmployee();
  6.         promiseGet.then(function (pl) { $scope.Employees = pl.data, $scope.Data=pl.data },
  7.               function (errorPl) {
  8.                   $log.error('Some Error in Getting Records.', errorPl);
  9.               });
  10.     }
  11.     $scope.gridOptions = { data: 'Data' };
  12. });

Index.html

  1. <html data-ng-app="EmployeeModule">
  2. <head>
  3.     <style type="text/css">
  4.         .gridStyle
  5.         {
  6.             border: 5px solid #d4d4d4;
  7.             width: 1000px;
  8.             height: 200px;
  9.         }
  10.     </style>
  11. </head>
  12. <body data-ng-controller="EmployeeController">
  13.
  14.     <div class="gridStyle" ng-grid="gridOptions"></div>
  15. </body>
  16. </html>
  17. <script src="~/Scripts/angular.js"></script>
  18. <script src="~/Scripts/EmployeeScripts/Module.js"></script>
  19. <script src="~/Scripts/EmployeeScripts/Service.js"></script>
  20. <script src="~/Scripts/EmployeeScripts/Controller.js"></script>
  21. <link rel="stylesheet" type="text/css" href="http://angular-ui.github.com/ng-grid/css/ng-grid.css" />
  22. <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.8.0/jquery.min.js"></script>
  23. <script type="text/javascript" src="http://angular-ui.github.com/ng-grid/lib/ng-grid.debug.js"></script>

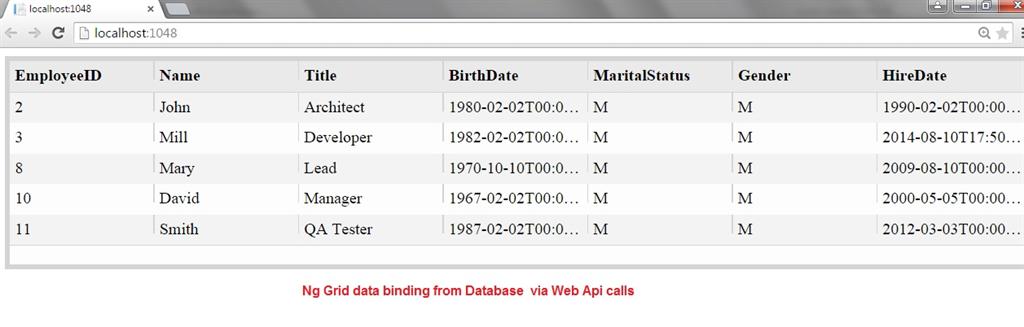

Output


Now, we have seen data from the database and binding to an ng-grid. Let us see now what the features are in ng-grid to make it more useful. We will do a sample ng-grid binding, editing, paging, sorting and grouping the records.

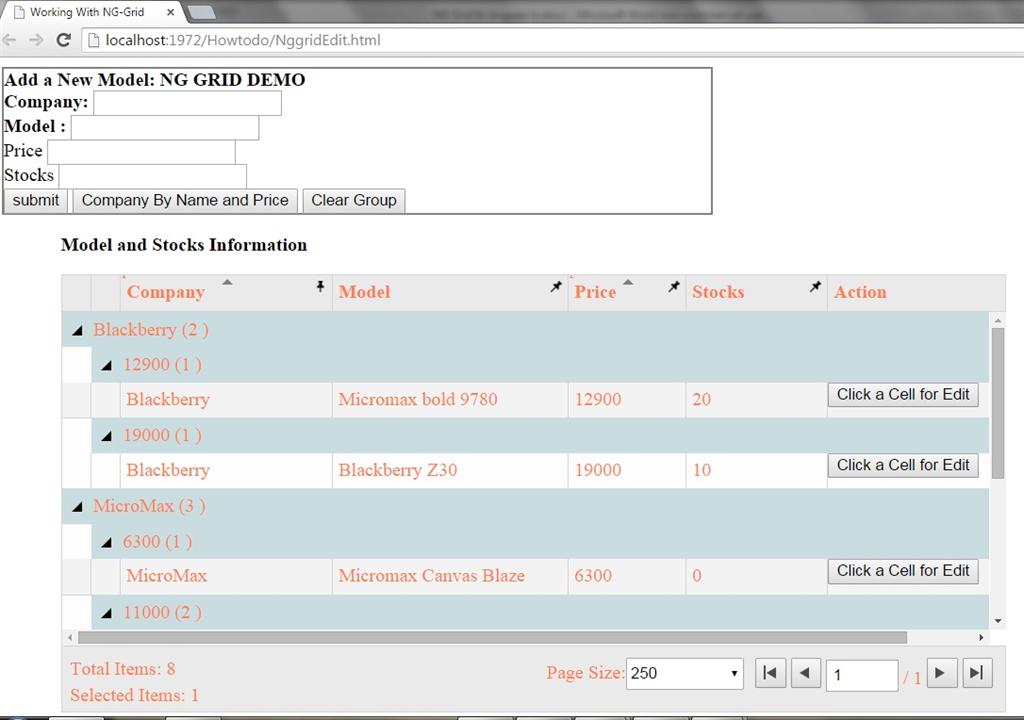

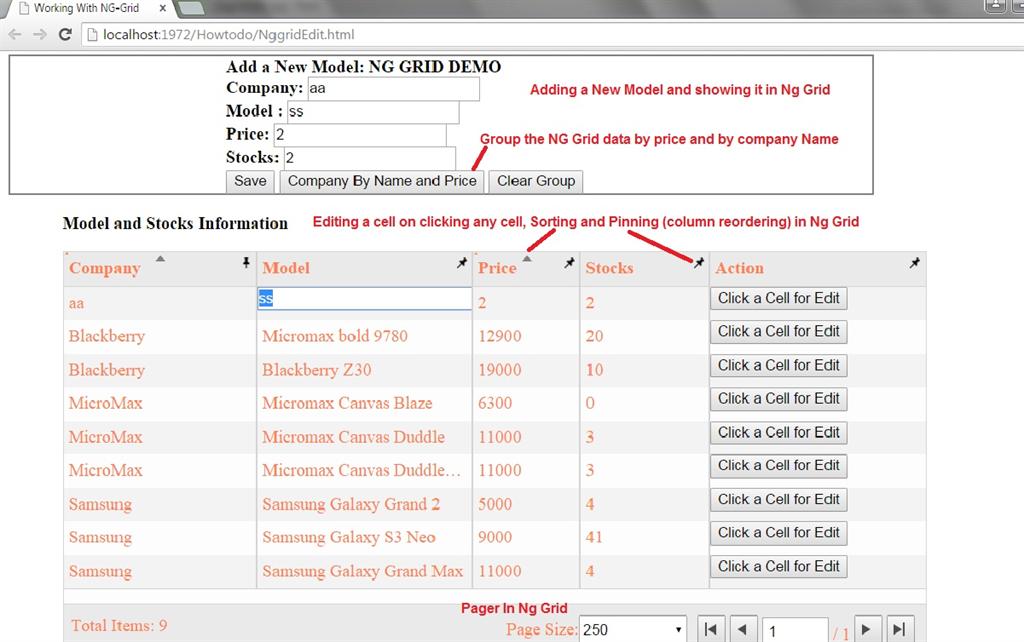

Example-3

  1. <!DOCTYPE html>
  2. <html ng-app="myApp">
  3.
  4. <head>
  5.     <meta charset="utf-8" />
  6.     <title>Working With NG-Grid </title>
  7.
  8.     <style type="text/css">
  9.         .gridStyle
  10.         {
  11.             border: 1px solid rgb(212, 212, 212);
  12.             width: 800px;
  13.             height: 370px;
  14.             margin-left: 50px;
  15.             color: coral;
  16.         }
  17.         .red {
  18.     background-color: green;
  19.     color: red;
  20. }
  21.     </style>
  22.     <script src="http://ajax.googleapis.com/ajax/libs/angularjs/1.3.8/angular.min.js"></script>
  23.     <link rel="stylesheet" type="text/css" href="http://angular-ui.github.com/ng-grid/css/ng-grid.css" />
  24.     <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.8.0/jquery.min.js"></script>
  25.     <script  src="https://ajax.googleapis.com/ajax/libs/angularjs/1.0.2/angular.min.js"></script>
  26.     <script type="text/javascript" src="http://angular-ui.github.com/ng-grid/lib/ng-grid.debug.js"></script>
  27.     <script>
  28.         var app = angular.module('myApp', ['ngGrid']);
  29.         app.controller(
  30.                         'MyCtrl',
  31.                         function ($scope) {
  32.                             var Company;
  33.                             var Model;
  34.                             var Price;
  35.                             var Stocks;
  36.                             var x;
  37.                             $scope.submit = function () {
  38.                                 Company = $scope.Company;
  39.                                 Model = $scope.Model;
  40.                                 Price = $scope.Price;
  41.                                 Stocks = $scope.Stocks;
  42.                                 $scope.myData.push({
  43.                                     Company: Company,
  44.                                     Model: Model,
  45.                                     Price: Price,
  46.                                     Stocks: Stocks
  47.                                 });
  48.                             };
  49.
  50.                             $scope.myData = [{ "Company": "Samsung", "Model": "Samsung Galaxy Grand 2", "Price": 5000, "Stocks": 4 },
  51.                                              { "Company": "Samsung", "Model": "Samsung Galaxy S3 Neo", "Price": 9000, "Stocks": 41 },
  52.                                            { "Company": "Samsung", "Model": "Samsung Galaxy Grand Max", "Price": 11000, "Stocks": 4 },
  53.                                             { "Company": "MicroMax", "Model": "Micromax Canvas Blaze", "Price": 6300, "Stocks": 0 },
  54.                                            { "Company": "MicroMax", "Model": "Micromax Canvas Duddle", "Price": 11000, "Stocks": 3 },
  55.                                              { "Company": "MicroMax", "Model": "Micromax Canvas Duddle- SPL", "Price": 11000, "Stocks": 3 },
  56.                                              { "Company": "Blackberry", "Model": "Blackberry Z30", "Price": 19000, "Stocks": 10 },
  57.                                            { "Company": "Blackberry", "Model": "Micromax bold  9780", "Price": 12900, "Stocks": 20 },
  58.
  59.                             ],
  60.
  61.
  62.                             $scope.gridOptions = {
  63.
  64.                                 data: 'myData',
  65.                                 pagingOptions: $scope.pagingOptions,
  66.                                 enablePinning: true,
  67.                                 enablePaging: true,
  68.                                 showFooter: true,
  69.                                 enableColumnResize: true,
  70.                                 enableCellSelection: true,
  71.                                 columnDefs: [
  72.                                         {
  73.                                             field: "Company",
  74.                                             width: 180,
  75.                                             pinned: true,
  76.                                             enableCellEdit: true
  77.                                         },
  78.                                         {
  79.                                             field: "Model",
  80.                                             width: 200,
  81.                                             enableCellEdit: true
  82.                                         },
  83.                                         {
  84.                                             field: "Price",
  85.                                             width: 100,
  86.                                             enableCellEdit: true
  87.                                         },
  88.                                         {
  89.                                             field: "Stocks",
  90.                                             width: 120,
  91.                                             enableCellEdit: true,
  92.                                             cellTemplate: basicCellTemplate
  93.                                         },
  94.                                         {
  95.                                             field: "Action",
  96.                                             width: 200,
  97.                                             enableCellEdit: false,
  98.                                             cellTemplate: '<button id="editBtn" type="button" class="btn btn-xs btn-info"  ng-click="updateCell()" >Click a Cell for Edit </button>'
  99.                                         }]
  100.
  101.                             };
  102.
  103.                             $scope.selectedCell;
  104.                             $scope.selectedRow;
  105.                             $scope.selectedColumn;
  106.
  107.                             $scope.editCell = function (row, cell, column) {
  108.                                 $scope.selectedCell = cell;
  109.                                 $scope.selectedRow = row;
  110.                                 $scope.selectedColumn = column;
  111.                             };
  112.
  113.                             $scope.updateCell = function () {
  114.
  115.                                 //   alert("checking");
  116.                                 $scope.selectedRow[$scope.selectedColumn] = $scope.selectedCell;
  117.                             };
  118.
  119.                             var basicCellTemplate = '<div class="ngCellText" ng-class="col.colIndex()" ng-click="editCell(row.entity, row.getProperty(col.field), col.field)"><span class="ui-disableSelection hover">{{row.getProperty(col.field)}}</span></div>';
  120.
  121.                             $scope.filterOptions = {
  122.                                 filterText: "",
  123.                                 useExternalFilter: true
  124.                             };
  125.
  126.                             $scope.gridOptions.sortInfo = {
  127.                                 fields: ['Company', 'Price'],
  128.                                 directions: ['asc'],
  129.                                 columns: [0, 1]
  130.                             };
  131.
  132.                             $scope.totalServerItems = 0;
  133.
  134.                             $scope.pagingOptions = {
  135.                                 pageSizes: [5, 10, 20],
  136.                                 pageSize: 5,
  137.                                 currentPage: 1
  138.                             };
  139.
  140.                             $scope.changeGroupBy = function (group1, group2) {
  141.                                 $scope.gridOptions.$gridScope.configGroups = [];
  142.                                 $scope.gridOptions.$gridScope.configGroups.push(group1);
  143.                                 $scope.gridOptions.$gridScope.configGroups.push(group2);
  144.                                 $scope.gridOptions.groupBy();
  145.                             }
  146.                             $scope.clearGroupBy = function () {
  147.                                 $scope.gridOptions.$gridScope.configGroups = [];
  148.                                 $scope.gridOptions.groupBy();
  149.                             }
  150.
  151.                         });
  152.     </script>
  153. </head>
  154. <body ng-controller="MyCtrl">
  155.     <div class="panel panel-danger">
  156.         <div class="panel-heading"></div>
  157.         <div class="panel-body">
  158.             <form class="input" ng-submit="submit()" role="form">
  159.                 <div style="border: 2px solid gray;width:600px;" >
  160.                     <labl> <b> Add a New Model:  NG GRID DEMO </b></labl>
  161.                     <div class="form-group">
  162.                         <label"><b>Company:</b></label>
  163.                 <input id="inputs" class="form-control" type="text" ng-model="Company">
  164.                     </div>
  165.                     <div class="form-group">
  166.                         <label><b>Model :</b></label>
  167.                         <input id="Number1" class="form-control" type="text" ng-model="Model">
  168.                     </div>
  169.                     <div class="form-group">
  170.                         <label>Price</label>
  171.                         <input id="Date1" class="form-control" type="number" ng-model="Price">
  172.                     </div>
  173.                     <div class="form-group">
  174.                         <label>Stocks</label>
  175.                         <input id="Number2" class="form-control" type="number" ng-model="Stocks">
  176.                     </div>
  177.
  178.                     <div class="form-group">
  179.                         <input
  180.                             type="submit" value="submit" id="but" class="btn btn-success">
  181.                         <button type="button" ng-click="changeGroupBy('Company','Price')">Company By Name and Price</button>
  182.                         <button type="button" ng-click="clearGroupBy()">Clear Group</button>
  183.                     </div>
  184.                 </div>
  185.             </form>
  186.         </div>
  187.     </div>
  188.     <div class="panel panel-danger">
  189.         <div class="panel-heading"><b><p style="padding-left:50px;">Model and Stocks Information</p></b></div>
  190.         <div style="width: 500px;">
  191.             <div class="gridStyle" ng-grid="gridOptions"></div>
  192.         </div>
  193.     </div>
  194. </body>
  195.
  196. </html>

Output



When doing a grouping, the screen arranges the grouping by Name and Price.


Code Explanation

Added data to scope

  1. $scope.myData = [{ "Company": "Samsung", "Model": "Samsung Galaxy Grand 2", "Price": 5000, "Stocks": 4 },
  2.                                          { "Company": "Samsung", "Model": "Samsung Galaxy S3 Neo", "Price": 9000, "Stocks": 41 },
  3.                                        { "Company": "Samsung", "Model": "Samsung Galaxy Grand Max", "Price": 11000, "Stocks": 4 },
  4.                                         { "Company": "MicroMax", "Model": "Micromax Canvas Blaze", "Price": 6300, "Stocks": 0 },
  5.                                        { "Company": "MicroMax", "Model": "Micromax Canvas Duddle", "Price": 11000, "Stocks": 3 },
  6.                                          { "Company": "MicroMax", "Model": "Micromax Canvas Duddle- SPL", "Price": 11000, "Stocks": 3 },
  7.                                          { "Company": "Blackberry", "Model": "Blackberry Z30", "Price": 19000, "Stocks": 10 },
  8.                                        { "Company": "Blackberry", "Model": "Micromax bold  9780", "Price": 12900, "Stocks": 20 },
  9.
  10.             ],

We can add a different property to ng-grid, such as paging, sorting, pinning of columns we need to display, enable scrolling and controlling a cell property value such as styling and events.

  1. $scope.gridOptions = {
  2.
  3.                 data: 'myData',
  4.                 pagingOptions: $scope.pagingOptions,
  5.                 enablePinning: true,
  6.                 enablePaging: true,
  7.                 showFooter: true,
  8.                 enableColumnResize: true,
  9.                 enableCellSelection: true,
  10.                 columnDefs: [
  11.                         {
  12.                             field: "Company",
  13.                             width: 180,
  14.                             pinned: true,
  15.                             enableCellEdit: true
  16.                         },
  17.                         {
  18.                             field: "Model",
  19.                             width: 200,
  20.                             enableCellEdit: true
  21.                         },
  22.                         {
  23.                             field: "Price",
  24.                             width: 100,
  25.                             enableCellEdit: true
  26.                         },
  27.                         {
  28.                             field: "Stocks",
  29.                             width: 120,
  30.                             enableCellEdit: true,
  31.                             cellTemplate: basicCellTemplate
  32.                         },
  33.                         {
  34.                             field: "Action",
  35.                             width: 200,
  36.                             enableCellEdit: false,
  37.                             cellTemplate: '<button id="editBtn" type="button" class="btn btn-xs btn-info"  ng-click="updateCell()" >Click a Cell for Edit </button>'
  38.                         }]
  39.
  40.             };

Added the cell edit code on scope

  1. var basicCellTemplate = '<div class="ngCellText" ng-class="col.colIndex()" ng-click="editCell(row.entity, row.getProperty(col.field), col.field)"><span class="ui-disableSelection hover">{{row.getProperty(col.field)}}</span></div>';

 Added the grouping code on scope and calling it on click of “CompanyByName and Price” button.

  1. $scope.changeGroupBy = function (group1, group2) {
  2.
  3. $scope.gridOptions.$gridScope.configGroups = [];
  4.
  5. $scope.gridOptions.$gridScope.configGroups.push(group1);
  6.
  7. $scope.gridOptions.$gridScope.configGroups.push(group2);
  8.
  9. $scope.gridOptions.groupBy();
  10.
  11. }

This is all about the basics of ng-grid. I hope you have understood what ng-grid is and how to use it. Thanks for reading.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
