Notification Area Icon in C# Windows Forms

Introduction

In Windows there is a Taskbar with a Notification area (historically known as the system tray or status area) with icons. Typically in the bottom-right a notification icon notifies the user of certain information.

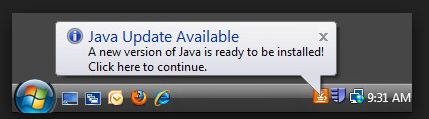

Example: we generally have some software installed in our machine and we periodically get the following notifications.

notifications

NotifyIcon

We can create a notification icon using C# Windows Forms as per requirements.

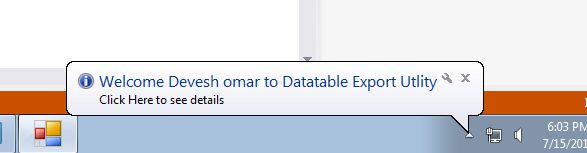

The following is a snapshot of an notification icon that pops up when the user starts the application.

popups

Procedure

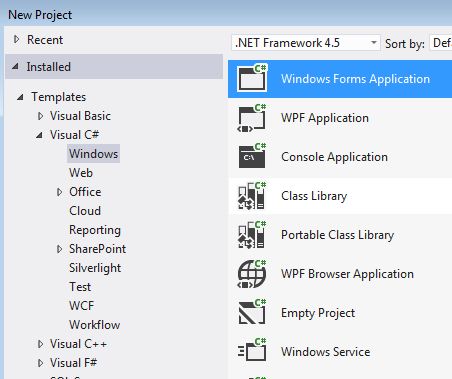

  1. Add a Windows application

    Add window application

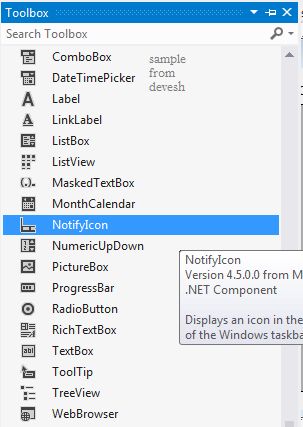

  2. Add a NotifyIcon as in the screen below.

    Add NotifyIcon as per screen

  3. the following control will be added (notiyicon) to the application:

    control

  4. Add the following code to the form:

    1. protected void Displaynotify()
    2. {
    3.     try
    4.     {
    5.         notifyIcon1.Icon = new       System.Drawing.Icon(Path.GetFullPath(@"image\graph.ico"));
    6.         notifyIcon1.Text = "Export Datatable Utlity";
    7.         notifyIcon1.Visible = true;
    8.         notifyIcon1.BalloonTipTitle = "Welcome Devesh omar to Datatable Export Utlity";
    9.         notifyIcon1.BalloonTipText = "Click Here to see details";
    10.         notifyIcon1.ShowBalloonTip(100);
    11.     }
    12.     catch (Exception ex)
    13.    {
    14.    }


  5. Call the preceding method at form_load as in the following:

    1. private void Form1_Load(object sender, EventArgs e)
    2. {
    3.      Displaynotify();

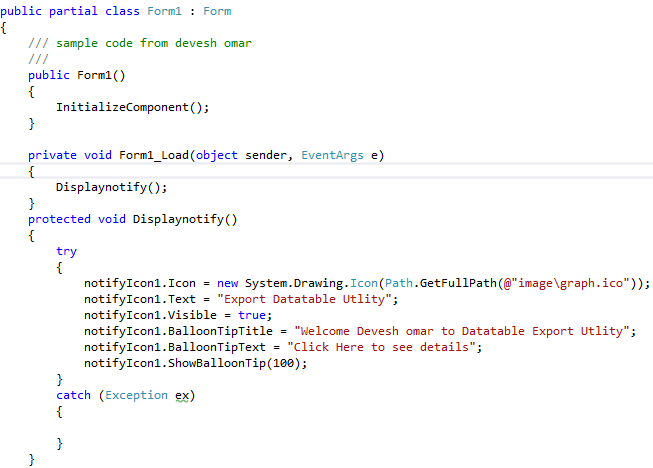

  6. Complete Code:


  7. Running the application:

    Running application

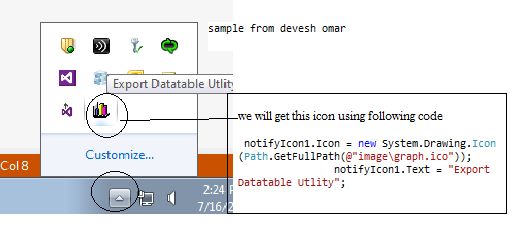

  8. Go to the bottom-right status bar as in the following:

    status bar

  9. Handling events:

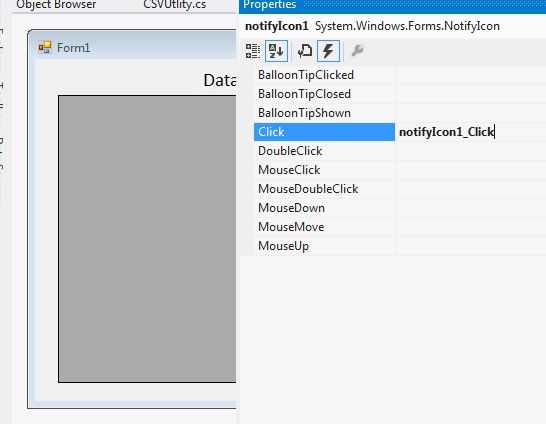

    Right-click on the notifyincon to see the property window:

    property window

  10. Add code for the notifyicon click as in the following:

    1. private void notifyIcon1_Click(object sender, EventArgs e)
    2. {
    3.      MessageBox.Show("DEVESH !!! you clicked on notifyicon");
    4. }

  11. Run the code and click on the following icon:

    icon
    Output

Conclusion

We have learned the basics of notifyicons in C# Windoes Forms.
