Move Up/Down TreeViewItem in TreeView in WPF

Creating A WPF Project

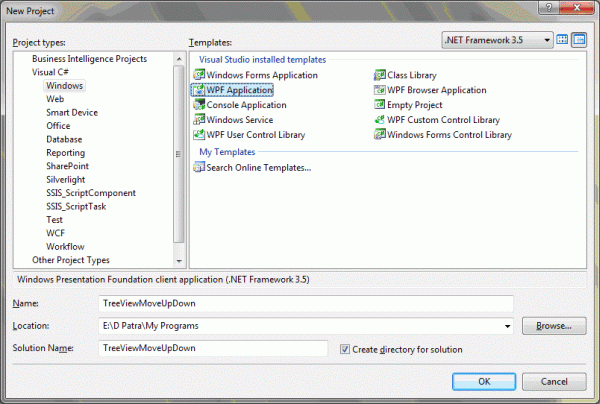

Fire up Visual Studio 2008, create a WPF Application, and name it as TreeViewMoveUpDown.

In my previous article we have seen how to achieve Move Up and Move Down in a ListBox for a ListBoxItem. Now we would do the same for TreeView and TreeViewItem.

It's almost same, but due to the differnce in Control type I am writing this sample.

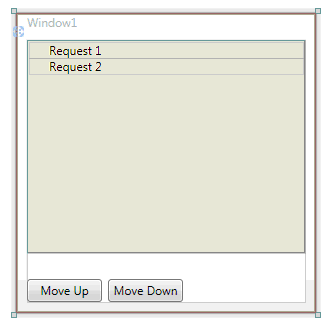

Let's add a TreeView Control and Add Move Up and Move Down Buttons.


As you see from above image, I have added two static TreeViewItems such as Request 1 and Request 2.

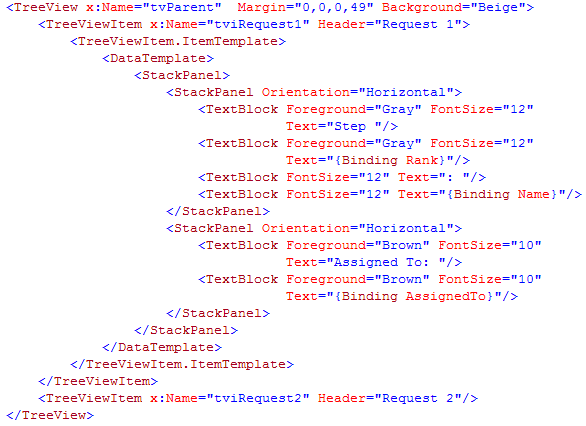

The following is the XAML reference:


In the above XAML display, you can see the TreeViewItem's itemTemplate is customized.

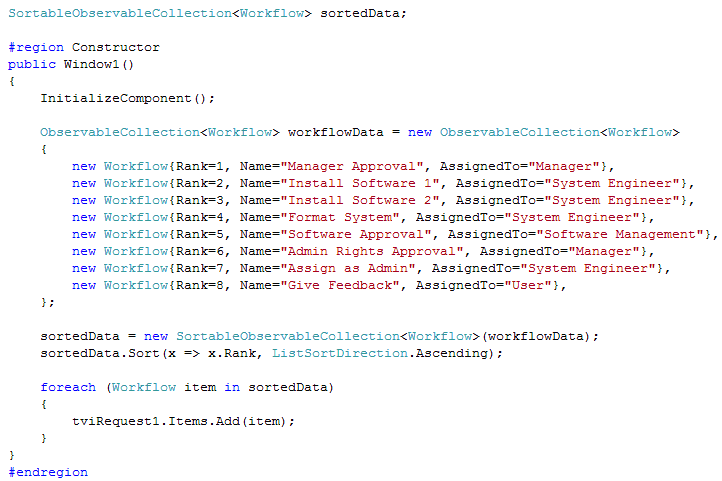

Now we will load some sample data to the first node and see the result.

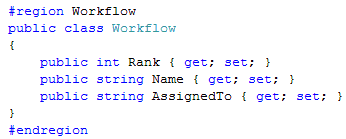

Workflow class represents the structure of a Workflow.


As you see in above code display we have added the items into the Request 1 node.

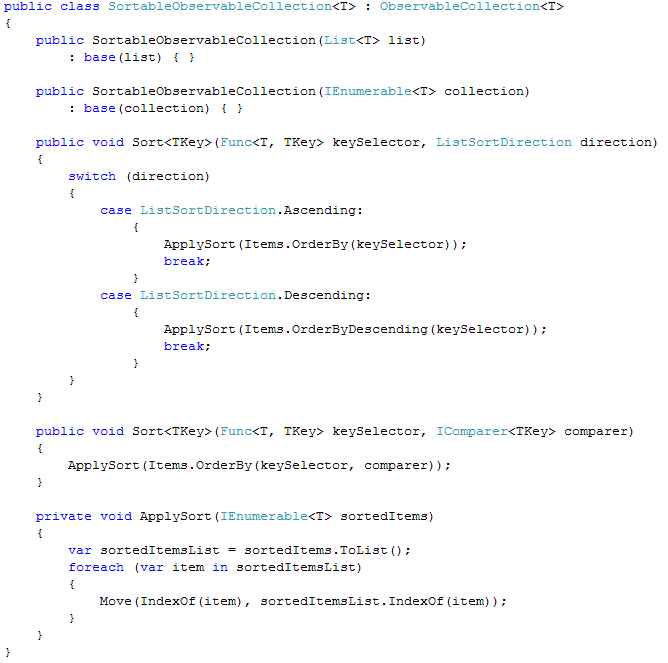

The following class is for using the SortableObservableCollection for sorting an ObservableCollection.

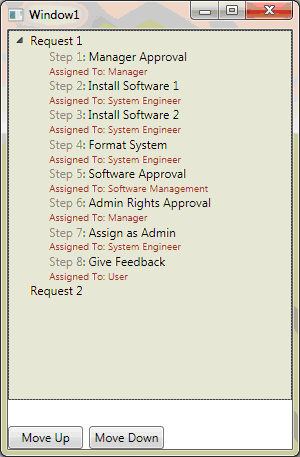

Now we will run the application to see the data loaded in TreeView.


Now we will achieve the Move Up and Move Down functionalities.

This is almost same as we discussed in previous article for ListBoxItem Move Up and Move Down, but some changes.

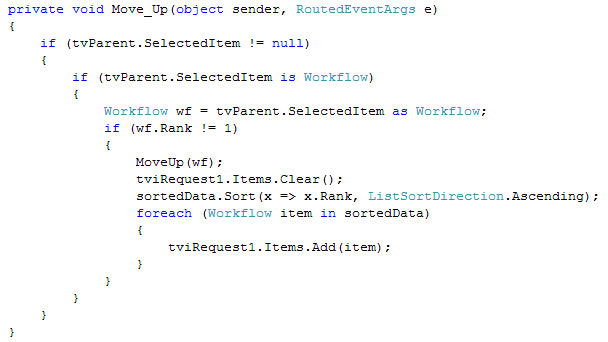

Move Up


The above code display is the Move Up Button click event handler, where we first check whether we have some item selected in the TreeView. Then we check if the SelectedItem is of type Workflow and if yes then we clear the items of the node and reload it.

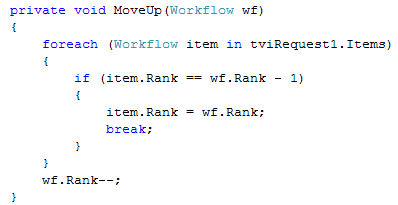

The above code is to iterate through the TreeViewItem's Items and change the Rank.

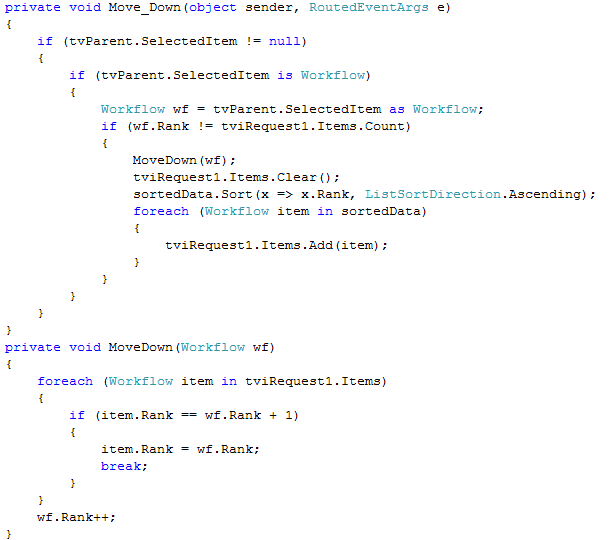

Move Down

Move Down functionality is the same but with Rank value is incremented.

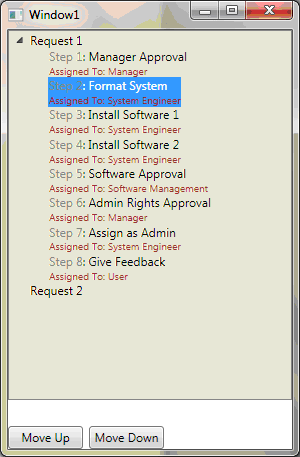

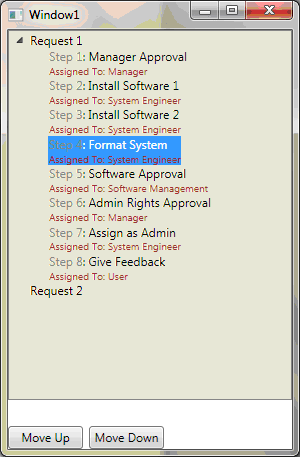

Now we will run the application to check the functionalities of Move Up and Move Down.



Hope this article helps.
