Navigation Drawer in Android Studio

Introduction:

A Navigation Drawer is a panel that appears when the user swipes from the left edge of the screen. We use fragments to make this. The panel that appears can contain a list, which when clicked loads a new fragment activity.

In this article we will create a simple Navigation Drawer with four fragments. I have added images in these fragments. You can add whatever you want, like TextView, ListView etcetera.

Step 1:

The "strings.xml" used are:

resources>

<string name="app_name">NavigationDrawerNew</string>

<string name="action_settings">Settings</string>

<string name="hello_world">Hello world!</string>

<string name="open">List</string>

<string name="close">Main Page</string>

</resources>

Step 2:

Open "activity_main" and add the following code to it:

<android.support.v4.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"

                                        xmlns:tools="http://schemas.android.com/tools"

                                        android:id="@+id/drawer_layout"

                                        android:layout_width="400dp"

                                        android:layout_height="600dp"

                                        tools:context=".MainActivity"

                                        android:background="#beb6ac"

                                        >

  <FrameLayout

          android:id="@+id/main"

          android:layout_width="match_parent"

          android:layout_height="match_parent" >

  </FrameLayout>



  <ListView

          android:id="@+id/drawer"

          android:layout_width="240dp"

          android:layout_height="match_parent"

          android:layout_gravity="start"

          android:background="#454545"

          android:choiceMode="singleChoice"/>



</android.support.v4.widget.DrawerLayout>

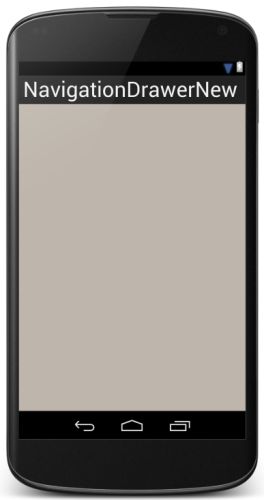

The layout looks like:


DrawerLayout acts as a top-level container for window content that allows for interactive "drawer" views to be pulled out from the edge of the window.

Note that you need to provide exact layout_height and layout_width in DrawerLayout (in dp). Giving "match_parent" etcetera will give you a rendering error.


Step 3:

Let us now make a layout file for the first fragment.

Right-click on the layout then select "New" -> "Layout resource file". Name this file as "first_fragment_layout" and add the following to it:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

                android:layout_width="match_parent"

                android:layout_height="match_parent"

                android:orientation="vertical"

               >

  <ImageView

          android:id="@+id/textView1"

          android:layout_width="800dp"

          android:layout_height="800dp"

          android:src="@drawable/one"

          android:layout_marginTop="20dp"

          android:layout_marginLeft="50dp"

          android:layout_marginRight="30dp"

            />



</RelativeLayout>

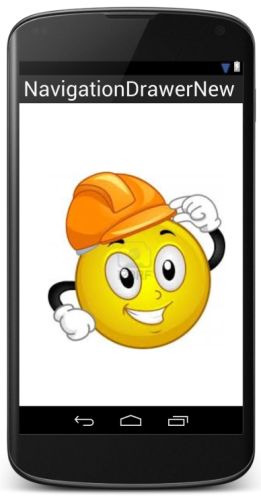

The layout looks like:


Step 4:

This describes the layout file for the second fragment.

Right-click on the layout then select "New" -> "Layout resource file". Name this file as "second_fragment_layout" and add the following to it:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

                android:layout_width="match_parent"

                android:layout_height="match_parent"

                android:orientation="vertical" >

  <ImageView

          android:id="@+id/textView1"

          android:layout_width="800dp"

          android:layout_height="800dp"

          android:src="@drawable/two"

          android:layout_marginTop="20dp"

          android:layout_marginLeft="50dp"

          android:layout_marginRight="30dp"

            />

</RelativeLayout>

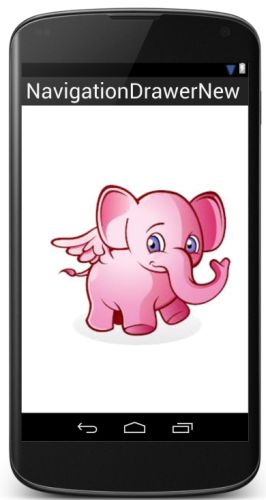

The layout looks like:




Step 5:

This describes the layout file for the third fragment.

Right-click on the layout then select "New" -> "Layout resource file". Name this file as "third_fragment_layout" and add the following to it:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"

                android:layout_width="match_parent"

                android:layout_height="match_parent"

                android:orientation="vertical" >

  <ImageView

          android:id="@+id/textView1"

          android:layout_width="800dp"

          android:layout_height="800dp"

          android:src="@drawable/three"

          android:layout_marginTop="20dp"

          android:layout_marginLeft="50dp"

          android:layout_marginRight="30dp"

            />

</RelativeLayout>

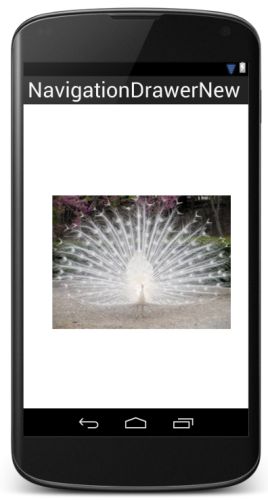

The layout looks like:


 Step 6:

This describes the Java class for the first fragment.

Right-click on your package name then select "New" -> "Java class". Name it as "FirstFragment" and add the following code to it:

package com.chhavi.navigationdrawernew;



import android.content.Context;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;



public class FirstFragment extends Fragment {

    public static Fragment newInstance(Context context) {

        FirstFragment frag = new FirstFragment();

        return frag;

    }



    @Override

    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {



        ViewGroup root = (ViewGroup) inflater.inflate(R.layout.first_fragment_layout, null);

        return root;

    }

}

Step 7:

This describes the Java class for the second fragment.

Right-click on your package name then select "New" -> "Java class". Name it as "SecondFragment" and add the following code to it:

package com.chhavi.navigationdrawernew;



import android.content.Context;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;



public class SecondFragment extends Fragment {



    public static Fragment newInstance(Context context) {

        SecondFragment frag = new SecondFragment();

        return frag;

    }

    @Override

    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {



        ViewGroup root = (ViewGroup) inflater.inflate(R.layout.second_fragment_layout, null);

        return root;

    }

}



Step 8:

This describes the Java class for the third fragment.

Right-click on your package name then select "New" -> "Java class". Name it as "ThirdFragment" and add the following code to it:

package com.chhavi.navigationdrawernew;



import android.content.Context;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;



public class ThirdFragment extends Fragment {



    public static Fragment newInstance(Context context) {

        ThirdFragment f = new ThirdFragment();

        return f;

    }



    @Override

    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {

        //return super.onCreateView(inflater, container, savedInstanceState);

        ViewGroup root = (ViewGroup) inflater.inflate(R.layout.third_fragment_layout, null);

        return root;

    }

}


Step 9:

For returning to the main page again.

Right-click on your package name then select "New" -> "Java class". Name it as "MainPageFragment" and add the following code to it:

package com.chhavi.navigationdrawernew;



import android.content.Context;

import android.os.Bundle;

import android.support.v4.app.Fragment;

import android.view.LayoutInflater;

import android.view.View;

import android.view.ViewGroup;



public class MainPageFragment extends Fragment {

    public static Fragment newInstance(Context context) {

        MainPageFragment frag = new MainPageFragment();

        return frag;

    }



    @Override

    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {

        //return super.onCreateView(inflater, container, savedInstanceState);

        ViewGroup root = (ViewGroup) inflater.inflate(R.layout.activity_main, null);

        return root;

    }

}



Step 10:

Open "MainActivity.java" and add the following code to it:

package com.chhavi.navigationdrawernew;



import android.app.ActionBar;

import android.os.Bundle;

import android.app.Activity;

import android.support.v4.app.ActionBarDrawerToggle;

import android.support.v4.app.Fragment;

import android.support.v4.app.FragmentActivity;

import android.support.v4.app.FragmentTransaction;

import android.support.v4.widget.DrawerLayout;

import android.view.Menu;

import android.view.MenuItem;

import android.view.View;

import android.widget.AdapterView;

import android.widget.ArrayAdapter;

import android.widget.ListView;



public class MainActivity extends FragmentActivity {



    ActionBarDrawerToggle icon;

    final String[] listContent ={"Fragment One","Fragment Two","Fragment Three","Main Page"};

    final String[] fragments ={

            "com.chhavi.navigationdrawernew.FirstFragment",

            "com.chhavi.navigationdrawernew.SecondFragment",

            "com.chhavi.navigationdrawernew.ThirdFragment",

            "com.chhavi.navigationdrawernew.MainPageFragment"};



    @Override

    protected void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.activity_main);



        ArrayAdapter<String> ad = new ArrayAdapter<String>(getActionBar().getThemedContext(), android.R.layout.simple_list_item_1, listContent);



        final DrawerLayout drawer = (DrawerLayout)findViewById(R.id.drawer_layout);

        final ListView list = (ListView) findViewById(R.id.drawer);

        list.setAdapter(ad);

        list.setOnItemClickListener(new AdapterView.OnItemClickListener() {

            @Override

            public void onItemClick(AdapterView<?> parent, View view, final int position, long id) {

                drawer.setDrawerListener( new DrawerLayout.SimpleDrawerListener(){

                    @Override

                    public void onDrawerClosed(View drawerView){

                        super.onDrawerClosed(drawerView);

                        FragmentTransaction transition = getSupportFragmentManager().beginTransaction();

                        transition.replace(R.id.main, Fragment.instantiate(MainActivity.this, fragments[position]));

                        transition.commit();

                    }

                });

                drawer.closeDrawer(list);

            }

        });

    }



    @Override

    public boolean onCreateOptionsMenu(Menu menu) {

        // Inflate the menu; this adds items to the action bar if it is present.

        getMenuInflater().inflate(R.menu.main, menu);

        return true;



    }

}



Output snapshots

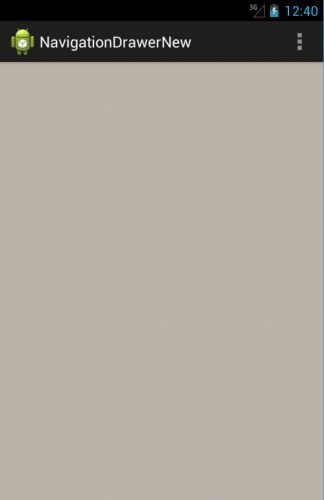

First screen:

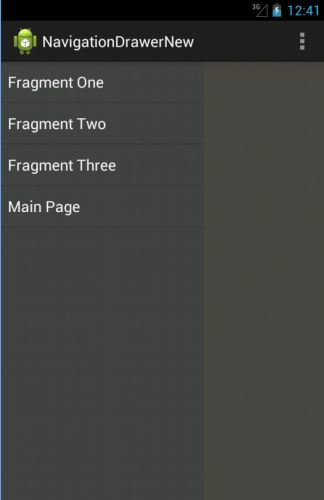

On swiping:

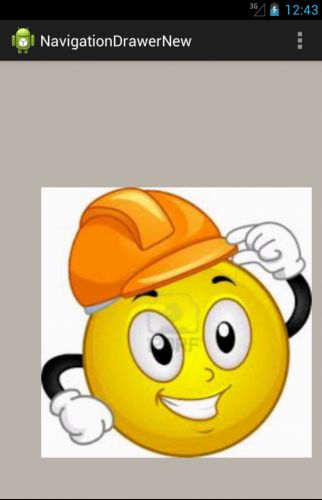

Selecting fragment one:

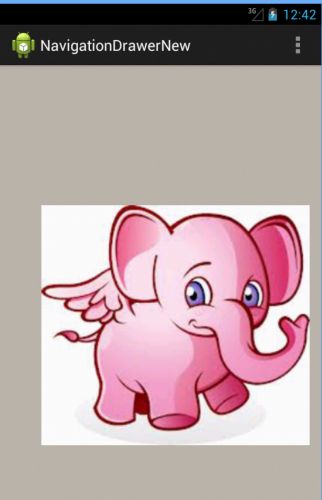

Selecting fragment two:

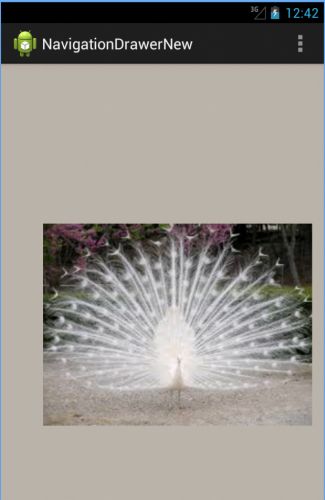

Selecting fragment three:


Thank you..... Enjoy coding :)
