How to Create Thumbnails of Images Stored in Database

Beginners commonly ask how to create thumbnails of images stored in a database and show them in an aspx page. So I decided to build a sample application that uses a repeater control, a generic handler and one aspx page.

My database table name is ImgTable.

USE [TestDatabase]

GO



/****** Object:  Table [dbo].[ImgTable]    Script Date: 02/01/2013 13:45:38 ******/

SET ANSI_NULLS ON

GO



SET QUOTED_IDENTIFIER ON

GO



SET ANSI_PADDING ON

GO



CREATE TABLE [dbo].[ImgTable](

      [Sno] [bigint] IDENTITY(1,1) NOT NULL,

      [Name] [varchar](500) NULL,

      [ImageName] [varbinary](max) NULL

) ON [PRIMARY]



GO



SET ANSI_PADDING OFF

GO

In the ImgTable I have three columns:

  1. Sno that is the identity column

  2. Name

  3. ImageName that is of type VarBinary(MAX) that will store the image

Let's start coding the front end.
In the aspx page I have one repeater control in which I have used one ASP image.


<body>

    <form id="form1" runat="server">

    <div>



        <asp:Repeater ID="Repeater1" runat="server">



            <ItemTemplate>



                <asp:Image Width="100px" Height="100px" ID="Image1" runat="server" ImageUrl="<%# Bind('name') %>"/>



            </ItemTemplate>

        </asp:Repeater>



    </div>

    </form>

</body>


In the cs file on the page load event I use the following:


        string constring = @"Data Source=******;Initial
        Catalog=TestDatabase;Integrated Security=True;User ID=****** "
;

        SqlConnection cn = new SqlConnection(constring);

        cn.Open();

        SqlCommand cmd = new SqlCommand("SELECT * FROM  dbo.ImgTable", cn);

        DataTable dt = new DataTable();

        SqlDataAdapter sda = new SqlDataAdapter(cmd);

        sda.Fill(dt);

        List<ThumbNail> li = new List<ThumbNail>();

        foreach(DataRow row in dt.Rows)

        {

            li.Add(new ThumbNail { thumb = (byte[])row["ImageName"], sno = row["sno"].ToString() });

            row["name"] = "Handler.ashx?SrNo=" + row["sno"].ToString();



        }

        dt.AcceptChanges();

        Session["file"] = li;

        Repeater1.DataSource = dt;

        Repeater1.DataBind();



Don't be confused with List<Thumbnail>li =new List<Thumbnail>(), Thumbnail is my class in which there is two fields of the thumb (type byte array) and sno of type string. As you can see in the preceding code, I created a list of the class type and added sno and image fetched from the database into it and put the list into a session variable that I will later use on my handler.


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;



/// <summary>

/// Summary description for ThumbNail

/// </summary>

public class ThumbNail

{

    public byte[] thumb { get; set; }

    public string sno { get; set; }

       public ThumbNail()

       {

             //

             // TODO: Add constructor logic here

             //

       }

}

Before I proceed let me explain what:

row["name"] = "Handler.ashx?SrNo=" + row["sno"].ToString();

Is doing. Its is just preparing the URL of the image that will be further bound to the imageurl attribute of the image inside the repeater control.

e.g.:

<asp:Image id="Image_1" ImageUrl="Handler.ashx?srno=1" />

Let's move on to the handler. In the handler I have fetched the list from the session and the query string from it and put them into the mylist and nam variables.


string nam = context.Request.QueryString["SrNo"].ToString();

List<ThumbNail> mylist = (List<ThumbNail>)HttpContext.Current.Session["file"];

Now here based on nam I will fetch an image from the list and assign it to a byte array and write it to the output stream:


   byte[] a = null;

   var byt= mylist.Where(item => item.sno == nam).Select(item => item.thumb);

        var e = byt.GetEnumerator();

        while (e.MoveNext())

        {

            a = (byte[])e.Current;

        }

        context.Response.OutputStream.Write(a, 0, a.Length);

        context.Response.Flush();


I have used a LINQ query and Lambda Expression to extract an image from the list but if you want to use another way then you can.

Handler


<%@ WebHandler Language="C#" Class="Handler" %>



using System;

using System.Web.SessionState;

using System.Web;

using System.Collections.Generic;

using System.Linq;



public class Handler : IHttpHandler, IRequiresSessionState

{



    public void ProcessRequest(HttpContext context)

    {

        byte[] a = null;

        string nam = context.Request.QueryString["SrNo"].ToString();

        List<ThumbNail> mylist = (List<ThumbNail>)HttpContext.Current.Session["file"];

        var byt= mylist.Where(item => item.sno == nam).Select(item => item.thumb);

        var e = byt.GetEnumerator();

        while (e.MoveNext())

        {

            a = (byte[])e.Current;

        }

        context.Response.OutputStream.Write(a, 0, a.Length);

        context.Response.Flush();



    }



    public bool IsReusable

    {

        get

        {

            return false;

        }

    }



}

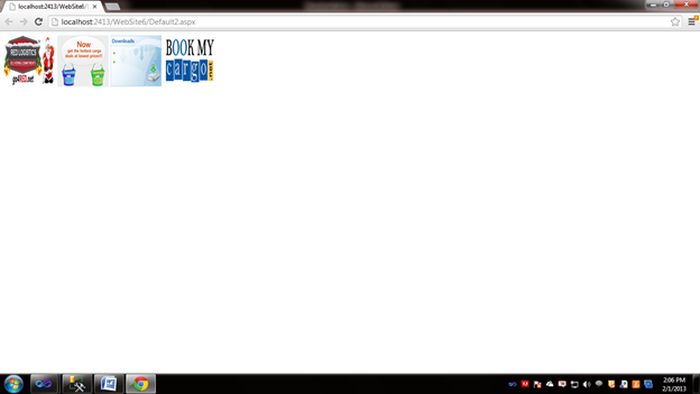

Output
