Develop a Windows Desktop Application Using LINQ to SQL Class

This shows how to develop a desktop application using LINQ To SQL Class.

I am using Visual Studio 2010 and SQL Server 2005. So let's start.

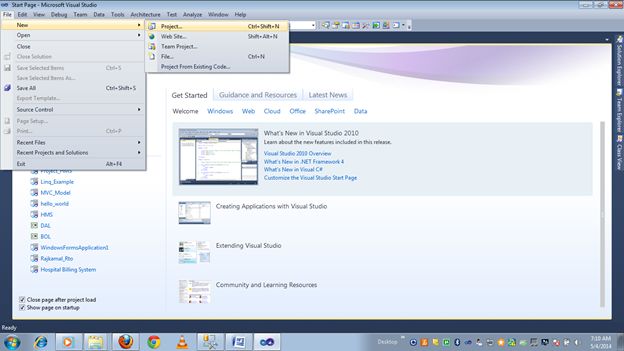

1. First of all open your Visual Studio and go for a new project.

open visual studio

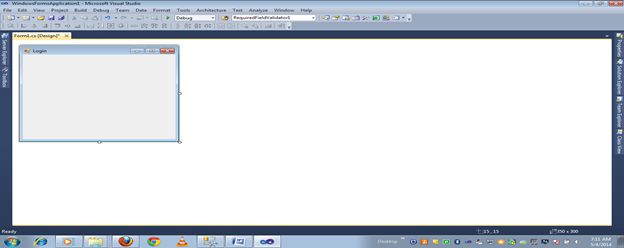

2. Then click on the Windows project.

windows project

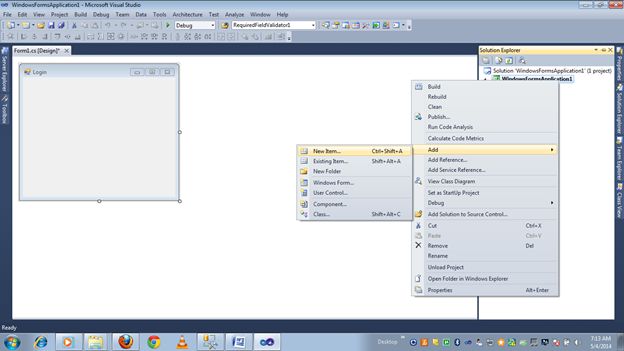

3. Now right-click on the project and select add new item.

add new item

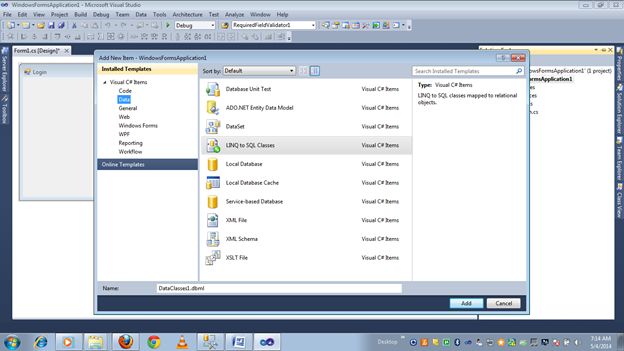

4. And select a LINQ To SQL class file and click on add.

Linq To SQL class file

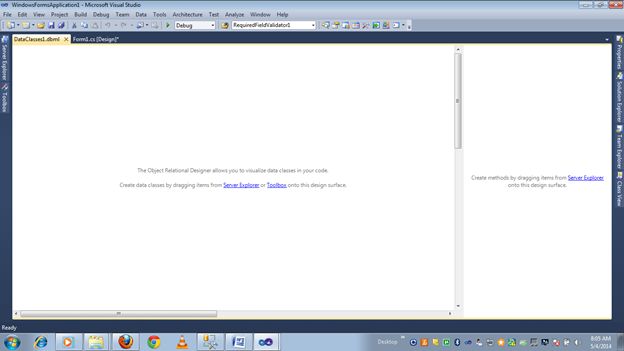

5. When you will click o the add button a dbml file will added to your project.

dbml file

Class

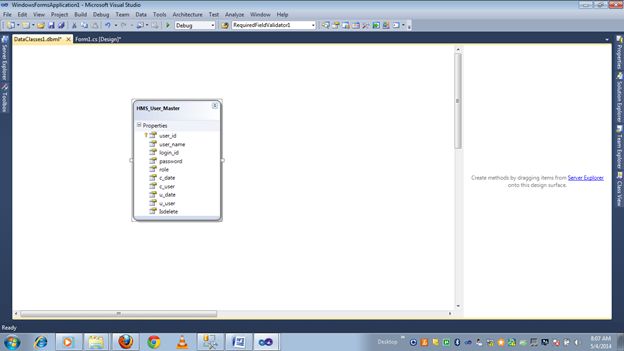

6. Now you need to drag and drop the table from the Server Explorer to the dbml file.

server explorer to dbml file

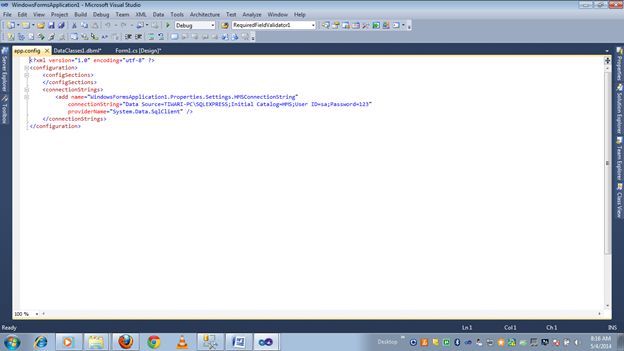

When you drag and drop the first table to the dbml file, connection string will be saved in the app.config file automatically.

Connection String

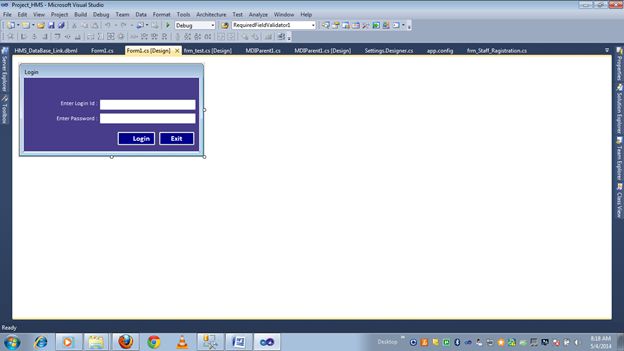

7. Now design the login form.

login form


using System;

using System.Collections.Generic;

using System.ComponentModel;

using System.Data;

using System.Drawing;

using System.Linq;

using System.Text;

using System.Windows.Forms;



namespace Project_HMS

{

public partial class Form1 : Form

{

    //Object of dbml file..

    HMS_DataBase_LinkDataContext linq = new HMS_DataBase_LinkDataContext();

    //Object of user table

    HMS_User_Master obj_user = new HMS_User_Master();

    public Form1()

    {

        InitializeComponent();

    }

}



private void btn_login_Click(object sender, EventArgs e)

{

    int a = chk_user();

    if (a == 1)

    {

        MDIParent1 obj_mdi = new MDIParent1();

        obj_mdi.Show();

    }

    else

    {

        MessageBox.Show("User Name Or Password Is Wrong Please Try Again");

        txt_name.Text = string.Empty;

        txt_pass.Text = string.Empty;

    }

}

public int chk_user()

{

    var chk_user = from user in linq.HMS_User_Masters

    where user.user_name == txt_name.Text && user.password == txt_pass.Text

    && user.Isdelete==0

    select user;

    if (chk_user.Count() > 0)

    {

        return 1;

    }

    else

    {

       return 0;

    }

}

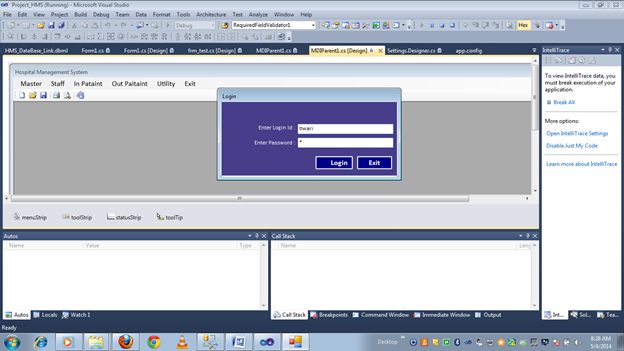

login form

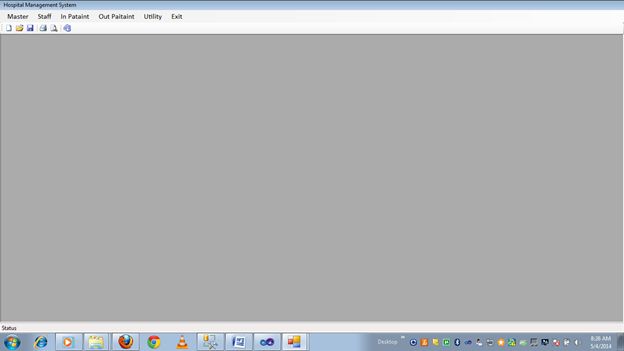

Output


I will continue in my next article.
