Using Custom Notifications in PhoneGap


In PhoneGap, we use four types of notifications. These are as follows:

  • Alerts

  • Confirmation dialogs

  • Beeps

  • Vibrations

Using Alerts

To show a custom alert or dialog box, use the notification.alert function, as shown below.
 navigator.notification.alert(message,callback,[title],[button]);

This function takes two required and two optional parameters, in the following order:

  • message: A string that contains the dialog message (for example, "The network status is WIFI only").

  • callback: Invoked when the alert is dismissed.

  • title: A string that contains the alert's title (optional).

  • button: A string that contains the name of the button (for example, "OK") (optional).


Enter the following code in index.html for alerts in www of the Solution Explorer:

<!DOCTYPE html>
<html>
  <head>
    <title>Notification Example</title>
    <script type="text/javascript" charset="utf-8" src="phonegap1.3.0.js"></script>
    <script type="text/javascript" charset="utf-8">

        // Wait for Phone Gap to load
        document.addEventListener("deviceready", onDeviceReady, false);
        // Phone Gap is ready
        function onDeviceReady() {
            // Empty
        }
        // alert dialog dismissed
        function alertDismissed() {
            // do something
        }
        // Show a custom alert
        function showAlert() {
            navigator.notification.alert(
            'You are the winner!'// message
            alertDismissed,         // callback
            'Game Over',            // title
            'Done'                  // button Name
        );
        }
    </script>
  </head>
  <body>
    <p><a href="#" onclick="showAlert(); return false;"><strong>Show Alert</strong></a></p>
  </body>
</html

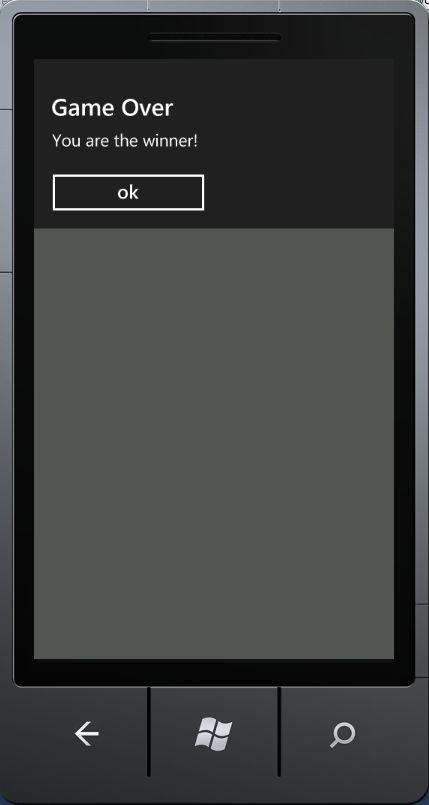

 Now select Windows Phone Emulator and hit the green play button beside the top drop-down menu to start debugging or press F5 and when you click on SHOW ALERT; the output will be:


Supported Platform

  • Android
  • Blackberry (OS 4.6)
  • Blackberry Web Works (OS 5.0 and higher)
  • iPhone
  • Windows Phone 7( Mango )

Using Confirmation Dialogs

A confirmation dialog is similar to an alert, except that it may contain multiple buttons, each of which might fire off a different process. For example, a confirmation dialog that asks, "Do you wish to continue?" might have a Yes and a No button. Selecting one or the other results in a different outcome. To create a confirmation dialog, we use the notification.confirm function. This
function displays  a native dialog box that is more customizable than the browser's confirm function. You'll need to wrap it in a function, because it is generally called from a link or button on the HTML interface. To show a custom confirmation dialog box, we use:
navigator.notificatio.confirm(message,confirmCallback,[title],[buttonLabels])

This function takes two required and two optional parameters, in the following order:

  • message: Dialog message (String)
  • confirmCallback: Callback to invoke with the index of a button pressed (1, 2 or 3). (Number)
  • title: Dialog title (String) (Optional, Default: "Confirm")
  • buttonLabels: Comma separated string with button labels (String) (Optional, Default: "OK,Cancel")


Enter the following code in index.html in www of the Solution Explorer:

<!DOCTYPE html>
<html>
  <head>
    <title>Notification Example</title>
    <script type="text/javascript" charset="utf-8" src="phonegap-1.3.0.js"></script>
    <script type="text/javascript" charset="utf-8">
        // Wait for PhoneGap to load
        document.addEventListener("deviceready", onDeviceReady, false);
        // PhoneGap is ready
        function onDeviceReady() {
            // Empty
        }
        // process the confirmation dialog result
        function onConfirm(button) {
            alert('You selected button ' + button);
        }
        // Show a custom confirmation dialog
                function showConfirm() {
            navigator.notification.confirm(
            'You are the winner!'// message
            onConfirm,              // callback to invoke with index of button pressed
            'Game Over',            // title
            'Restart,Exit'          // buttonLabels
        );
        }
    </script>
  </head>
  <body>
    <p><a href="#" onclick="showConfirm(); return false;">Show Confirm</a></p>
  </body>
</html>

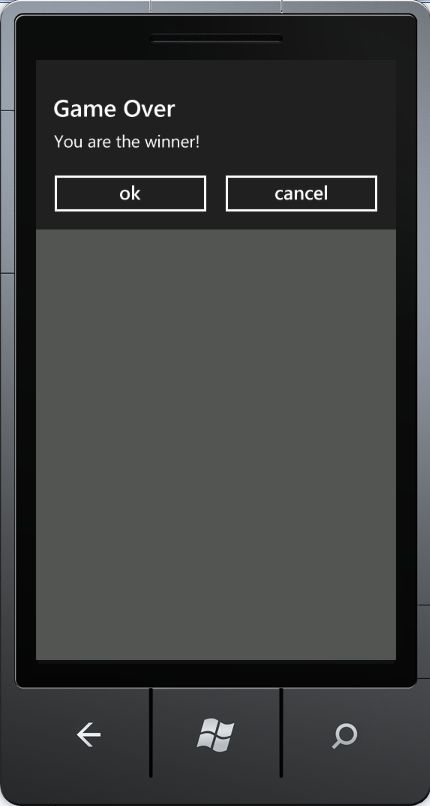

Now select Windows Phone Emulator and hit the green play button beside the top of the drop-down menu to start debugging or press F5 and when you click on SHOW CONFIRM, the output will be:


Supported Platform

  • Android
  • BlackBerry WebWorks (OS 5.0 and higher)
  • iPhone
  • Windows Phone 7 ( Mango )

Using Beeps and Vibrations

Sometimes you don't need an alert or confirmation dialog, a simple beep will do when a user does something. To create a beep, use the notification.beep function
as shown below. navigator.notification.beep(times);
The function takes a single argument, an integer that indicates how many times you want it to beep.
PhoneGap also provides a vibrate function available as
notification.vibrate, which takes a duration argument in milliseconds, as shown below.

navigator.notification.vibrate(milliseconds);


Here the
time is the milliseconds to vibrate the device. 1000 milliseconds is 1 second (Number).

Enter the following code in index.html for beeps and vibrations in www of the Solution Explorer:

<!DOCTYPE html>
<html>
  <head>
    <title>Notification Example</title>
    <script type="text/javascript" charset="utf-8" src="phonegap-1.3.0.js"></script>
    <script type="text/javascript" charset="utf-8">
        // Wait for PhoneGap to load
        document.addEventListener("deviceready", onDeviceReady, false);
        // PhoneGap is ready
        function onDeviceReady() {
            // Empty
        }
        // alert dialog dismissed
        function alertDismissed() {
            // do something
        }
        // Show a custom alert
        function showAlert() {
            navigator.notification.alert(
            'You are the winner!'// message
             alertDismissed,         // callback
            'Game Over',            // title
            'Done'                  // buttonName
        );
        }
        // Beep three times
        function playBeep() {
            navigator.notification.beep(3);
        }
        // Vibrate for 2 seconds
        function vibrate() {
           navigator.notification.vibrate(2000);
        }
    </script>
    </head>
    <body>
    <p><a href="#" onclick="showAlert(); return false;">Show Alert</a></p>
    <p><a href="#" onclick="playBeep(); return false;">Play Beep</a></p>
    <p><a href="#" onclick="vibrate(); return false;">Vibrate</a></p>
  </body>
</html>

Supported Platform for Beep and Vibrations

  • Android
  • BlackBerry (OS 4.6)
  • BlackBerry WebWorks (OS 5.0 and higher)
  • iPhone
  • Windows Phone 7 ( Mango )
RESOURCES

Some of the useful resources are:

Events in PhoneGap
Media in PhoneGap
How to Get Device Information Using PhoneGap
