Fetching Records Using Joins in F#

Introduction

This article explains how to get the records in one table from one or more other tables. First we have explained about Joins in SQL Server and how  to access the values from other tables. In this article we have explained only Inner Join, Left Join and Outer Join. Using these kinds of Joins we can access the records in one table from other tables.

Joins

SQL Joins play a very vital role in databases. Using joins we can retrieve values from other tables in a database. Records are accessed based on a relationship among the column fields among the tables.

The following are the types of joins described here:

  • Inner Join
  • Left Join
  • Right Join

Inner Join

Inner Join acts like an intersection between the tables; it displays the matching records in the tables. It displays all the rows from the first table and displays matched rows from the second tables.

Syntax:

Select columnlists

from table1 t1

inner join table2 t2

on t1.fieldname=t2.fieldname

Left Join

Left Join will return all records in the left table (table-1) regardless if any of those records have a match in the right table (table-2).

Syntax:

Select columnlists

from table1 t1

left join table2 t2

on t1.fieldname=t2.fieldname

Right Join

Right Join will return all the records in the right table (table-2) regardless if any of those records have a match in the left table (table-1).

Syntax:

Select columnlists

from table1 t1

right join table2 t2

on t1.fieldname=t2.fieldname

Create Database joining

use joining

Create Table-1

create table table1(

UserId int primary key,UserName nvarchar(max),FirstName varchar(max),LastName varchar(max))

insert into table1 values(101,'Pankey','Pankaj','Lohani')

insert into table1 values(102,'Paru','Pravesh','Khanduri')

insert into table1 values(103,'Nicks','Nimit','Joshi')

insert into table1 values(104,'Ammu','Amit','Senwal')

insert into table1 values(105,'Ravi','Ravi','Kumar')

Create Table-2

create table table2(

EmpId int primary key identity (101,1),Address nvarchar(max),City varchar(max),DepartmentNo int,Salary money)

insert into table2(Address,City,DepartmentNo,Salary) values('A-43 strno-6 delhi','Delhi',1,10000)

insert into table2(Address,City,DepartmentNo,Salary) values('B-44 pratap vihar noida','Gr.Noida',2,20000)

insert into table2(Address,City,DepartmentNo,Salary) values('C-45 vinod nagar new delhi','New Delhi',3,30000)

insert into table2(Address,City,DepartmentNo,Salary) values('d-47 laxminagagr delhi','Delhi',4,40000)

insert into table2(Address,City,DepartmentNo,Salary) values('RK puram','Delhi',5,50000)

insert into table2(Address,City,DepartmentNo,Salary) values('mohammod pur','GR.NOIDA',6,10000)

insert into table2(Address,City,DepartmentNo,Salary) values('DLF CITY','Gurgaon',7,20000)

insert into table2(Address,City,DepartmentNo,Salary) values('ASHOK NAGAR','Noida',3,30000)

insert into table2(Address,City,DepartmentNo,Salary) values('Indirapuram','Noida',10,88000)

insert into table2(Address,City,DepartmentNo,Salary) values('Nehru Place','Delhi',11,60000)

Create Procedure for Inner Join

Create proc GetInnerJoin

as

begin

select t1.UserId,t1.FirstName,t1.LastName,t2.Address,t2.salary

from table1 t1 inner join table2 t2

on

t1.UserId=t2.EmpId

end

Create Procedure for Right Join

Create proc GetRightOuterJoin

as

begin

select t1.UserId,t1.FirstName,t1.LastName,t2.Address,t2.salary

from table1 t1 right join table2 t2

on

t1.UserId=t2.EmpId

end

Create Procedure for Left Join

Create proc GetLeftOuterJoin

as

begin

select t1.FirstName,t1.LastName,t2.DepartmentNo,t2.salary

from table1 t1 Left join table2 t2

on

t1.UserId=t2.EmpId

end

Now  I want to show the retrieved data in a Windows Forms application just use the following steps.

Step 1:

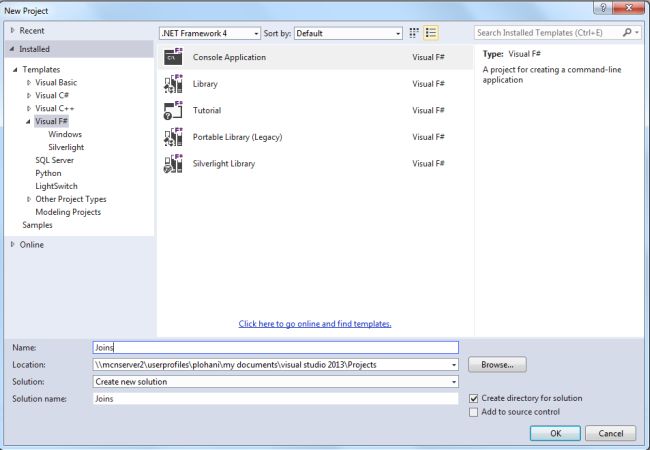

Open Visual Studio then select "Create New Project" --> "F# Console Application".


Step 2:

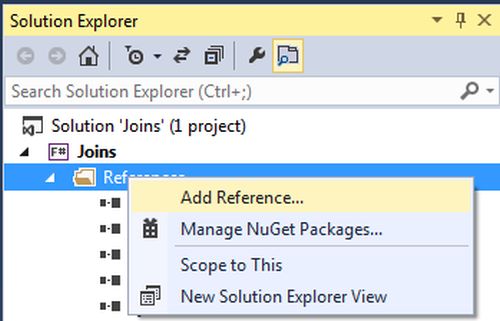

Now go the Solution Explorer on the right side of Visual Studio. Right-click on "References" and select "Add references".


Step 3:

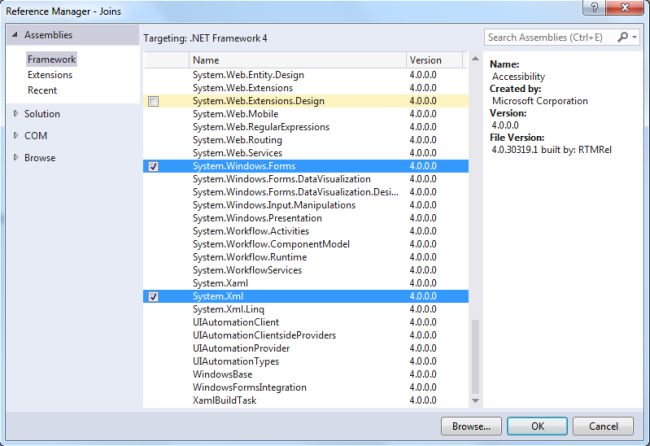

After selecting "Add References", in the Framwork template you need to select "System.Windows.Forms", "System.Drawing", "System.Xml" and "System.Data" while holding down the Ctrl key and click on "Ok."


Step 4:

Write the following code in the F# editor.

open System

open System.Xml

open System.Drawing

open System.Data.SqlClient

open System.Windows.Forms

open System.Data

let constring = @"Data Source=MCNDESKTOP38;Initial Catalog=Joining;User ID=sa; Password=Password$2"

let form = new Form()

form.Text <- "Joins"

let lbltbl1=new Label(Top = 10, Left = 0, Height = 20)

lbltbl1.Text<-"TABLE-1"

let adaptbl1 = new SqlDataAdapter("select * from table1",constring)

let ds = new DataSet()

adaptbl1.Fill(ds) |>ignore

//let form = new Form()

let gridview = new DataGridView(Top=30,Width=400, Height=200)

form.Controls.Add(gridview)

form.Controls.Add(lbltbl1)

gridview.DataSource <- ds.Tables.[0]

let lbltbl2=new Label(Top = 10, Left = 420, Height = 20)

lbltbl2.Text<-"TABLE-2"

let adaptbl2 = new SqlDataAdapter("select * from table2",constring)

let dt = new DataTable()

adaptbl2.Fill(dt) |>ignore

let gridview2 = new DataGridView(Top=30,Left=420,Width=510, Height=300)

form.Controls.Add(gridview2)

form.Controls.Add(lbltbl2)

gridview2.DataSource <- dt

let btn1 = new Button(Top = 350, Left = 20, Height = 20,Width=70)

btn1.Text <- "InnerJoin"

form.Controls.Add(btn1)

let con = new SqlConnection(constring)

//open connection

con.Open()

let com = new SqlCommand()

com.Connection <- con

com.CommandType <- CommandType.StoredProcedure

com.CommandText <- "GetInnerJoin"

btn1.Click.Add(fun _ ->

let adapter = new SqlDataAdapter("GetInnerJoin",con)

let ds = new DataSet()

adapter.Fill(ds) |>ignore

let gridview = new DataGridView(Top=450,Width=520,Height=180)

form.Controls.Add(gridview)

gridview.DataSource <- ds.Tables.[0]

)

//RightOuterjoin

let btn2 = new Button(Top = 380, Left =20, Height = 20, Width=70)

btn2.Text <- "RightJoin"

form.Controls.Add(btn2)

com.Connection <- con

com.CommandType <- CommandType.StoredProcedure

com.CommandText <- "GetRightOuterJoin"

btn2.Click.Add(fun _ ->

let adapter = new SqlDataAdapter("GetRightOuterJoin",con)

let dt = new DataTable()

adapter.Fill(dt) |>ignore

let gridview = new DataGridView(Top=450,Width=550,Height=270)

form.Controls.Add(gridview)

gridview.DataSource <- dt

)

//LeftOuterJoin

let btn3 = new Button(Top = 410, Left = 20, Height = 20, Width=70)

btn3.Text <- "LeftJoin"

form.Controls.Add(btn3)

com.Connection <- con

com.CommandType <- CommandType.StoredProcedure

com.CommandText <- "GetLeftOuterJoin"

btn3.Click.Add(fun _ ->

let adapter = new SqlDataAdapter("GetLeftOuterJoin",con)

let dt = new DataTable()

adapter.Fill(dt) |>ignore

let gridview = new DataGridView(Top=450,Width=450,Height=150)

form.Controls.Add(gridview)

gridview.DataSource <- dt

)

//Showing the form

Application.Run(form)


Step 5:

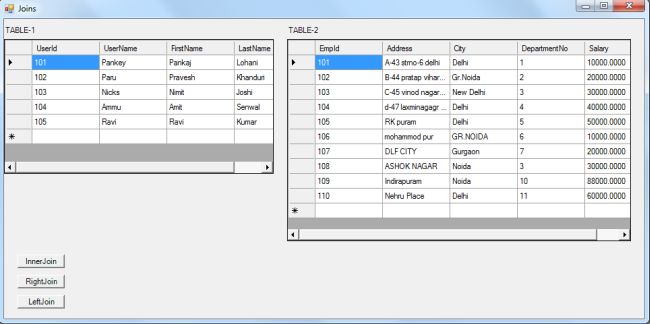

Debug the application by pressing F5 to execute the Windows Forms application. After debugging the application you will get a Windows Forms application as in the figure given below.


Step 6:

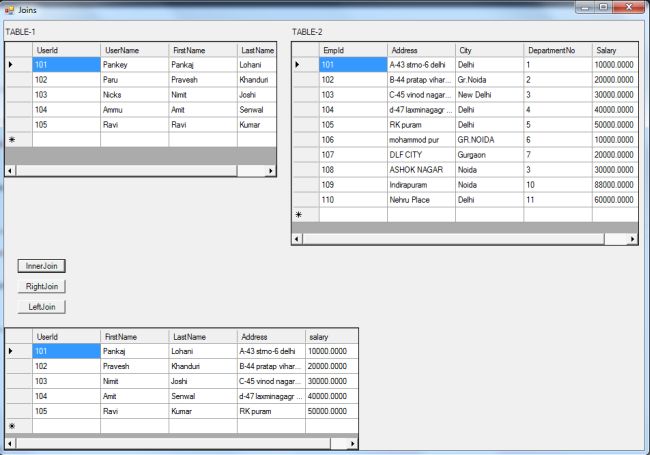

Click on "Inner Join".


Step 7:

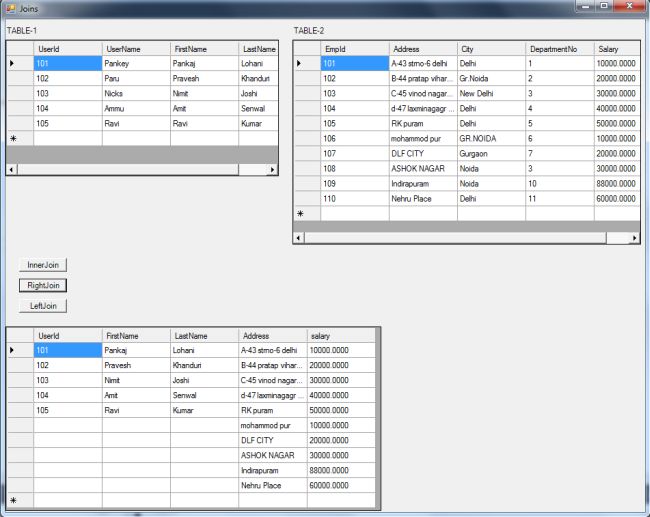

Click on "Right Join".


Step 8:

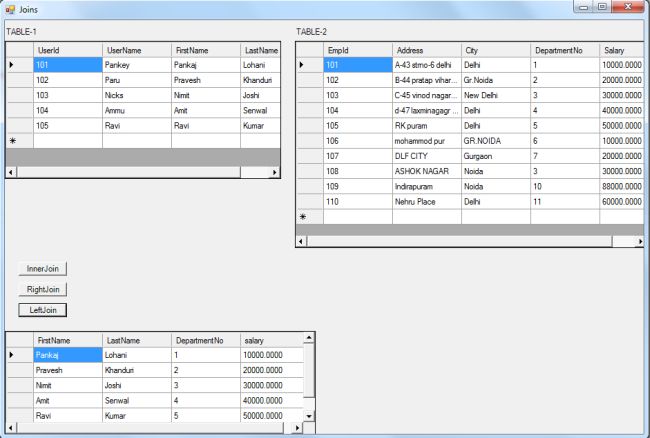

Click on "Left Join".


Summary

In this article you saw how to retrieve the records from one or more other tables cooresponding to data in a table. We explained Right Join, Left Join, Inner Join and displayed all the records in a Windows Forms application.
