SystemSounds Object in F#

Introduction

In this article I have explained the SystemSounds object and the properties of the SystemSounds class, such as Asterisk, Beep, Exclamation, Hand and Question, in a Windows Forms application.

SystemSounds Object

The SystemSounds class is the part of the System.Media namespace. The "System.Media" namespace contains the class "SystemSounds" that allows us to play the system sounds. The SystemSounds class has the five static properties to represent key sounds that are configurable through the Control Panel. Using those properties we can play the sounds that are associated with any event.  The SystemSounds object retrieves the sounds associated with the Windows operating system sound event types. The SystemSounds class is a sealed class that cannot be inherited from. The SystemSounds class has the five properties Asterisk, Beep, Exclamation, Hand and Question. These properties are played by the "play" method of the SystemSound object.

Properties of SystemSounds Class

The following are the properties of the SystemSounds class:

  • Asterisk: Gets the sound associated with the asterisk program event in the current Windows  sound.
  • Beep: Gets the sound associated with the beep program event in the current Windows  sound.
  • Exclamation: Gets the sound associated with the Exclamation program event in the current Windows  sound.
  • Hand: Gets the sound associated with the Hand program event in the current Windows  sound.
  • Question: Gets the sound associated with the Question program event in the current Windows  sound.

Now  I will show you how to use the SystemSounds object in a Windows Forms application. Let's use the following procedure.

Step 1:

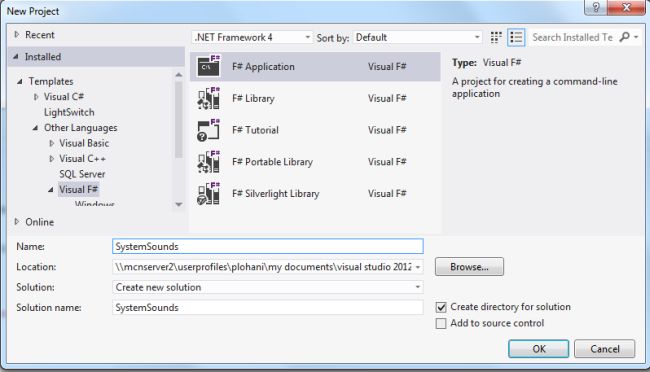

Open Visual Studio, then select "Create New Project" --> "F# Console Application".

CreateApplication

Step 2:

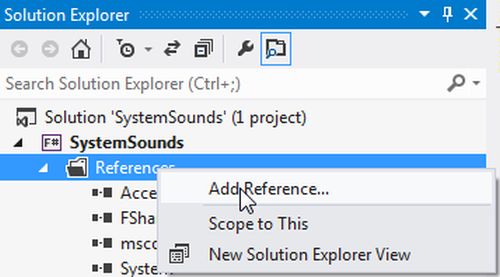

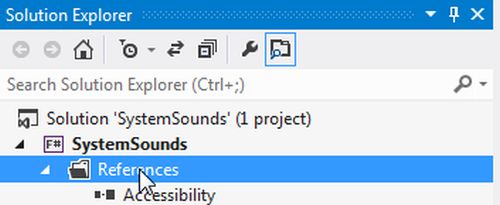

Now go to the Solution Explorer on the right side of the application. Right-click on "References" and select "Add references".

SelectReferences



AddReferences

Step 3:

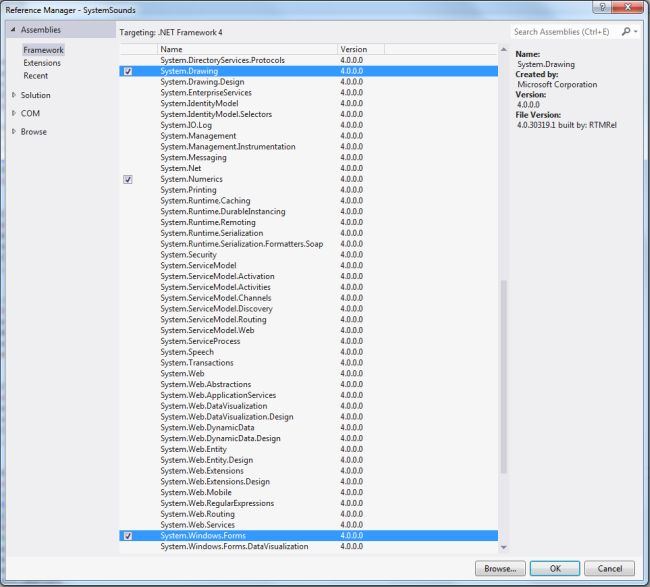

After selecting "Add References", in the framework template you need to select "System.Windows.Forms" and "System.Drawing" while holding down the Ctrl key and Click on "Ok".

ImportNamespaces

Step 4:

Write the following code to play the SystemSounds in the F# editor.

open System

open System.Media

open System.Drawing

open System.Windows.Forms

let myform=new Form(Text="System Sounds")

myform.BackColor<-Color.BlanchedAlmond

let soundlbl=new Label(Top=20,Left=60,Width=120)

soundlbl.Text<-"Play System Sounds"

//Asterik sound

let btnAsterik=new Button(Top=70,Left=60,Width=120)

btnAsterik.Text<-"Asterik Sound"

btnAsterik.BackColor<-Color.Ivory

btnAsterik.Click.Add(fun sound->

SystemSounds.Asterisk.Play()

MessageBox.Show("Asterisk""Play Asterik Sounds", MessageBoxButtons.OK, MessageBoxIcon.Asterisk)|>ignore)



//Beep sound

let btnBeep=new Button(Top=100,Left=60,Width=120)

btnBeep.Text<-"Beep Sound"

btnBeep.BackColor<-Color.Ivory

btnBeep.Click.Add(fun sound->

SystemSounds.Beep.Play()

MessageBox.Show("Beep""Play Beep Sounds", MessageBoxButtons.OK, MessageBoxIcon.Asterisk)|>ignore)



//Exclamation sound

let btnExclamation=new Button(Top=130,Left=60,Width=120)

btnExclamation.Text<-"Exclamation Sound"

btnExclamation.BackColor<-Color.Ivory

btnExclamation.Click.Add(fun sound->

SystemSounds.Exclamation.Play()

MessageBox.Show("Exclamation""Play Exclamation Sounds", MessageBoxButtons.OK, MessageBoxIcon.Exclamation)|>ignore)



//Hand sound

let btnHand=new Button(Top=160,Left=60,Width=120)

btnHand.Text<-"HAND Sound"

btnHand.BackColor<-Color.Ivory

btnHand.Click.Add(fun sound->

SystemSounds.Hand.Play()

MessageBox.Show("HAND""Play HAND Sounds", MessageBoxButtons.OK, MessageBoxIcon.Hand)|>ignore)



//Question sound

let btnQuestion=new Button(Top=190,Left=60,Width=120)

btnQuestion.Text<-"Question Sound"

btnQuestion.BackColor<-Color.Ivory

btnQuestion.Click.Add(fun sound->

SystemSounds.Hand.Play()

MessageBox.Show("Question""Play Question Sounds", MessageBoxButtons.OK, MessageBoxIcon.Question)|>ignore)

//addind controls to the form

myform.Controls.Add(soundlbl)

myform.Controls.Add(btnAsterik)

myform.Controls.Add(btnBeep)

myform.Controls.Add(btnExclamation)

myform.Controls.Add(btnHand)

myform.Controls.Add(btnQuestion)

myform.Show()

Application.Run(myform)

Step 5 :

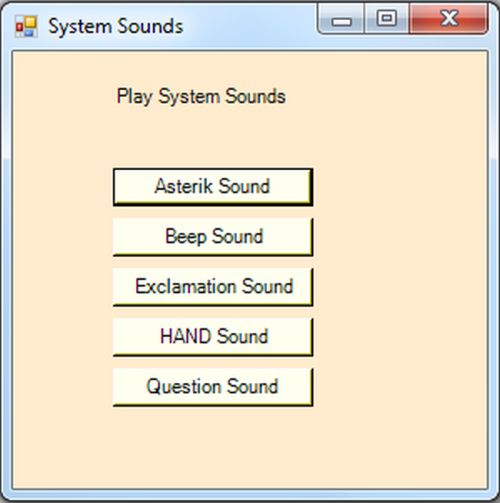

Debug the application by pressing F5 to execute the Windows Forms application. After debugging the application the output will appear as shown in the following figure.

AfterDebug

Step 6 :

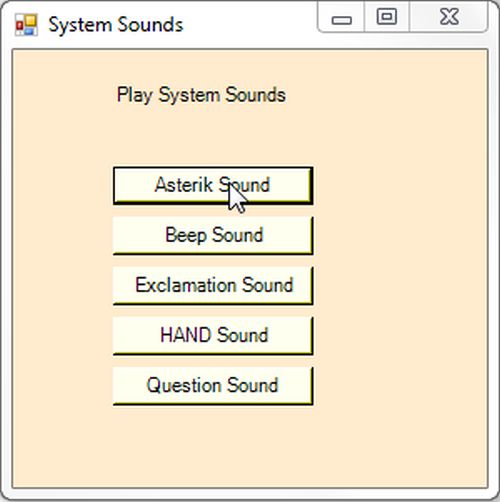

Now click on the Asterisk button. You will then get the sound of an asterisk as in the figure given below.

ClickAsterikButton

Step 7 :

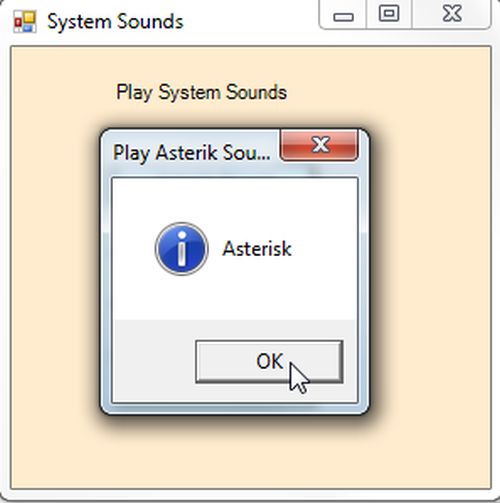

After clicking on the button you will get the system sound of an asterisk.

AsteriskSound

Step 8 :

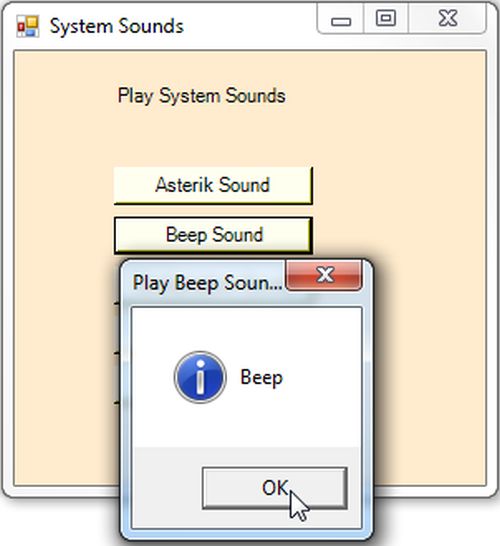

Now click on the Beep button; you will then get the sound of a Beep as in the figure given below.

BeepSound

Step 9 :

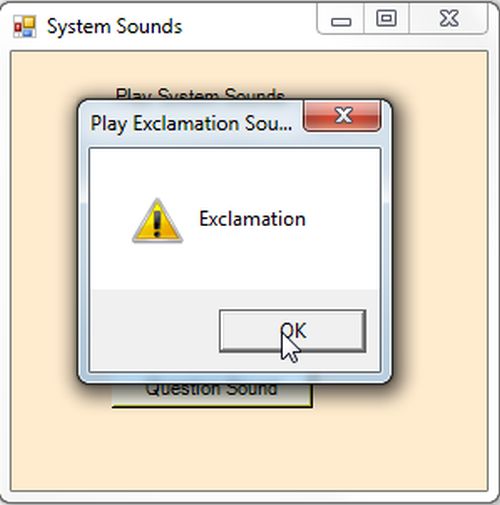

Now click on the "Exclamation" button; you will then get a sound of an Exclamation figure given below.

ExclamationSound

Step 8 :

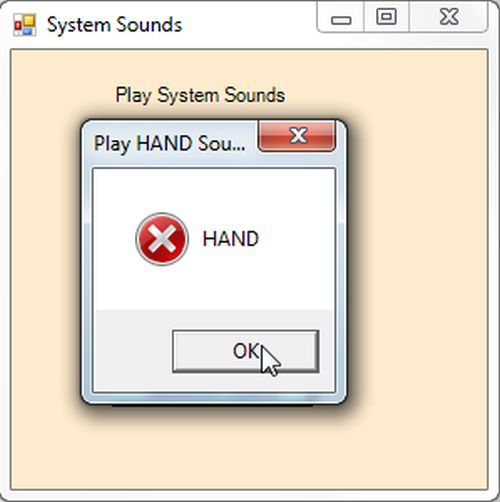

Now click on Hand button then you will get a sound of Hand as in the figure given below.

HandSound

Step 8 :

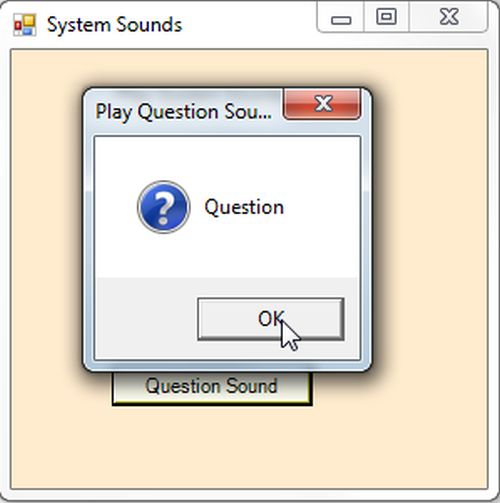

Now click on the Question button; you will then get the sound of a Question as in the figure given below.

QuestionSound

Summary

This article explained the SystetemSounds object and the properties of the SystemSounds class, such as Asterisk, Beep, Exclamation, Hand and Question. You then saw how to use various types of system sounds in a Windows Forms application.
