Ballgame in F# using Silverlight and WPF

Today I am creating a game application named BallGame in F# using WPF, Silverlight. Steps are given below.

Step 1: Firstly Open a new project in F# using Visual Studio 2010. Select F# WPF application template and give a name to it like the below image.

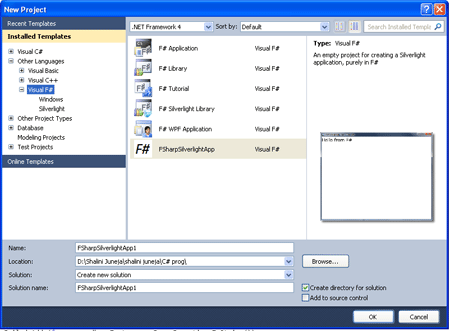

New Project Dialog Box

Step 2: Now add the below define references, a new F# silverlightapp project and some beep tune files to the project by right clicking on project in solution explorer.

  • Accessibility
  • PresentationCore
  • PresentationFramework
  • System
  • System.Xaml
  • System.Xml
  • System.Core
  • System.Numerics
  • System.Data
  • System.Drawing
  • WindowsBase
  • UIAutomationProvider
  • UIAutomationTypes

Step 3: When you have added all these references, new project and all beep tune files your Solution Explorer will look like the below image.

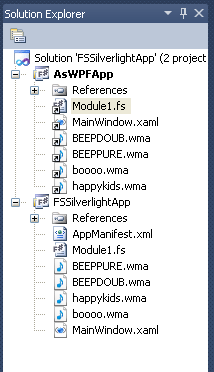

Solution Explorer

Step 4: Now click on the Module1.fs file in the Solution Explorer and write the below code in the Module1.fs window, your window will look like below.

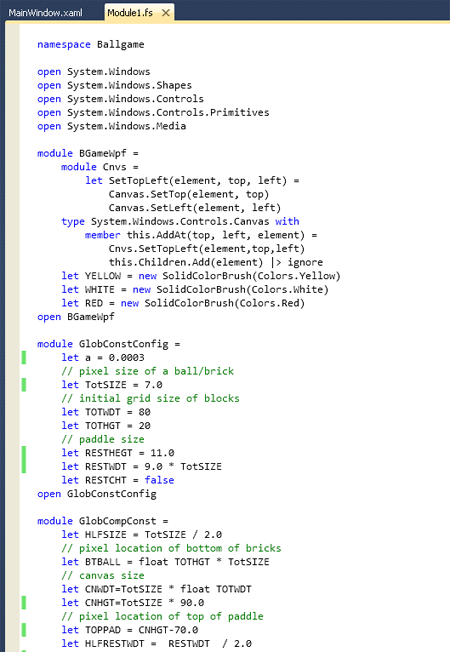

BallgameCode part1

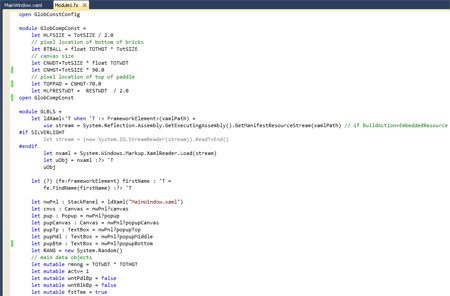

Ballgame Code part2

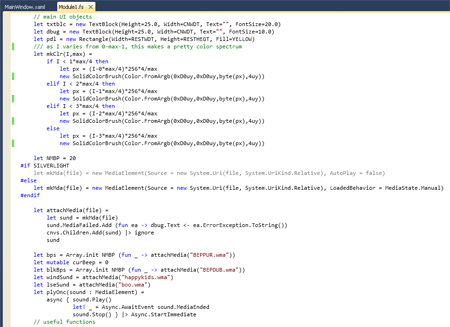

Ballgame code part3

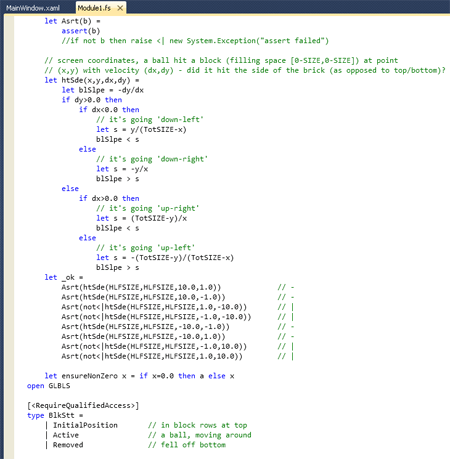

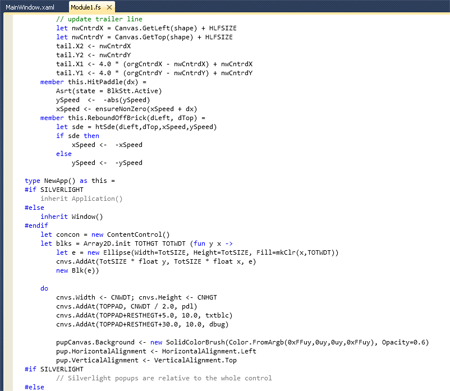

Ballgame code part 4

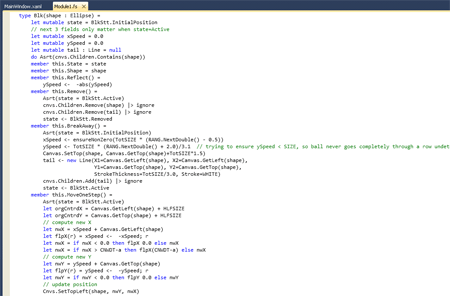

Ballgame code part5

Ballgame code part6

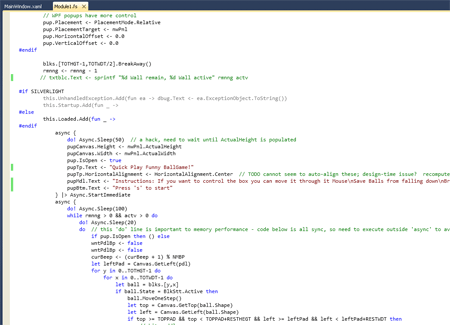

Ballgame Code part7

namespace Ballgame

open System.Windows
 open System.Windows.Shapes
 open System.Windows.Controls
 open System.Windows.Controls.Primitives
 open System.Windows.Media

 module BGameWpf =
    module Cnvs =
        let SetTopLeft(element, top, left) =
            Canvas.SetTop(element, top)
            Canvas.SetLeft(element, left)
    type System.Windows.Controls.Canvas with
        member this.AddAt(top, left, element) =
            Cnvs.SetTopLeft(element,top,left)
            this.Children.Add(element) |> ignore
    let YELLOW = new SolidColorBrush(Colors.Yellow)
    let WHITE = new SolidColorBrush(Colors.White)
    let RED = new SolidColorBrush(Colors.Red)
 open BGameWpf

 module GlobConstConfig =
    let a = 0.0003
    // pixel size of a ball/brick
    let TotSIZE = 7.0
    // initial grid size of blocks
    let TOTWDT = 80
    let TOTHGT = 20
    // paddle size
    let RESTHEGT = 11.0
    let RESTWDT = 9.0 * TotSIZE
    let RESTCHT = false
 open GlobConstConfig

 module GlobCompConst =
    let HLFSIZE = TotSIZE / 2.0
    // pixel location of bottom of bricks
    let BTBALL = float TOTHGT * TotSIZE
    // canvas size
    let CNWDT=TotSIZE * float TOTWDT
    let CNHGT=TotSIZE * 90.0
    // pixel location of top of paddle
    let TOPPAD = CNHGT-70.0
    let HLFRESTWDT =  RESTWDT  / 2.0
 open GlobCompConst

 module GLBLS =
    let ldXaml<'T when 'T :> FrameworkElement>(xamlPath) =
        use stream = System.Reflection.Assembly.GetExecutingAssembly().GetManifestResourceStream(xamlPath) // if BuildAction=EmbeddedResource
 #if SILVERLIGHT
         let stream = (new System.IO.StreamReader(stream)).ReadToEnd()
#endif
        let nxaml = System.Windows.Markup.XamlReader.Load(stream)
        let uObj = nxaml :?> 'T
        uObj

    let (?) (fe:FrameworkElement) firstName : 'T =
        fe.FindName(firstName) :?> 'T

    let nwPnl : StackPanel = ldXaml("MainWindow.xaml")
    let cnvs : Canvas = nwPnl?canvas
    let pup : Popup = nwPnl?popup
    let pupCanvas : Canvas = nwPnl?popupCanvas
    let pupTp : TextBox = nwPnl?popupTop
    let pupMdl : TextBox = nwPnl?popupMiddle
    let pupBtm : TextBox = nwPnl?popupBottom
    let RANG = new System.Random()
    // main data objects
    let mutable rmnng = TOTWDT * TOTHGT
    let mutable actv= 1
    let mutable wntPdlBp = false
    let mutable wntBlkBp = false
    let mutable fstTme = true
    // main UI objects
    let txtblc = new TextBlock(Height=25.0, Width=CNWDT, Text="", FontSize=20.0)
    let dbug = new TextBlock(Height=25.0, Width=CNWDT, Text="", FontSize=10.0)
    let pdl = new Rectangle(Width=RESTWDT, Height=RESTHEGT, Fill=YELLOW)
    /// as I varies from 0-max-1, this makes a pretty color spectrum
    let mkClr(I,max) =
        if I < 1*max/4 then
            let px = (I-0*max/4)*256*4/max
            new SolidColorBrush(Color.FromArgb(0xD0uy,0xD0uy,byte(px),4uy))
        elif I < 2*max/4 then
            let px = (I-1*max/4)*256*4/max
            new SolidColorBrush(Color.FromArgb(0xD0uy,0xD0uy,byte(px),4uy))
        elif I < 3*max/4 then
            let px = (I-2*max/4)*256*4/max
            new SolidColorBrush(Color.FromArgb(0xD0uy,0xD0uy,byte(px),4uy))
        else
            let px = (I-3*max/4)*256*4/max
            new SolidColorBrush(Color.FromArgb(0xD0uy,0xD0uy,byte(px),4uy))

    let NMBP = 20
#if SILVERLIGHT
    let mkMda(file) = new MediaElement(Source = new System.Uri(file, System.UriKind.Relative), AutoPlay = false)
 #else
    let mkMda(file) = new MediaElement(Source = new System.Uri(file, System.UriKind.Relative), LoadedBehavior = MediaState.Manual)
#endif

    let attachMedia(file) =
        let sund = mkMda(file)
        sund.MediaFailed.Add (fun ea -> dbug.Text <- ea.ErrorException.ToString())
        cnvs.Children.Add(sund) |> ignore
        sund

    let bps = Array.init NMBP (fun _ -> attachMedia("BEPPUR.wma"))
    let mutable curBeep = 0
    let blkBps = Array.init NMBP (fun _ -> attachMedia("BEPDUB.wma"))
    let windSund = attachMedia("happykids.wma")
    let lseSund = attachMedia("boo.wma")
    let plyOnc(sound : MediaElement) =
        async { sound.Play()
                let! _ = Async.AwaitEvent sound.MediaEnded
                sound.Stop() } |> Async.StartImmediate
    // useful functions
    let Asrt(b) =
        assert(b)
        //if not b then raise <| new System.Exception("assert failed")

    // screen coordinates, a ball hit a block (filling space [0-SIZE,0-SIZE]) at point
    // (x,y) with velocity (dx,dy) - did it hit the side of the brick (as opposed to top/bottom)?
    let htSde(x,y,dx,dy) =
        let blSlpe = -dy/dx
        if dy>0.0 then
            if dx<0.0 then
                // it's going 'down-left'
                let s = y/(TotSIZE-x)
                blSlpe < s
            else
                // it's going 'down-right'
                let s = -y/x
                blSlpe > s
        else
            if dx>0.0 then
                // it's going 'up-right'
                let s = (TotSIZE-y)/x
                blSlpe < s
            else
                // it's going 'up-left'
                let s = -(TotSIZE-y)/(TotSIZE-x)
                blSlpe > s
    let _ok =
        Asrt(htSde(HLFSIZE,HLFSIZE,10.0,1.0))             // -
        Asrt(htSde(HLFSIZE,HLFSIZE,10.0,-1.0))            // -
        Asrt(not<|htSde(HLFSIZE,HLFSIZE,1.0,-10.0))       // |
        Asrt(not<|htSde(HLFSIZE,HLFSIZE,-1.0,-10.0))      // |
        Asrt(htSde(HLFSIZE,HLFSIZE,-10.0,-1.0))           // -
        Asrt(htSde(HLFSIZE,HLFSIZE,-10.0,1.0))            // -
        Asrt(not<|htSde(HLFSIZE,HLFSIZE,-1.0,10.0))       // |
        Asrt(not<|htSde(HLFSIZE,HLFSIZE,1.0,10.0))        // |

    let ensureNonZero x = if x=0.0 then a else x
 open GLBLS

[<RequireQualifiedAccess>]
 type BlkStt =
    | StartPosition       // in block rows at top
    | Actv                // a ball, moving around
    | Rmvd               // fell off bottom

 type Blk(shape : Ellipse) =
    let mutable state = BlkStt.InitialPosition
    // next 3 fields only matter when state=Active
    let mutable xSpeed = 0.0
    let mutable ySpeed = 0.0
    let mutable tail : Line = null
    do Asrt(cnvs.Children.Contains(shape))
    member this.State = state
    member this.Shape = shape
    member this.Reflect() =
        ySpeed <-  -abs(ySpeed)
    member this.Remove() =
        Asrt(state = BlkStt.Active)
        cnvs.Children.Remove(shape) |> ignore
        cnvs.Children.Remove(tail) |> ignore
        state <- BlkStt.Removed
    member this.BreakAway() =
        Asrt(state = BlkStt.InitialPosition)
        xSpeed <- ensureNonZero(TotSIZE * (RANG.NextDouble() - 0.5))
        ySpeed <- TotSIZE * (RANG.NextDouble() + 2.0)/3.1  // trying to ensure ySpeed < SIZE, so ball never goes completely through a row undetected in a single 'step'
        Canvas.SetTop(shape, Canvas.GetTop(shape)+TotSIZE*1.5)
        tail <- new Line(X1=Canvas.GetLeft(shape), X2=Canvas.GetLeft(shape),
                         Y1=Canvas.GetTop(shape), Y2=Canvas.GetTop(shape),
                         StrokeThickness=TotSIZE/3.0, Stroke=WHITE)
        cnvs.Children.Add(tail) |> ignore
        state <- BlkStt.Active
    member this.MoveOneStep() =
        Asrt(state = BlkStt.Active)
        let orgCntrdX = Canvas.GetLeft(shape) + HLFSIZE
        let orgCntrdY = Canvas.GetTop(shape) + HLFSIZE
        // compute new X
        let nwX = xSpeed + Canvas.GetLeft(shape)
        let flpX(r) = xSpeed <-  -xSpeed; r
        let nwX = if nwX < 0.0 then flpX 0.0 else nwX
        let nwX = if nwX > CNWDT-a then flpX(CNWDT-a) else nwX
        // compute new Y
        let nwY = ySpeed + Canvas.GetTop(shape)
        let flpY(r) = ySpeed <-  -ySpeed; r
        let nwY = if nwY < 0.0 then flpY 0.0 else nwY
        // update position
        Cnvs.SetTopLeft(shape, nwY, nwX)
        // update trailer line
        let nwCntrdX = Canvas.GetLeft(shape) + HLFSIZE
        let nwCntrdY = Canvas.GetTop(shape) + HLFSIZE
        tail.X2 <- nwCntrdX
        tail.Y2 <- nwCntrdY
        tail.X1 <- 4.0 * (orgCntrdX - nwCntrdX) + nwCntrdX
        tail.Y1 <- 4.0 * (orgCntrdY - nwCntrdY) + nwCntrdY
    member this.HitPaddle(dx) =
        Asrt(state = BlkStt.Active)
        ySpeed  <-  -abs(ySpeed)
        xSpeed <- ensureNonZero(xSpeed + dx)
    member this.ReboundOffBrick(dLeft, dTop) =
        let sde = htSde(dLeft,dTop,xSpeed,ySpeed)
        if sde then
            xSpeed <-  -xSpeed
        else
            ySpeed <-  -ySpeed

 type NewApp() as this =
#if SILVERLIGHT
    inherit Application()
 #else
    inherit Window()
#endif
    let concon = new ContentControl()
    let blks = Array2D.init TOTHGT TOTWDT (fun y x ->
        let e = new Ellipse(Width=TotSIZE, Height=TotSIZE, Fill=mkClr(x,TOTWDT))
        cnvs.AddAt(TotSIZE * float y, TotSIZE * float x, e)
        new Blk(e))

    do
        cnvs.Width <- CNWDT; cnvs.Height <- CNHGT
        cnvs.AddAt(TOPPAD, CNWDT / 2.0, pdl)
        cnvs.AddAt(TOPPAD+RESTHEGT+5.0, 10.0, txtblc)
        cnvs.AddAt(TOPPAD+RESTHEGT+30.0, 10.0, dbug)

        pupCanvas.Background <- new SolidColorBrush(Color.FromArgb(0xFFuy,0uy,0uy,0xFFuy), Opacity=0.6)
        pup.HorizontalAlignment <- HorizontalAlignment.Left
        pup.VerticalAlignment <- VerticalAlignment.Top
#if SILVERLIGHT
         // Silverlight popups are relative to the whole control
 #else
        // WPF popups have more control
        pup.Placement <- PlacementMode.Relative
        pup.PlacementTarget <- nwPnl
        pup.HorizontalOffset <- 0.0
        pup.VerticalOffset <- 0.0
#endif

        blks.[TOTHGT-1,TOTWDT/2].BreakAway()
        rmnng <- rmnng - 1
       // txtblc.Text <- sprintf "%d Wall remain, %d Wall active" rmnng actv

#if SILVERLIGHT
         this.UnhandledException.Add(fun ea -> dbug.Text <- ea.ExceptionObject.ToString())
        this.Startup.Add(fun _ ->
 #else
        this.Loaded.Add(fun _ ->
 #endif
            async {
                do! Async.Sleep(50)  // a hack, need to wait until ActualHeight is populated
                pupCanvas.Height <- nwPnl.ActualHeight
                pupCanvas.Width <- nwPnl.ActualWidth
                pup.IsOpen <- true
                pupTp.Text <- "Quick Play Funny BallGame!"
                pupTp.HorizontalAlignment <- HorizontalAlignment.Center  // TODO cannot seem to auto-align these; design-time issue?  recompute layout?
                pupMdl.Text <- "Instructions: If you want to control the box you can move it through it Mouse\nSave Balls from falling down\nBreak walls on Upper side to get
more\nEnjoy the Game!"
                pupBtm.Text <- "Press 's' to start"
            } |> Async.StartImmediate
            async {
                do! Async.Sleep(100)
                while rmnng > 0 && actv > 0 do
                    do! Async.Sleep(20)
                    do  // this 'do' line is important to memory performance - code below is all sync, so need to execute outside 'async' to avoid Async allocating
                        if pup.IsOpen then () else
                        wntPdlBp <- false
                        wntPdlBp <- false
                        curBeep <- (curBeep + 1) % NMBP
                        let leftPad = Canvas.GetLeft(pdl)
                        for y in 0..TOTHGT-1 do
                            for x in 0..TOTWDT-1 do
                                let ball = blks.[y,x]
                                if ball.State = BlkStt.Active then
                                    ball.MoveOneStep()
                                    let top = Canvas.GetTop(ball.Shape)
                                    let left = Canvas.GetLeft(ball.Shape)
                                    if top >= TOPPAD && top < TOPPAD+RESTHEGT && left >= leftPad && left < leftPad+RESTWDT then
                                        // hit paddle
                                        ball.HitPaddle(dx=(left - leftPad - HLFRESTWDT)/HLFRESTWDT)
                                        wntPdlBp <- true
                                    elif top < BTBALL then
                                        // see if hit a stationary brick
                                        let brick = blks.[int(top / TotSIZE),int(left / TotSIZE)]
                                        if brick.State = BlkStt.InitialPosition  then
                                            let t = Canvas.GetTop(brick.Shape)
                                            let l = Canvas.GetLeft(brick.Shape)
                                            let intersect = left >= l && left < l+TotSIZE && top >= t && top < t+TotSIZE
                                            if intersect then
                                                rmnng <- rmnng - 1
                                                actv <- actv + 1
                                                //txtblc.Text <- sprintf "%d Wall remain, %d Wall active" rmnng actv
                                                ball.ReboundOffBrick(dLeft=l-left, dTop=t-top)
                                                brick.BreakAway()
                                                wntBlkBp <- true
                                    elif top > CNHGT then
                                        // fell off bottom
                                        if RESTCHT then
                                            ball.Reflect()
                                        else
                                            ball.Remove()
                                            actv <- actv - 1
                                           // txtblc.Text <- sprintf "%d Wall remain, %d Wall active" rmnng actv
                        if wntPdlBp then
                            plyOnc(bps.[curBeep])
                        if wntBlkBp then
                            plyOnc(blkBps.[curBeep])
                if rmnng > 0 then
                    //txtblc.Text <- sprintf "left %d Wall" rmnng
                    plyOnc(lseSund)
                else
                    txtblc.Text  <- "Hurrah You Won!!!"
                    plyOnc(windSund)
            } |> Async.StartImmediate
        )

        // to be able to get focus
        concon.IsTabStop <- true
        concon.IsEnabled <- true
        concon.KeyDown.Add(fun keyEA ->
            if keyEA.Key = Input.Key.S then
                pupCanvas.Height <- nwPnl.ActualHeight\
                pupCanvas.Width <- nwPnl.ActualWidth
                pup.IsOpen <- not pup.IsOpen
                pupTp.Text <- "STOP"
                pupMdl.Text <- "F# - 'fun' is our keyword!"
                pupBtm.Text <- "Press 's' to unstop and continue"
        )
#if SILVERLIGHT

#else
        concon.Focus() |> ignore
#endif
        nwPnl.MouseMove
        |> Observable.add (fun ea ->
            let x = ea.GetPosition(cnvs).X
            if x < HLFRESTWDT then
                Canvas.SetLeft(pdl, 0.0)
            elif x <= CNWDT - HLFRESTWDT then
                Canvas.SetLeft(pdl, x - HLFRESTWDT)
            else
                Canvas.SetLeft(pdl, CNWDT - RESTWDT)
        )
        concon.Content <- nwPnl
#if SILVERLIGHT

 #else
        this.Content <- concon
        this.SizeToContent <- SizeToContent.WidthAndHeight
#endif

#if SILVERLIGHT
 #else
module Main =
    [<System.STAThread()>]
    do
        let app =  new Application()
        app.Run(new NewApp()) |> ignore
#endif

Step 5: Then you will add a XAML file and write the below code in the MainWindow.xaml file.

<StackPanel xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
           xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
            Name="nwPnl">
    <Popup Name="popup">
        <Canvas Name="pupCnvs">
            <TextBox Name="pupTp" FontSize="18" Canvas.Left="20" Canvas.Top="20" />
            <TextBox Name="pupMdle" FontSize="14" Canvas.Left="20" Canvas.Top="60" />
            <TextBox Name="pupBtom" FontSize="18" Canvas.Left="20" Canvas.Top="200" />
        </Canvas>
    </Popup>
    <Border BorderThickness="15.0" BorderBrush="Pink">
        <StackPanel Name="stackPanel1">
            <TextBlock Text="BallGame!" FontSize="24" HorizontalAlignment="Center" />
            <TextBlock Text="A super Fun Game for Kids - press 's' to stop" FontSize="12" HorizontalAlignment="Center" />
            <Border BorderThickness="2.0" BorderBrush="Black">
                <Canvas Name="canvas" Background="Black" />
            </Border>
        </StackPanel>
    </Border>
</StackPanel>

Step 6: Now press F5 to execute the code. Your game is ready to play.

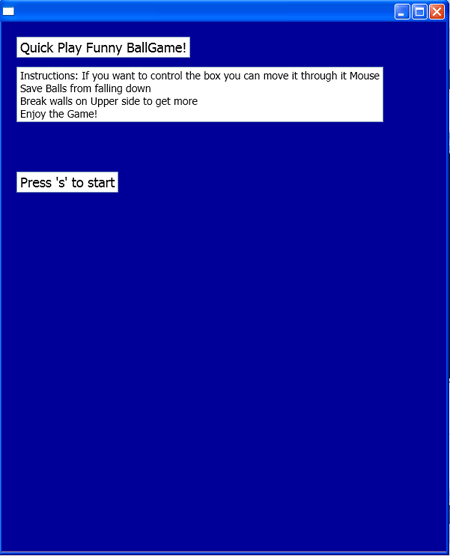

Output

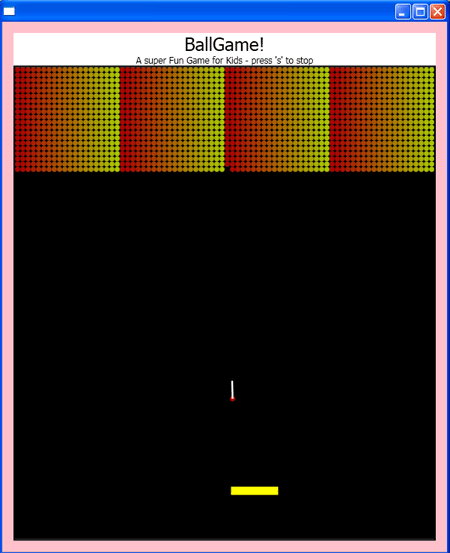

Ballgame Output1

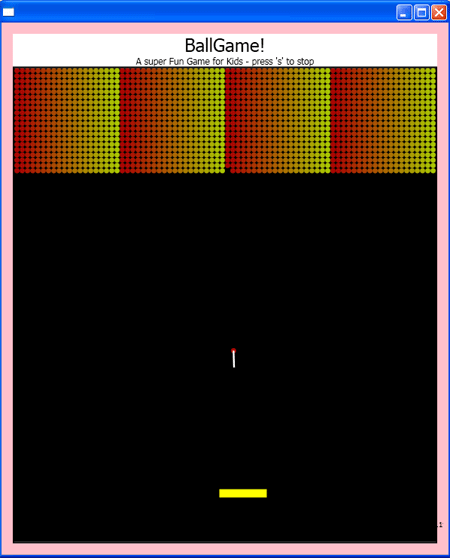

Ballgame Output2

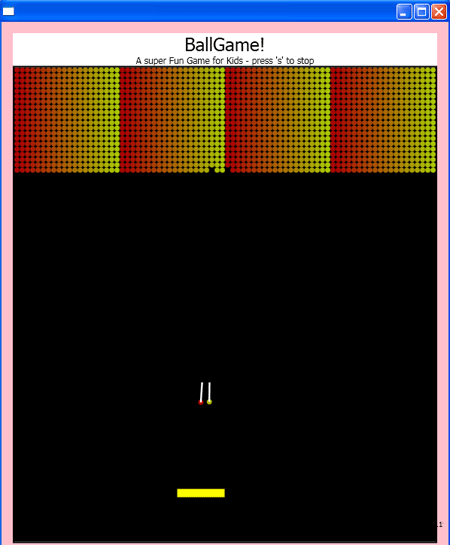

Ballgame Output3

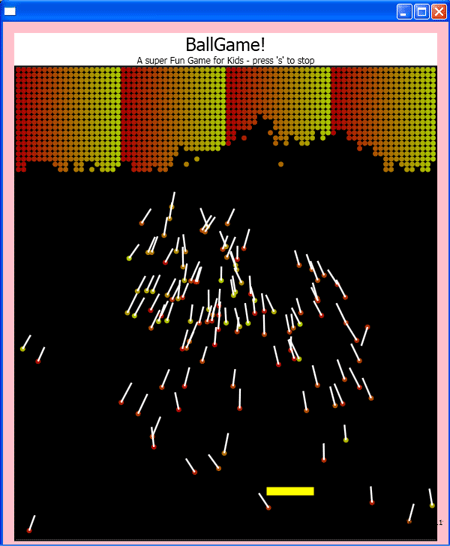

Ballgame Output4

Ballgame Output5

Summary

In this article I have discussed how you can develop a Ballgame in F# using both WPF and Silverlight.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
