Keystrokes in WPF using F#

This article is a explanation about Keystroke in F#. When we make windows form application, it provides alternates for trapping the input of the Keyboard and Mouse. In this article you can see almost any individual keystroke. Mostly you trap the standard events like KeyUp, KeyDown, KeyPress for handling Keystrokes. Steps are given below.

You will display the Header Text For the events to show what things are going on. Below code show the HeaderText.

      // Display header text.
      let headTxt = new TextBlock();
      headTxt.FontWeight <- FontWeights.Bold;
      headTxt.Text <- headString;
      grd.Children.Add(headTxt) |>ignore

Step 1: Firstly Open a new project in F# using Visual Studio 2010. Select F# WPF Application template and give name to the Project, as shown in Below Image.

New Project Dialog Box

Step 2: Now add the below define refrences to your project by right clicking on project in Solution Explorer.

  • PresentationCore

  • PresentationFramework

  • System

  • System.Xaml

  • UIAutomationTypes

  • WindowsBase

Step 3: When you add all these references your solution explorer will look like below.

Solution Explorer

Step 4: Then Click on Program.fs file in solution Explorer and write below code in Program.fs window. Your Window will look like below.

Keystroke Example code part1

Keystroke Example Code Part1.1

Keystroke Example Code Part 1.1.1

#light

open System
open System.Windows
open System.Windows.Controls
open System.Windows.Documents
open System.Windows.Input
open System.Windows.Media
open System.Windows.Shapes

let headString = "Key For Event   System-Key    Text      " +        "Ctrl-Text    System-Text    Ime      State of Key      " +

"  IsDown    IsUp       IsToggled     IsRepeat "
let frmtKyStrg = "{0,-10}         {1,-20}      {2,-10}    " +        "{3,-10}      {4,-15}        {5,-8}   {6,-7}    {7,-10}       {8,-10}    "
let frmtTxtStrg =   "  {0,-10}                              " +
                    "        {1,-10}         {2,-10}         {3,-10}"


type ExmnKyStrk  = class
   inherit Window

   val stck : StackPanel
   val scrl : ScrollViewer

   new () as this = {
        stck = new StackPanel()
        scrl = new ScrollViewer() } then
      this.Title <- "Key Strokes in WPF using F#"
      this.FontFamily <- new FontFamily("Vardana")

      let grd = new Grid()
      this.Content <- grd

      let rwdf = new RowDefinition()
      rwdf.Height <- GridLength.Auto;
      grd.RowDefinitions.Add(rwdf)
      grd.RowDefinitions.Add(new RowDefinition())
      // Display header text.
      let headTxt = new TextBlock();
      headTxt.FontWeight <- FontWeights.Bold;
      headTxt.Text <- headString;
      grd.Children.Add(headTxt) |>ignore

      grd.Children.Add(this.scrl) |>ignore
      Grid.SetRow(this.scrl, 1)

      this.scrl.Content <- this.stck

   override this.OnKeyDown (args:KeyEventArgs ) =
      base.OnKeyDown(args)
      this.DisplayKeyInfo(args)

   override this.OnKeyUp (args:KeyEventArgs ) =
      base.OnKeyUp(args)
      this.DisplayKeyInfo(args)

   override this.OnTextInput (args:TextCompositionEventArgs  ) =
      base.OnTextInput(args)

      let result = [| args.RoutedEvent.Name; args.Text;
                      args.ControlText; args.SystemText |]

      let strg = String.Format(frmtTxtStrg, (Array.map box result))

      this.DisplayInfo(strg);

   member this.DisplayKeyInfo (args:KeyEventArgs) =

      let tst = args.RoutedEvent.Name
      let result = [| args.RoutedEvent.Name; args.Key.ToString();
                     args.SystemKey.ToString(); args.ImeProcessedKey.ToString();
                     args.KeyStates.ToString(); args.IsDown.ToString();
                     args.IsUp.ToString(); args.IsToggled.ToString();
                     args.IsRepeat.ToString() |]
      let str =  String.Format(frmtKyStrg, (Array.map box result))
      this.DisplayInfo(str)

   member this.DisplayInfo (str:string) =
      let text = new TextBlock();
      text.Text <- str;
      this.stck.Children.Add(text) |>ignore
      this.scrl.ScrollToBottom();
end

#if COMPILED
[<STAThread()>]
do
    let aplctn =  Application() in
    aplctn.Run(new ExmnKyStrk()) |> ignore
#endif

Step 5: Now press F5 to execute the code.

Output

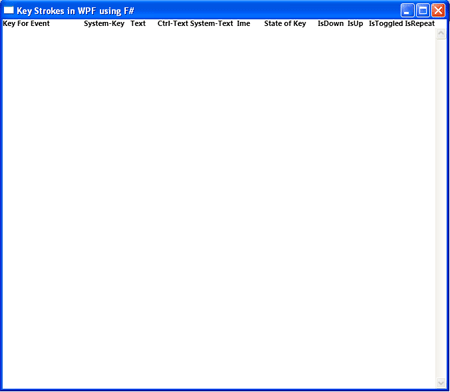

KeyStroke Output1

Keystroke Output2

Keystroke Output3

Summary

In this article I have discussed that how to implement Keystroke Event in WPF using F#.
