Update Conflict Error in SharePoint Using PowerShell Script

Introduction

Many of you must have come across the issue “An update conflict has occurred and you must re-try this action” and it is suggested to remove the file system cache on the front-end servers. There are many articles to show how to do this manually. But here I will show you how to resolve it using a PowerShell script.

Cause for this issue

This issue occurs if the contents of the file system cache on the front-end servers are newer than the contents of the configuration database.

Resolution

To resolve this issue, clear the file system cache on all servers in the server Farm on which the Windows SharePoint Services Timer service is running. This can be done manually, but consider a large Farm where the administrator needs to login to each of the servers to perform the activity manually. It is time-consuming and people can make mistakes. PowerShell becomes handy here.

The following procedure can resolve the issue:

  1. Stop the SharePoint timer service
  2. Take a backup of the system cache files before deleting it
  3. Delete the XML files from the cache folder
  4. Reset the cache.ini file to the value 1
  5. Start the SharePoint timer service

Now I will explain how to perform the preceding tasks using a PowerShell script.

Stop SharePoint timer service

The following piece of code stops the SharePoint timer service:

  1. Function StopSPTimerServicesInFarm([Microsoft.SharePoint.Administration.SPFarm]$farm)
  2. {
  3.     Write-Host ""
  4.     foreach($server in $farm.Servers)
  5.         {
  6.         foreach($instance in $server.ServiceInstances)
  7.                 {
  8.                         # If the server has the timer service then stop the service
  9.                        if($instance.TypeName -eq $timerServiceInstanceName)
  10.                        {
  11.                             [string]$serverName = $server.Name
  12.
  13.                             Write-Host "Stop " $timerServiceName " service on server: " $serverName -fore yellow
  14.
  15.                             $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  16.                             $serviceInternalName = $service.Name
  17.                             sc.exe \\$serverName stop $serviceInternalName > $null
  18.
  19.                               # Wait until this service has actually stopped
  20.                   write-host "Waiting for '$timerServiceName' service on server: " $serverName " to be stopped" -fore yellow
  21.                               do
  22.                       {
  23.                               Start-Sleep 1
  24.                               Write-Host -foregroundcolor DarkGray -NoNewLine "."
  25.                               $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  26.                       }
  27.                      while ($service.State -ne "Stopped")
  28.                  write-host " '$timerServiceName' service on server: " $serverName " stopped successfully" -fore green
  29.                              break;
  30.                        }
  31.                 }
  32.         }
  33.
  34.         Write-Host ""
  35. }
Backup config cache files

The following piece of code backs up the config cache files before deleting it:
  1. Function BackupSPConfigFiles([Microsoft.SharePoint.Administration.SPFarm]$farm)
  2. {
  3.     write-host ""
  4.     write-host "Backup SP config cache files" -fore yellow
  5.
  6.     foreach($server in $farm.servers)
  7.     {
  8.         foreach($instance in $server.ServiceInstances)
  9.         {
  10.             if($instance.TypeName -eq $timerServiceInstanceName)
  11.             {
  12.                 $ServerName = $server.name
  13.                 $FolderName  = $servername + "SPConfigCacheBackup"
  14.                 write-host "Creating a folder to hold the backup files" -fore magenta
  15.                 write-host "Checking whether the folder aleady exist"
  16.                 if(Test-path $scriptbase\$FolderName)
  17.                 {
  18.                     write-host "Folder already exists and the script is deleting it......"
  19.                     remove-item $scriptbase\$FolderName -recurse -confirm:$false
  20.                     write-host "Existing folder deleted" -fore green
  21.                 }
  22.                 else
  23.                 {
  24.                     write-host "Folder does not exist"
  25.                 }
  26.                 New-Item $scriptbase\$FolderName -type directory
  27.                 write-host "New folder created to hold the backup files" -fore magenta
  28.                 write-host "Backup of SP config files for the server " $serverName " started ...... " -fore yellow
  29.                 $path = "\\" + $serverName + "\c$\ProgramData\Microsoft\SharePoint\Config"
  30.                 Copy-Item $path -Destination $scriptbase\$FolderName -recurse
  31.                 write-host "SP config cache files backed up for the server " $serverName " Sucessfully..." -fore green
  32.             }
  33.         }
  34.     }
  35.     write-host "SP config caches files are backed up" -fore green
  36.     write-host ""
  37. }
Deleting XML files

The following piece of code deletes the XML files:
  1. Function DeletingXMLFiles([Microsoft.SharePoint.Administration.SPFarm]$farm)
  2. {
  3.     Write-host ""
  4.     write-host "Deleting SP config cache XML files from each server in the farm" -fore yellow
  5.     $path = ""
  6.     foreach($server in $farm.servers)
  7.     {
  8.         foreach($instance in $server.ServiceInstances)
  9.         {
  10.             if($instance.TypeName -eq $timerServiceInstanceName)
  11.             {
  12.                 $serverName = $server.Name
  13.                 write-host "Deleting SP config cache files from the server " $servername -fore magenta
  14.                 $path = "\\" + $serverName + "\c$\ProgramData\Microsoft\SharePoint\Config\*-*\*.xml"
  15.                 remove-item -path $path -force
  16.                 write-host "SP config cache files deleted on the server " $servername -fore magenta
  17.                 break
  18.             }
  19.         }
  20.     }
  21.     write-host "SP config cache XML files from each server in the farm is deleted successfully......" -fore green
  22.     write-host ""
  23. }
Reset timer cache

The following piece of code resets the timer cache:
  1. Function ResetTimerCache([Microsoft.SharePoint.Administration.SPFarm]$farm)
  2. {
  3.     write-host ""
  4.     write-host "Reseting the value of timer cache to 1" -fore yellow
  5.     $path = ""
  6.     foreach($server in $farm.servers)
  7.     {
  8.         foreach($instance in $server.ServiceInstances)
  9.         {
  10.             if($instance.TypeName -eq $timerServiceInstanceName)
  11.             {
  12.                 $serverName = $server.Name
  13.                 write-host "Reseting the value of timer cache file in server " $serverName -fore magenta
  14.                 $path = "\\" + $serverName + "\c$\ProgramData\Microsoft\SharePoint\Config\*-*\cache.ini"
  15.                 Set-Content -path $path -Value "1"
  16.                 write-host "Value of timer cache file in server " $serverName " is resetted to 1" -fore magenta
  17.                 break
  18.             }
  19.         }
  20.     }
  21.     write-host "The value of timer cache is resetted to 1 in all the SP servers in the farm" -fore green
  22.     write-host ""
  23. }
Start SharePoint timer service
  1. Function StartSPTimerServicesInFarm([Microsoft.SharePoint.Administration.SPFarm]$farm)
  2. {
  3.     Write-Host ""
  4.     foreach($server in $farm.Servers)
  5.         {
  6.         foreach($instance in $server.ServiceInstances)
  7.                 {
  8.                         # If the server has the timer service then stop the service
  9.                        if($instance.TypeName -eq $timerServiceInstanceName)
  10.                        {
  11.                             [string]$serverName = $server.Name
  12.
  13.                             Write-Host "Start " $timerServiceName " service on server: " $serverName -fore yellow
  14.
  15.                             $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  16.                             $serviceInternalName = $service.Name
  17.                             sc.exe \\$serverName start $serviceInternalName > $null
  18.
  19.                               # Wait until this service starts running
  20.                   write-host "Waiting for " $timerServiceName " service on server: " $serverName " to be started" -fore yellow
  21.                               do
  22.                       {
  23.                               Start-Sleep 1
  24.                               Write-Host -foregroundcolor DarkGray -NoNewLine "."
  25.                               $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  26.                       }
  27.                      while ($service.State -ne "Running")
  28.                  write-host $timerServiceName " service on server: " $serverName " started successfully" -fore green
  29.                              break;
  30.                        }
  31.                 }
  32.         }
  33.
  34.         Write-Host ""
  35. }
Complete Code
  1. $LogTime = Get-Date -Format yyyy-MM-dd_hh-mm
  2. $LogFile = ".\ClearSPConfigCachePatch-$LogTime.rtf"
  3.
  4. # Add SharePoint PowerShell Snapin
  5.
  6.
  7. if ( (Get-PSSnapin -Name Microsoft.SharePoint.PowerShell -ErrorAction SilentlyContinue) -eq $null ) {
  8.     Add-PSSnapin Microsoft.SharePoint.Powershell
  9. }
  10.
  11. $scriptBase = split-path $SCRIPT:MyInvocation.MyCommand.Path -parent
  12. Set-Location $scriptBase
  13.
  14.
  15. #Deleting any .rtf files in the scriptbase location
  16. $FindRTFFile = Get-ChildItem $scriptBase\*.* -include *.rtf
  17. if($FindRTFFile)
  18. {
  19.     foreach($file in $FindRTFFile)
  20.         {
  21.             remove-item $file
  22.         }
  23. }
  24.
  25.
  26. start-transcript $logfile
  27.
  28. Write-host "##############Following steps will be involved################" -fore green
  29. write-host "Step 1 - Stop the timerservice" -fore cyan
  30. write-host "Step 2 - Take the backup of config cache file" -fore cyan
  31. write-host "Step 3 - Delete the XML files" -fore cyan
  32. write-host "Step 4 - Reset the cache.ini file" -fore cyan
  33. write-host "Step 5 - Start the SP timerservice" -fore cyan
  34. Write-host "##############Above steps will be involved##################" -fore green
  35.
  36. $global:timerServiceName = "SharePoint 2010 Timer"
  37. $global:timerServiceInstanceName = "Microsoft SharePoint Foundation Timer"
  38.
  39. # Get the local farm instance
  40. [Microsoft.SharePoint.Administration.SPFarm]$farm = [Microsoft.SharePoint.Administration.SPFarm]::get_Local()
  41. Function StopSPTimerServicesInFarm([Microsoft.SharePoint.Administration.SPFarm]$farm)
  42. {
  43.     Write-Host ""
  44.     foreach($server in $farm.Servers)
  45.         {
  46.         foreach($instance in $server.ServiceInstances)
  47.                 {
  48.                         # If the server has the timer service then stop the service
  49.                        if($instance.TypeName -eq $timerServiceInstanceName)
  50.                        {
  51.                             [string]$serverName = $server.Name
  52.
  53.                             Write-Host "Stop " $timerServiceName " service on server: " $serverName -fore yellow
  54.
  55.                             $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  56.                             $serviceInternalName = $service.Name
  57.                             sc.exe \\$serverName stop $serviceInternalName > $null
  58.
  59.                               # Wait until this service has actually stopped
  60.                   write-host "Waiting for '$timerServiceName' service on server: " $serverName " to be stopped" -fore yellow
  61.                               do
  62.                       {
  63.                               Start-Sleep 1
  64.                               Write-Host -foregroundcolor DarkGray -NoNewLine "."
  65.                               $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  66.                       }
  67.                      while ($service.State -ne "Stopped")
  68.                  write-host " '$timerServiceName' service on server: " $serverName " stopped successfully" -fore green
  69.                              break;
  70.                        }
  71.                 }
  72.         }
  73.
  74.         Write-Host ""
  75. }
  76.
  77.
  78. Function BackupSPConfigFiles([Microsoft.SharePoint.Administration.SPFarm]$farm)
  79. {
  80.     write-host ""
  81.     write-host "Backup SP config cache files" -fore yellow
  82.
  83.     foreach($server in $farm.servers)
  84.     {
  85.         foreach($instance in $server.ServiceInstances)
  86.         {
  87.             if($instance.TypeName -eq $timerServiceInstanceName)
  88.             {
  89.                 $ServerName = $server.name
  90.                 $FolderName  = $servername + "SPConfigCacheBackup"
  91.                 write-host "Creating a folder to hold the backup files" -fore magenta
  92.                 write-host "Checking whether the folder aleady exist"
  93.                 if(Test-path $scriptbase\$FolderName)
  94.                 {
  95.                     write-host "Folder already exists and the script is deleting it......"
  96.                     remove-item $scriptbase\$FolderName -recurse -confirm:$false
  97.                     write-host "Existing folder deleted" -fore green
  98.                 }
  99.                 else
  100.                 {
  101.                     write-host "Folder does not exist"
  102.                 }
  103.                 New-Item $scriptbase\$FolderName -type directory
  104.                 write-host "New folder created to hold the backup files" -fore magenta
  105.                 write-host "Backup of SP config files for the server " $serverName " started ...... " -fore yellow
  106.                 $path = "\\" + $serverName + "\c$\ProgramData\Microsoft\SharePoint\Config"
  107.                 Copy-Item $path -Destination $scriptbase\$FolderName -recurse
  108.                 write-host "SP config cache files backed up for the server " $serverName " Sucessfully..." -fore green
  109.             }
  110.         }
  111.     }
  112.     write-host "SP config caches files are backed up" -fore green
  113.     write-host ""
  114. }
  115.
  116.
  117. Function DeletingXMLFiles([Microsoft.SharePoint.Administration.SPFarm]$farm)
  118. {
  119.     Write-host ""
  120.     write-host "Deleting SP config cache XML files from each server in the farm" -fore yellow
  121.     $path = ""
  122.     foreach($server in $farm.servers)
  123.     {
  124.         foreach($instance in $server.ServiceInstances)
  125.         {
  126.             if($instance.TypeName -eq $timerServiceInstanceName)
  127.             {
  128.                 $serverName = $server.Name
  129.                 write-host "Deleting SP config cache files from the server " $servername -fore magenta
  130.                 $path = "\\" + $serverName + "\c$\ProgramData\Microsoft\SharePoint\Config\*-*\*.xml"
  131.                 remove-item -path $path -force
  132.                 write-host "SP config cache files deleted on the server " $servername -fore magenta
  133.                 break
  134.             }
  135.         }
  136.     }
  137.     write-host "SP config cache XML files from each server in the farm is deleted successfully......" -fore green
  138.     write-host ""
  139. }
  140.
  141.
  142. Function ResetTimerCache([Microsoft.SharePoint.Administration.SPFarm]$farm)
  143. {
  144.     write-host ""
  145.     write-host "Reseting the value of timer cache to 1" -fore yellow
  146.     $path = ""
  147.     foreach($server in $farm.servers)
  148.     {
  149.         foreach($instance in $server.ServiceInstances)
  150.         {
  151.             if($instance.TypeName -eq $timerServiceInstanceName)
  152.             {
  153.                 $serverName = $server.Name
  154.                 write-host "Reseting the value of timer cache file in server " $serverName -fore magenta
  155.                 $path = "\\" + $serverName + "\c$\ProgramData\Microsoft\SharePoint\Config\*-*\cache.ini"
  156.                 Set-Content -path $path -Value "1"
  157.                 write-host "Value of timer cache file in server " $serverName " is resetted to 1" -fore magenta
  158.                 break
  159.             }
  160.         }
  161.     }
  162.     write-host "The value of timer cache is resetted to 1 in all the SP servers in the farm" -fore green
  163.     write-host ""
  164. }
  165.
  166.
  167. Function StartSPTimerServicesInFarm([Microsoft.SharePoint.Administration.SPFarm]$farm)
  168. {
  169.     Write-Host ""
  170.     foreach($server in $farm.Servers)
  171.         {
  172.         foreach($instance in $server.ServiceInstances)
  173.                 {
  174.                         # If the server has the timer service then stop the service
  175.                        if($instance.TypeName -eq $timerServiceInstanceName)
  176.                        {
  177.                             [string]$serverName = $server.Name
  178.
  179.                             Write-Host "Start " $timerServiceName " service on server: " $serverName -fore yellow
  180.
  181.                             $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  182.                             $serviceInternalName = $service.Name
  183.                             sc.exe \\$serverName start $serviceInternalName > $null
  184.
  185.                               # Wait until this service starts running
  186.                   write-host "Waiting for " $timerServiceName " service on server: " $serverName " to be started" -fore yellow
  187.                               do
  188.                       {
  189.                               Start-Sleep 1
  190.                               Write-Host -foregroundcolor DarkGray -NoNewLine "."
  191.                               $service = Get-WmiObject -ComputerName $serverName Win32_Service -Filter "DisplayName='$timerServiceName'"
  192.                       }
  193.                      while ($service.State -ne "Running")
  194.                  write-host $timerServiceName " service on server: " $serverName " started successfully" -fore green
  195.                              break;
  196.                        }
  197.                 }
  198.         }
  199.
  200.         Write-Host ""
  201. }
  202.
  203.
  204. #############Calling functions################
  205. StopSPTimerServicesInFarm $farm
  206. BackupSPConfigFiles $farm
  207. DeletingXMLFiles $farm
  208. ResetTimerCache $farm
  209. StartSPTimerServicesInFarm $farm
  210. ##########################################
  211.
  212. write-host "SCRIPT COMPLETED" -fore cyan
  213. stop-transcript
Execution Procedure

Step 1: Download the script and copy it to the SharePoint server.

Step 2: Navigate to the script path.

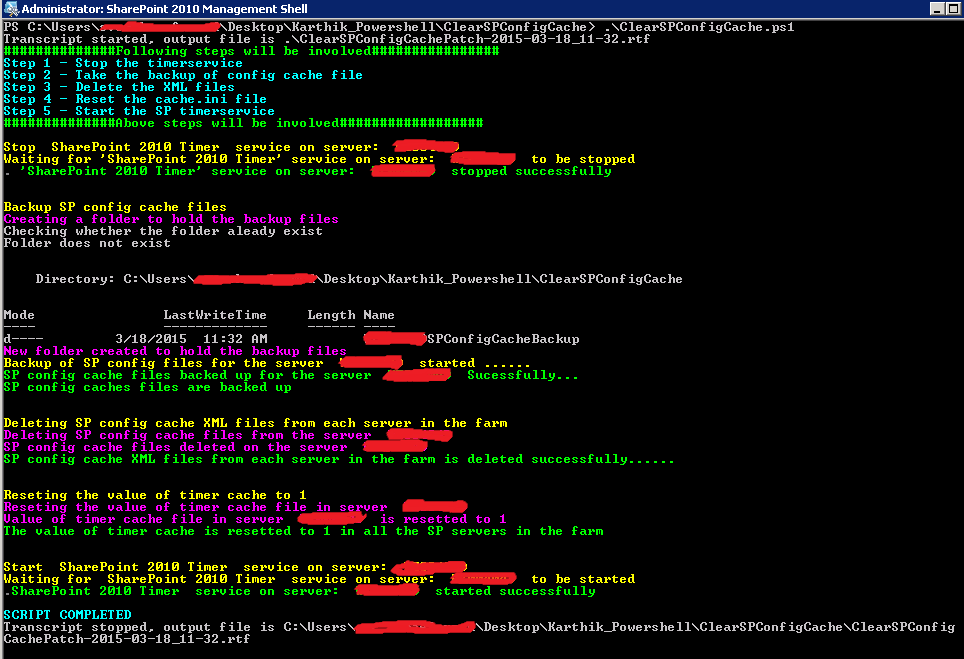

Step 3: Execute the script.



Conclusion

Thus this article explained how to troubleshoot the “Update conflict” error in SharePoint using a PowerShell script.

Up Next
    Ebook Download
    View all
    Learn
    View all
    Get Started

    You need to be a premium member to use this feature. To access it, you'll have to upgrade your membership.

    Become a sharper developer and jumpstart your career.

    Basic

    $0

    $

    . 00

    monthly

    For Basic members:

    • Standard Profile
    • Access learning courses
    • Access free e-books
    • 1x point
    Premium

    $20

    $

    . 00

    monthly

    For Premium members:

    • Earn 2x reward points
    • Premium profile with Verified check
    • Premium Avatar with status update
    • Learning courses
    • Unlimited Certifications and badges on profile
    • Unlimited Book downloads
    • Access to Premium content
    • Online Training
    • Unlimited PDF conversions and downloads
    • Professional Resume Writing
    • Interview Preparations Guide
    • 25 messages per month
    • 1 "Kodzu" avatar, basic
    Elite

    $45

    $

    . 00

    monthly

    For Elite members:

    • Bundle E-books
    • Access to all Learn Series
    • Unlimited Apply Jobs
