JQuery

AutoComplete Widget In Kendo UI

To explain how to work with AutoComplete widget in Kendo UI, I’m going to use the following API which I have created from my previous article,

            1. api/department

GET: api/department response as shown in figure 1,



Create an HTML page in your project, in my case I named it KendoAutoComplete.html.

Design in KendoAutoComplete.html

  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.common.min.css" />
  5.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.default.min.css" />
  6.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.min.css" />
  7.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.default.min.css" />
  8.     <script src="http://cdn.kendostatic.com/2014.3.1316/js/jquery.min.js"></script>
  9.     <script src="http://cdn.kendostatic.com/2014.3.1316/js/kendo.all.min.js"></script>
  10.     <script src="http://cdn.kendostatic.com/2014.3.1029/js/jszip.min.js"></script>
  11.     <title></title>
  12.     <meta charset="utf-8" />
  13. </head>
  14. <body>
  15.     <div id="example">
  16.         <input data-role="autocomplete"
  17. data-placeholder="Department"
  18.                data-text-field="DepartmentName"
  19.                data-bind="value: selectedProduct,
  20.                               source: products,
  21.                               visible: isVisible,
  22.                               enabled: isEnabled"
  23.                style="width: 100%;" />
  24.         </div>
  25. </body>
  26. </html>

JavaScript

  1. $(document).ready(function () {
  2.
  3.           var viewModel = kendo.observable({
  4.               selectedProduct: null,
  5.               isVisible: true,
  6.               isEnabled: true,
  7.               products: new kendo.data.DataSource({
  8.                   transport: {
  9.                       read: {
  10.                           url: "api/Departments",
  11.                           dataType: "json"
  12.                       }
  13.                   }
  14.               })
  15.           })
  16.           kendo.bind($("#example"), viewModel);
  17.           })

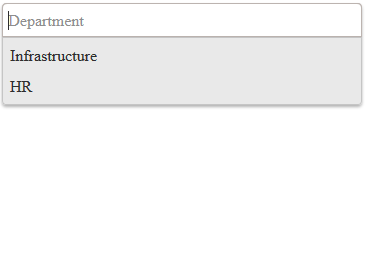

 Result in Browser



Events in Kendo Autocomplete widget

The main events in Kendo Autocomplete widget is listed below:

  1. Databound
  2. Change
  3. Open
  4. Close
  5. Select

      Databound: This event is fired when the kendo Autocomplete is bound to data from its data source.

HTML

  1. <input data-role="autocomplete"
  2.                data-placeholder="Department"
  3.
  4.                data-text-field="DepartmentName"
  5.                data-bind="value: selectedProduct,
  6.                               source: products,
  7.                               visible: isVisible,
  8.                               enabled: isEnabled,events:{dataBound:AutoComplete_Bound}"
  9.                style="width: 100%;" />

JavaScript

  1. AutoComplete_Bound:function(e)
  2.                 {
  3.                     e.preventDefault();
  4.                     alert("DataBaound")
  5.
  6.             },

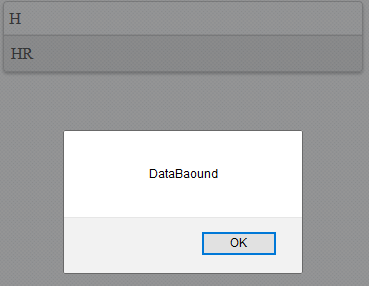

Result in Browser



Change Event: This event in Kendo AutoComplete is fired when the value of the widget is changed by user.

HTML Design
  1. <input data-role="autocomplete"
  2.          data-placeholder="Department"
  3.
  4.          data-text-field="DepartmentName"
  5.          data-bind="value: selectedProduct,
  6.                         source: products,
  7.                         visible: isVisible,
  8.                         enabled: isEnabled,events:{change:AutoComplete_Change}"
  9.          style="width: 100%;" />

JavaScript

  1. AutoComplete_Change:function(e)
  2.                 {
  3.                     e.preventDefault();
  4.                     alert("Change Event")
  5.                 },

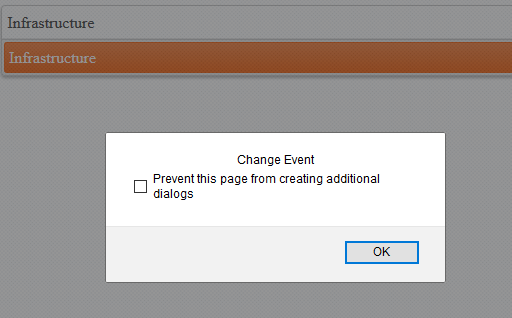

 Result in Browser



Open Event: This event is fired when the items in the widget is opened.

HTML

  1. <input data-role="autocomplete"
  2.                data-placeholder="Department"
  3.
  4.                data-text-field="DepartmentName"
  5.                data-bind="value: selectedProduct,
  6.                               source: products,
  7.                               visible: isVisible,
  8.                               enabled: isEnabled,events:{open:AutoComplete_Open}"
  9.                style="width: 100%;" />

JavaScript

  1. AutoComplete_Open:function(e)
  2.                 {
  3.                     e.preventDefault();
  4.                     alert("Open Event")
  5.                 },

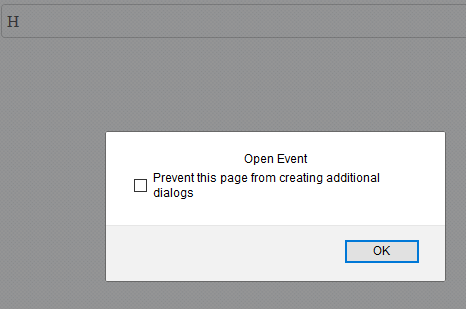

Result in Browser



Close Event: This event is fired when the items in the widget is closed.

HTML

  1. <input data-role="autocomplete"
  2.                data-placeholder="Department"
  3.
  4.                data-text-field="DepartmentName"
  5.                data-bind="value: selectedProduct,
  6.                               source: products,
  7.                               visible: isVisible,
  8.                               enabled: isEnabled,events:{close:AutoComplete_Close}"
  9.                style="width: 100%;" />

JavaScript

  1. AutoComplete_Close:function(e)
  2.                 {
  3.                     e.preventDefault();
  4.                     alert("Close Event")
  5.                 },

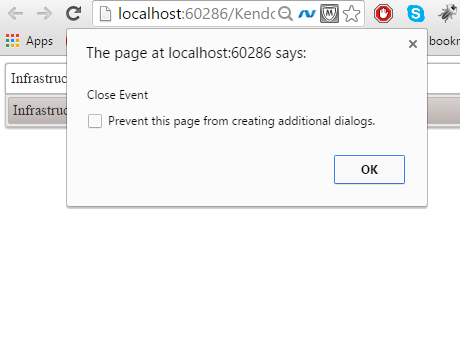

Result in Browser


Select Event: This event is fired when an item from the AutoComplete box is selected by the user.

HTML
  1. <input id="AutoFill_ID" data-role="autocomplete"
  2.                data-placeholder="Department"
  3.                data-selectable="true"
  4.
  5.                data-text-field="DepartmentName"
  6.                data-bind="value: selectedProduct,
  7.                               source: products,
  8.                               visible: isVisible,
  9.                               enabled: isEnabled,events:{select:AutoComplete_Select}"
  10.                style="width: 100%;" />

JavaScript

  1. AutoComplete_Select:function(e)
  2.                 {
  3.                     var item = e.sender.dataItem(e.item.index());
  4.                     viewModel.set("selectedPerson", item);
  5.                     alert(item.DepartmentName);
  6.                 },

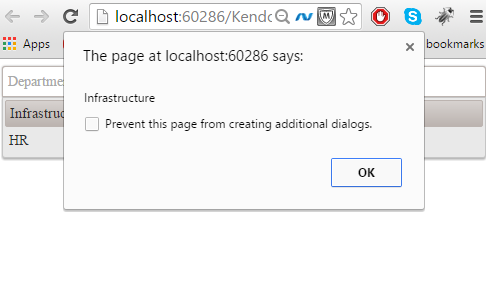

Result in Browser


Here is the complete code:
  1. <!DOCTYPE html>
  2. <html>
  3. <head>
  4.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.common.min.css" />
  5.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.default.min.css" />
  6.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.min.css" />
  7.     <link rel="stylesheet" href="http://cdn.kendostatic.com/2014.3.1316/styles/kendo.dataviz.default.min.css" />
  8.     <script src="http://cdn.kendostatic.com/2014.3.1316/js/jquery.min.js"></script>
  9.     <script src="http://cdn.kendostatic.com/2014.3.1316/js/kendo.all.min.js"></script>
  10.     <script src="http://cdn.kendostatic.com/2014.3.1029/js/jszip.min.js"></script>
  11.     <title></title>
  12.     <meta charset="utf-8" />
  13. </head>
  14. <body>
  15.     <div id="example">
  16.         <input id="AutoFill_ID" data-role="autocomplete"
  17.                data-placeholder="Department"
  18.                data-selectable="true"
  19.
  20.                data-text-field="DepartmentName"
  21.                data-bind="value: selectedProduct,
  22.                               source: products,
  23.                               visible: isVisible,
  24.                               enabled: isEnabled,events:{dataBound:AutoComplete_Bound,change:AutoComplete_Change,
  25.                open:AutoComplete_Open,close:AutoComplete_Close,select:AutoComplete_Select}"
  26.                style="width: 100%;" />
  27.         </div>
  28.     <script>
  29.         $(document).ready(function () {
  30.
  31.             var viewModel = kendo.observable({
  32.                 selectedProduct: null,
  33.                 isVisible: true,
  34.                 isEnabled: true,
  35.                 selectedPerson: {},
  36.                 AutoComplete_Select:function(e)
  37.                 {
  38.                     var item = e.sender.dataItem(e.item.index());
  39.                     viewModel.set("selectedPerson", item);
  40.                     alert(item.DepartmentName);
  41.                 },
  42.                 AutoComplete_Bound:function(e)
  43.                 {
  44.                     e.preventDefault();
  45.                     alert("DataBaound")
  46.
  47.                 },
  48.                 AutoComplete_Change:function(e)
  49.                 {
  50.                     e.preventDefault();
  51.                     alert("Change Event")
  52.                 },
  53.                 AutoComplete_Open:function(e)
  54.                 {
  55.                     e.preventDefault();
  56.                     alert("Open Event")
  57.                 },
  58.                 AutoComplete_Close:function(e)
  59.                 {
  60.                     e.preventDefault();
  61.                     alert("Close Event")
  62.                 },
  63.                 products: new kendo.data.DataSource({
  64.                     transport: {
  65.                         read: {
  66.                             url: "api/Departments",
  67.                             dataType: "json"
  68.                         }
  69.                     }
  70.                 })
  71.             })
  72.             kendo.bind($("#example"), viewModel);
  73.             })
  74.     </script>
  75. </body>
  76. </html>
I hope you enjoyed this article. Your valuable feedback, question, or comments about this article are always welcomed.
